System Inspection Procedures

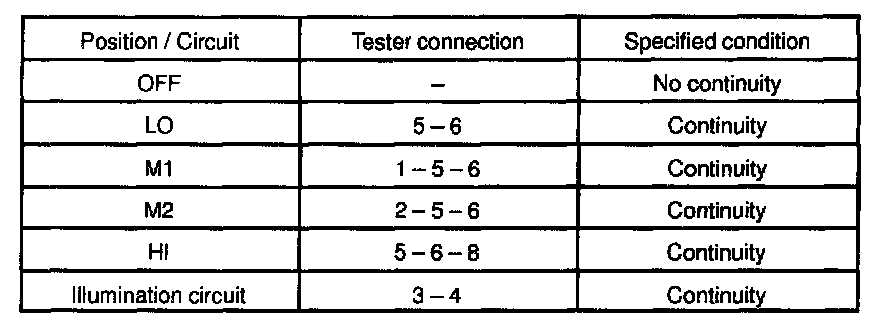

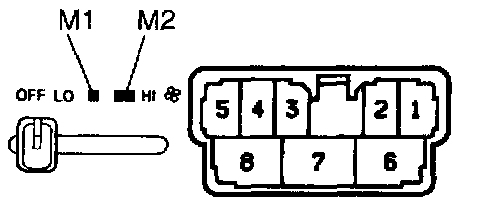

1. INSPECTION BLOWER SPEED CONTROL SWITCH OPERATION If continuity is not as specified, replace heater control assembly.
2. INSPECT DEFROSTER MODE SWITCH CONTINUITY Move the mode lever to the DEF. position, then check that there is continuity.
If continuity is not as specified, replace the switch.
