Receiver Dryer: Service and Repair

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

HINT: At the time of the installation, please refer to the following item.

Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.

Specified amount: 650 ± 50 g (22.92 ± 1.76 oz.)

2. REMOVE RADIATOR GRILLE




3. DISCONNECT 2 LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and disconnect the both tubes.

Torque: 5.4 Nm (55 kg.cm, 48 in.lb)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT: At the time of the installation, please refer to the following item.

Lubricate 2 new O-rings with compressor oil and install them to the tubes.

4. REMOVE RECEIVER

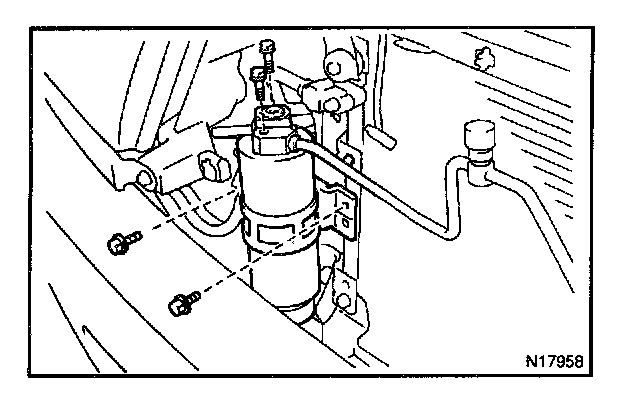

a. Remove the holder bolt and pull receiver downward.

HINT: At the time of the installation, please refer to the following item.

If receiver is replaced, add compressor oil to compressor.
Add 20 cc (0.71 fl.oz.)

Compressor oil: ND-OIL 8 or equivalent

b. Remove the bolt and holder.

INSTALLATION
Installation Is in the reverse order of removal.
