Drive Belt: Service and Repair

REMOVAL

1. REMOVE PS PUMP DRIVE BELT
2. REMOVE ENGINE UNDER COVER




3. REMOVE DRIVE BELT

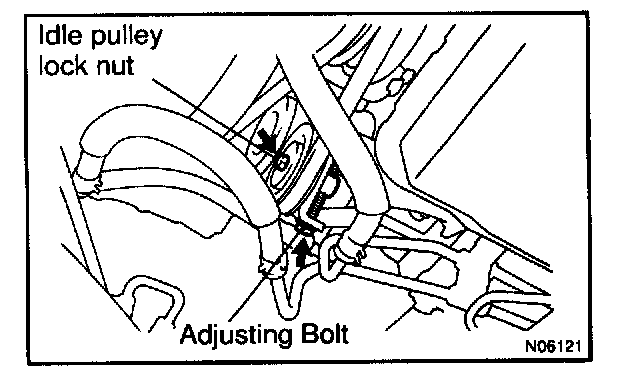

a. Loosen the idle pulley lock nut.
b. Loosen the drive belt tension by adjusting bolt and remove the drive belt.




INSTALLATION
1. TIGHTEN IDLE PULLEY LOCK NUT TEMPORALLY

Torque: 2.5 Nm (25 kg.cm, 22 in.lb)

2. INSTALL DRIVE BELT
3. USING ADJUSTING BOLT, ADJUST DRIVE BELT TENSION
Drive belt tension
- New belt: 160 ± 25 lb
- Used belt: 100 ° 25 lb

4. TIGHTEN IDLE PULLEY LOCK NUT

Torque: 39 Nm (400 kg.cm, 29 ft.lb)

5. INSTALL PS PUMP DRIVE BELT
6. INSTALL ENGINE UNDER COVER
