Load Compensator: Service and Repair

REMOVAL





1. DISCONNECT BRAKE LINES

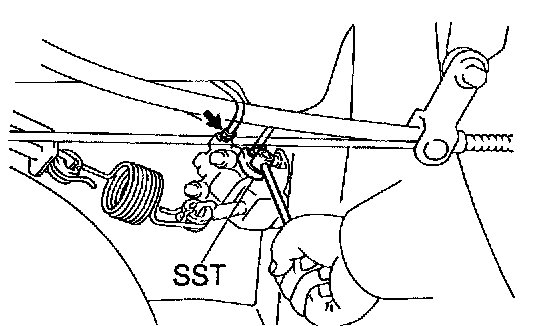

Using SST, disconnect the brake lines from the valve body.
SST 09023-00100
2. REMOVE LSP & BV ASSEMBLY

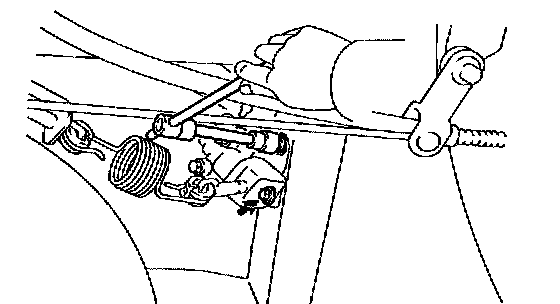

a. Remove the lock nut and disconnect the adjusting bolt from the rear suspension arm.

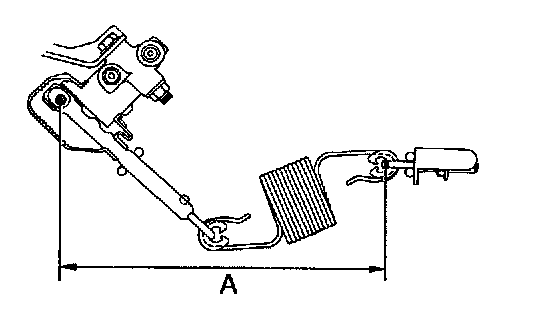

NOTICE: At the time of installation, please refer to the following item. Set spring length A to initial set length and temporarily tighten the lock nut.
Initial set length (Unladen): 222.5 mm (8.760 inch)

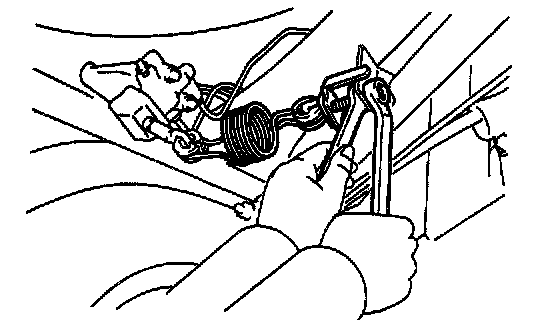

b. Remove the 2 mounting bolts and LSP & BV assembly.
Torque: 29 Nm (300 kgf-cm, 22 ft. lbs.)
c. Remove the 2 nuts and LSP & BV from the bracket.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)


INSTALLATION
Installation is in the reverse order of removal.
AFTER INSTALLATION, FILL BRAKE RESERVOIR WITH BRAKE FLUID, BLEED BRAKE SYSTEM, CHECK AND ADJUST FLUID PRESSURE AND CHECK FOR LEAKS

Service and Repair
