Reprogramming, Erasing, and Programming Other Devices

Individual HomeLink(R) buttons cannot be erased, however, to reprogram a single button, follow the steps listed below.

1. Select the correct programming procedure based on the device the customer wants programmed.

A. Programming the HomeLink(R) Universal Transceiver.

B. Programming an entrance gate.

2. Press and hold down the selected button until the indicator light on the HomeLink(R) begins to flash slowly. Do not release this button until the programming is complete.

3. Proceed to Step 2 of the selected programming procedure for the remaining programming instructions.

Erasing Programming Memory

Erasing The Entire HomeLink Memory (All Three Programs)





To erase ALL previously programmed codes at one time press and hold down the 2 outside buttons until the indicator light flashes. (See Step 1 in "First Time Programming.")

Programming Other Devices

The HomeLink(R) Universal Transceiver may be programmed to operate other devices such as entry doors, door locks, security systems, as well as home lighting systems.

NOTE:
Accessories may be necessary to operate some of the other devices listed above.

On behalf of the customer, additional information and/or programming instructions for other devices can be obtained from HomeLink(R) at 1-800-355-3515 or on their web site at www.homelink.com.

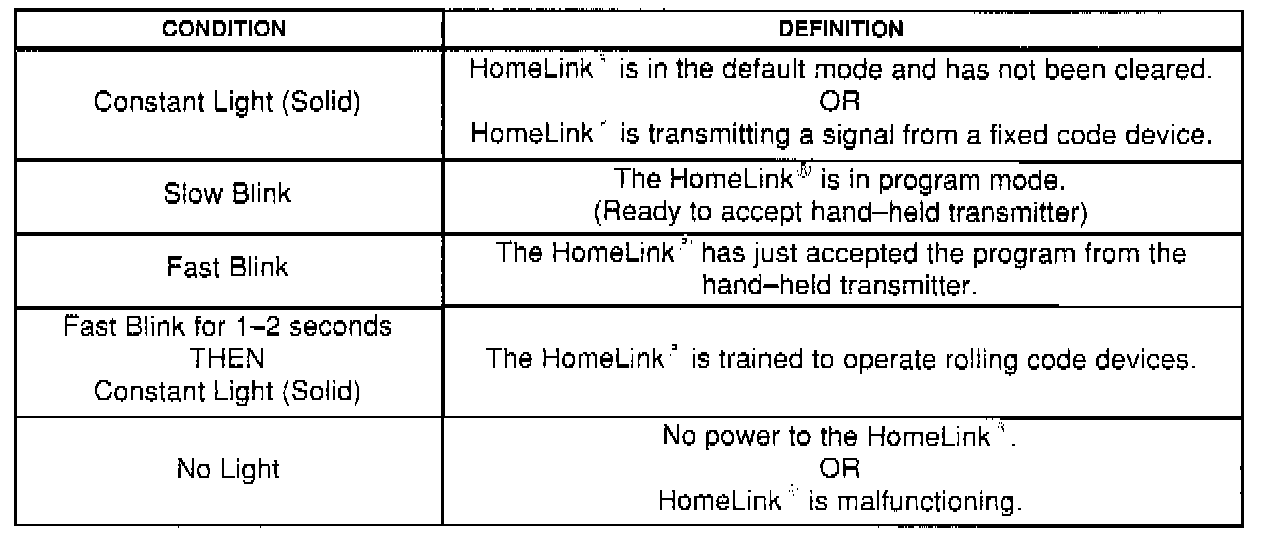

LED Light Definitions
