Body Components

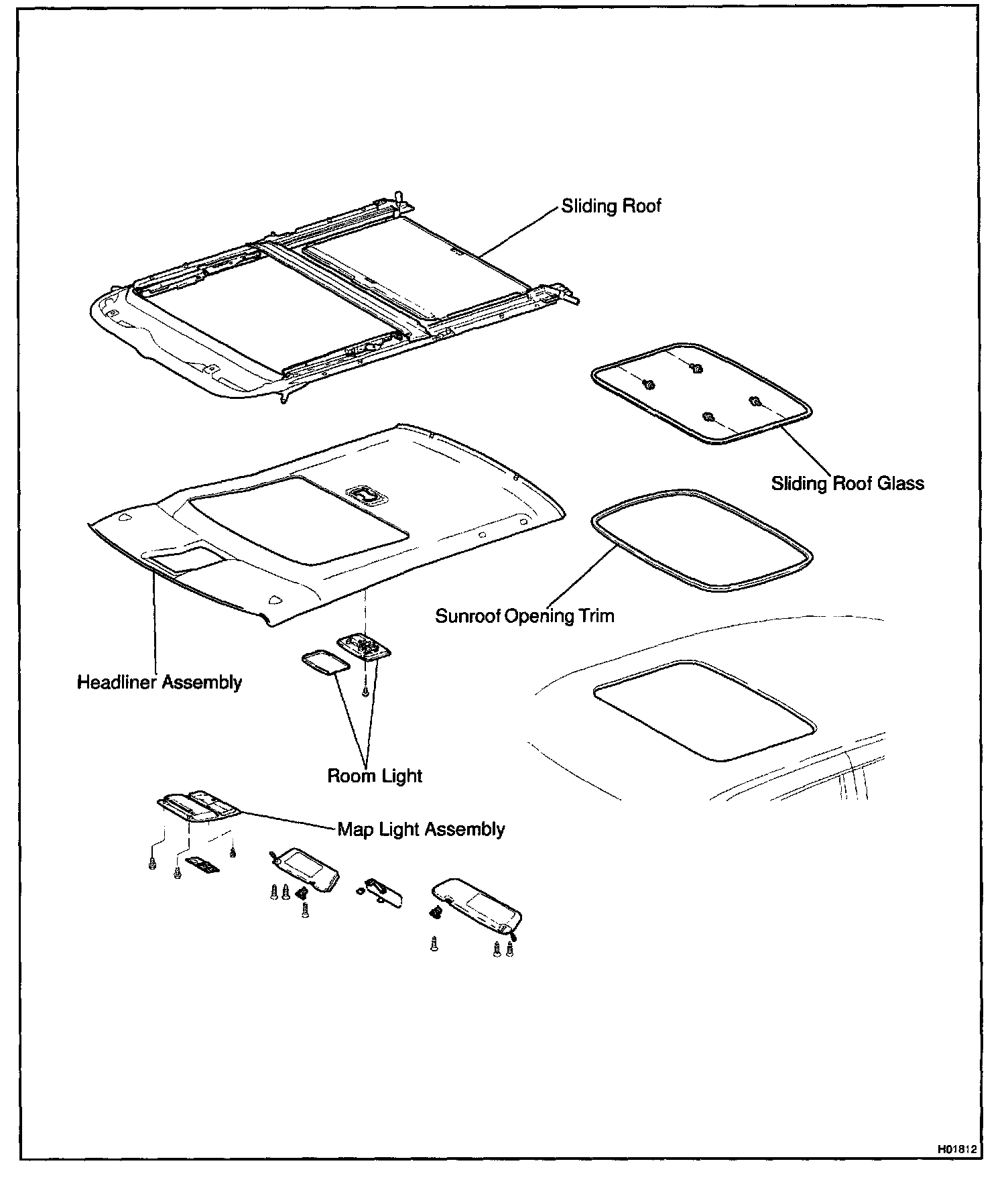

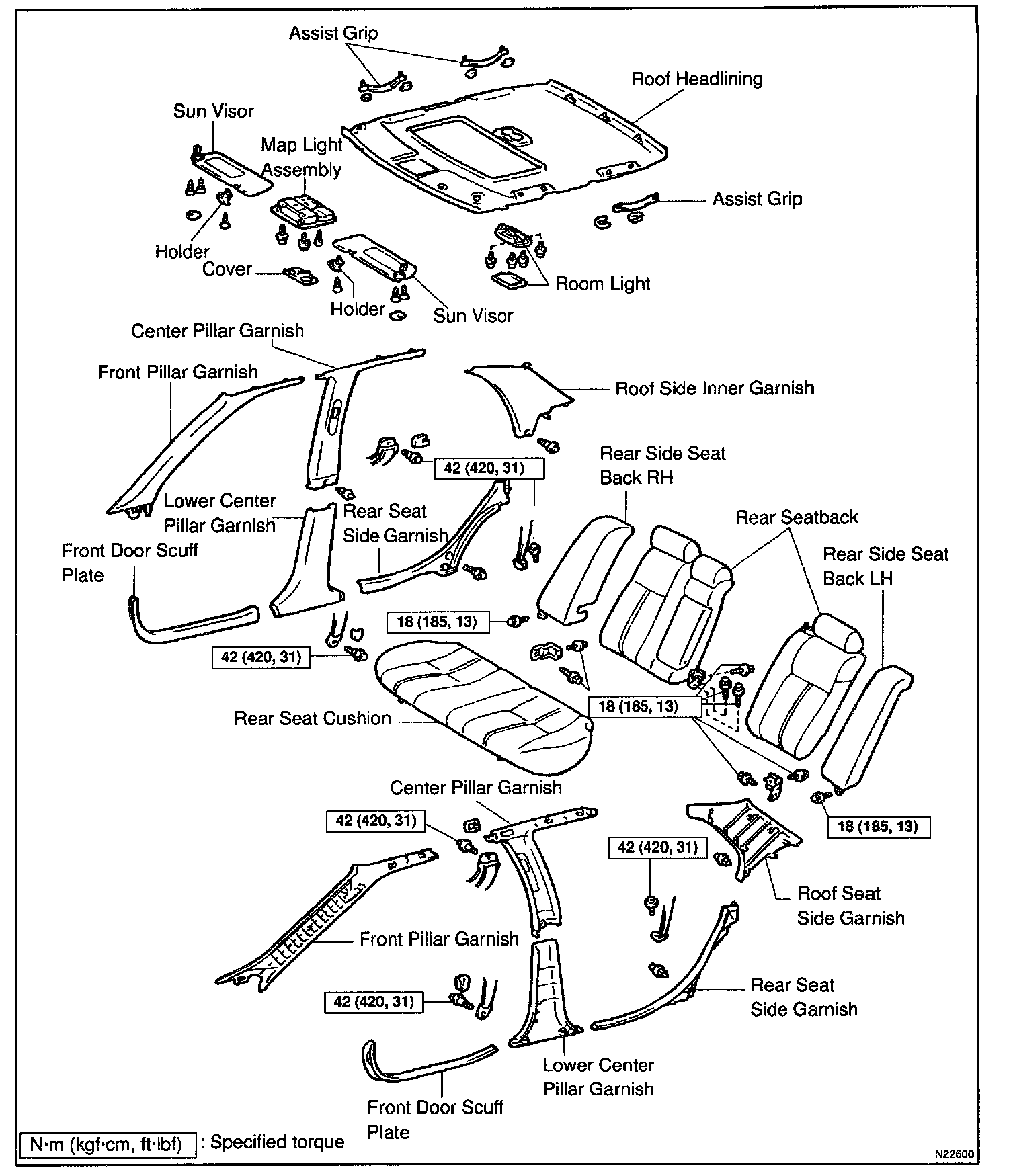

Roof Headlining:

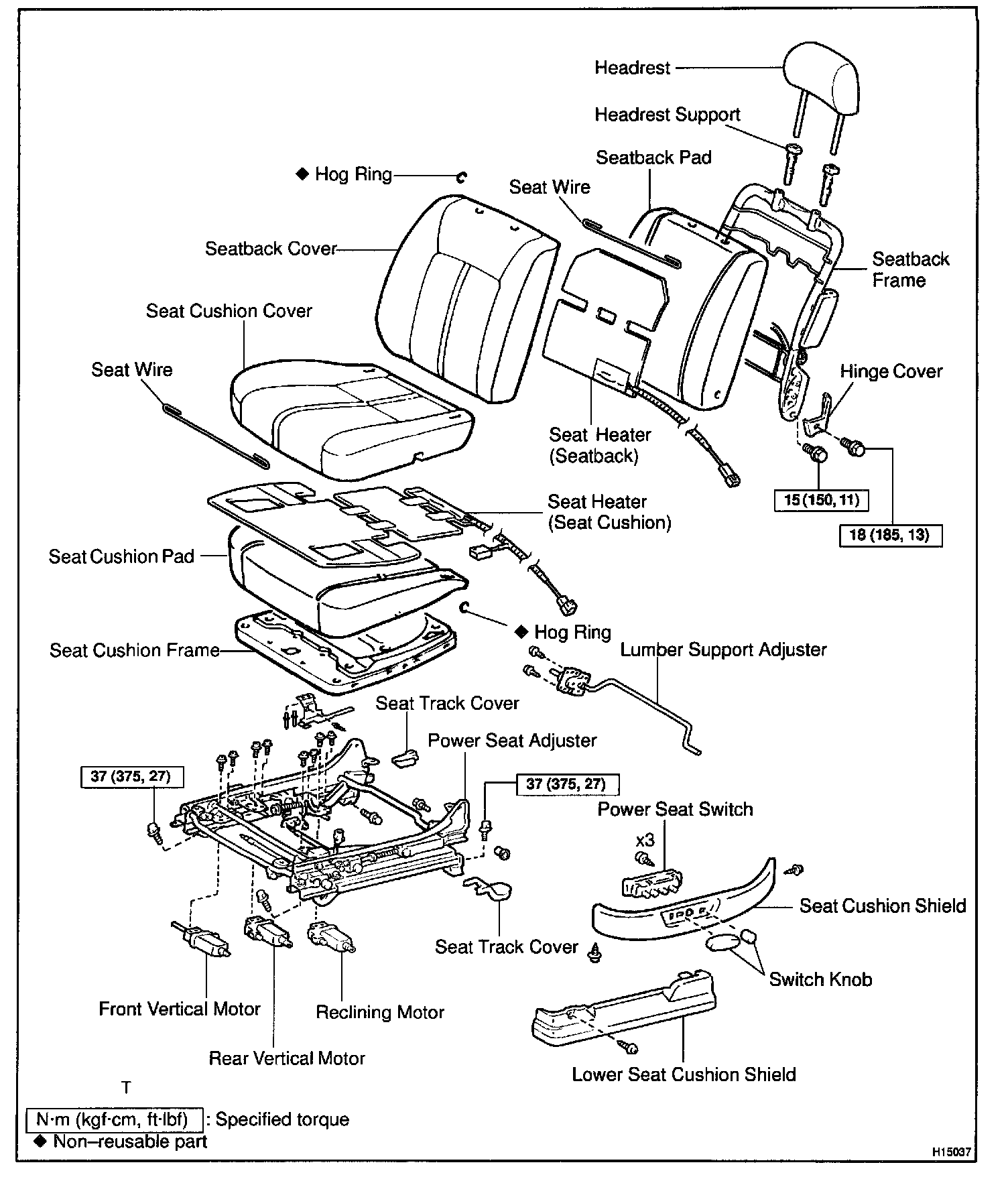

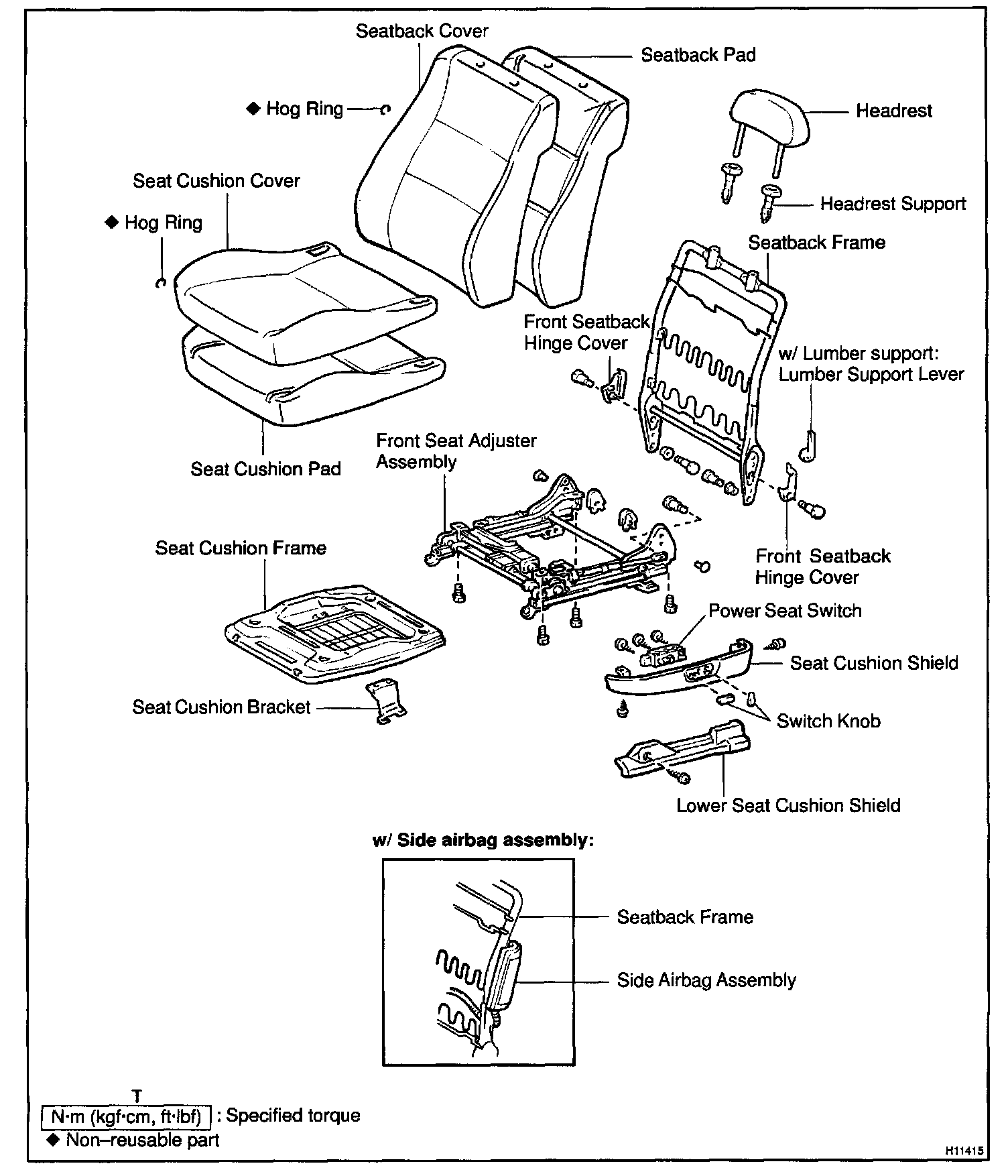

Power Seat (Power Seat For TMC Made):

Front Seat (Power Seat For TMMK Made):

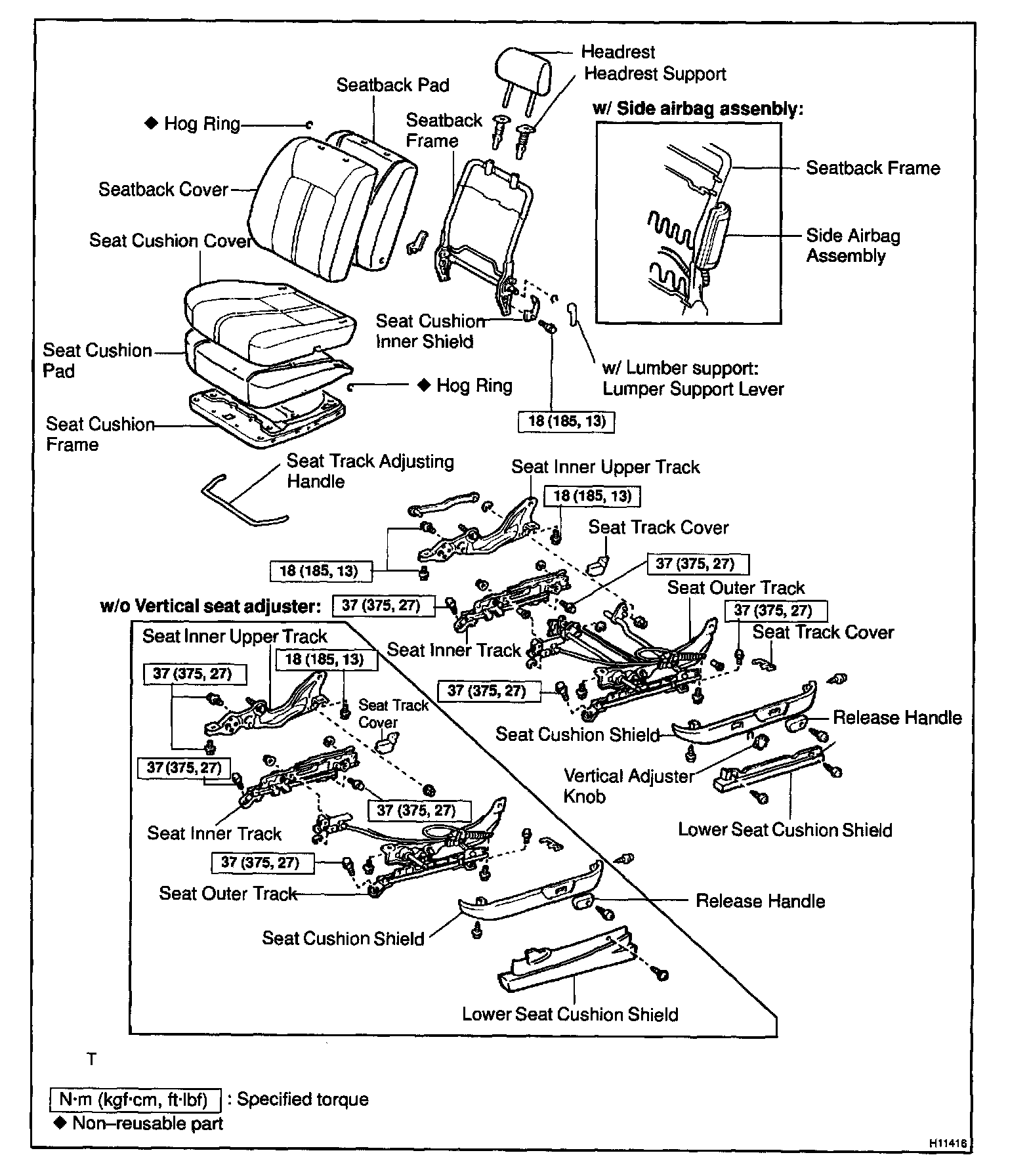

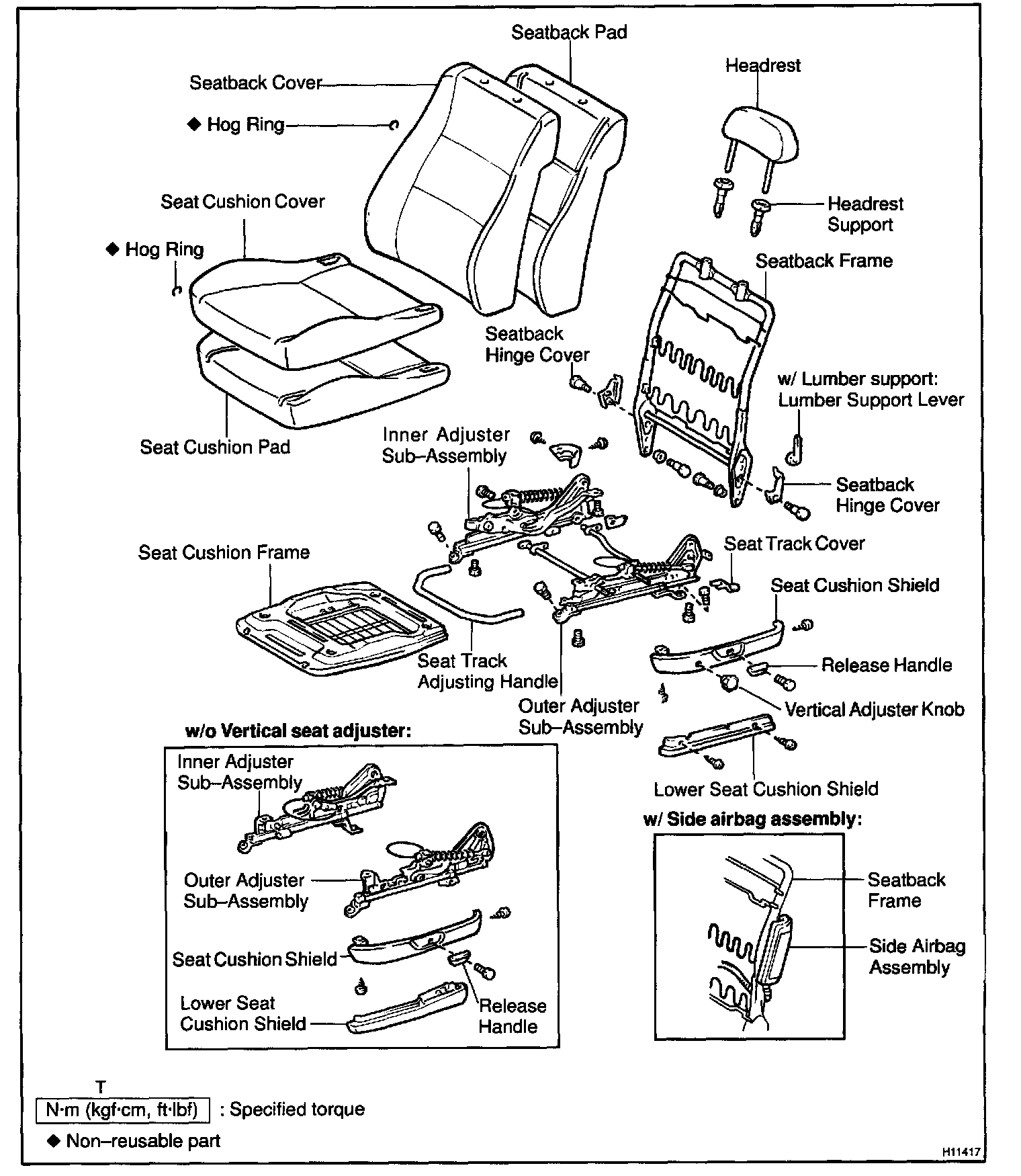

Front Seat (Manual Seat For TMC Made):

Front Seat (Manual Seat For TMMK Made):

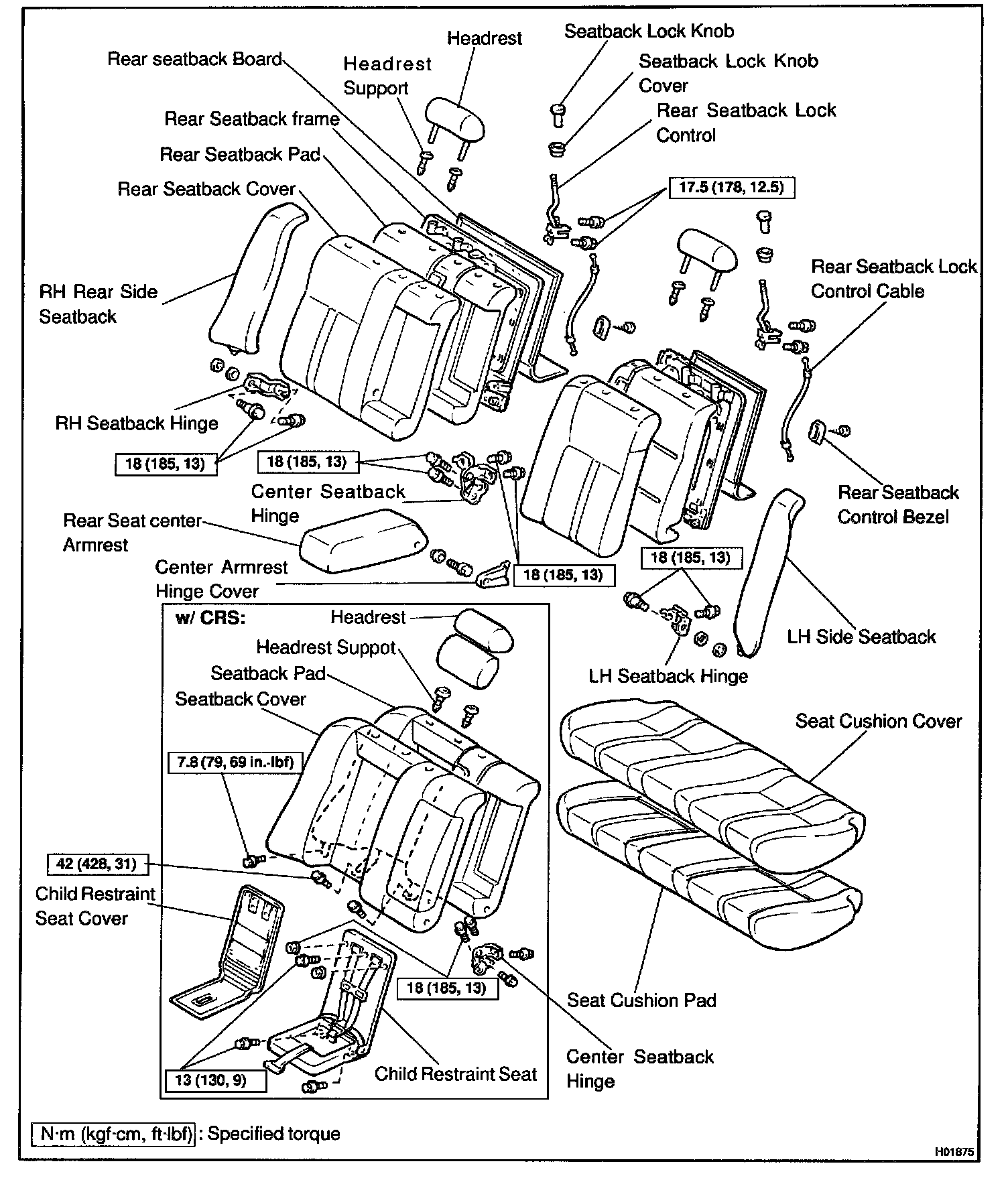

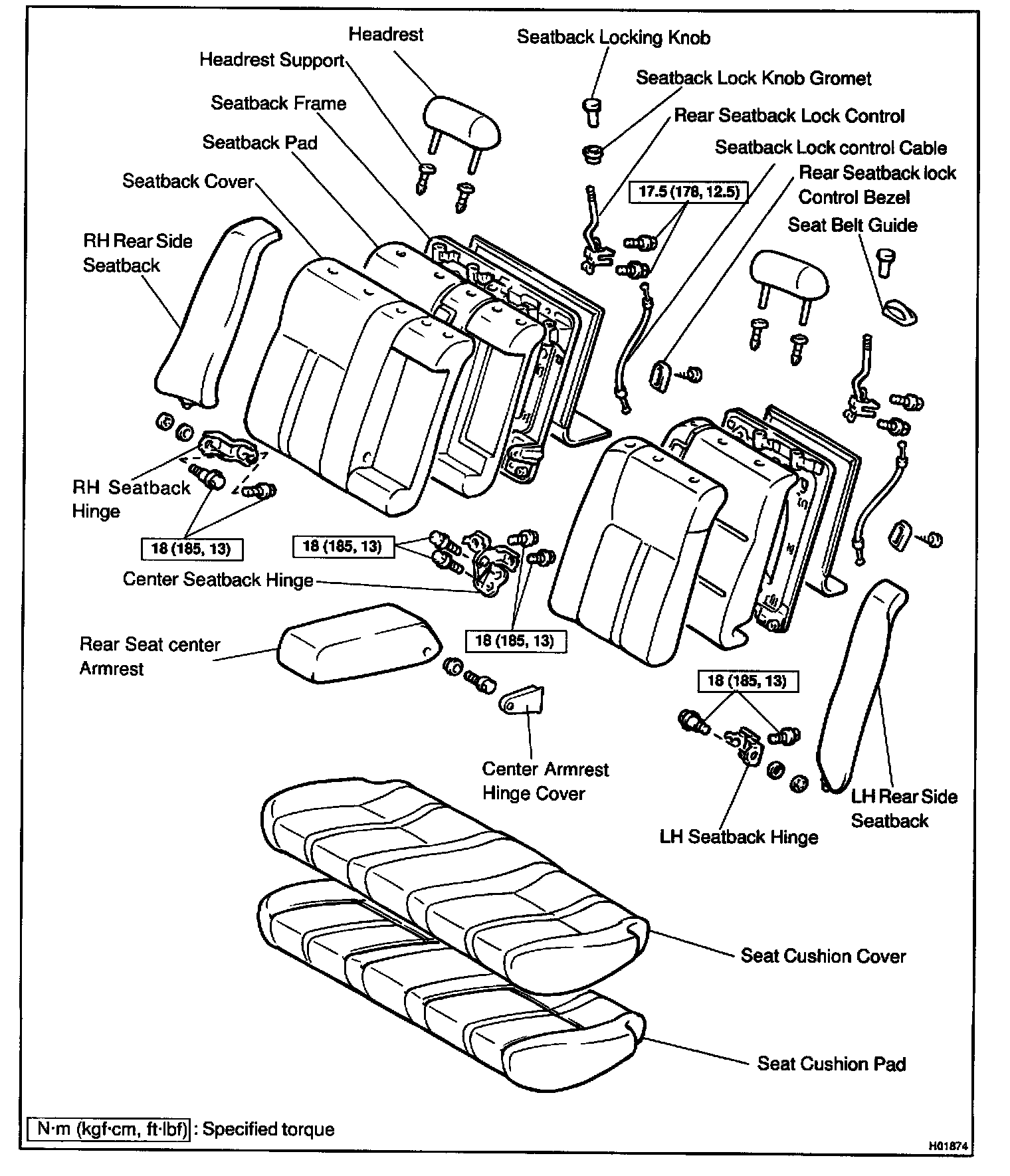

Rear Seat (TMC Made):

Rear Seat (TMMK Made):

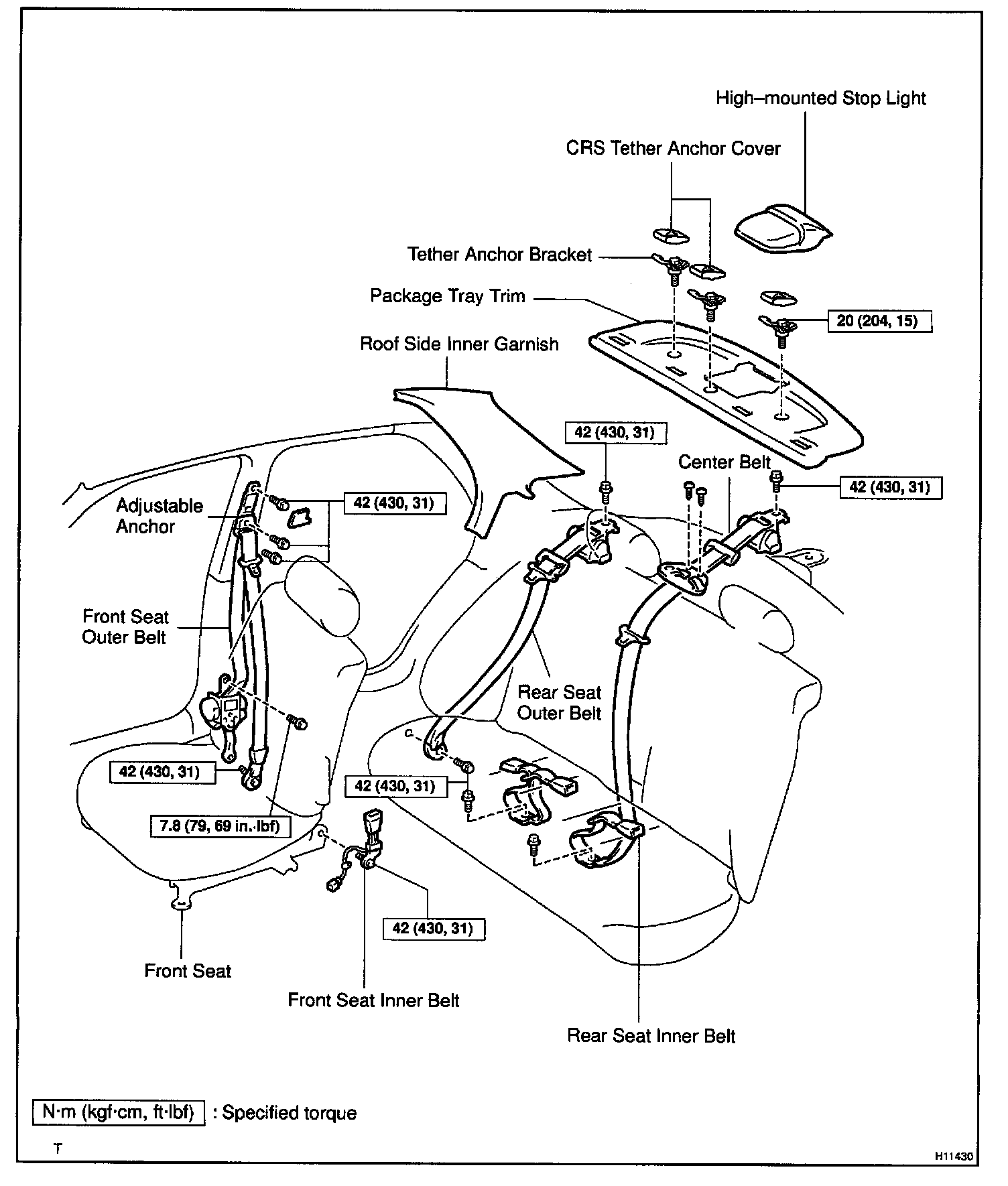

Seat Belt:

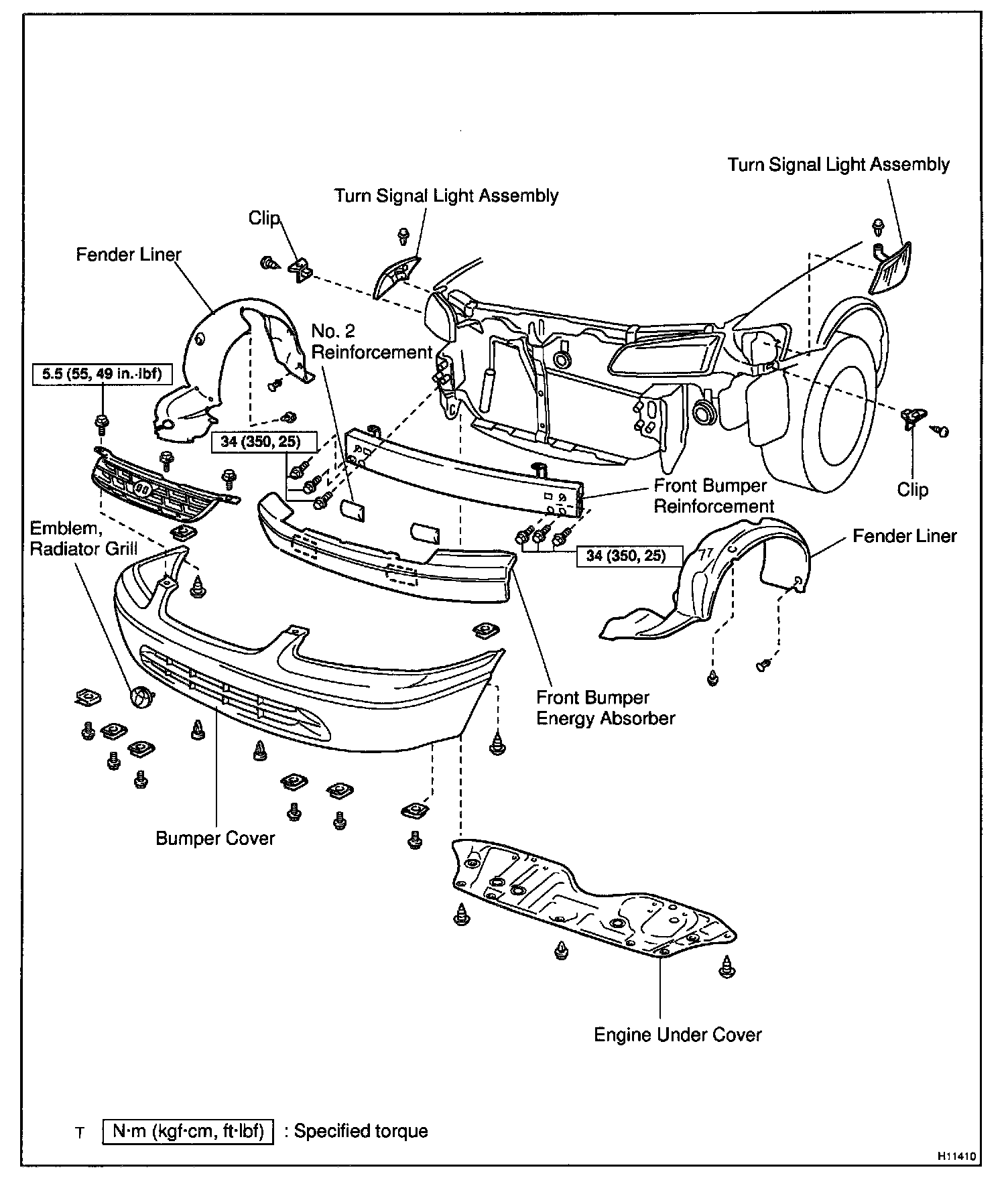

Front Bumper:

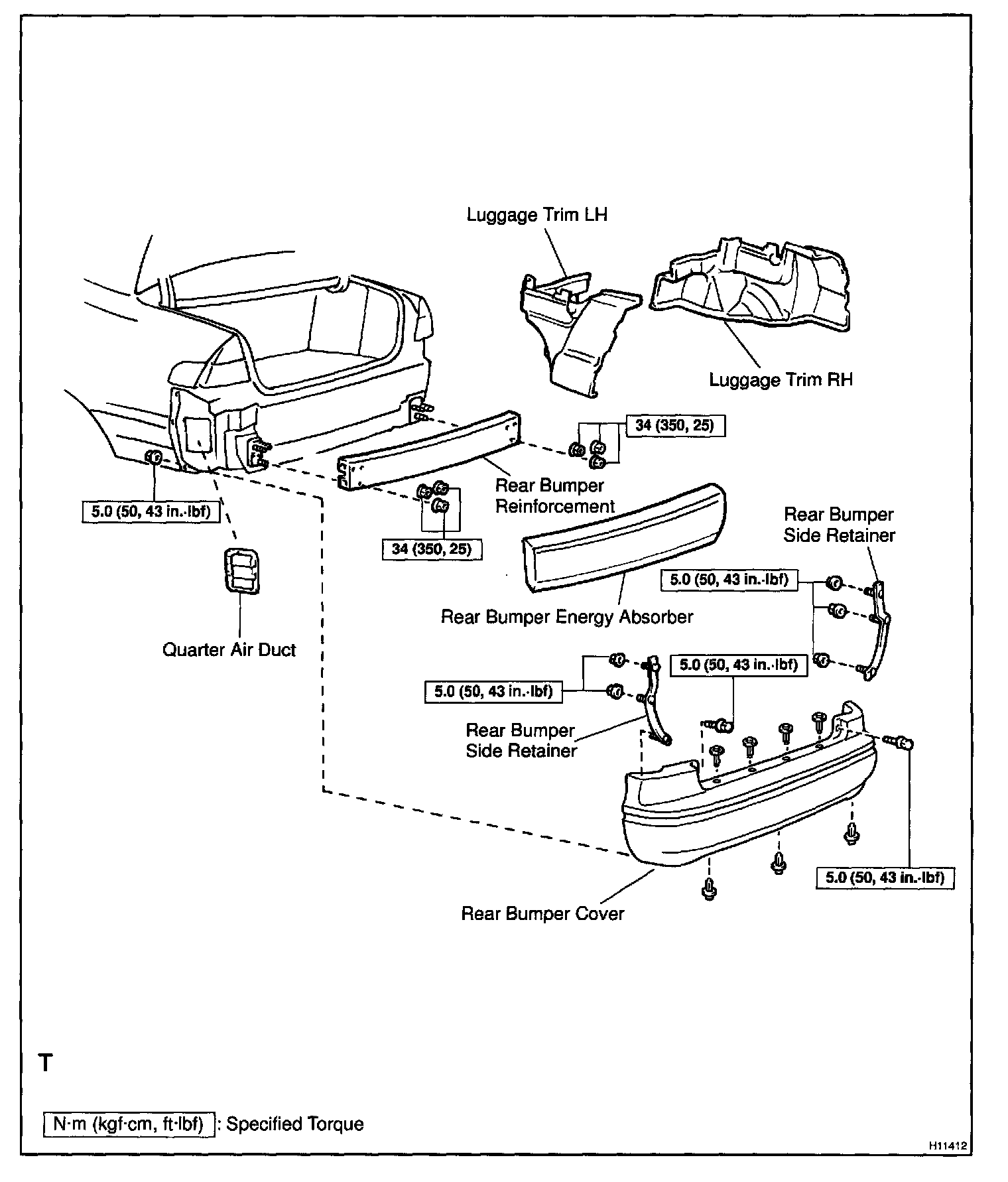

Rear Bumper:

Front Door:

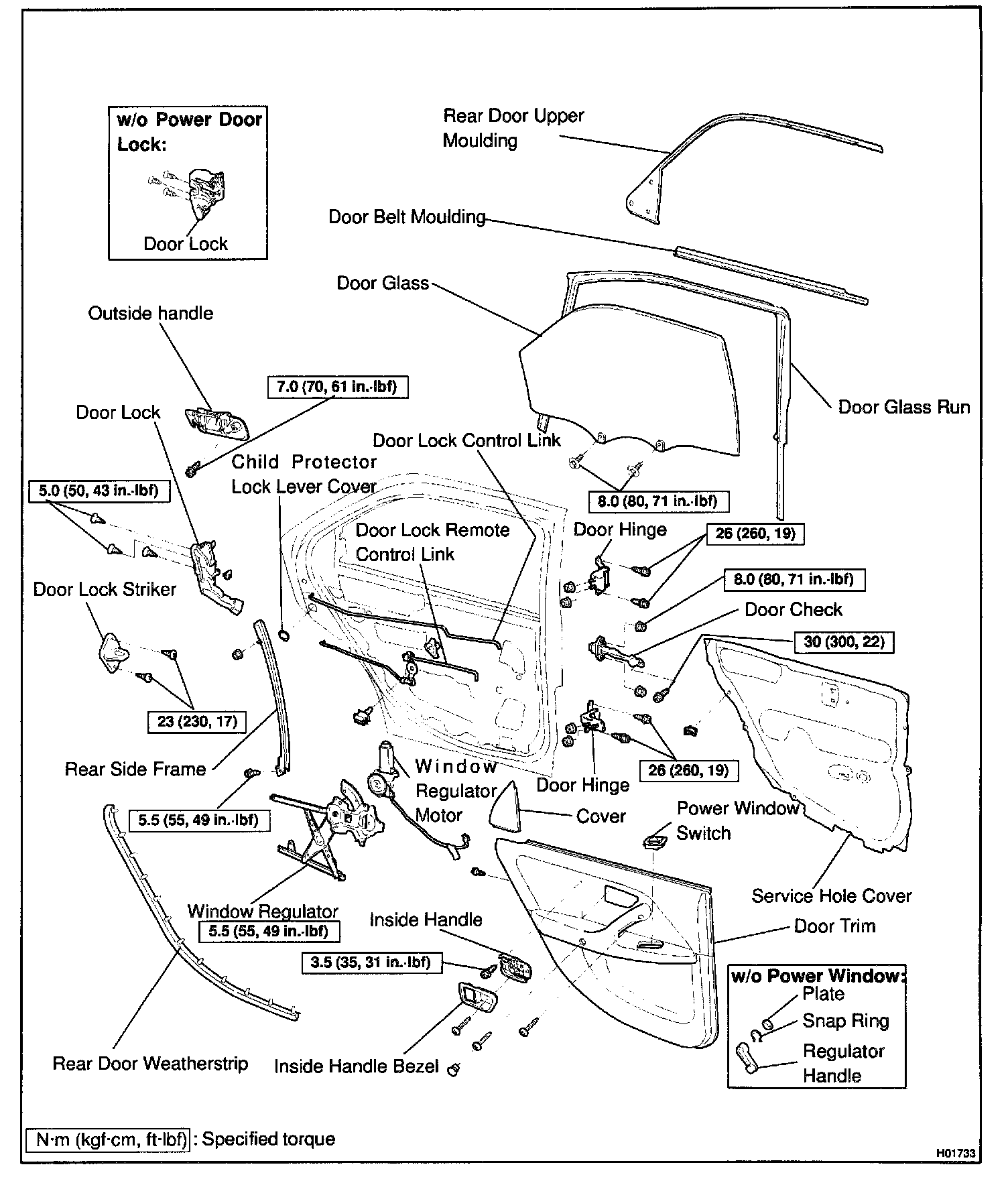

Rear Door:

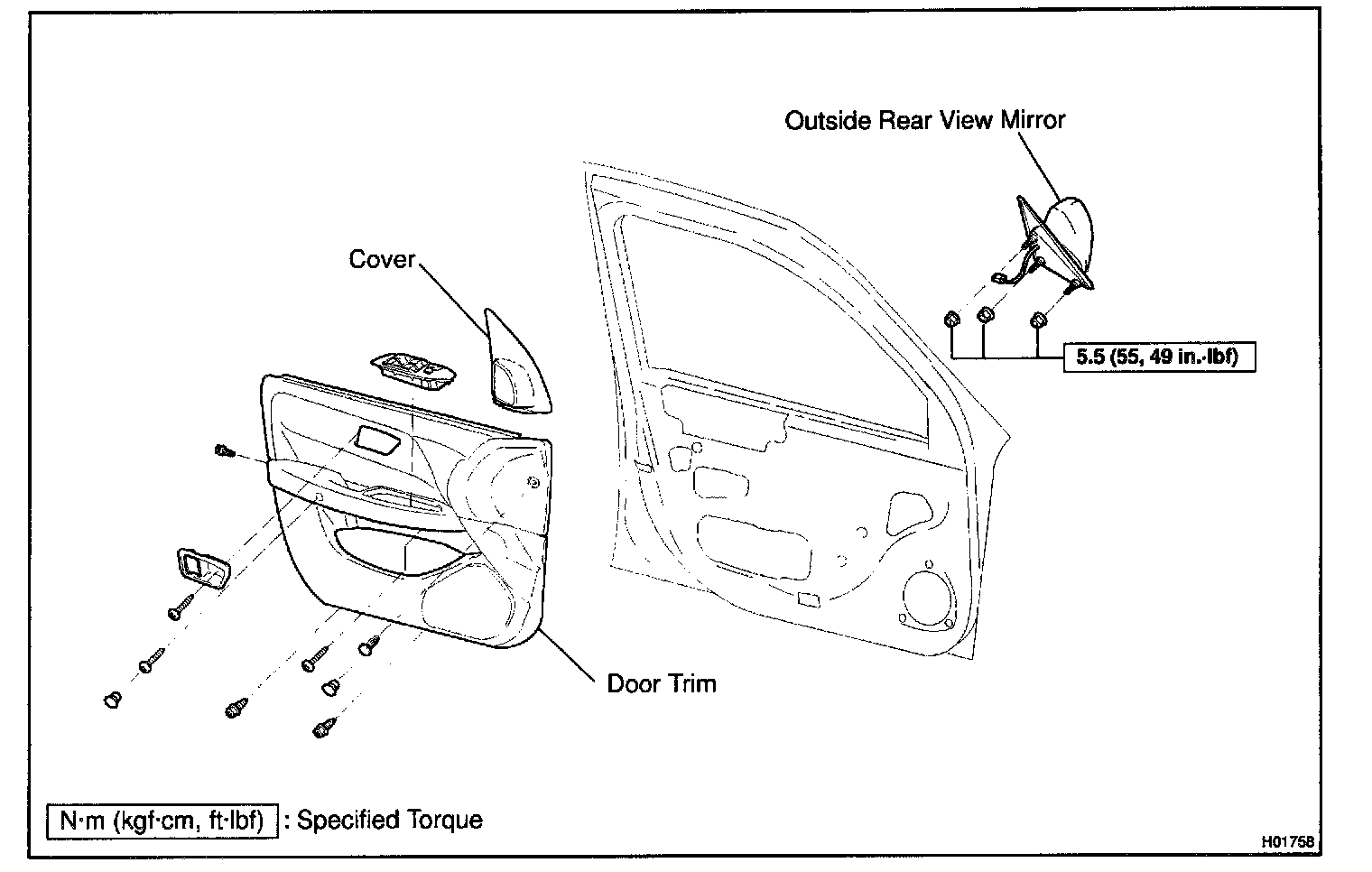

Outside Rear View Mirror:

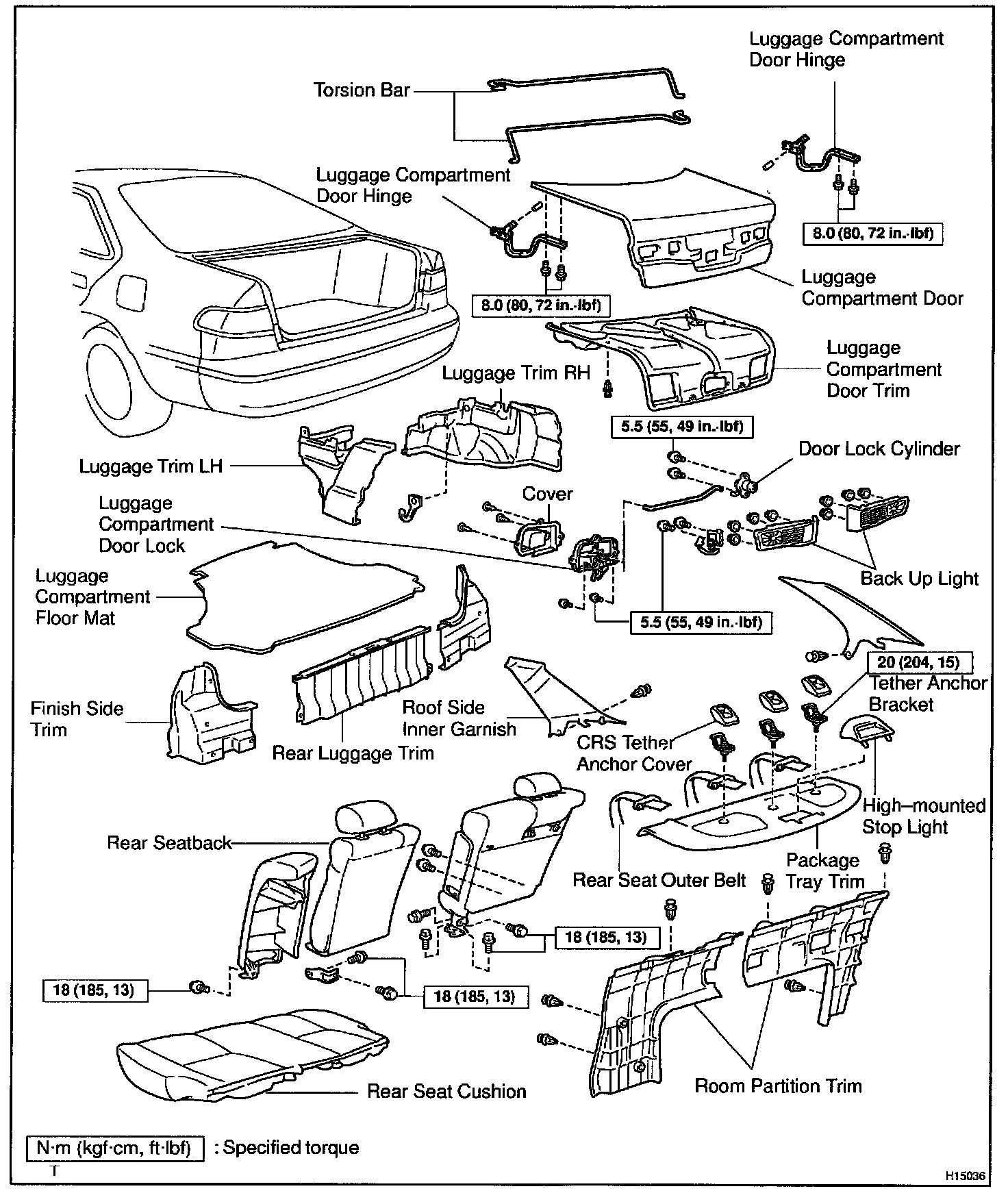

Luggage Compartment Door And Hinge:

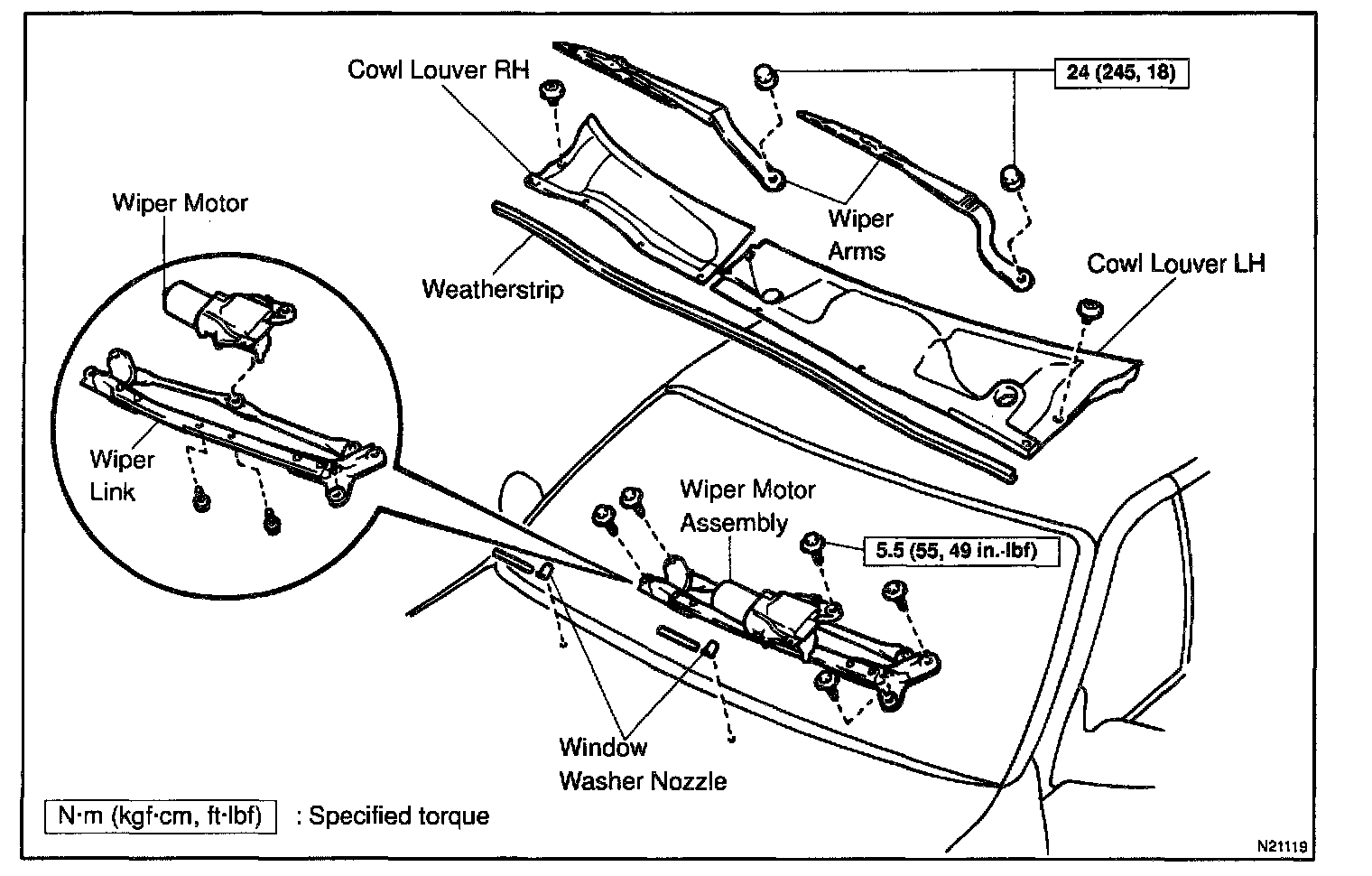

Front Wiper And Washer:

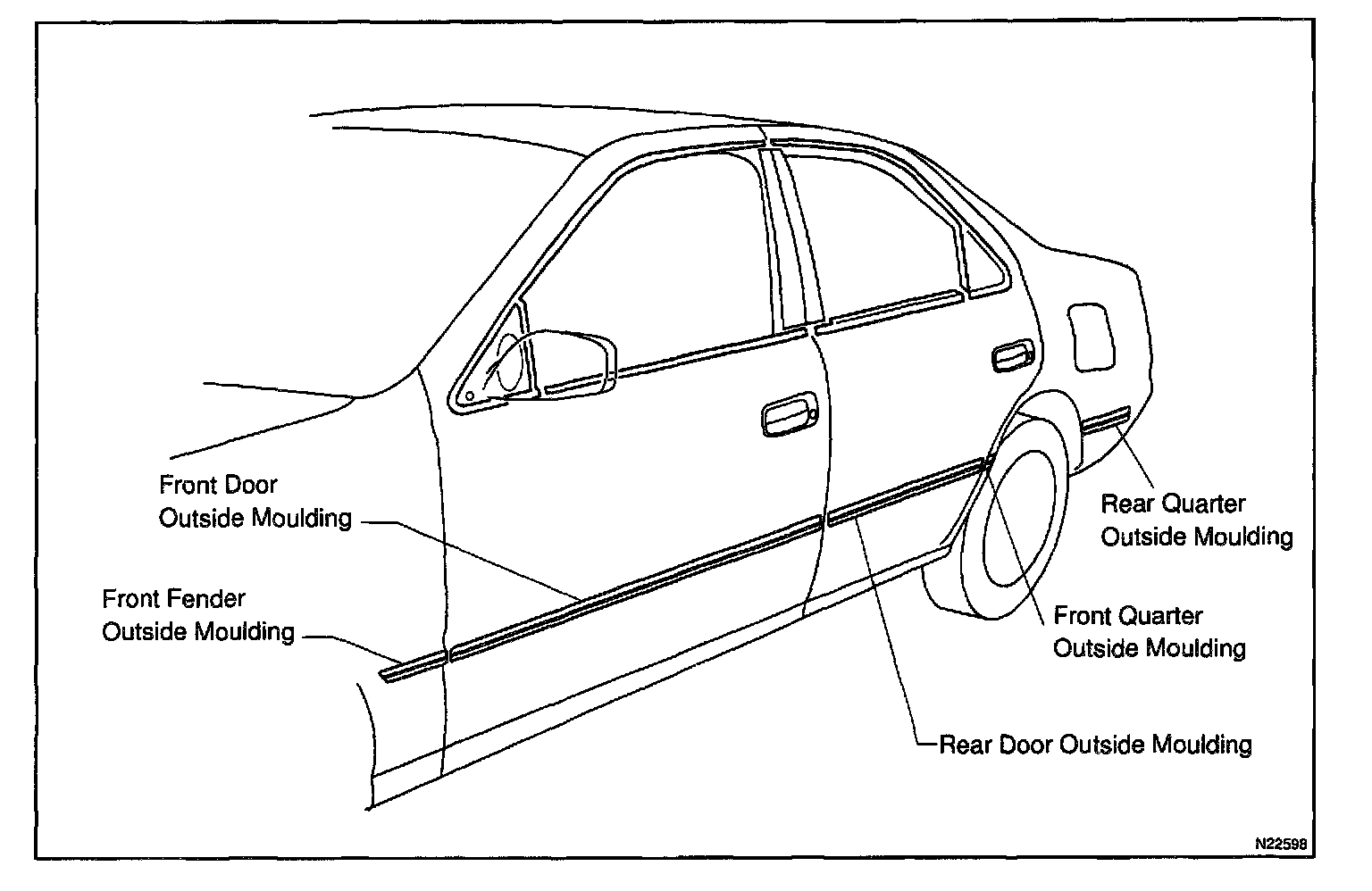

Body Outside Moulding:

Windshield:

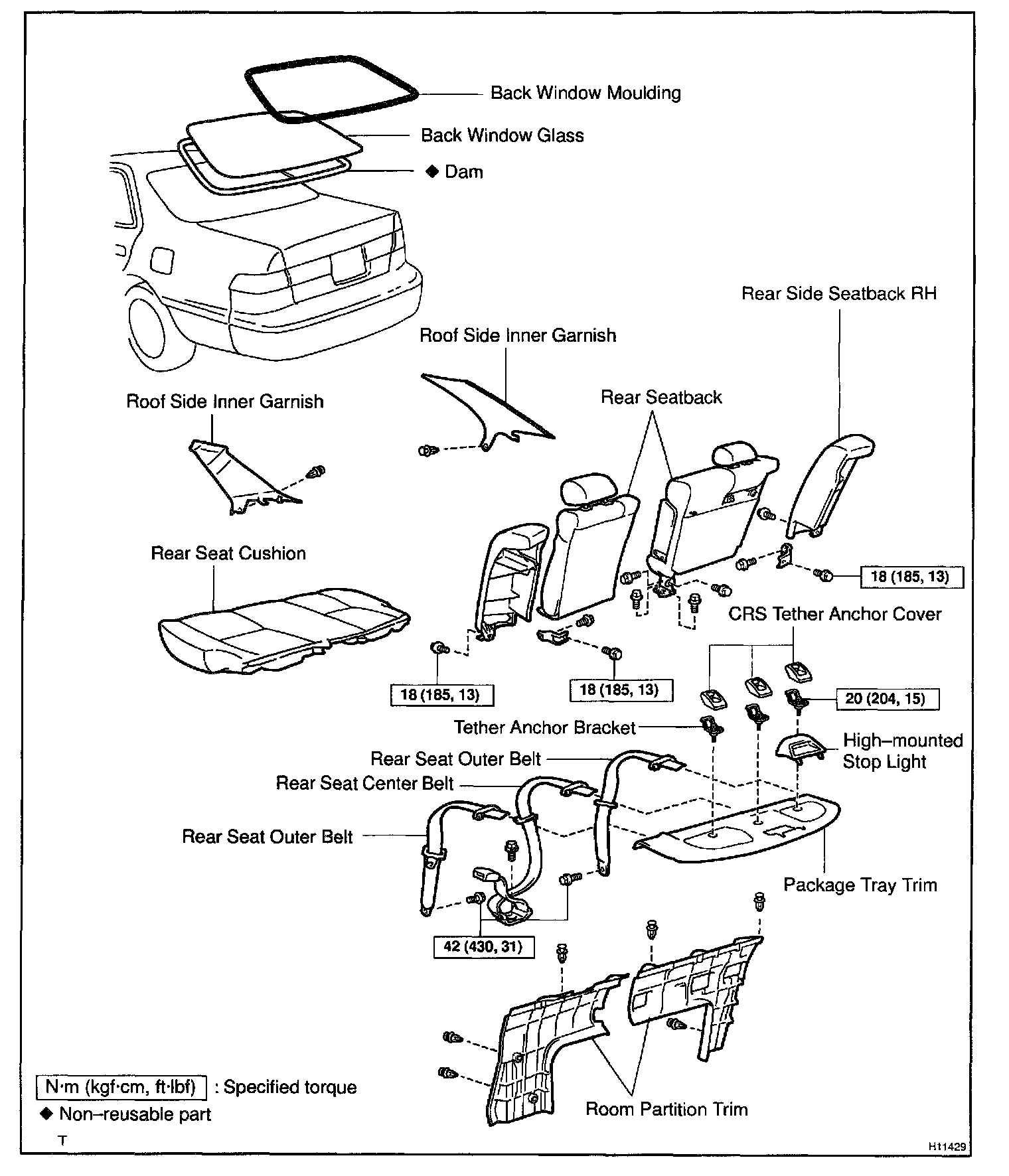

Back Window Glass:

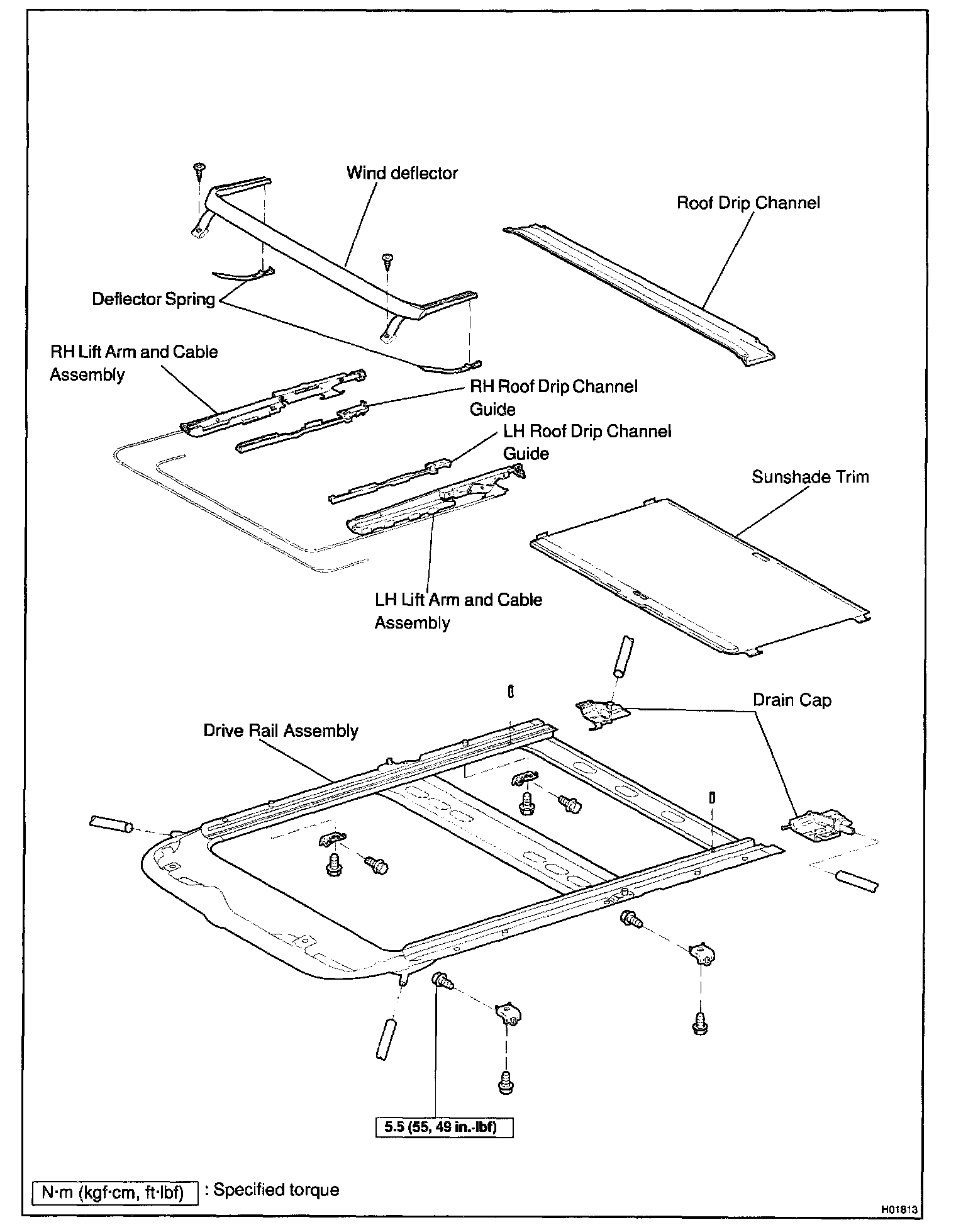

Sliding Roof (TMC Made):

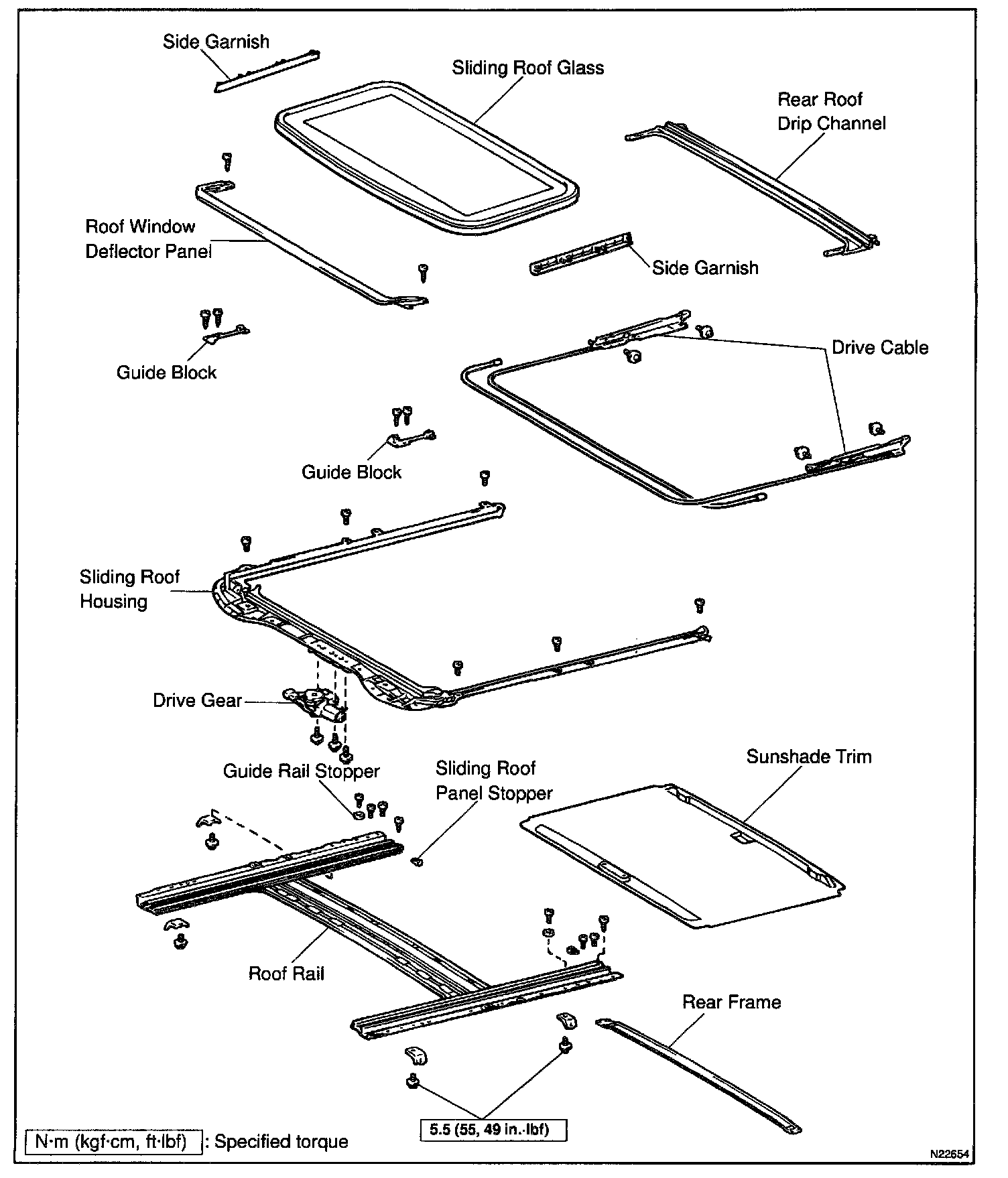

Sliding Roof (TMMK Model) Part 1:

Sliding Roof (TMMK Model) Part 2:

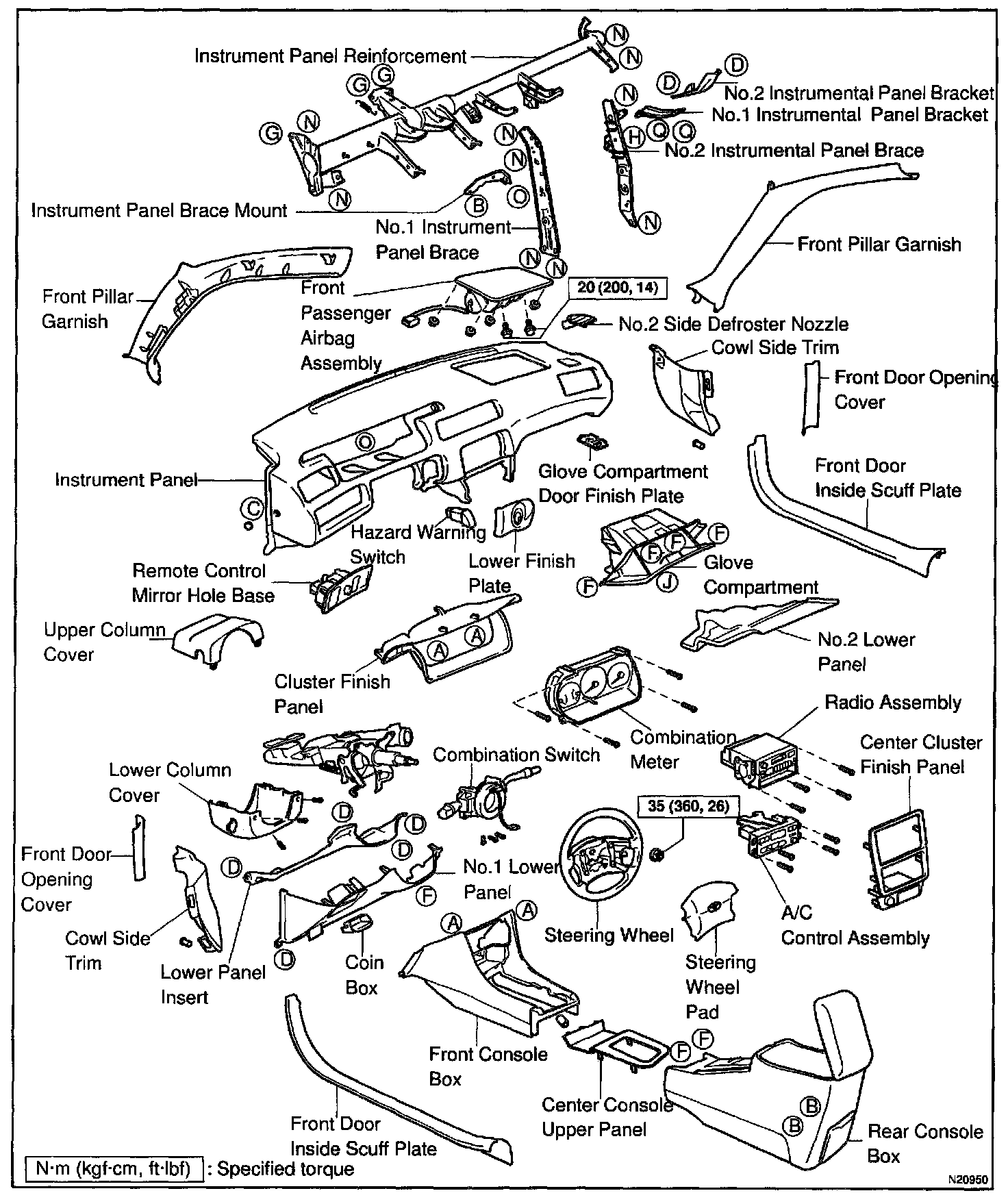

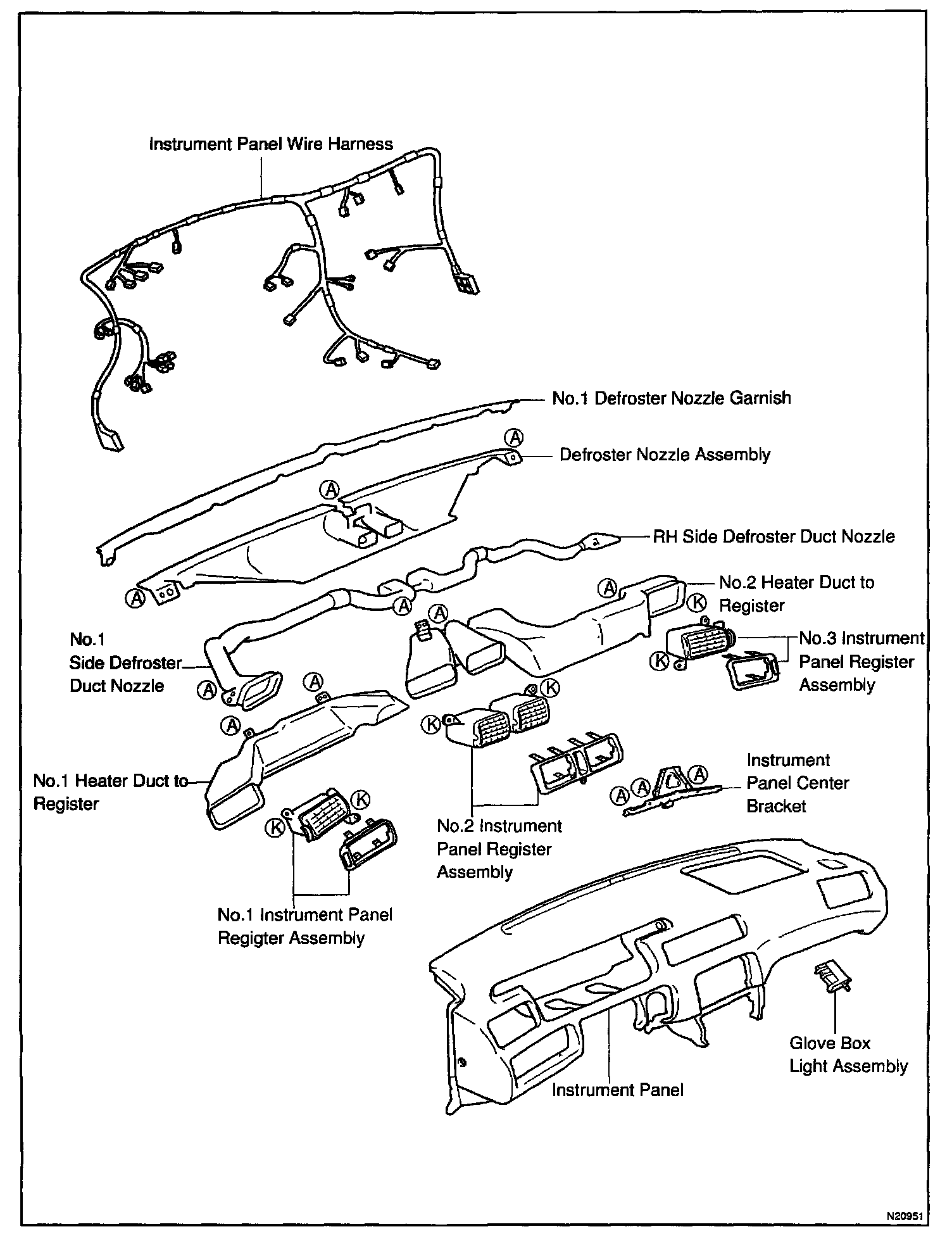

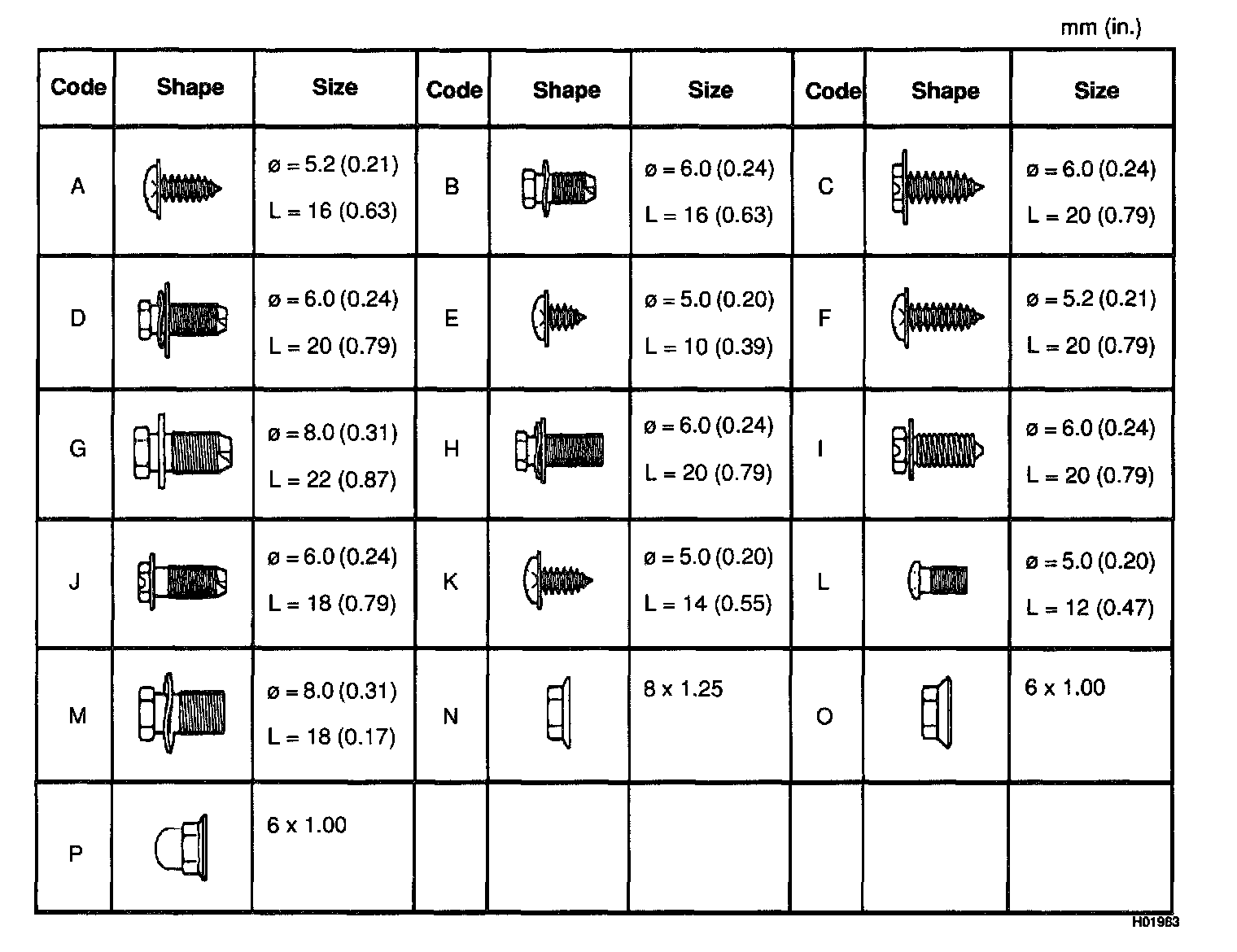

Instrument Panel (Part 1):

Instrument Panel (Part 2):

Instrument Panel (Part 3):
