Component Locations

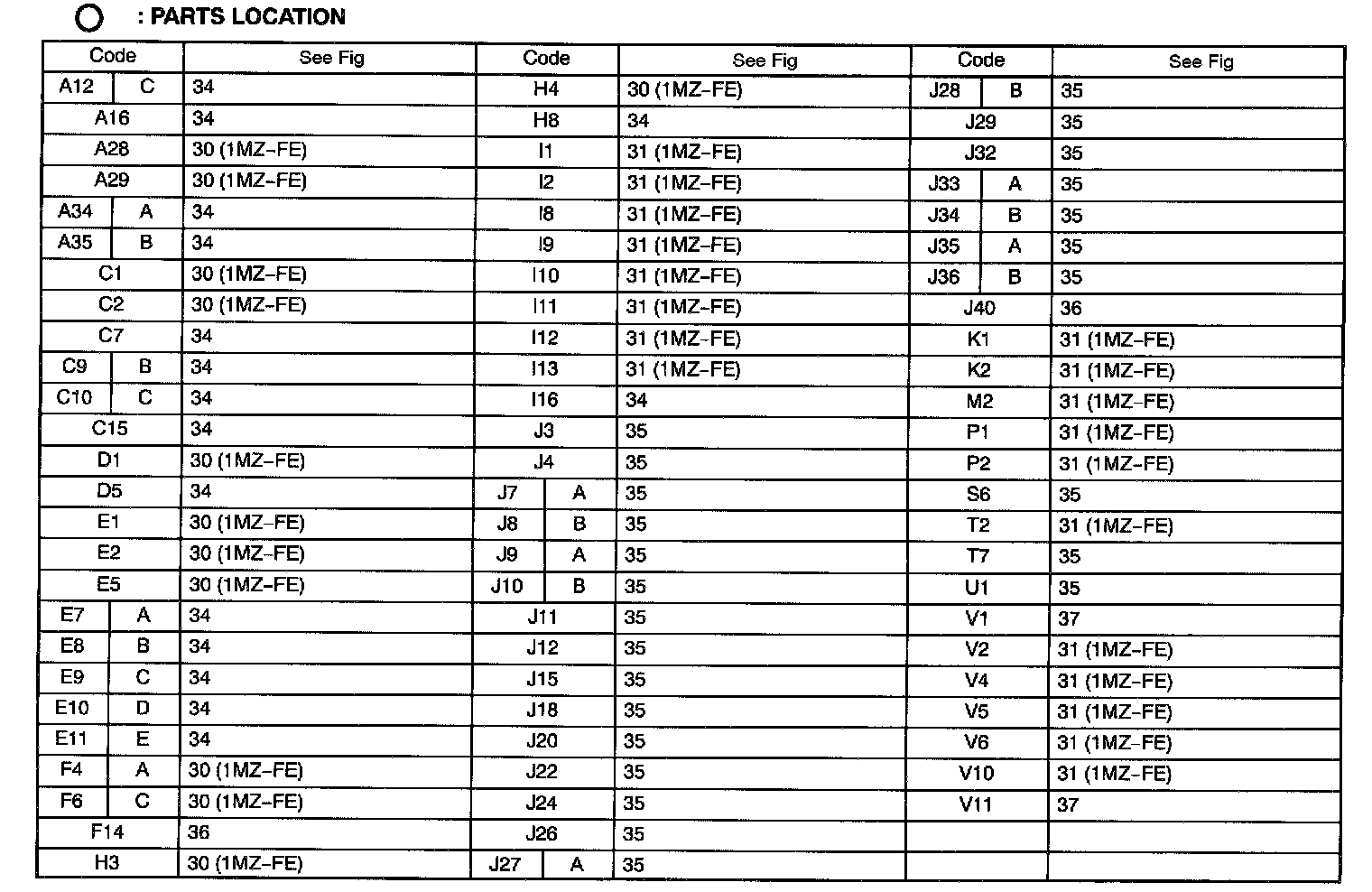

PARTS LOCATION

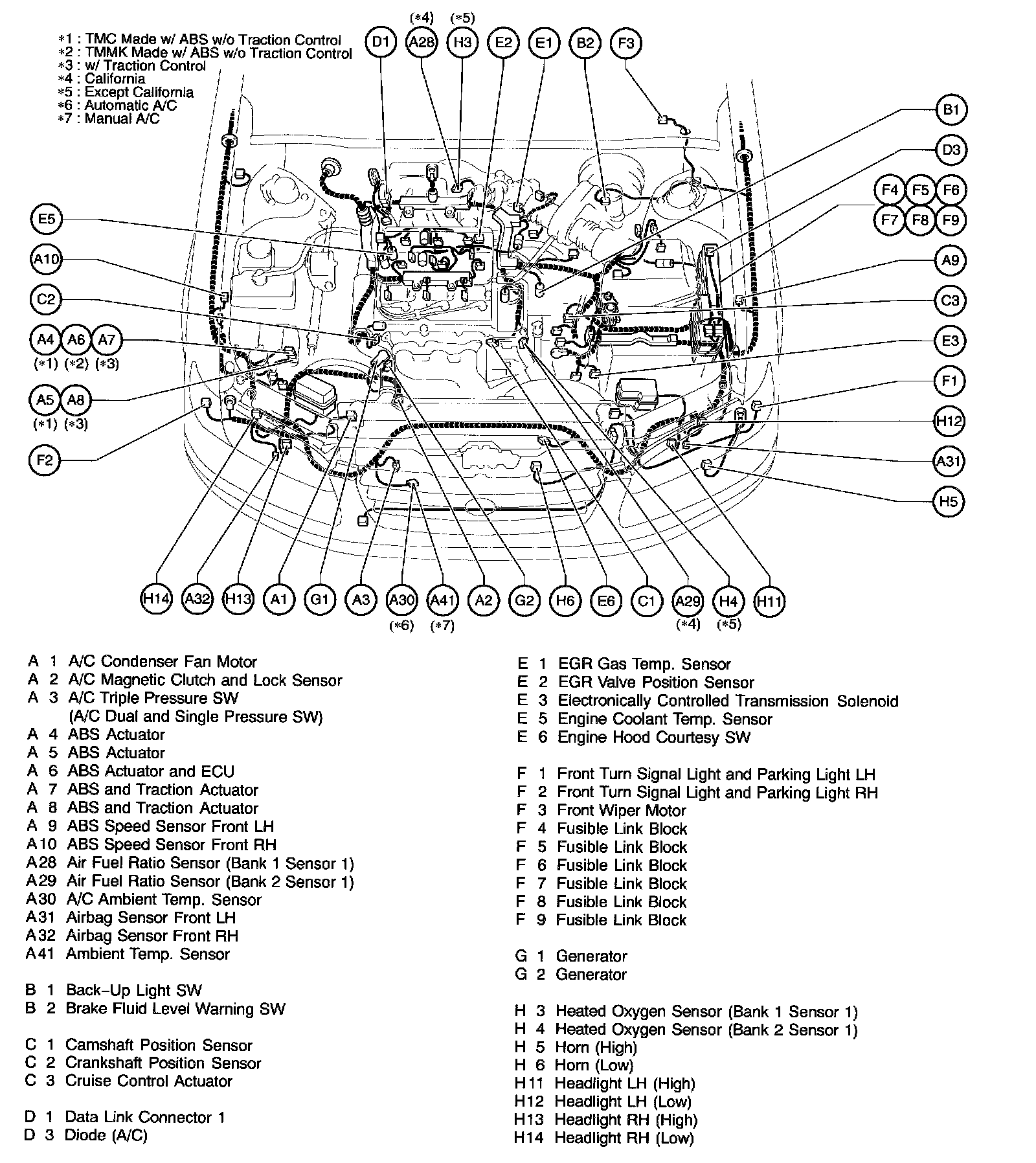

Position Of Parts In Engine Compartment (Part I):
FIG 30

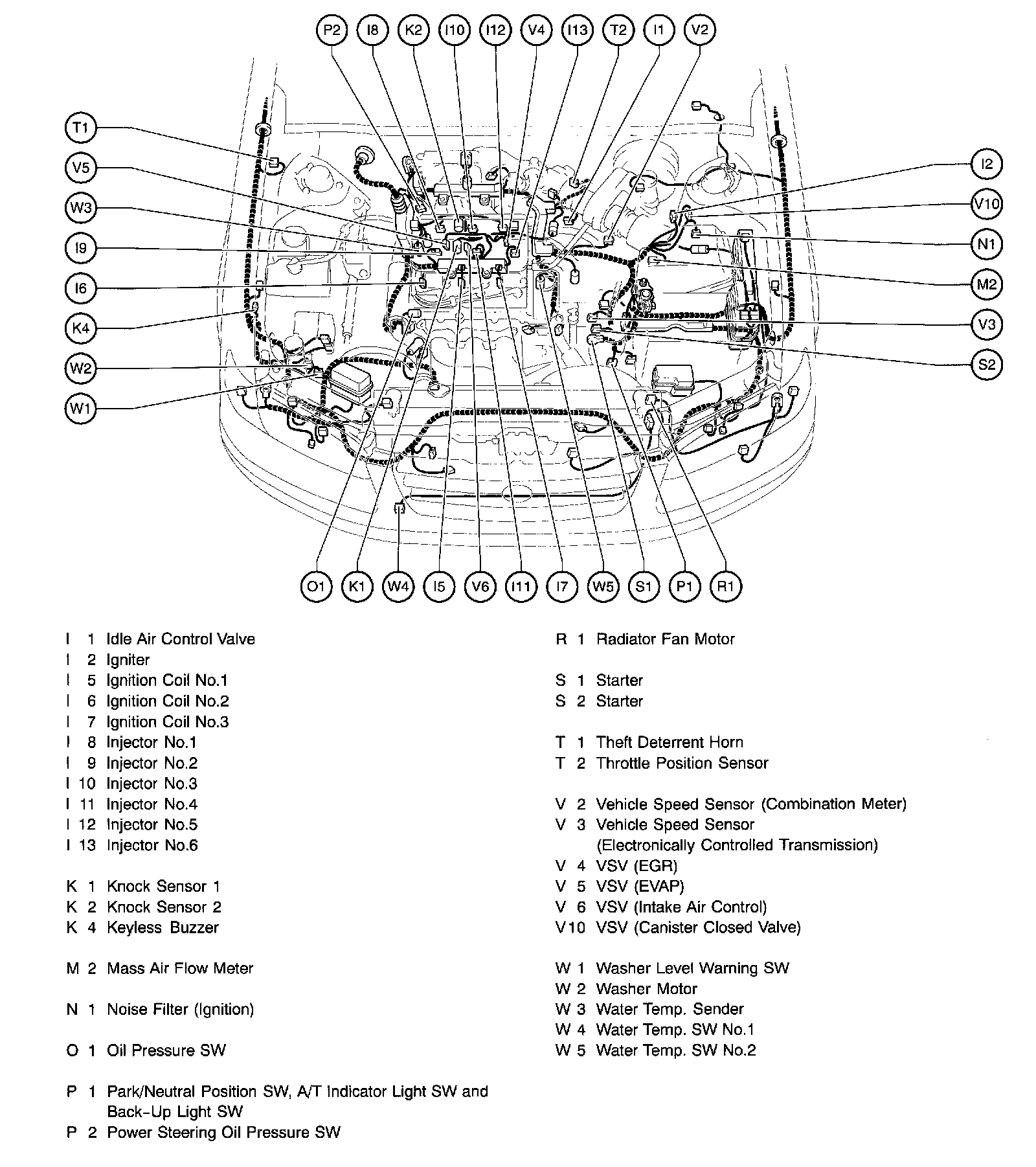

Position Of Parts In Engine Compartment (Part II):
FIG 31

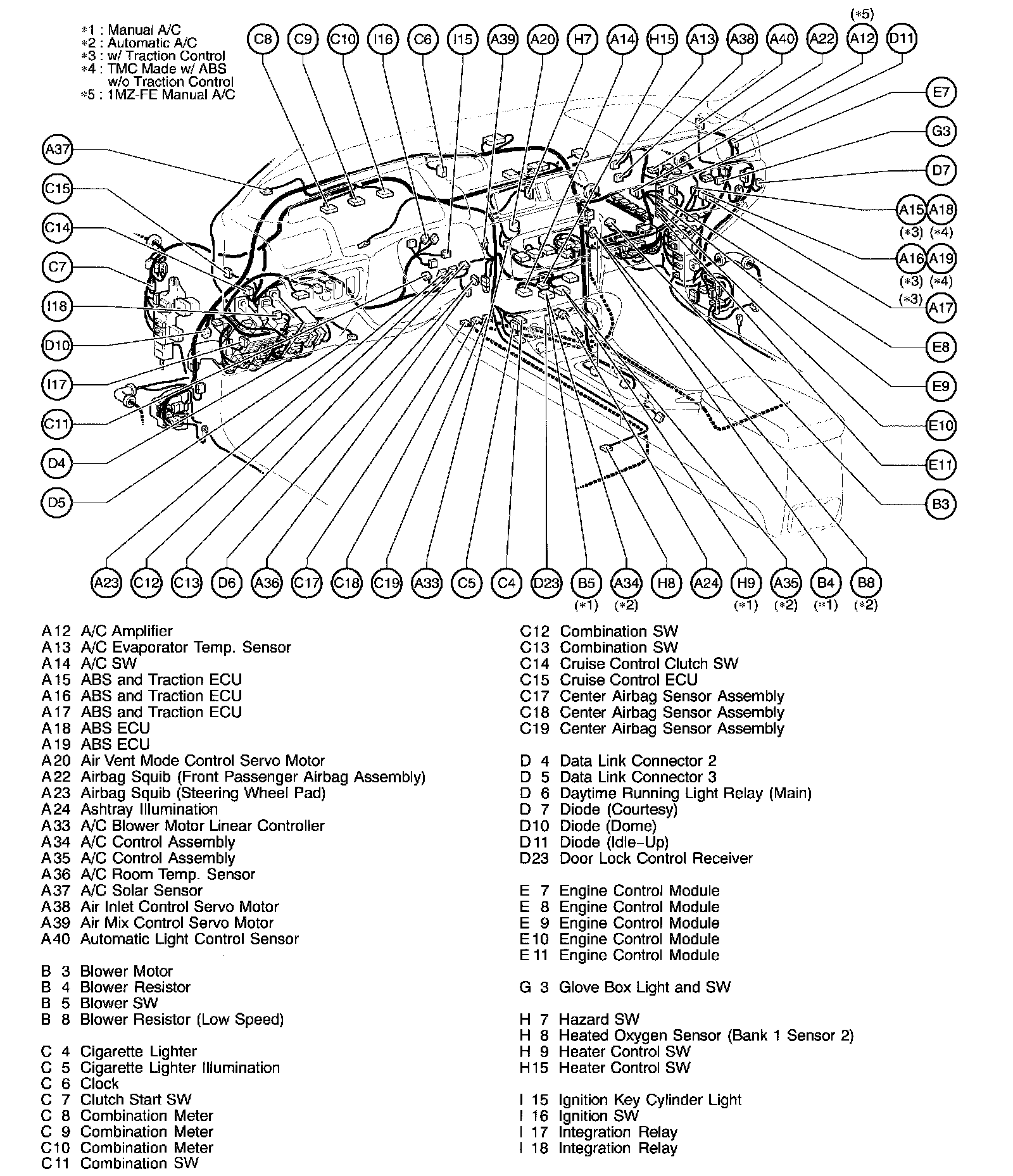

Position Of Parts In Instrument Panel (Part I):
FIG 34

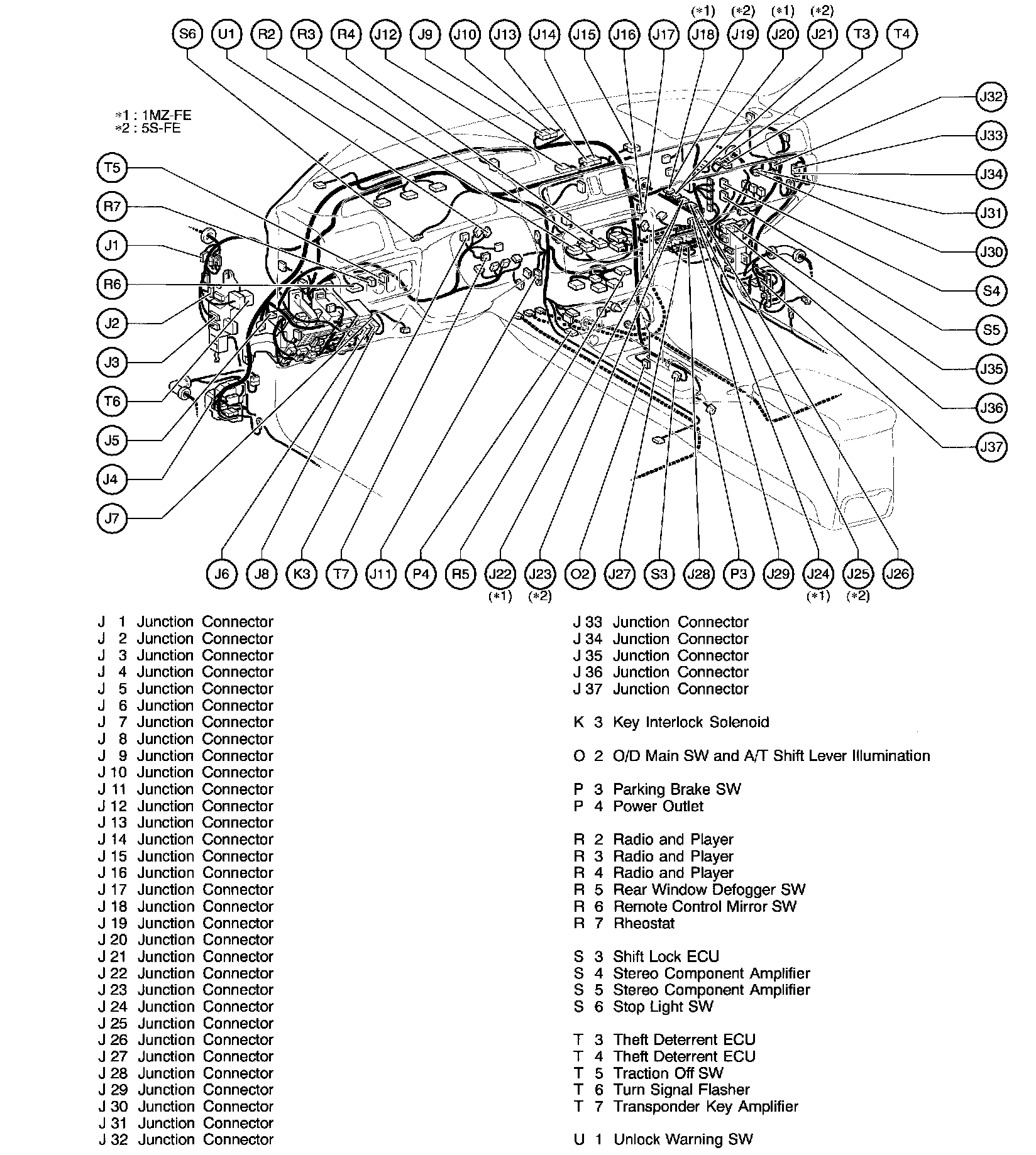

Position Of Parts In Instrument Panel (Part II):
FIG 35

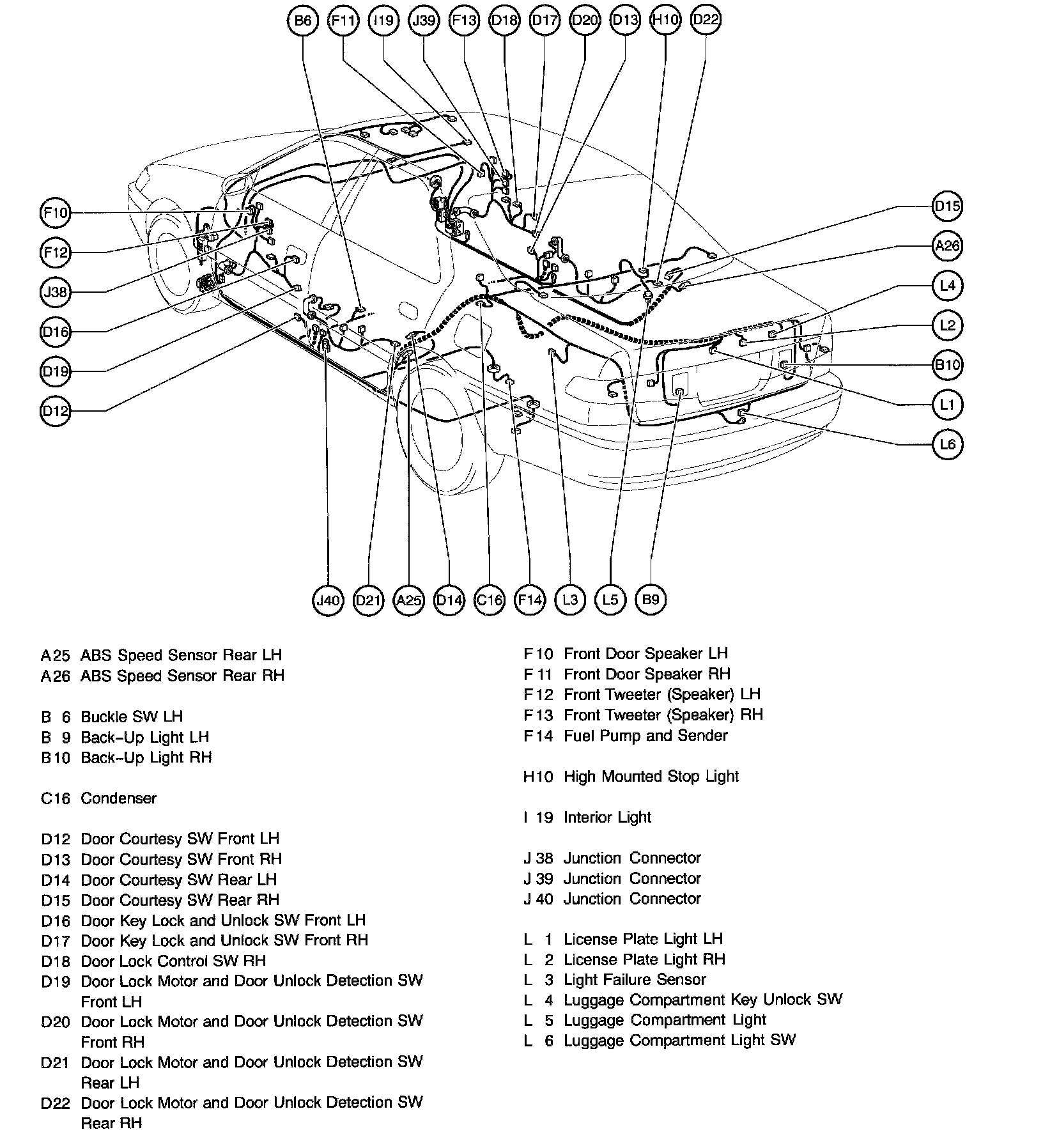

Body Grounding Points (Part I):
FIG 36
