Variable Valve Timing Actuator: Service and Repair

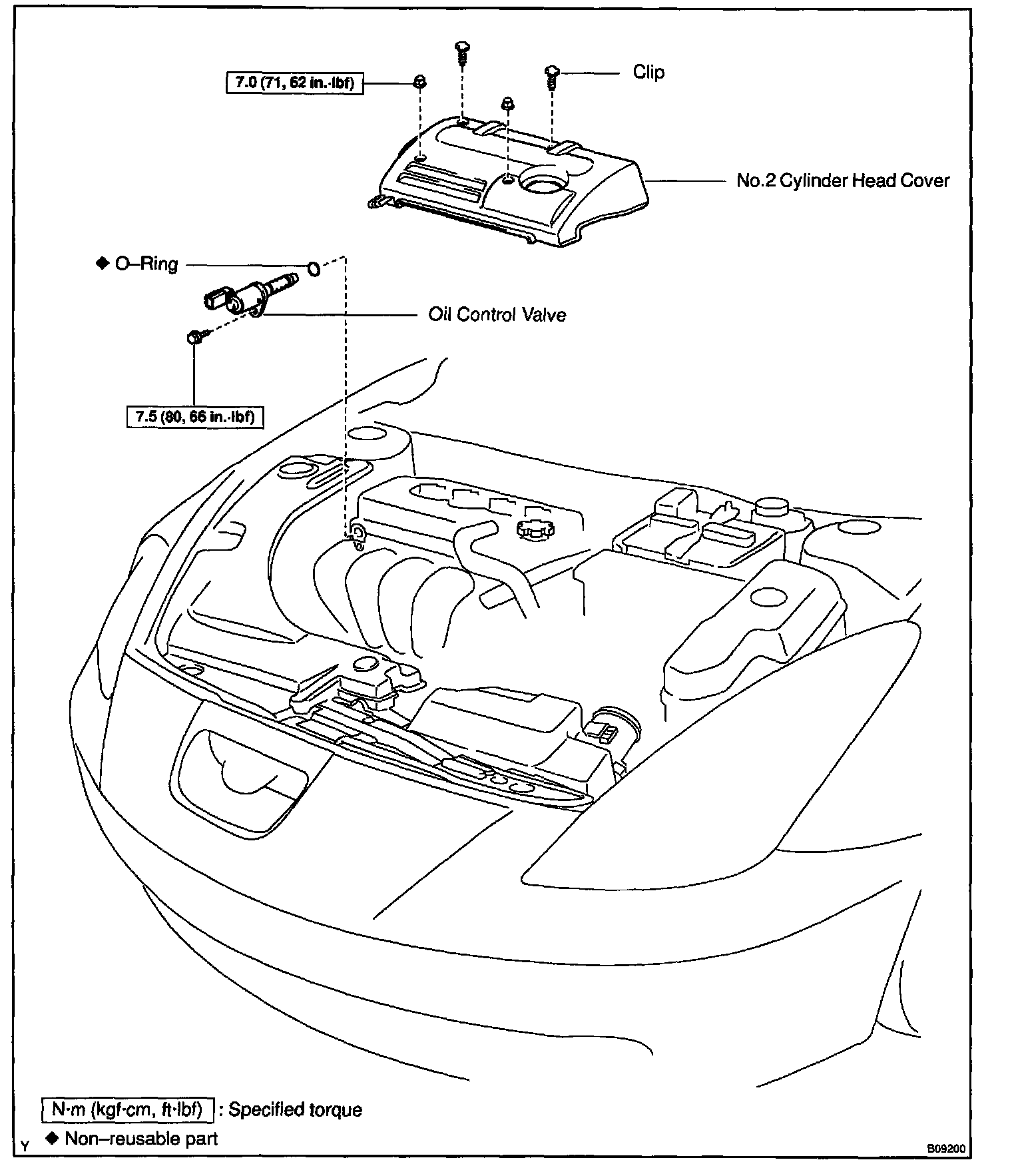

COMPONENTS

REMOVAL

1. REMOVE NO.2 CYLINDER HEAD COVER




2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
a. Disconnect the oil control valve connector.
b. Remove the bolt and oil control valve.

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

c. Remove the O-ring from the oil control valve.

HINT: At the time of installation, please refer to the following items. Use a new O-ring.

INSTALLATION
Installation Is In the reverse order of removal.
