Ignition Coil: Service and Repair

IGNITION COIL

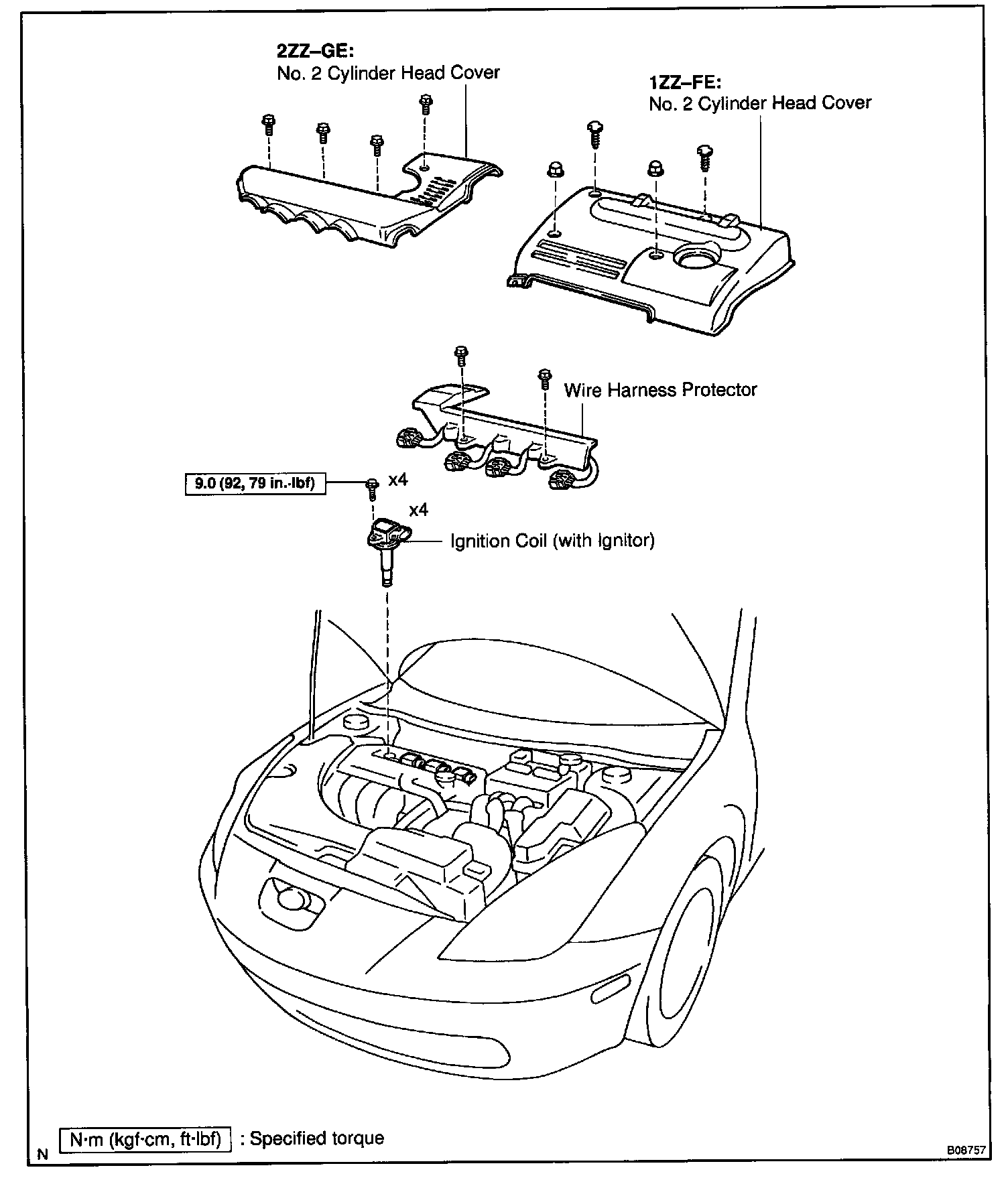

COMPONENTS

REMOVAL
1. REMOVE NO.2 CYLINDER HEAD COVER

2. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
a. Remove the 2 bolts and disconnect the wire harness protector.
b. Disconnect the 4 ignition coil connectors.
c. Remove the 4 bolts and pull out the 4 ignition coils (with igniter).

Torque: 9.0 Nm (92 kg.cm, 79 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
