Heater Control

DISASSEMBLY

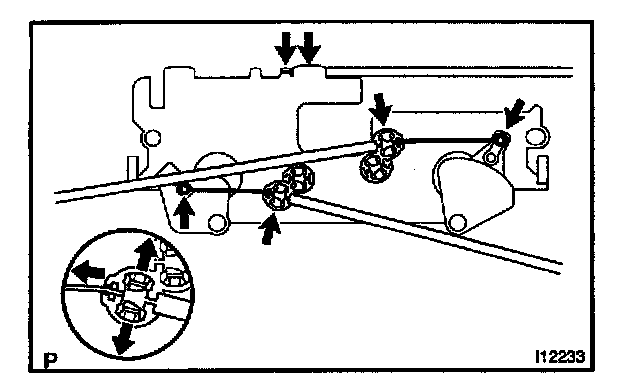

1. REMOVE HEATER CONTROL CABLES.
a. Using a screwdriver, open the claw of the cable clamp and disconnect the outer cable.

HINT: Tape the screwdriver tip before use.

b. Remove the inner cable from the heater control assembly.

2. Two way flow heater models:

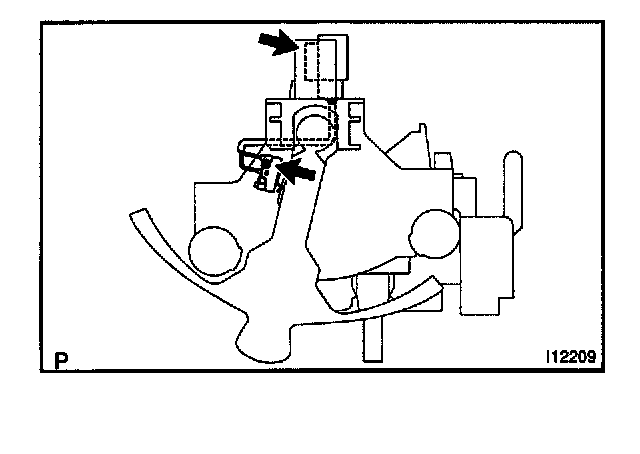

REMOVE HEATER SWITCH.

a. Disconnect the connector clamp.
b. Remove the screw and heater switch.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
