Cylinder Head Assembly

CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

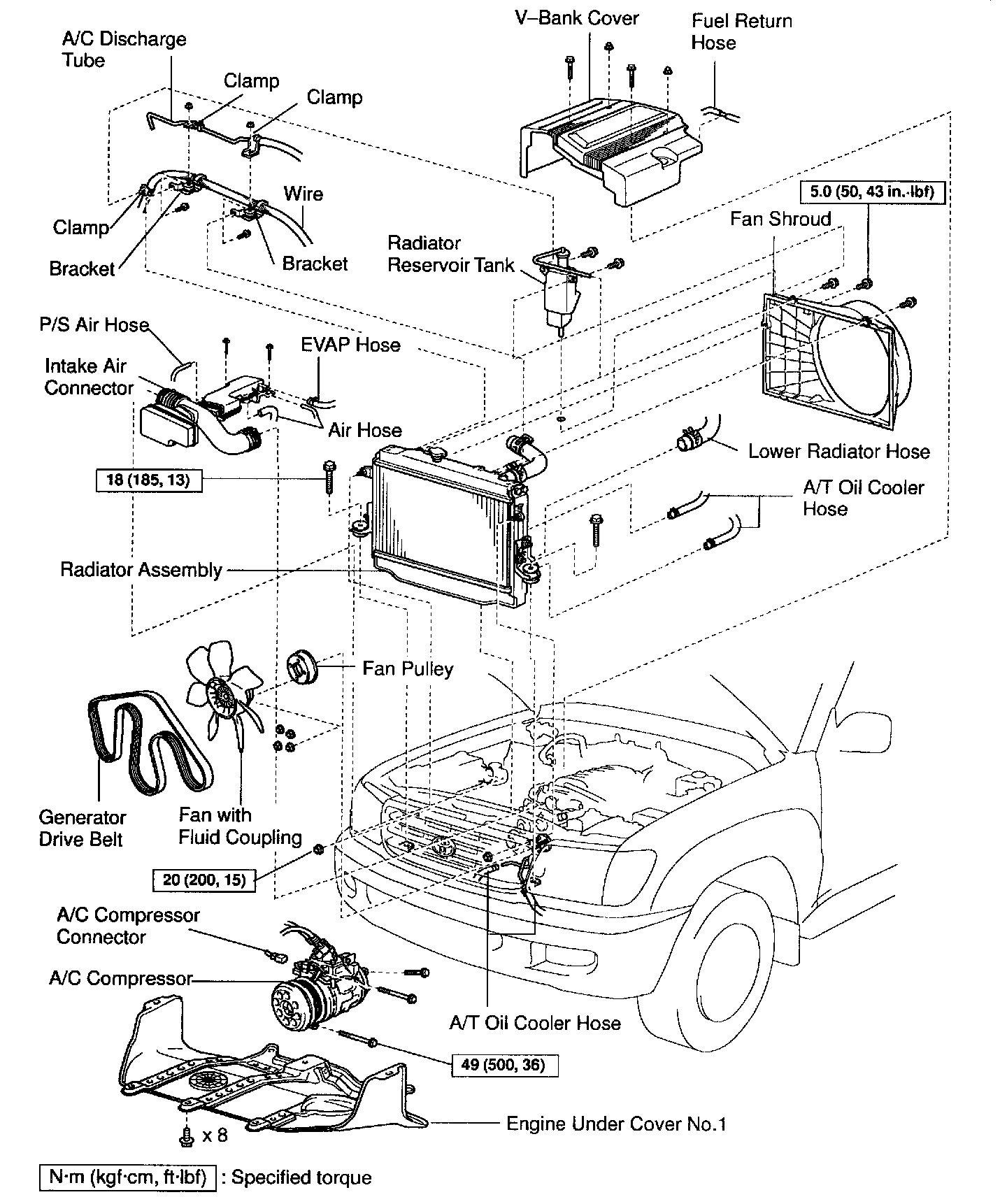

Radiator, Fan, A/C Compressor:





Part 1 of 7

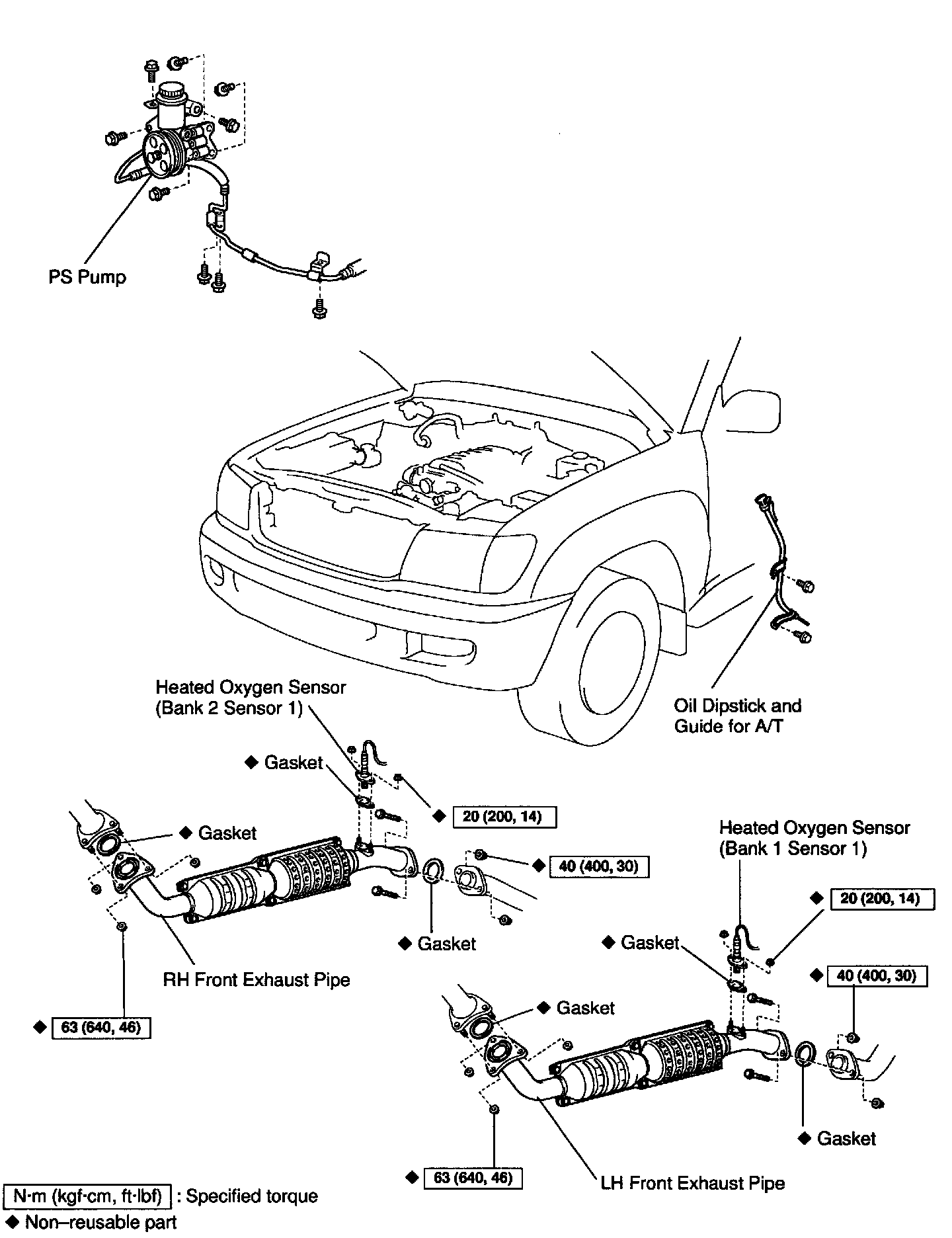

P/S Pump, And Front Exhaust Pipes:





Part 2 of 7

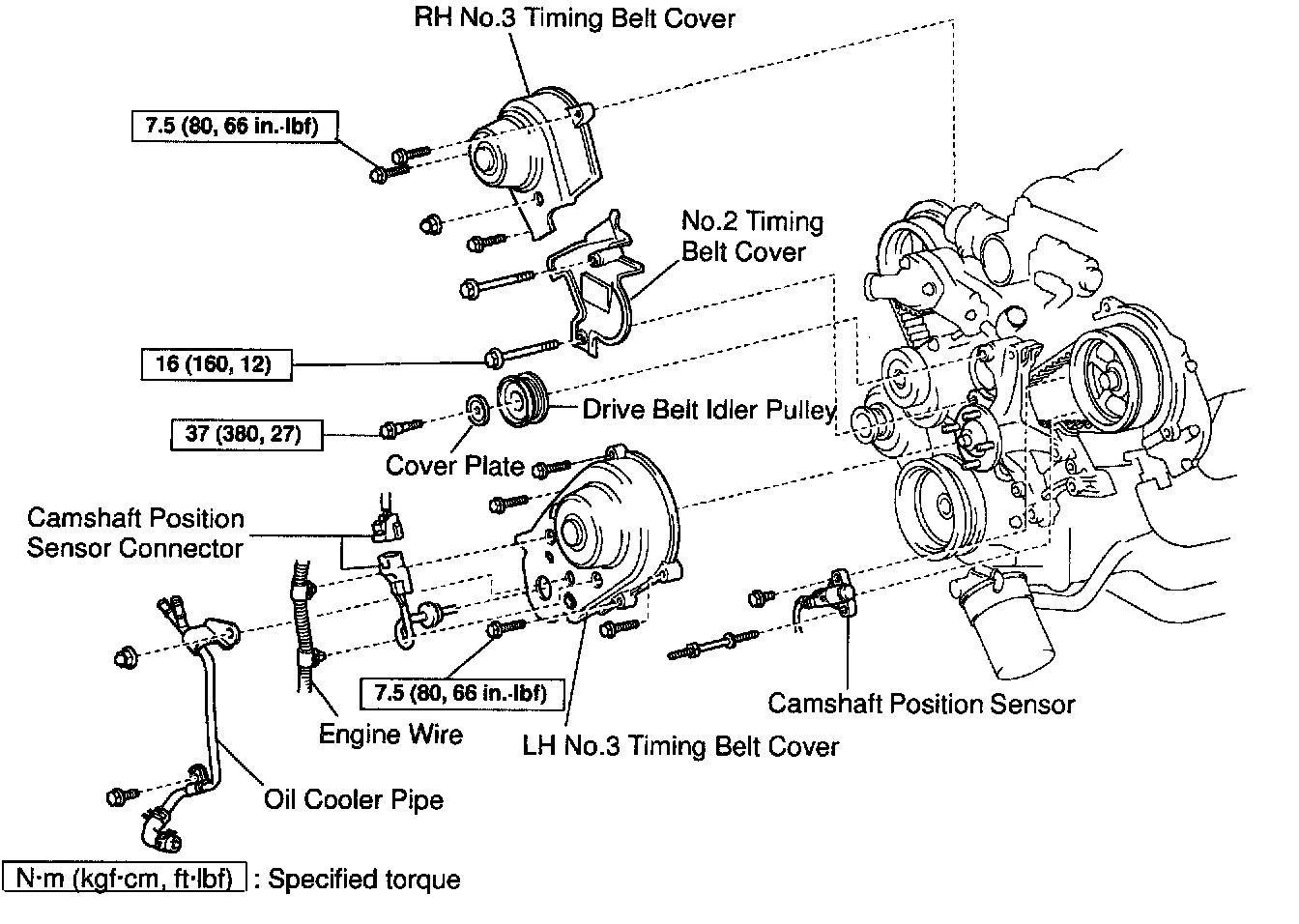

Timing Covers:





Part 3 of 7

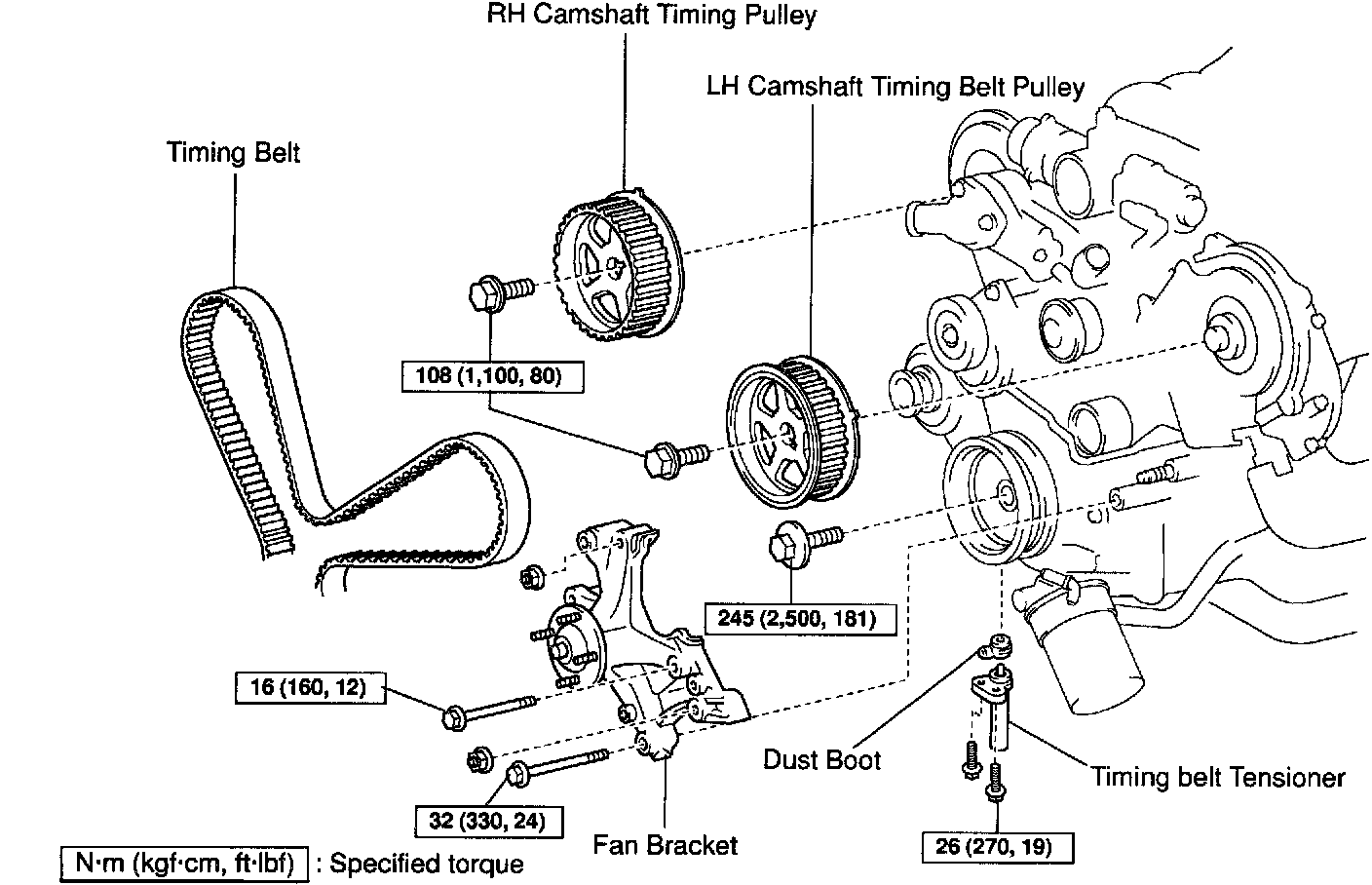

Timing Belt And Related Components:





Part 4 of 7

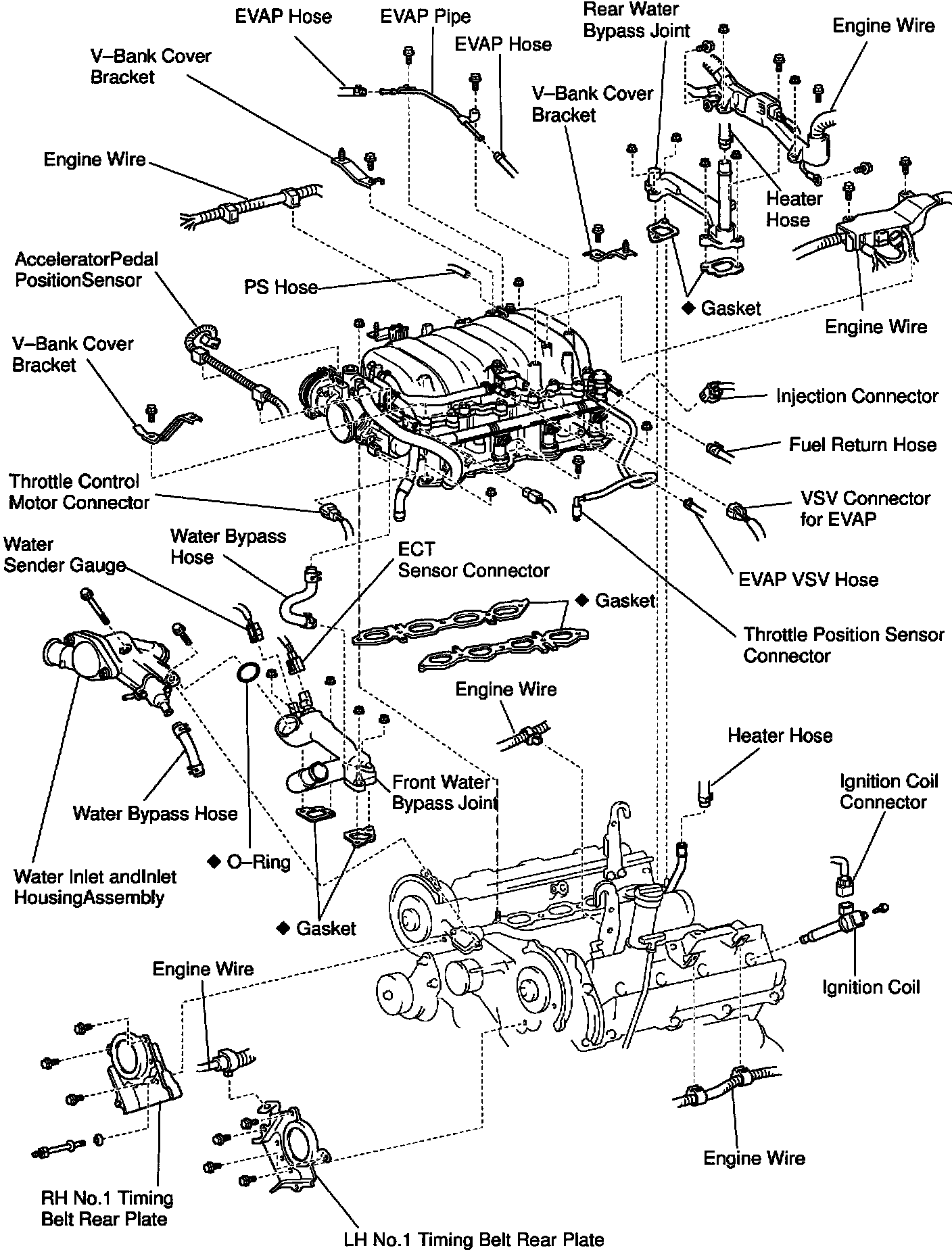

Intake Manifold And Plenum Assb., Various Components:





Part 5 of 7

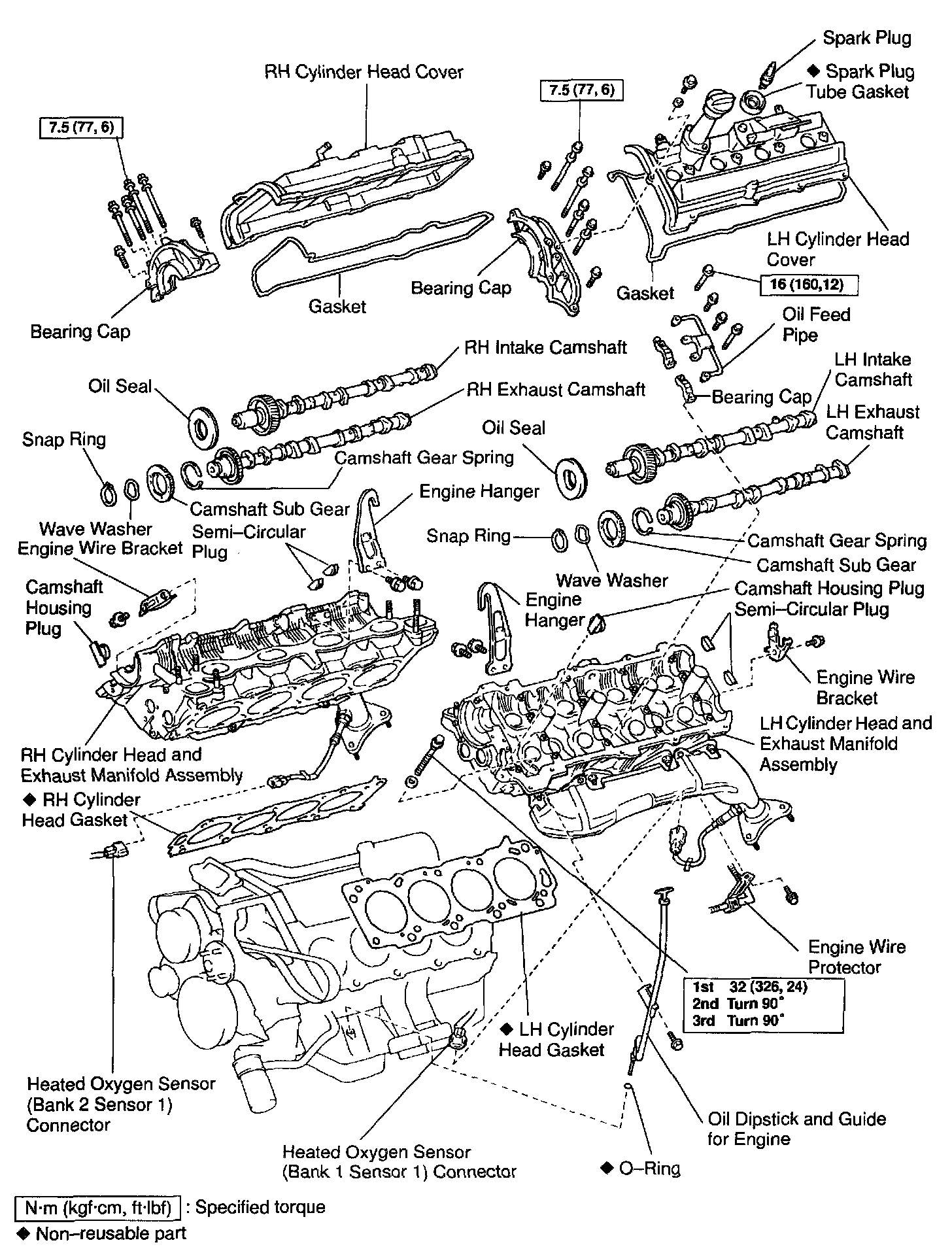

Cylinder Head And Related Components:





Part 6 of 7

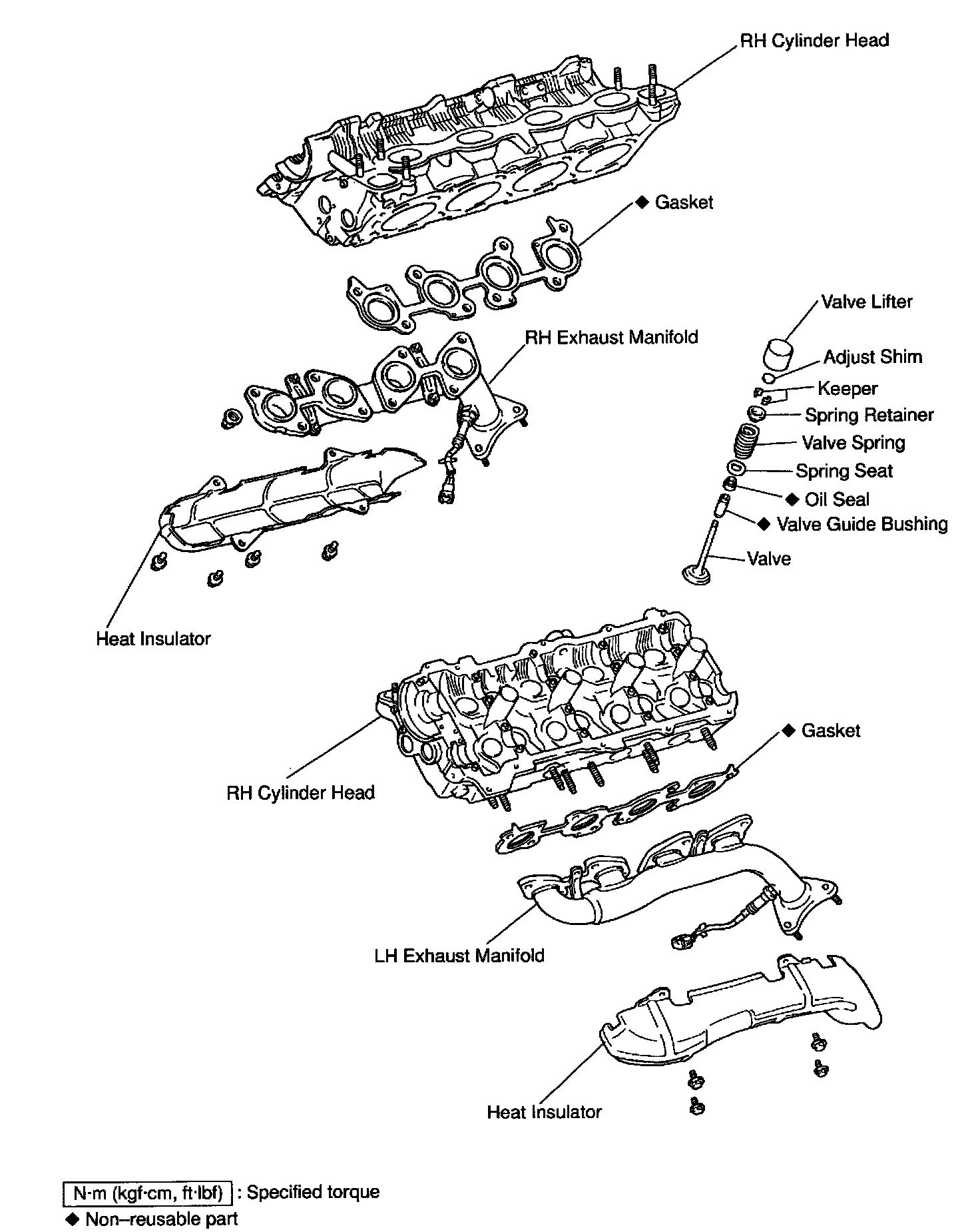

Cylinder Head Valve Assb., And Exhaust Manifolds:





Part 7 of 7
