Power Source Current Flow Diagrams
NOTE: This article contains corrected data processed from TSB# PG001-05.

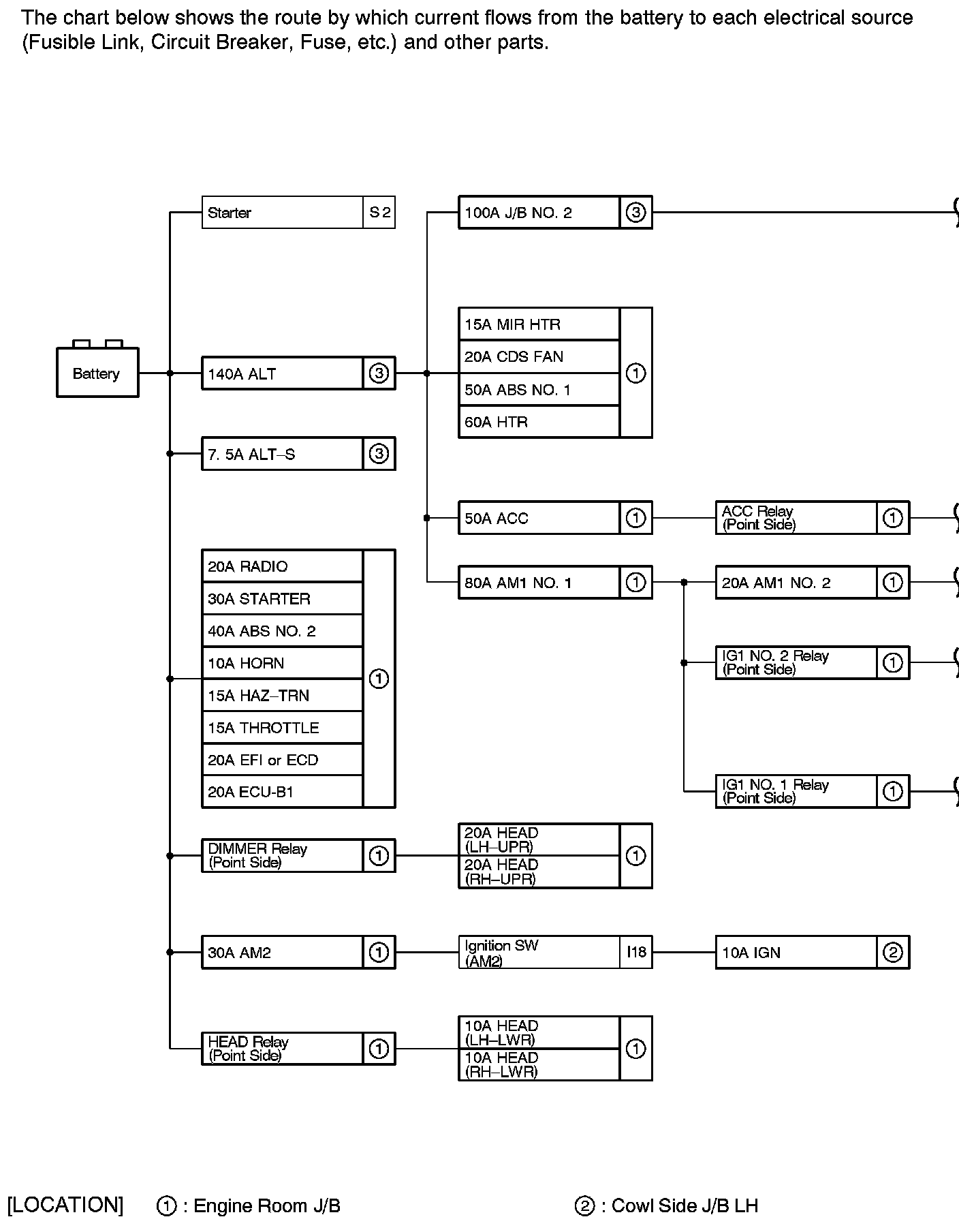

Power Source (Current Flow Chart) - Part 1:
Power Source (Current Flow Chart) - Part 2:

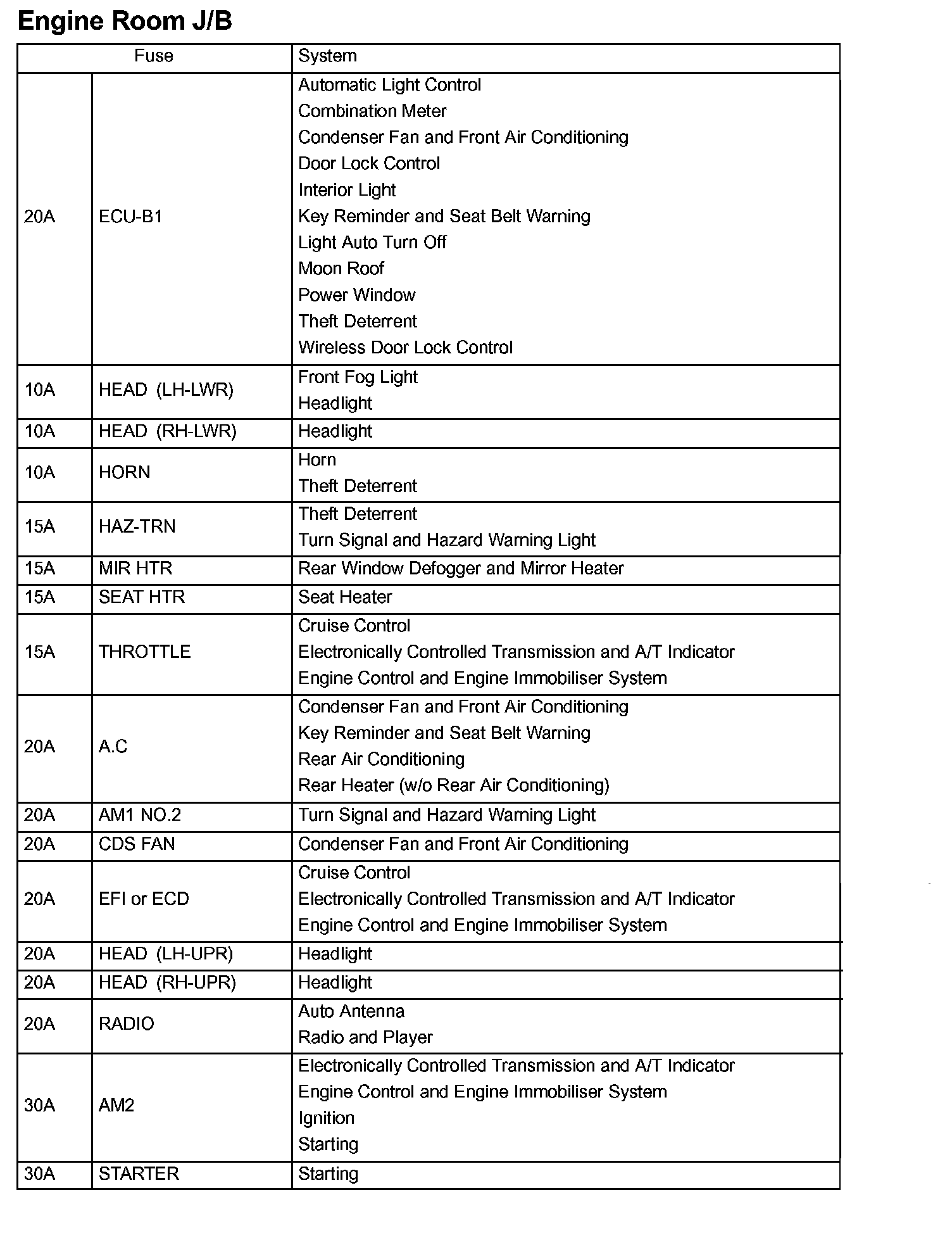

Engine Room J/B:

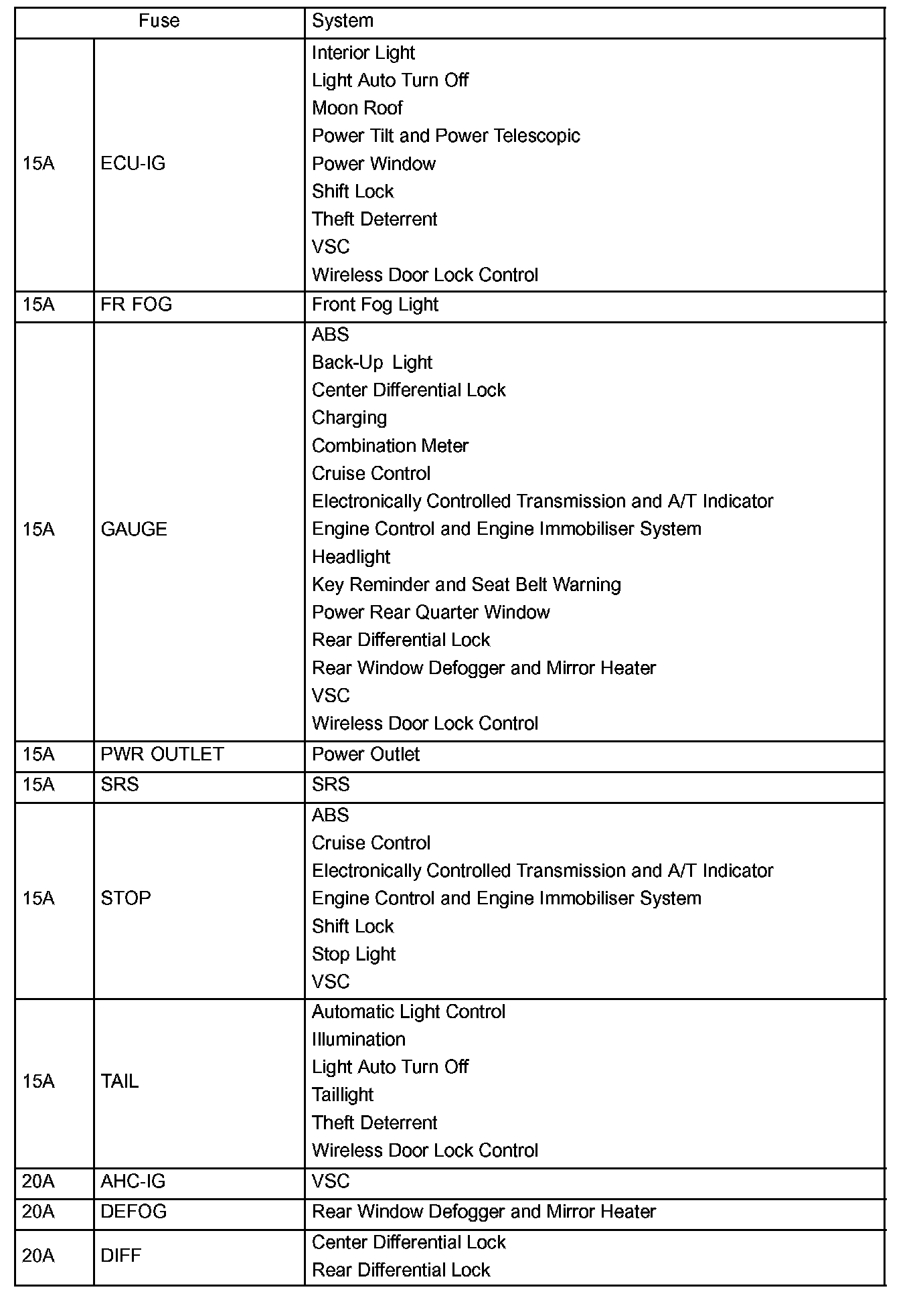

Engine Room J/B (cont.) / Cowl Side J/B LH:
Cowl Side J/B LH (cont.):

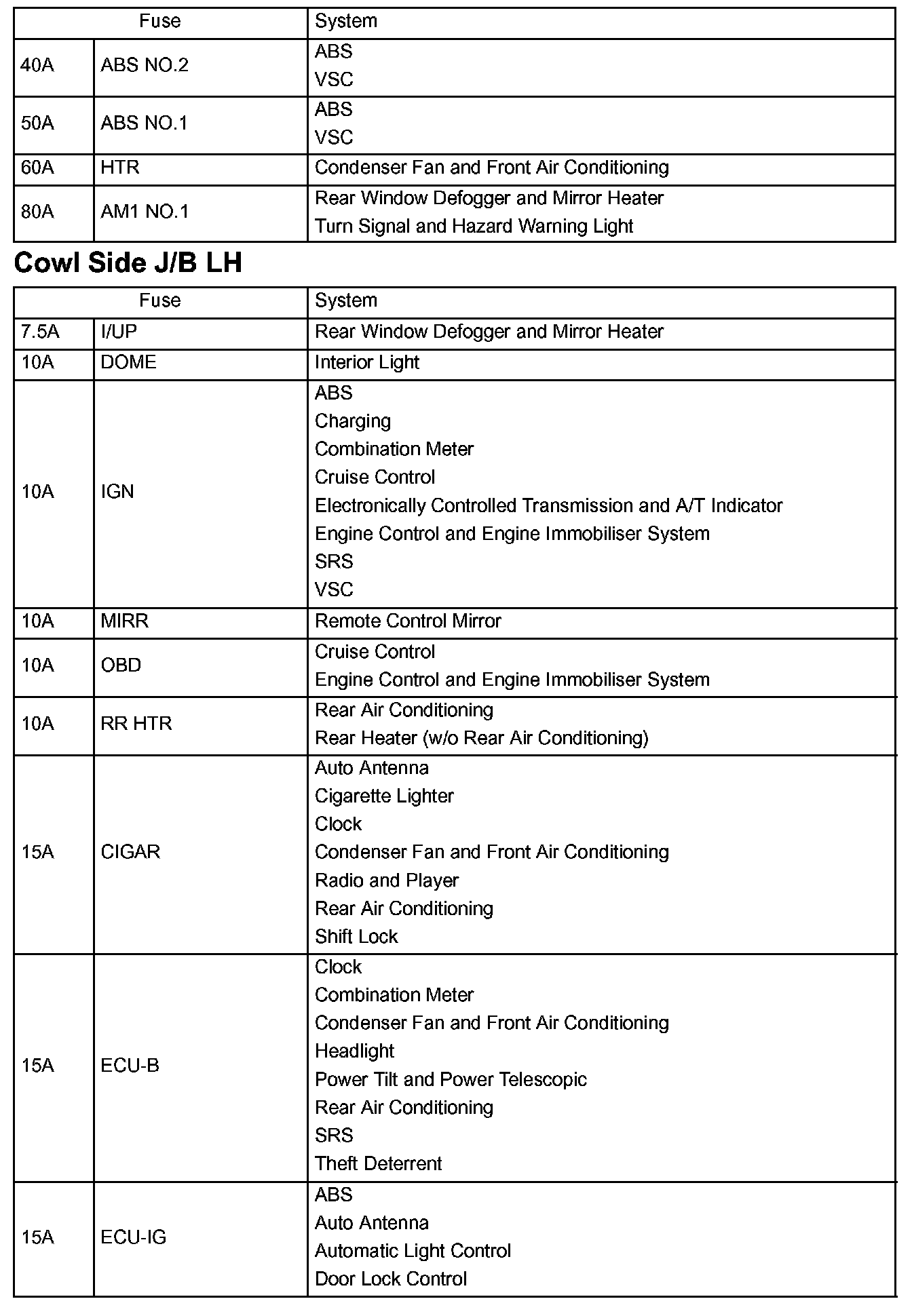

Cowl Side J/B LH (cont.) / Fusible Link Block (F6):
