ECM Communication Circuit Malfunction

CIRCUIT DESCRIPTION
When the reduction of the engine load is necessary, ECM inputs the power steering stop signal to the ECU.

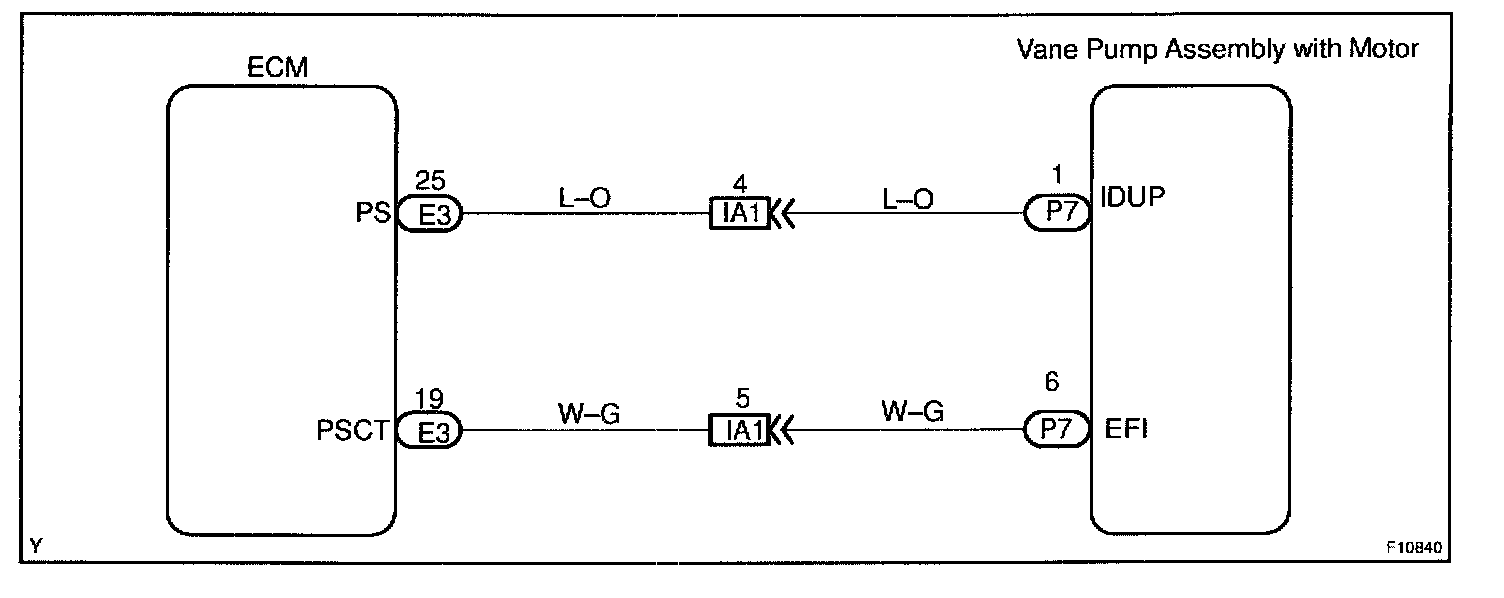

WIRING DIAGRAM

Step 1:

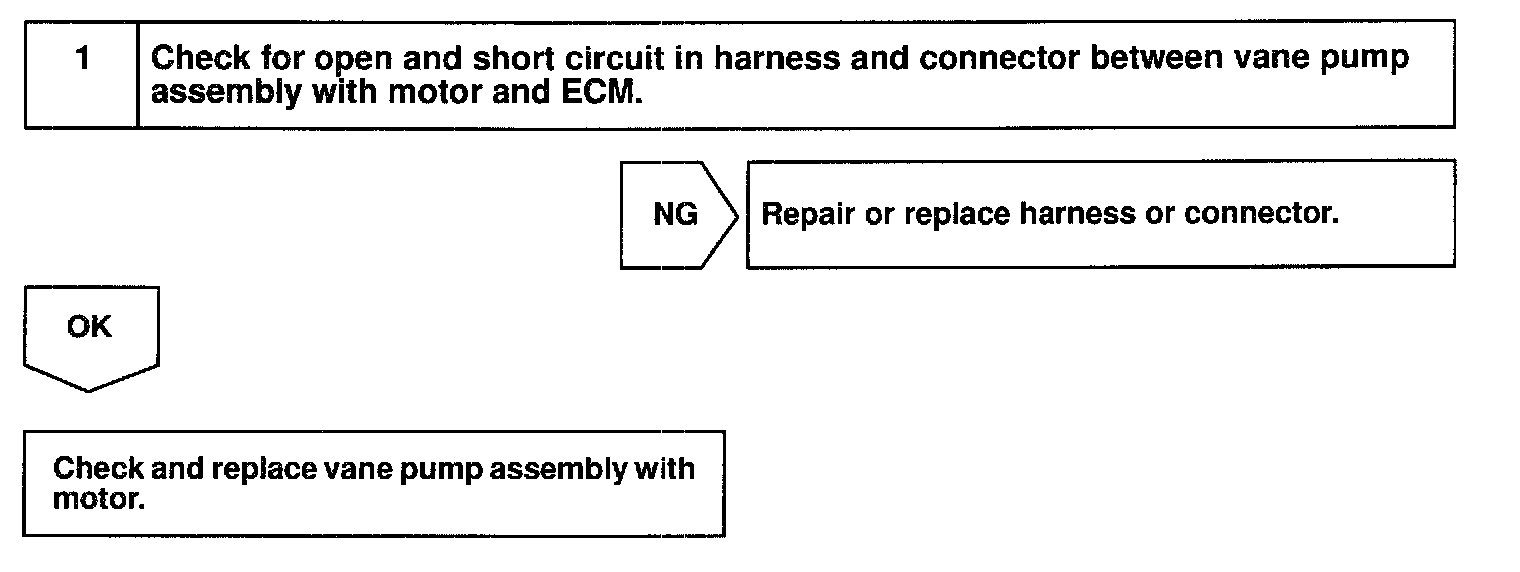

INSPECTION PROCEDURE
