TC Terminal Circuit

CIRCUIT DESCRIPTION
Connecting terminals Tc(13) and CG(4) of the DLC3 causes the vane pump assembly with motor to display the DTC by flashing the P/S warning light.

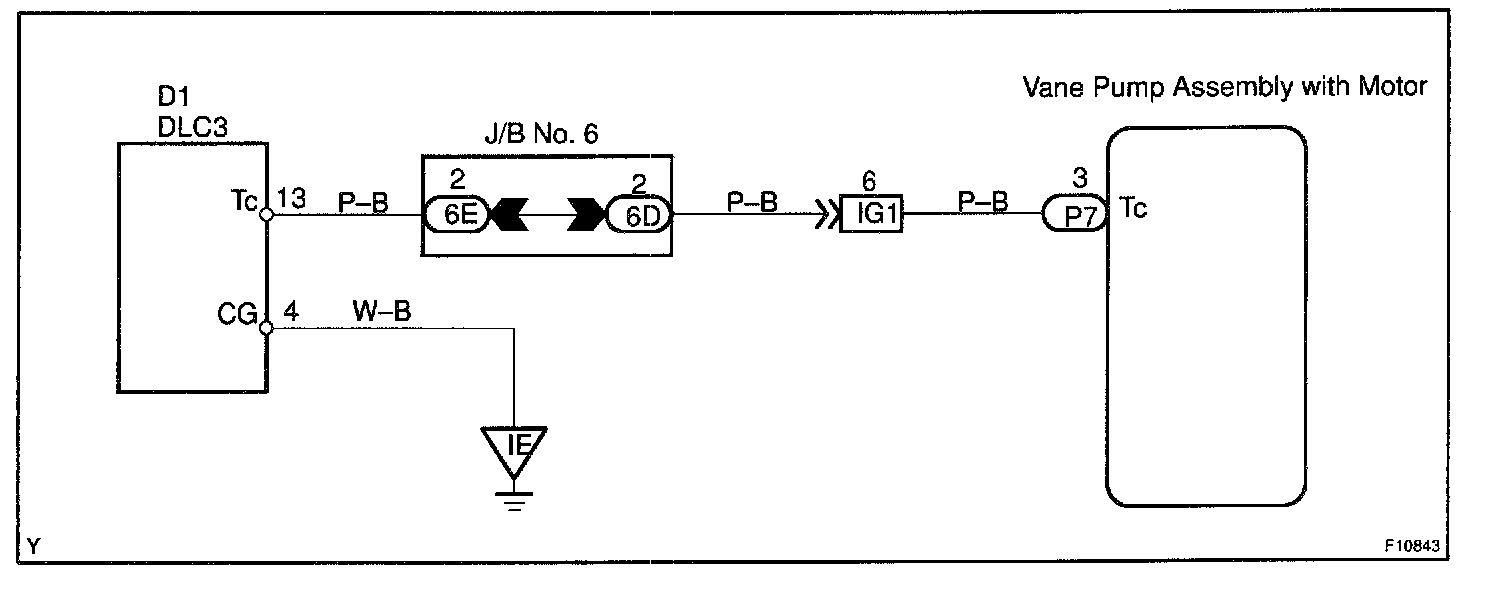

WIRING DIAGRAM

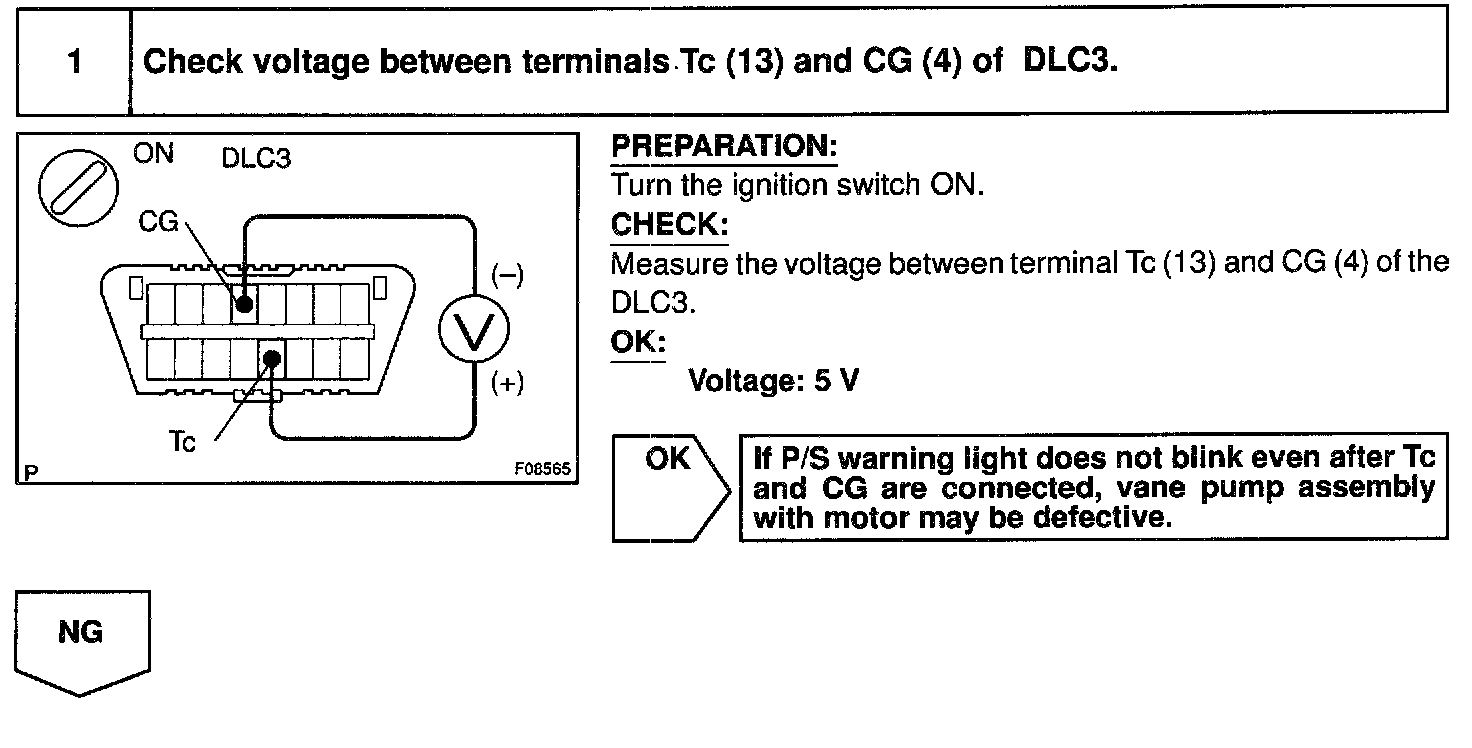

Step 1:

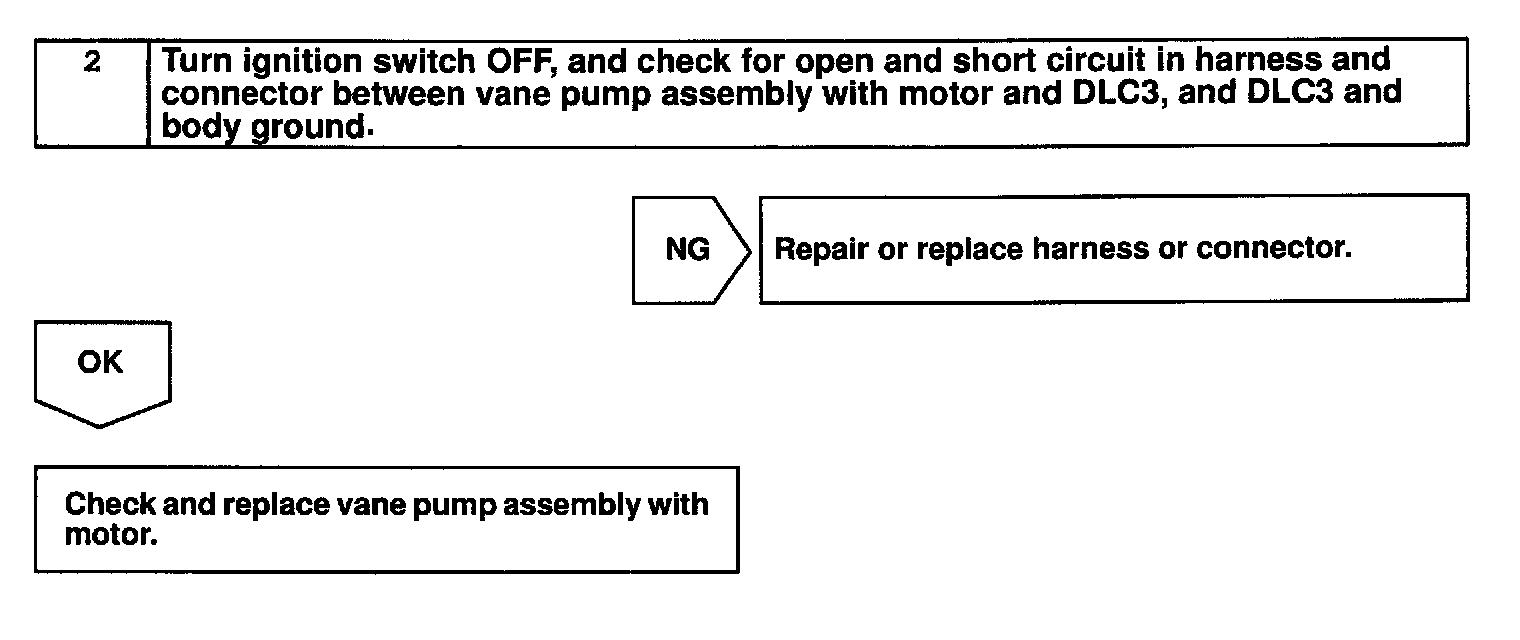

Step 2:




INSPECTION PROCEDURE
