Removal and Installation







COMPONENTS

REMOVAL




1. REMOVE DRIVE BELT
Turn the drive belt tensioner slowly clockwise and loosen it. Then, remove the drive belt and replace the drive belt tensioner little by little and fix it quietly.

2. REMOVE RH ENGINE MOUNTING INSULATOR

3. REMOVE GENERATOR

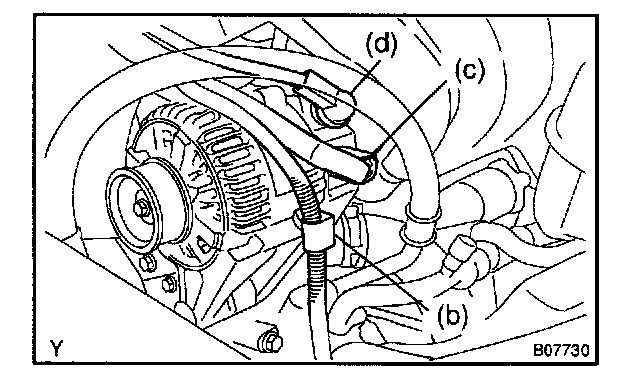

a. Disconnect the wire clamp from the wire clip on the rectifier end frame.
b. Remove the cap and nut, and disconnect the generator wire.
c. Disconnect the generator connector.

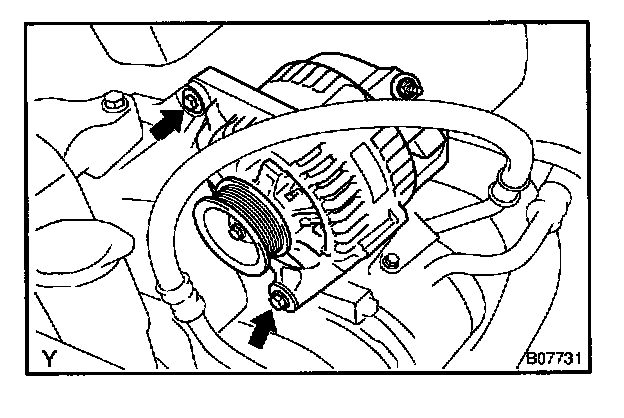

d. Remove the 2 bolts and generator.

INSTALLATION

1. INSTALL GENERATOR




a. Install the 2 bolts and generator.
Torque:
12 mm head: 25 Nm (255 kg.cm, 18 ft.lb)
14 mm head: 54 Nm (550 kg.cm, 40 ft.lb)

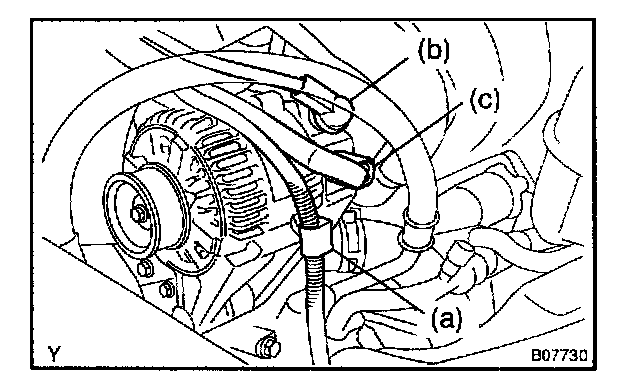

b. Connect the wire clamp to the wire clip on the rectifier end flame.
c. Connect the generator connector.
d. Connect the generator wire, and install the nut and cap.

2. INSTALL RH ENGINE MOUNTING INSULATOR




3. INSTALL DRIVE BELT
Turning the drive belt tensioner clockwise, and install the drive belt.
