Control Assembly: Locations

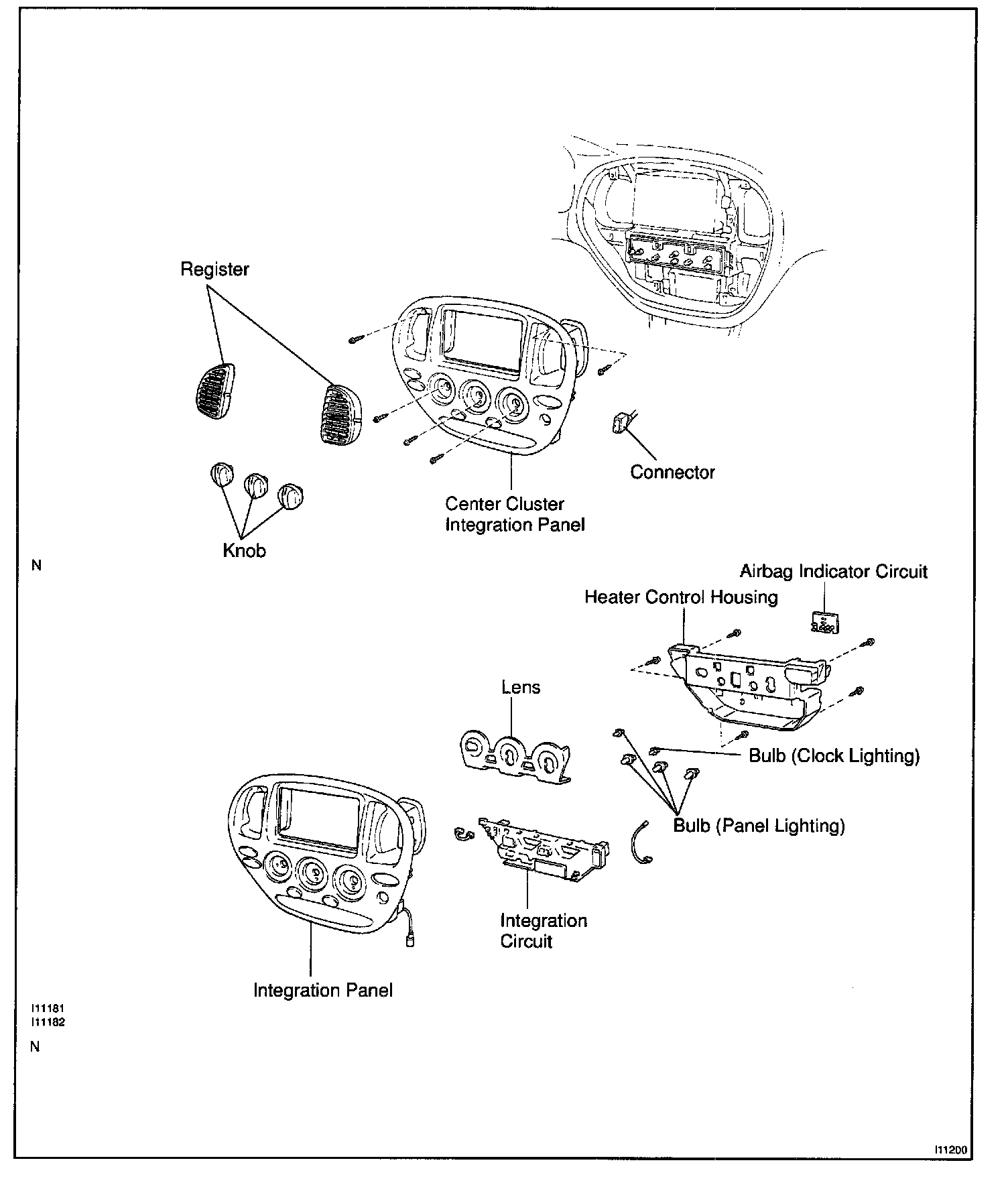

Air Conditioning Control Assembly (Center Cluster Integration):

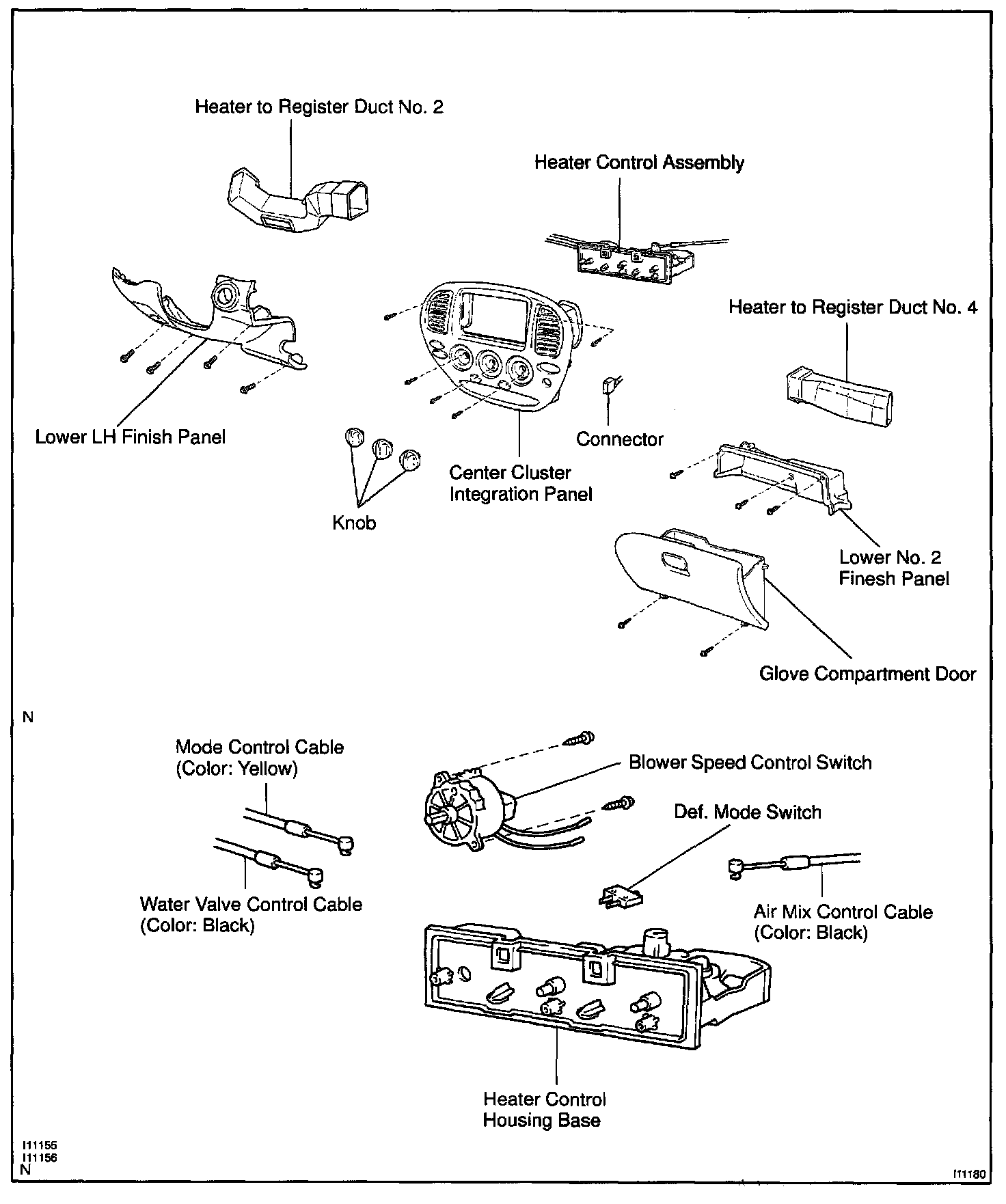

Heater Control Assembly:
