Air Bag System

CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component,
See DESCRIPTION AND OPERATION.
Description and Operation

DTC B0102/11 is recorded when ground short is detected in the D squib circuit.




WIRING DIAGRAM

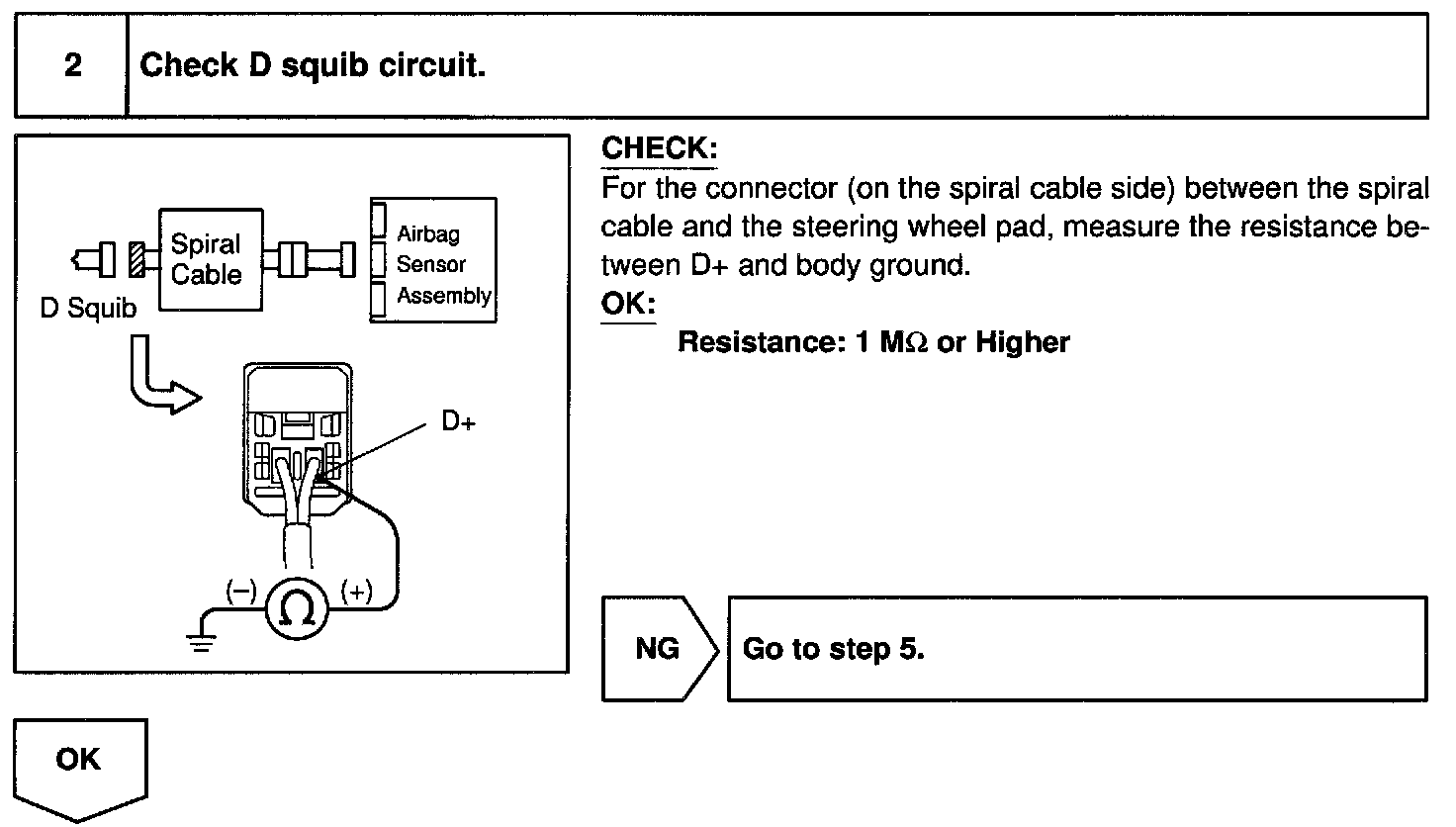

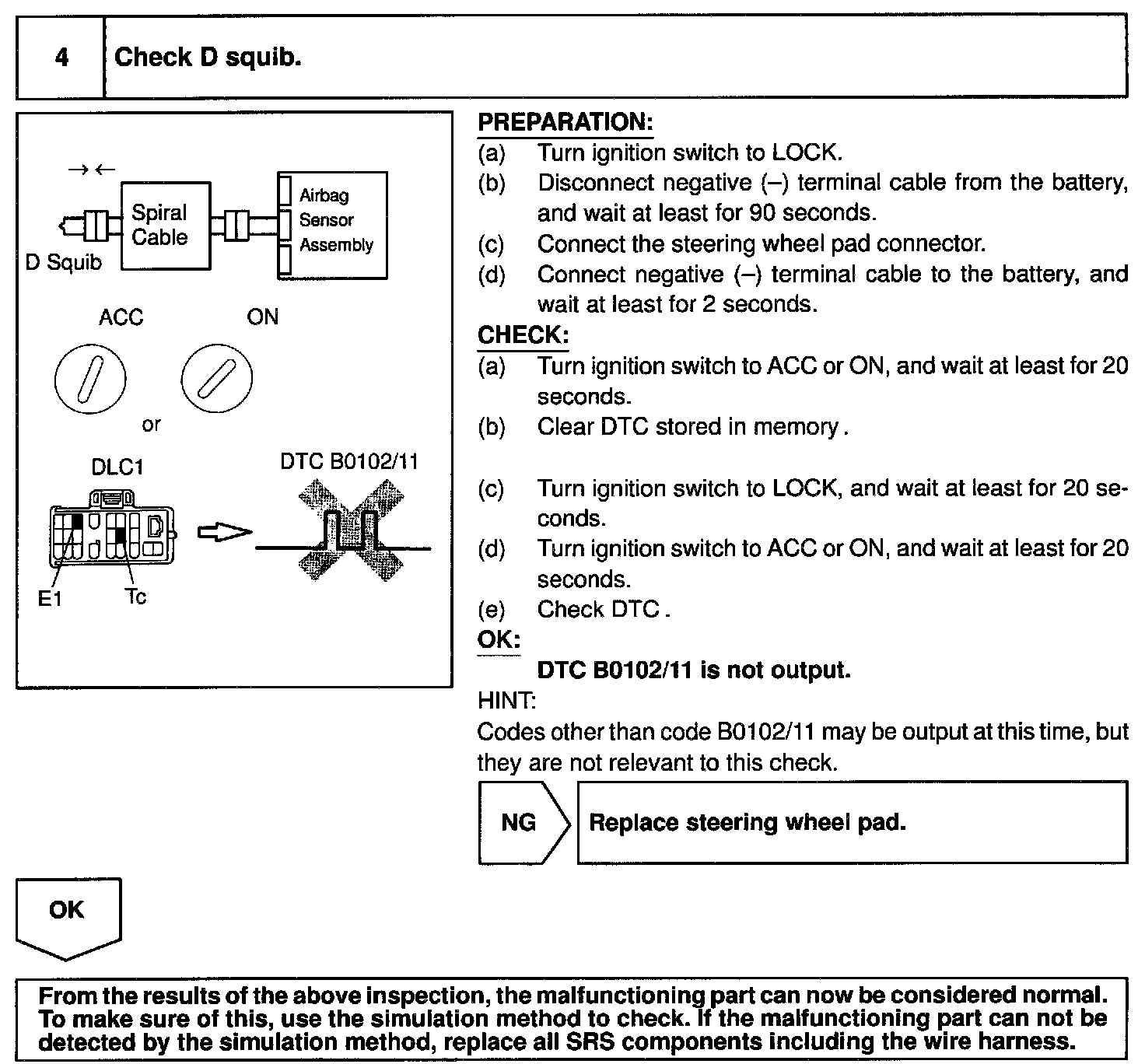

INSPECTION PROCEDURE

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:
