Thermostat: Service and Repair

REMOVAL

HINT: Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.

1. DRAIN ENGINE COOLANT





2. REMOVE THERMOSTAT
a. Remove the 3 nuts, wire clamp, water inlet and thermostat from the water pump.
b. Remove the gasket from the thermostat.

INSPECTION
INSPECT THERMOSTAT

HINT: The thermostat is numbered with the valve opening temperature.





a. Immerse the thermostat in water and gradually heat the water.
b. Check the valve opening temperature.
Valve opening temperature: 80 - 84°C (176 - 183°F)
If the valve opening temperature is not as specified, replace the thermostat.

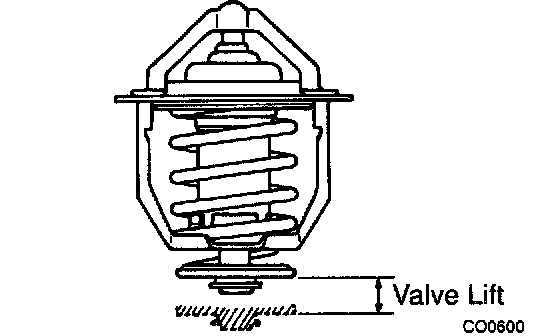

c. Check the valve lift.
Valve lift: 8.5 mm (0.335 inch) or more at 95°C (203°F)
If the valve lift is not as specified, replace the thermostat.
d. Check that the valve is fully closed when the thermostat is at low temperatures (below 40°C (104°F)). If not closed, replace the thermostat.

INSTALLATION





1. INSTALL THERMOSTAT
a. Place a new gasket to the thermostat.
b. Install the thermostat with the jiggle valve downward.
c. Install the water inlet with the 3 bolts.
Torque: 20 Nm (200 kgf-cm, 14 ft. lbs.)
2. CONNECT LOWER RADIATOR HOSE
3. FILL WITH ENGINE COOLANT
4. START ENGINE AND CHECK FOR COOLANT LEAKS
5. RECHECK ENGINE COOLANT LEVEL
