Auto A/C

DISASSEMBLY

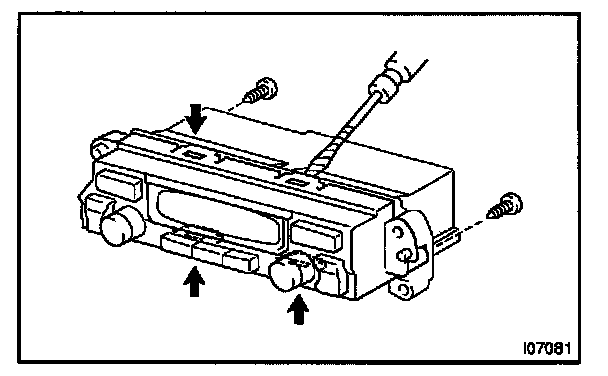

1. REMOVE A/C CONTROL PANEL
a. Remove the 2 screws.
b. Using a screwdriver, release the 4 claws.

HINT: Tape the screwdriver tip before use.

c. Unlock the connector's lock and pull out the flat harness from the A/C control panel.




2. REMOVE A/C AMPLIFIER
a. Release the 4 claws and remove the holder.
b. Hold the connector of amplifier and pull out the amplifier.

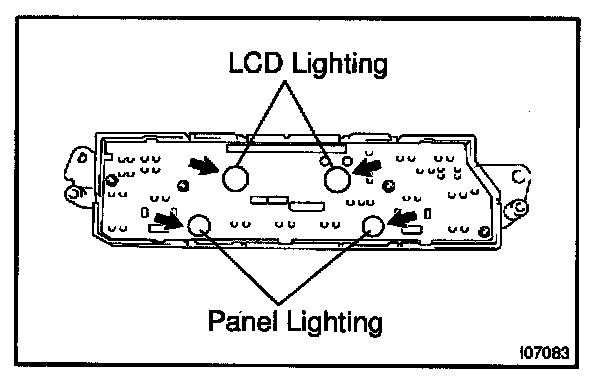

3. REMOVE BULB
Using a screwdriver, turn the bulb to the left and pull out the bulb.

REASSEMBLY

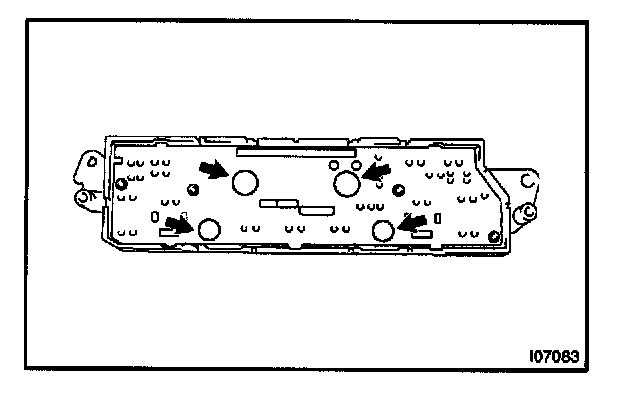

1. INSTALL BULB
a. Install the bulb to the A/C control panel.
b. Using a screwdriver, turn the bulb to the right and lock the bulb.

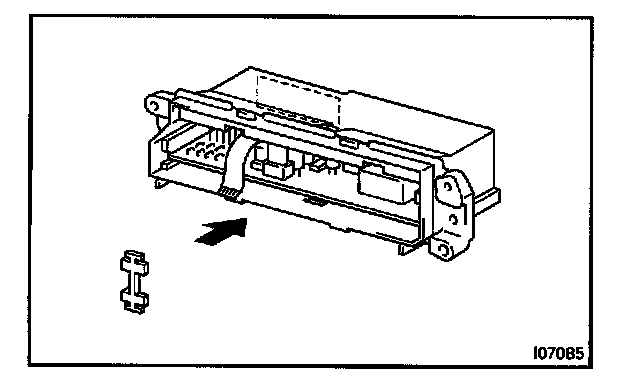

2. INSTALL A/C AMPLIFIER
a. Hold the connector of supply parts amplifier and pull out the amplifier from electrostatic prevention bag.




b. Hold the connector of amplifier and insert the amplifier to the NC control panel case.
c. Install the holder.
d. Check the fitting for connector of amplifier.

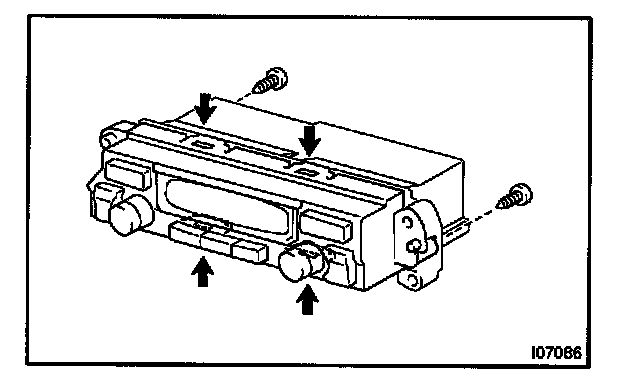

3. INSTALL A/C CONTROL PANEL
a. Unlock the connector's lock and push into the flat cable.
b. Install the A/C control panel.
c. Check the fitting for 4 claws.
d. Install the 2 screws.
