Manual A/C
DISASSEMBLY 1.

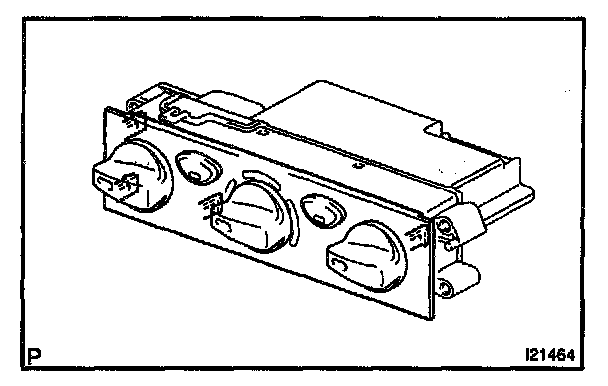

REMOVE A/C CONTROL PANEL
a.
Remove the 3 knobs and 2 switch.
b.
Remove the A/C control panel.
2.

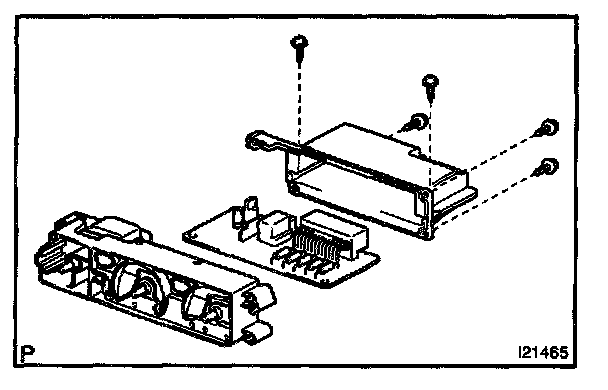

REMOVE
A/C AMPLIFIER a.
Remove the 5 screws.
b.
Remove the A/C control panel case and amplifier.
3.

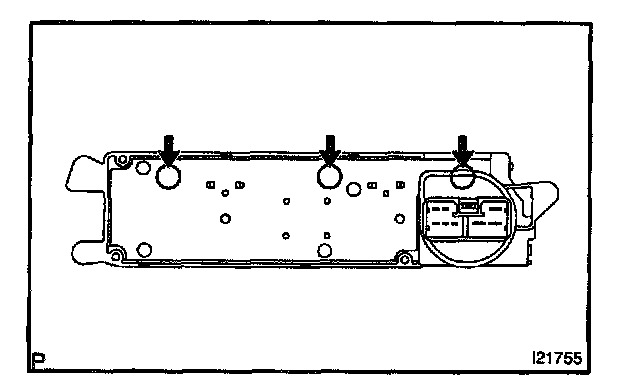

REMOVE BULB
Using a screwdriver, turn the bulb to the left and pull out the bulb.
REASSEMBLYReassembly is in the reverse order of disassembly.
