Engine Torque and Sequence

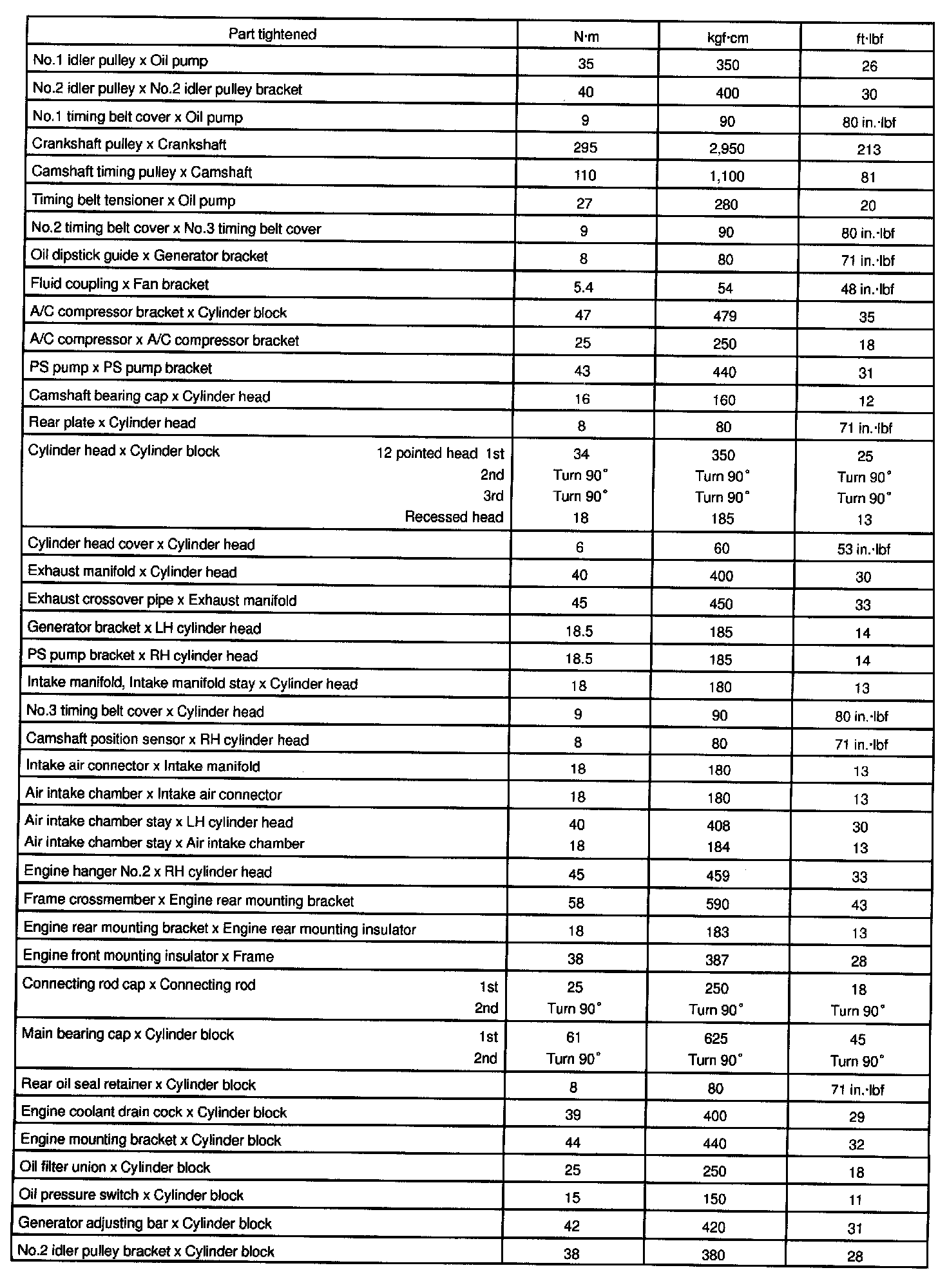

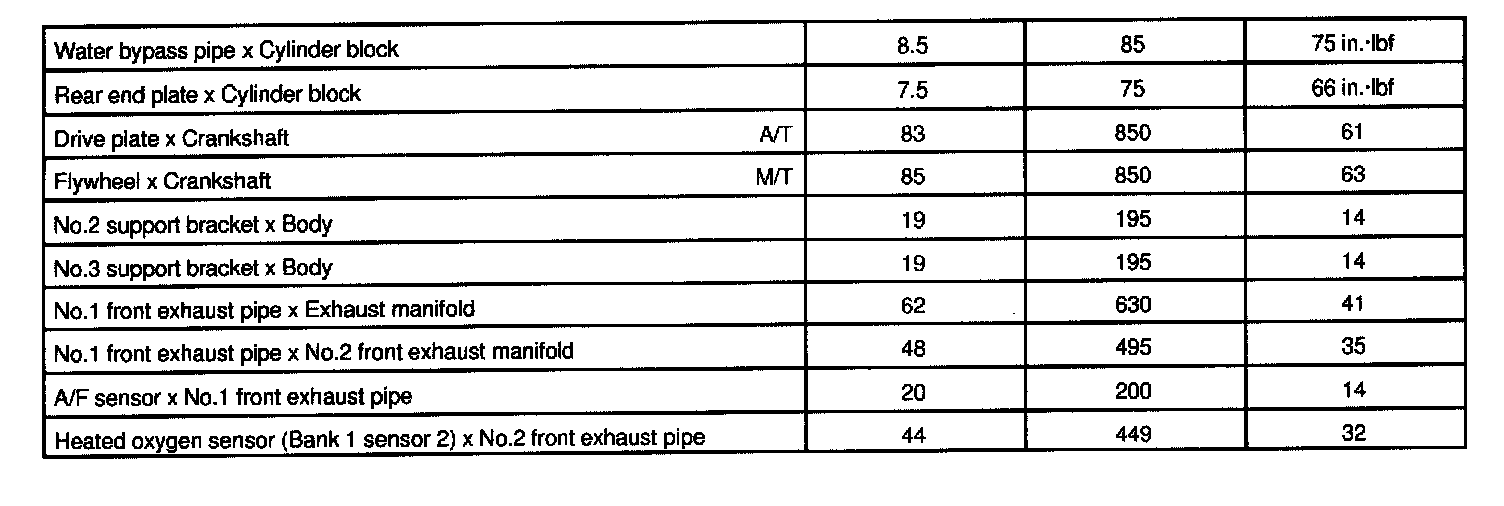

Tightening Torque

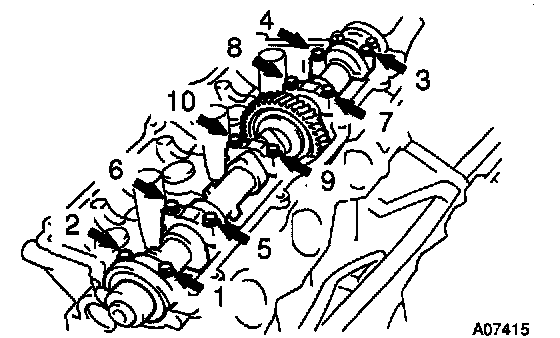

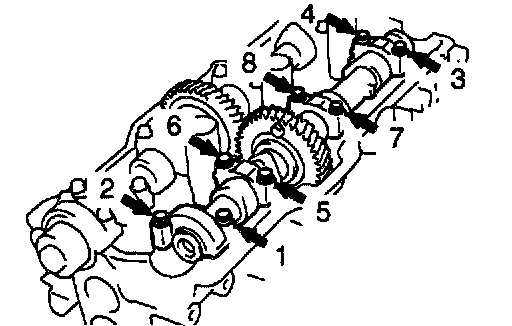

RH Cylinder Head Exhaust Camshaft Bearing Cap Bolt Removal Sequence:

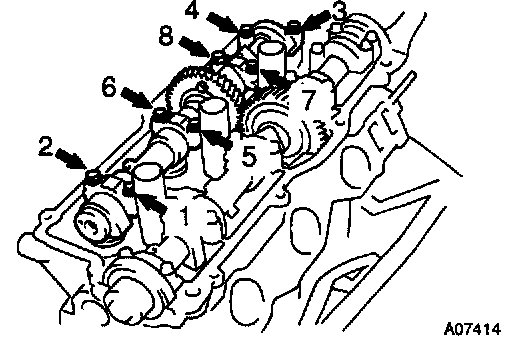

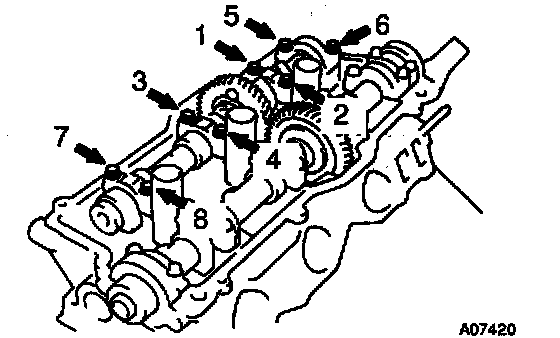

RH Cylinder Head Intake Camshaft Bearing Cap Bolt Removal Sequence:

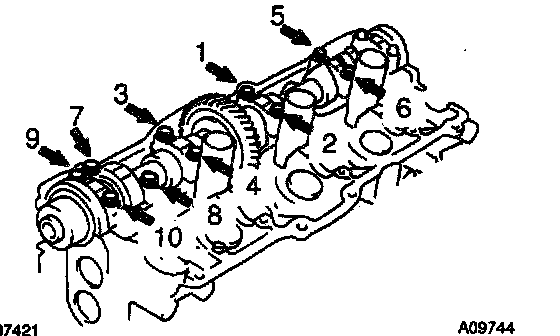

RH Cylinder Head Intake Camshaft Bearing Cap Bolt Torque Sequence:

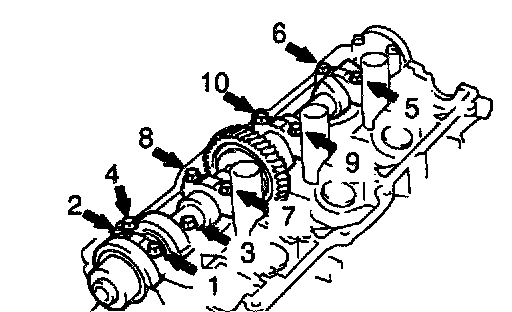

RH Cylinder Head Exhaust Camshaft Bearing Cap Bolt Torque Sequence:
LH Cylinder Head Intake Camshaft Bearing Cap Bolt Torque Sequence:

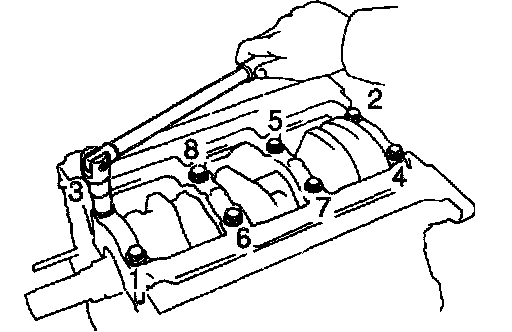

Main Bearing Cap Removal Sequence:

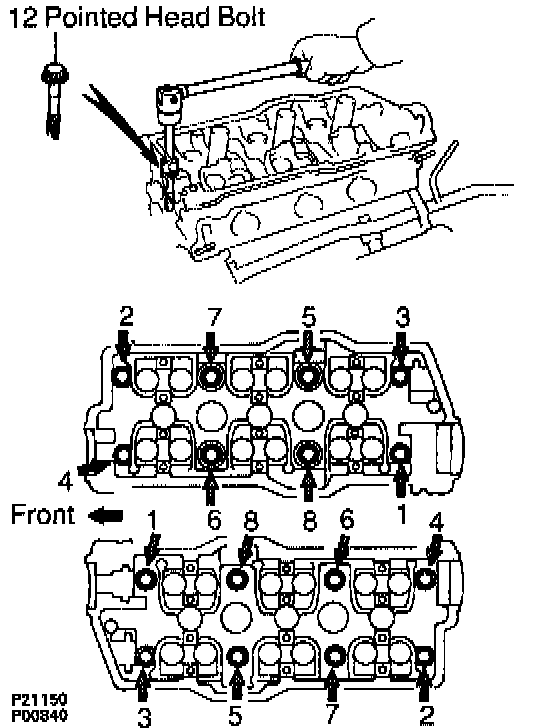

Tightening Sequence
