Body and Frame: Locations

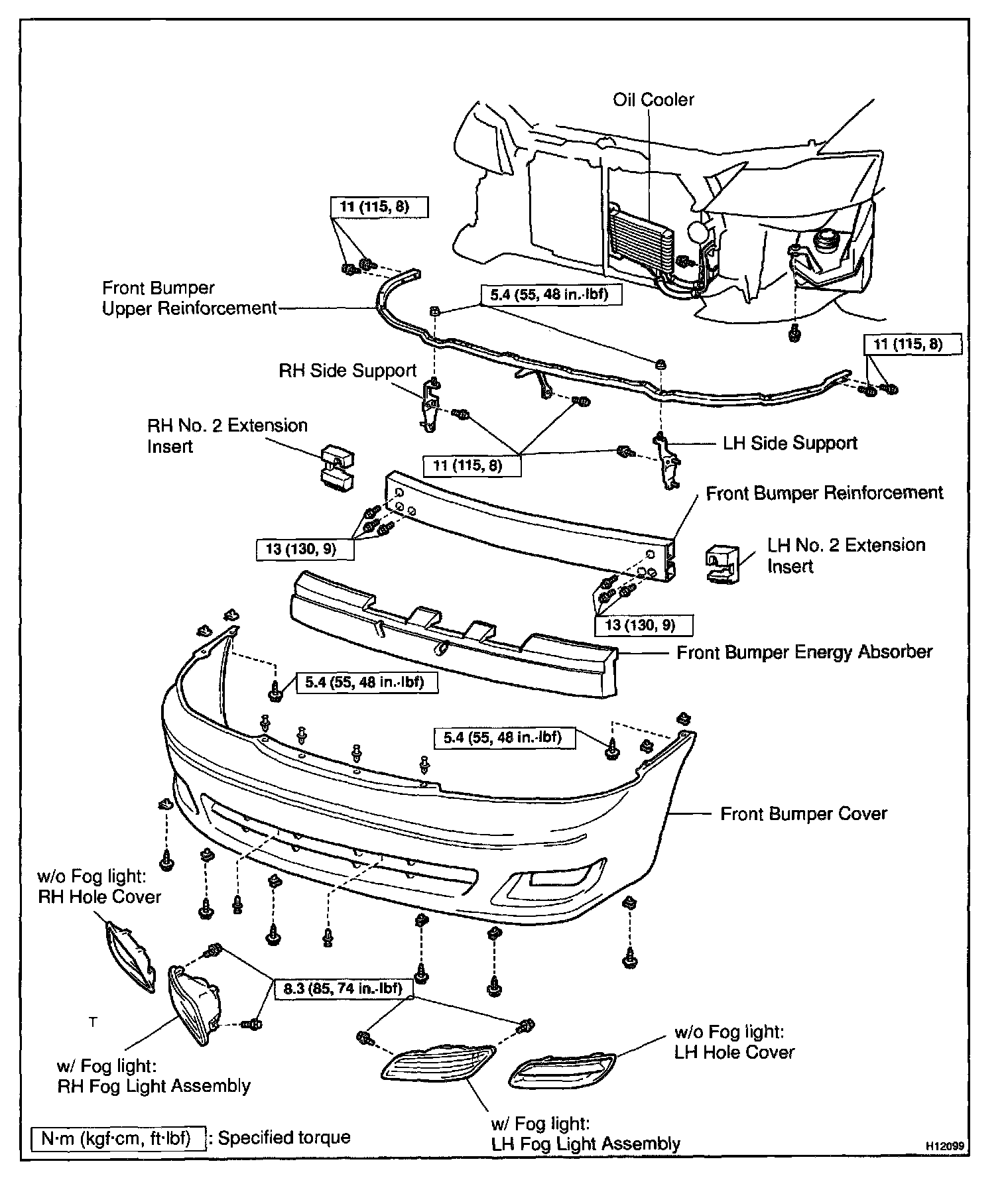

Front Bumper:

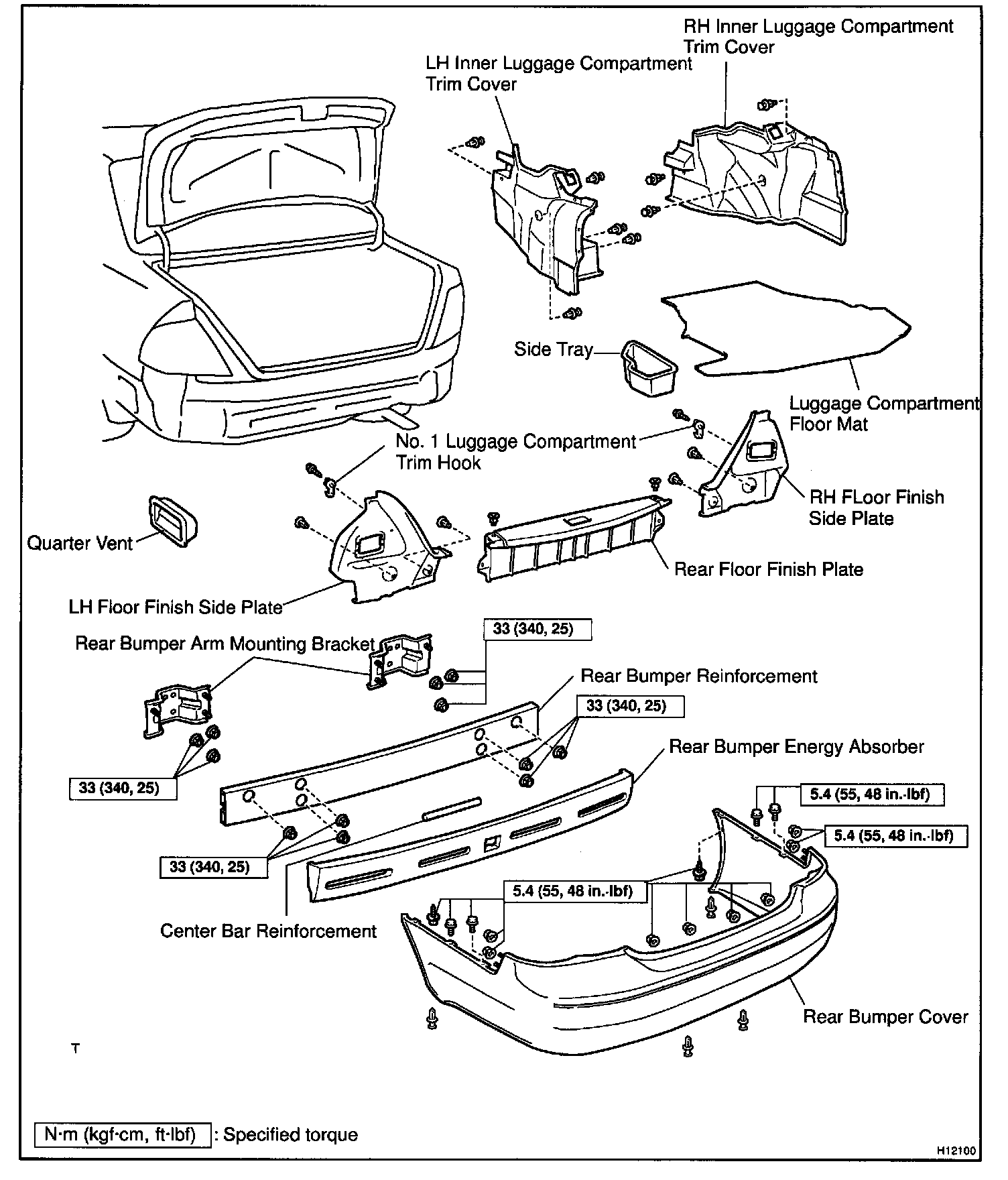

Rear Bumper:

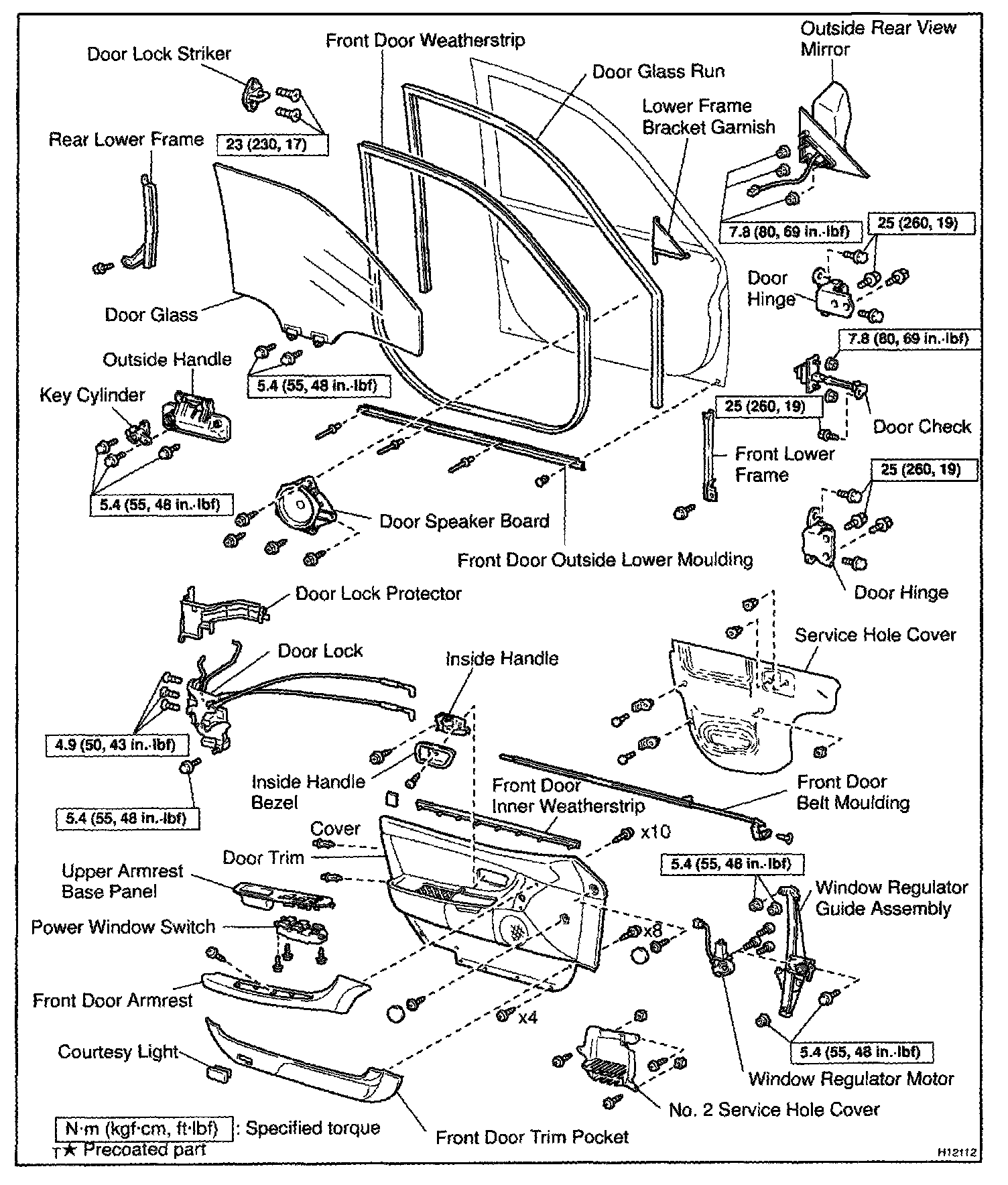

Front Door:

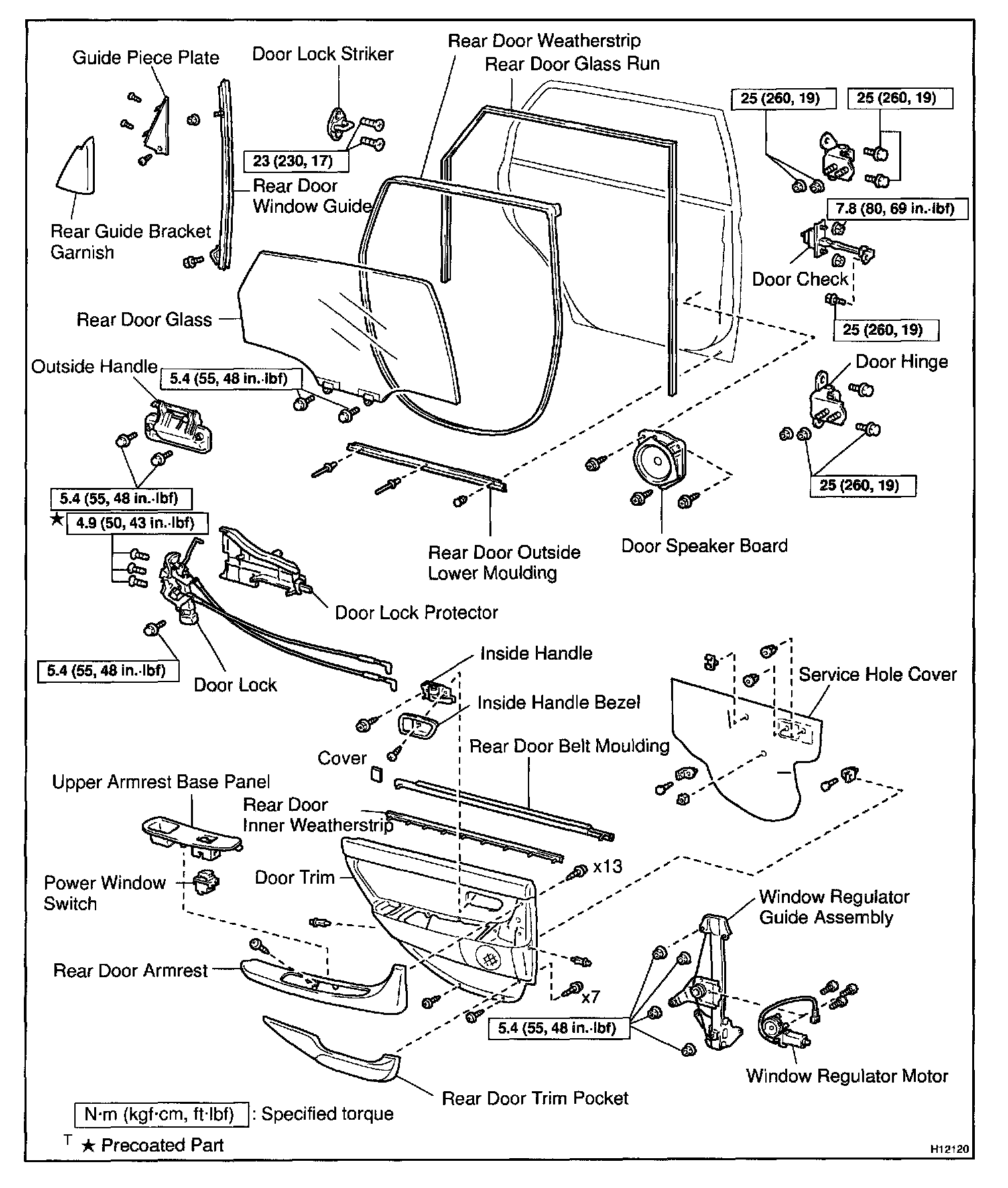

Rear Door:

Outside Rear View Mirror:

Luggage Compartment Door And Hinge:

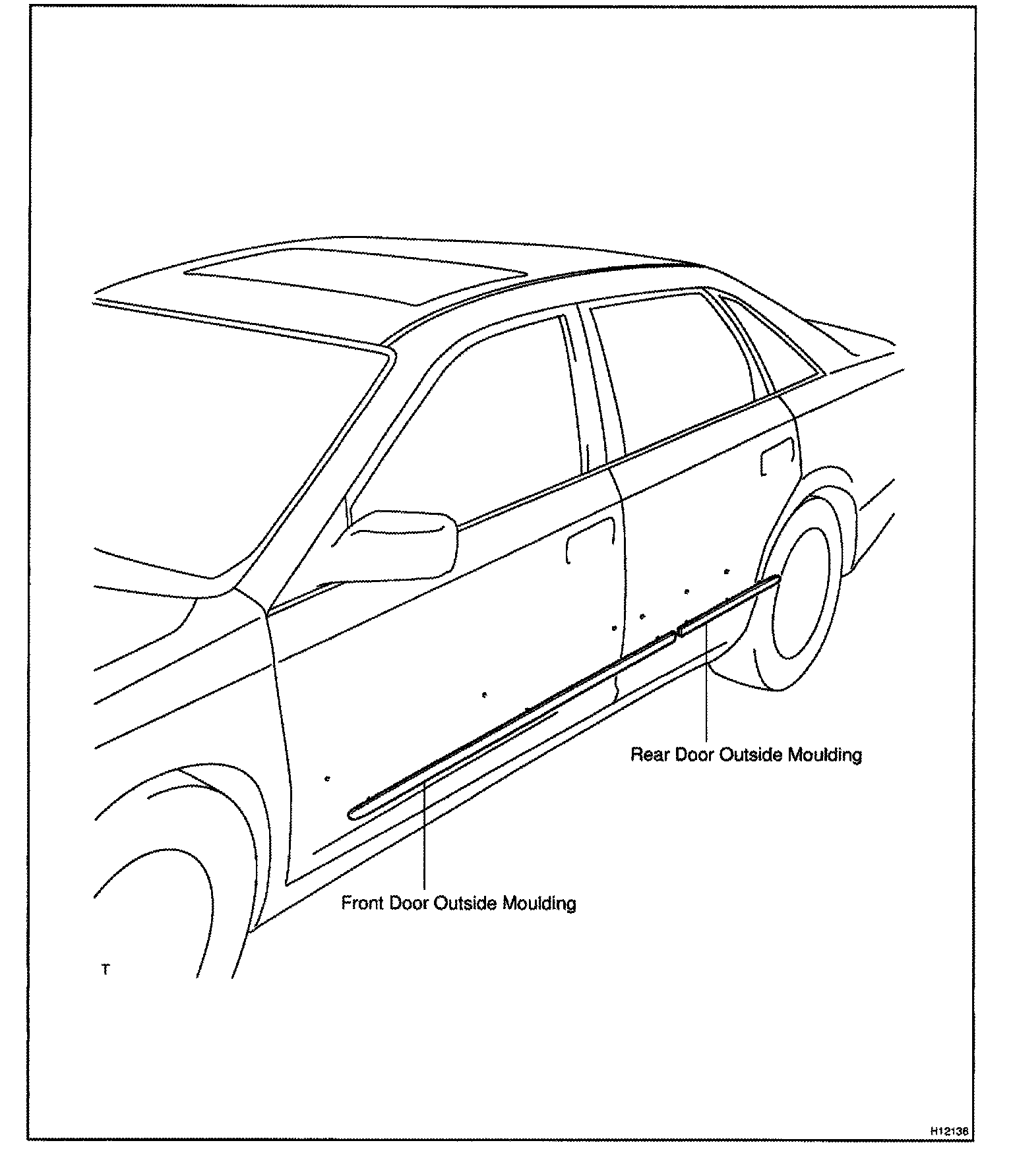

Body Outside Moulding:

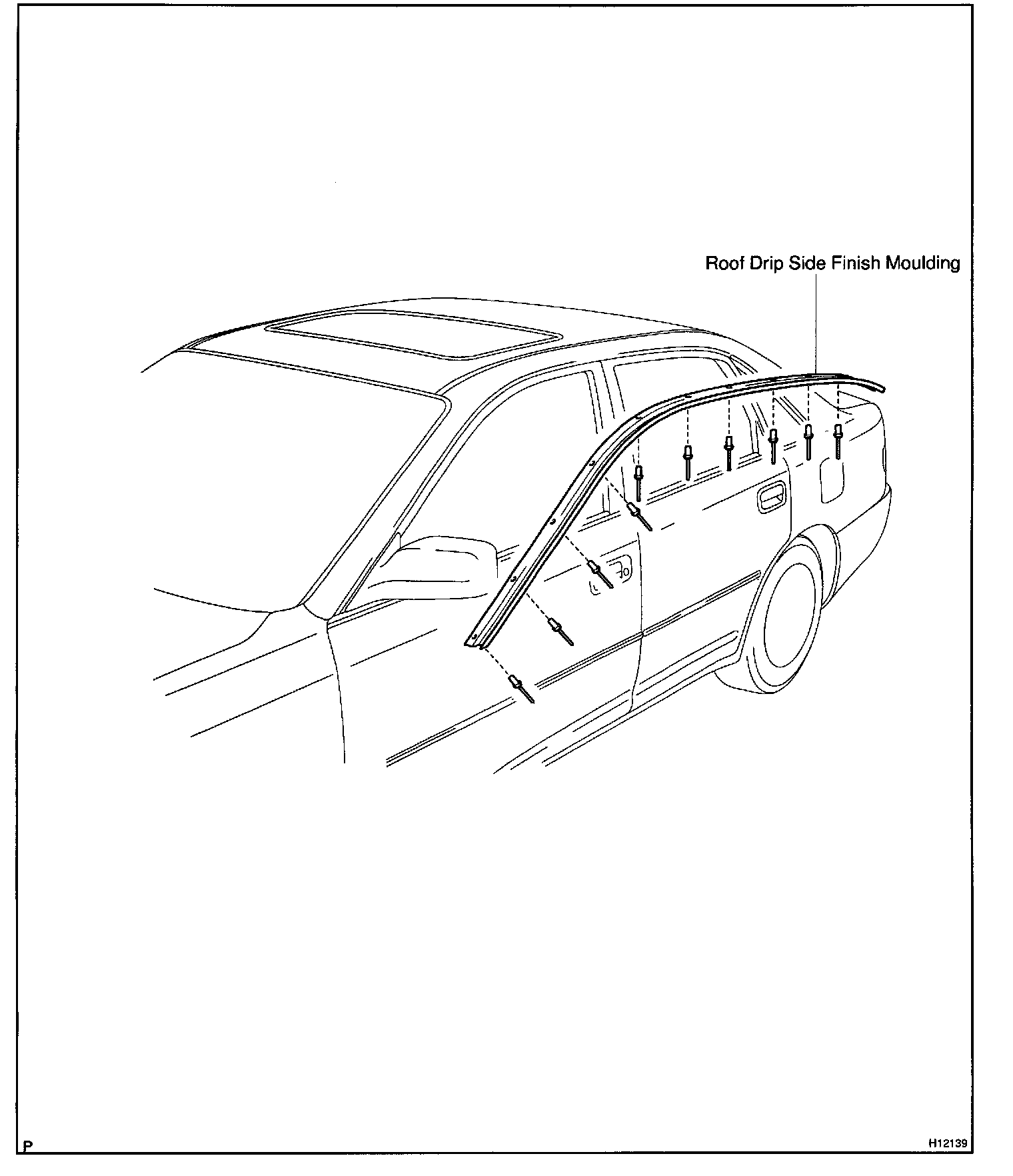

Roof Drip Side Finish Moulding:

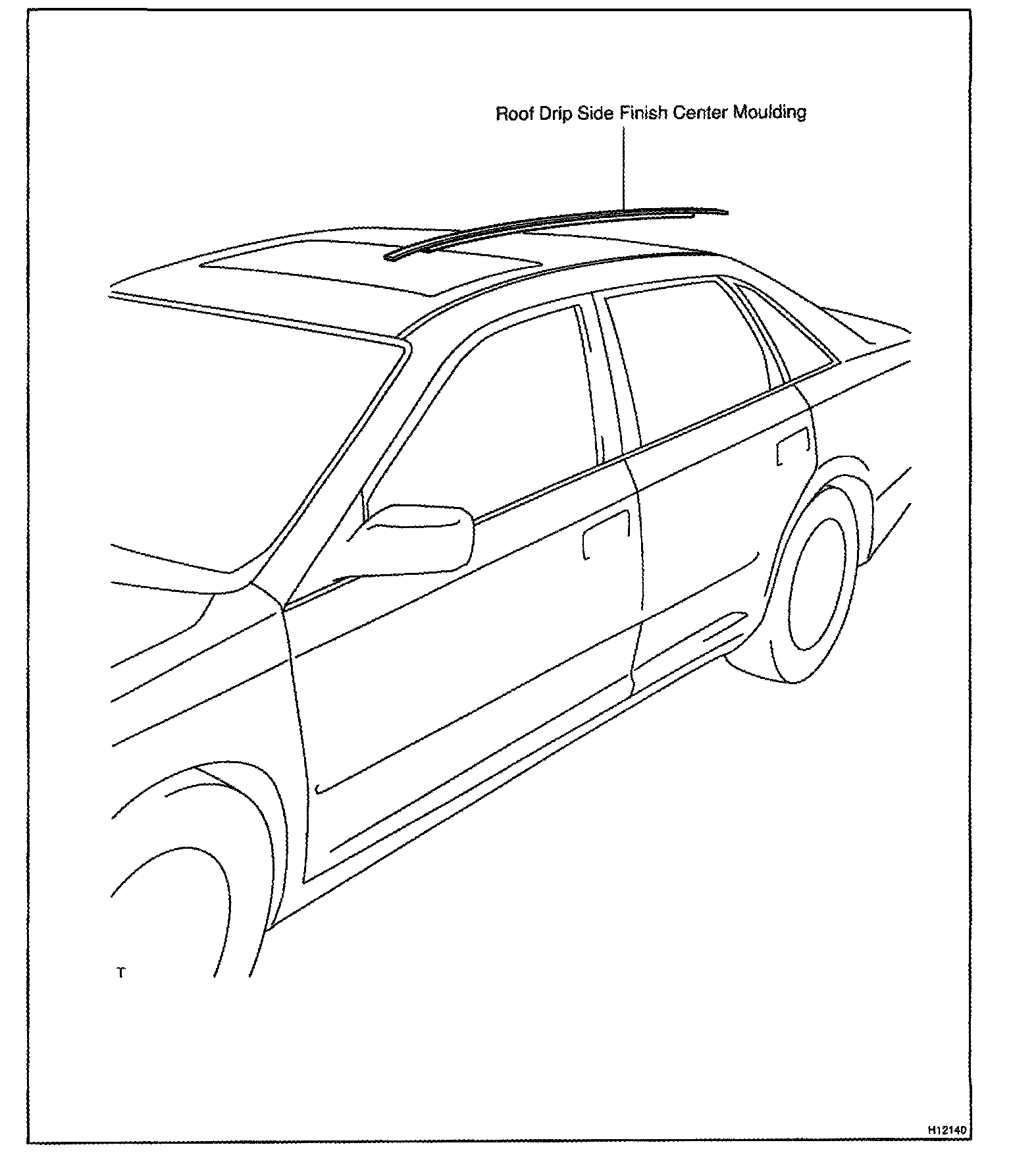

Roof Drip Side Finish Center Moulding:

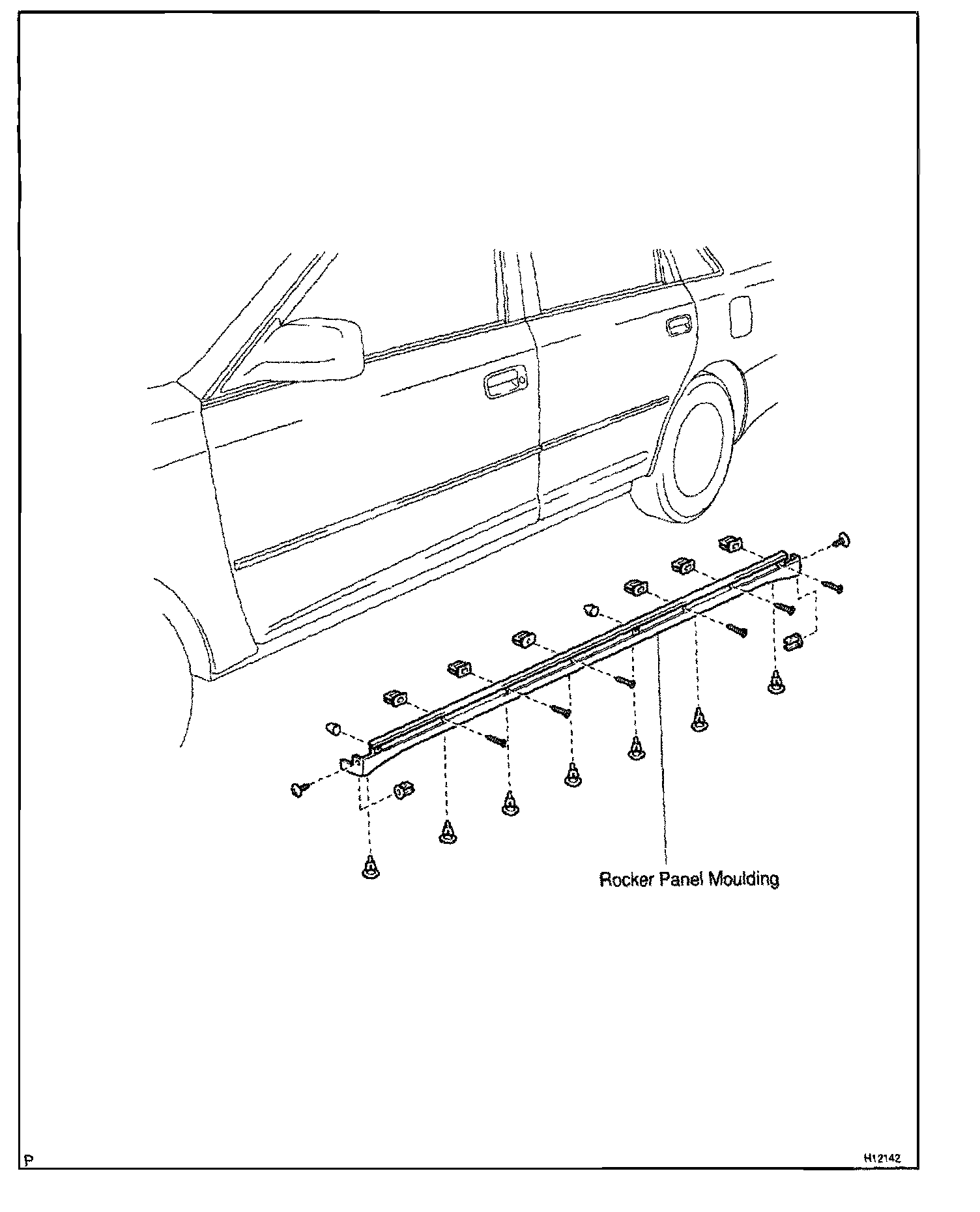

Rocker Panel Moulding:

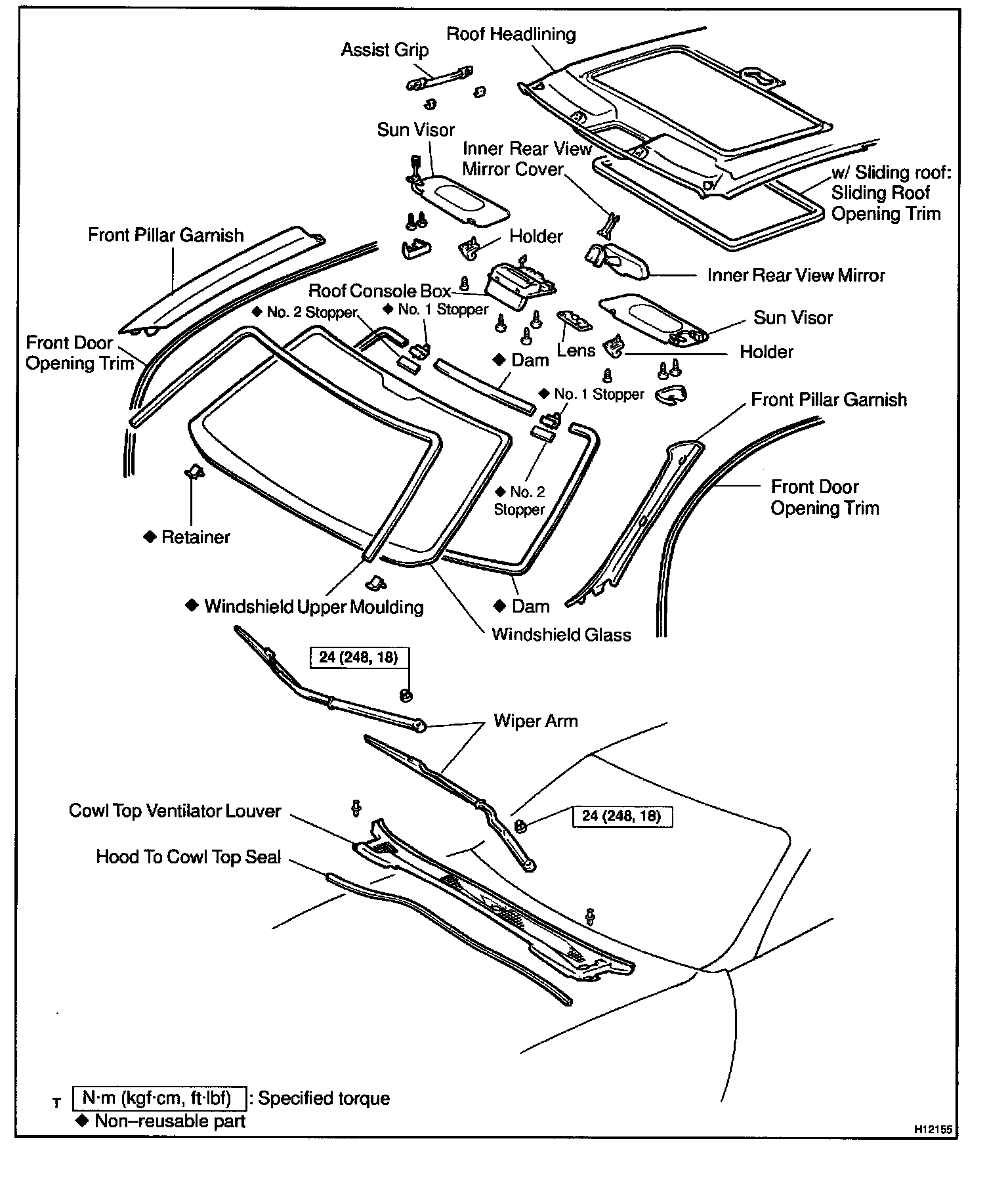

Windshield:

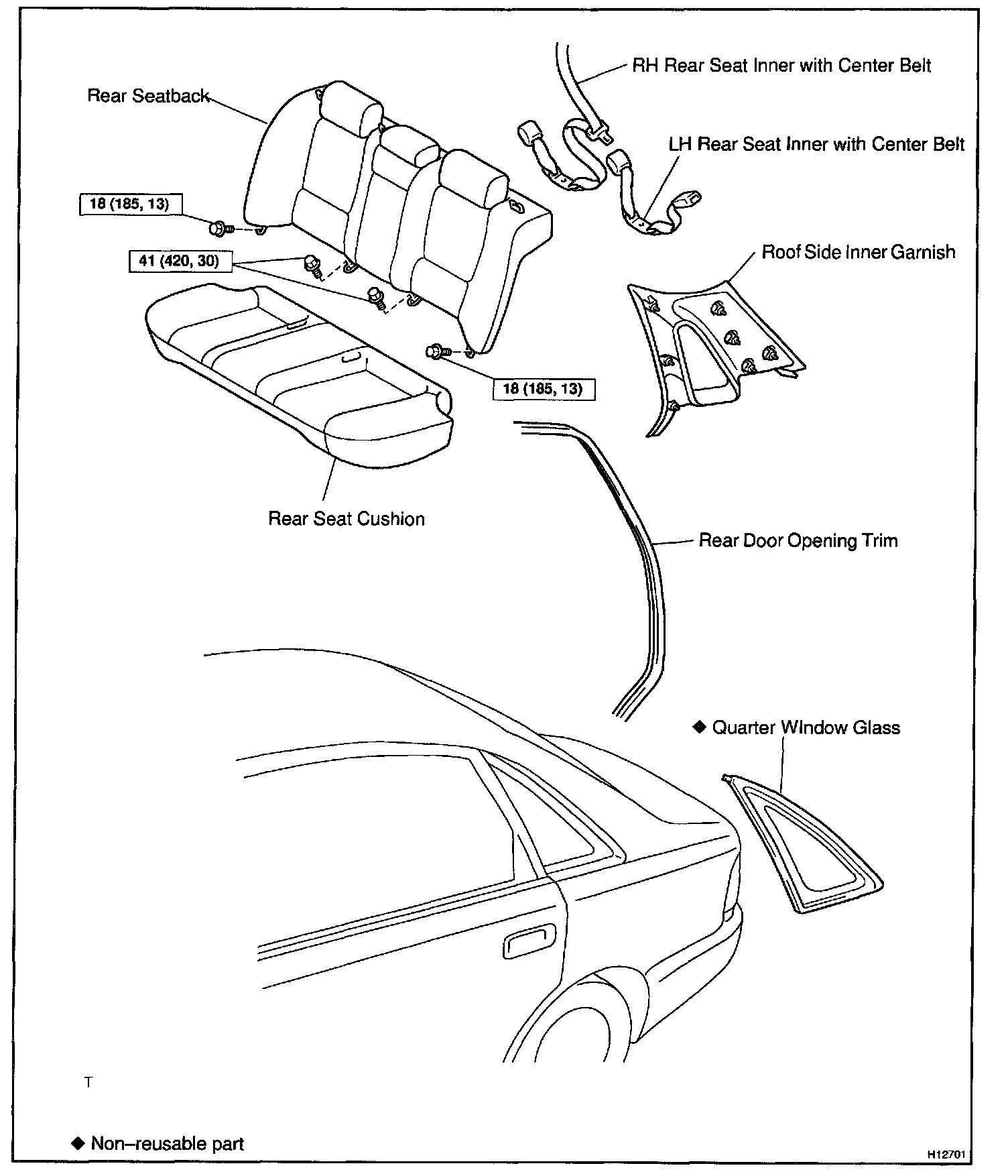

Quarter Window Glass:

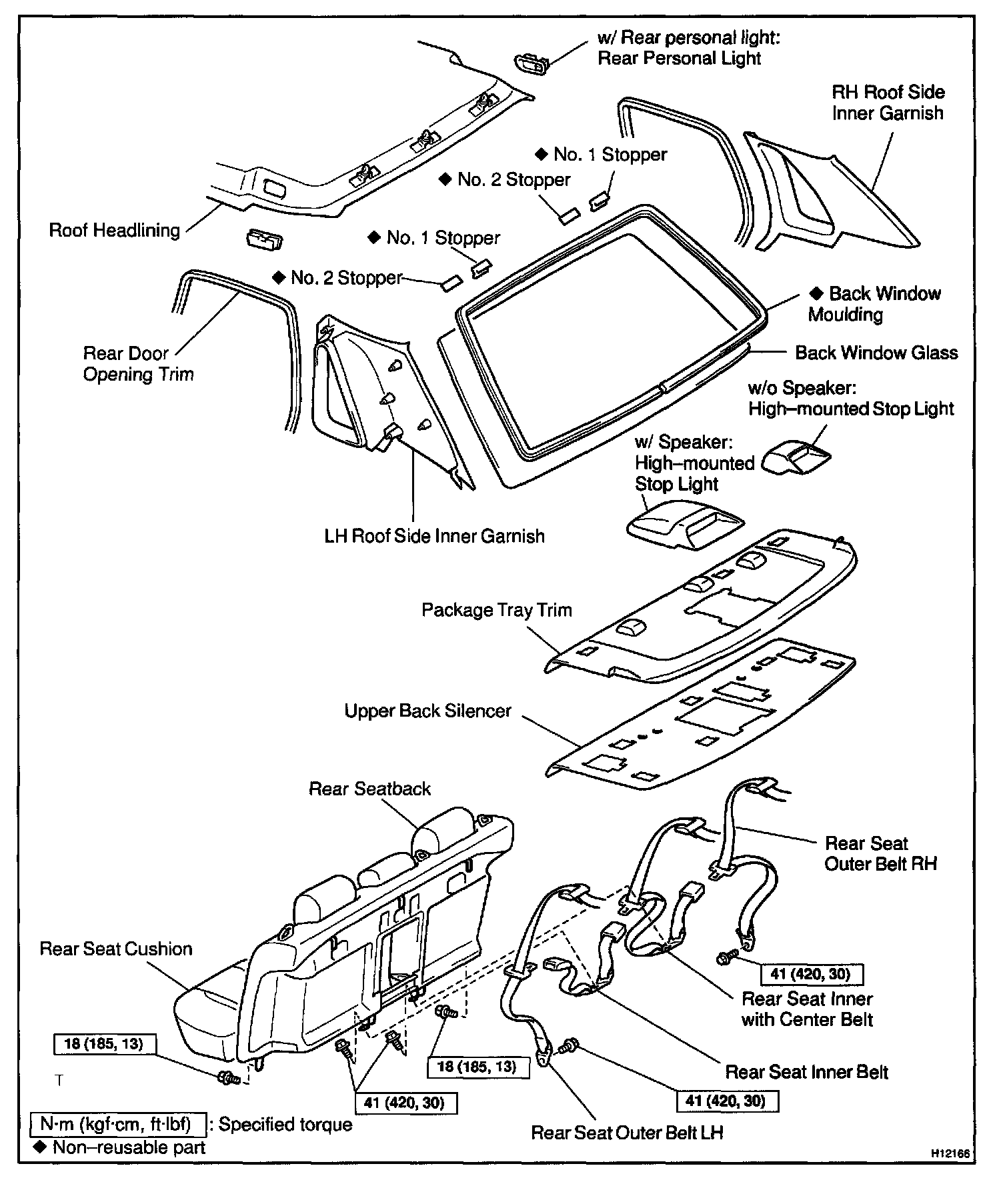

Back Window Glass:

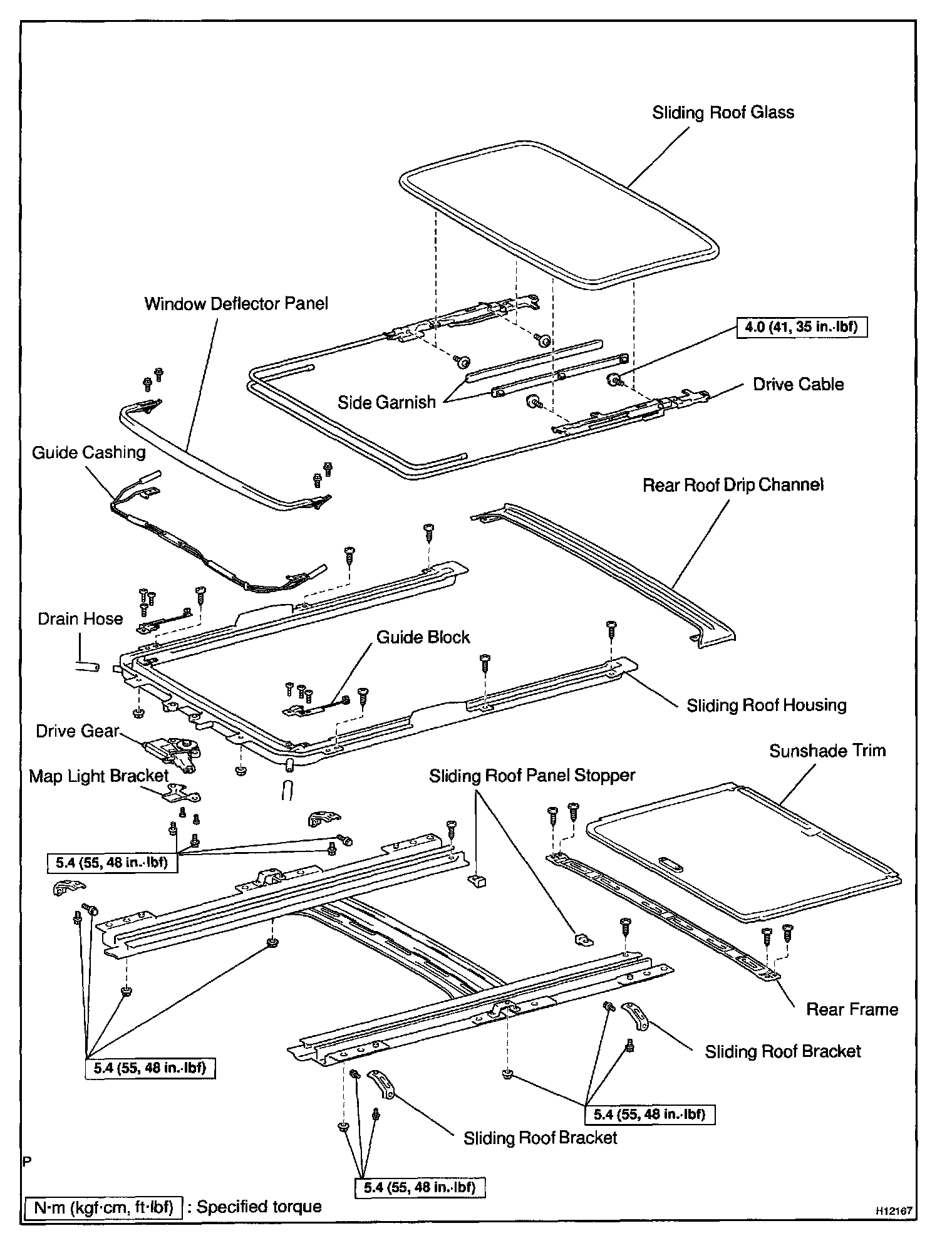

Sliding Roof:

Instrument Panel (Part 1):

Instrument Panel (Part 2):

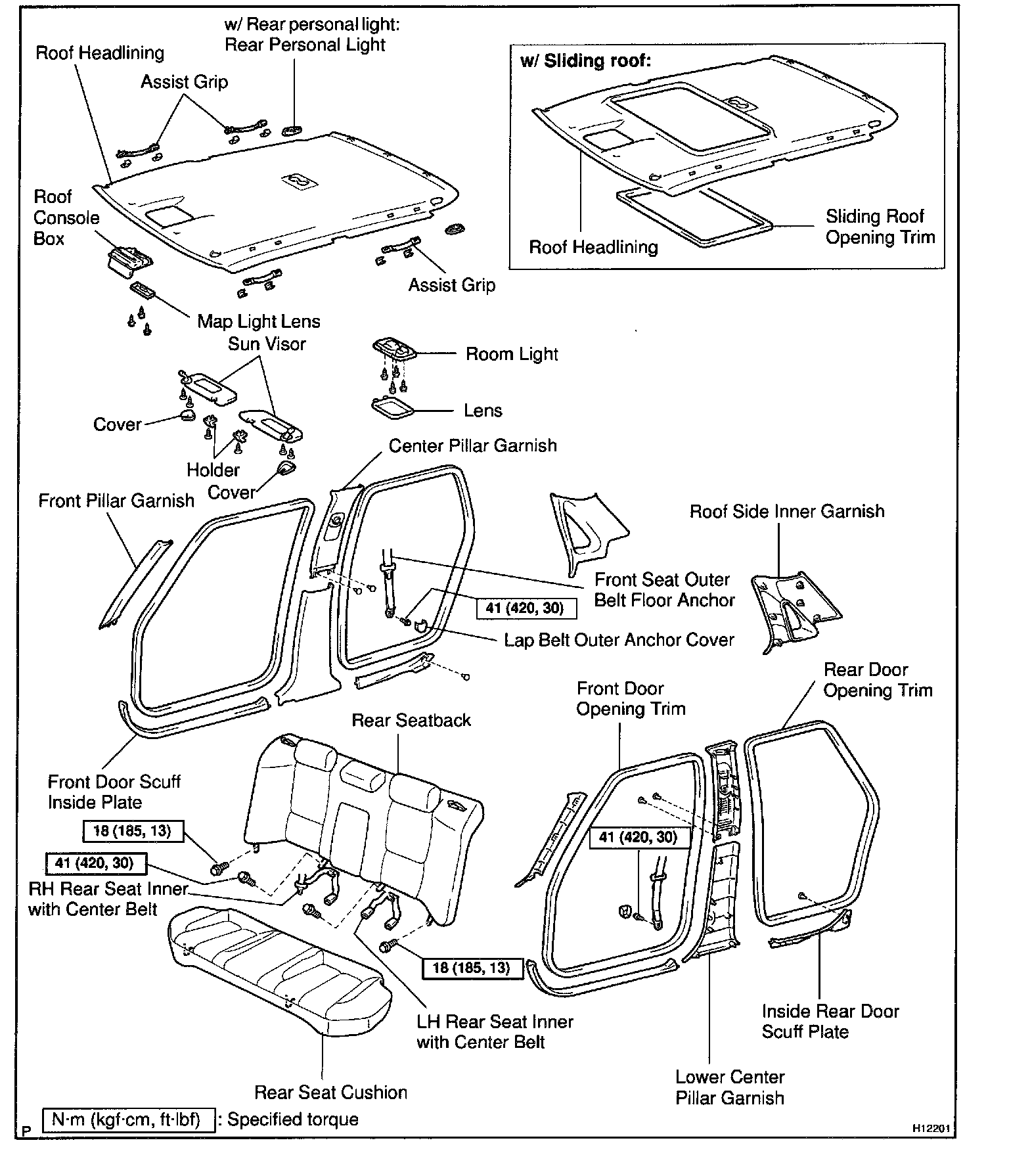

Roof Headlining:

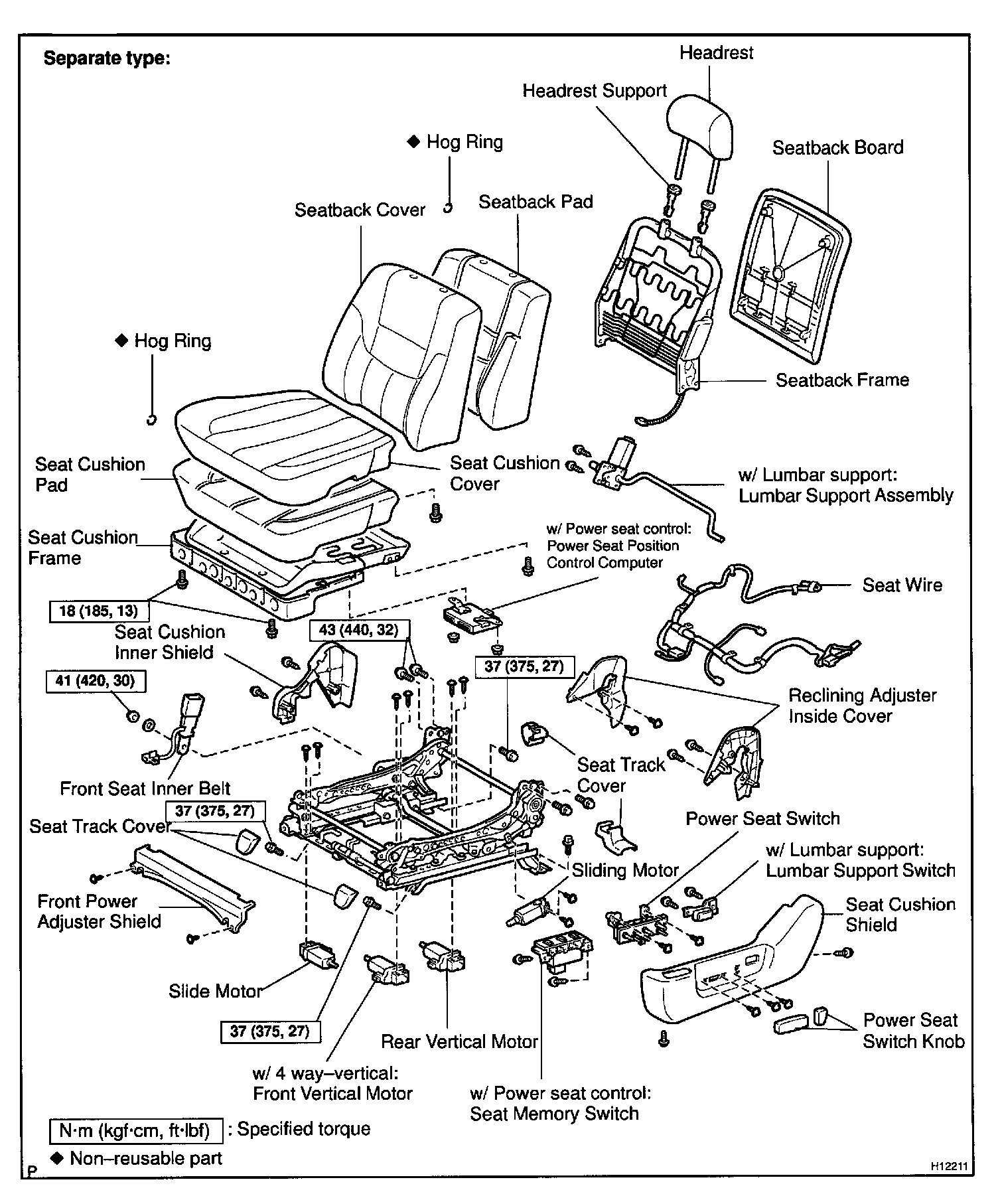

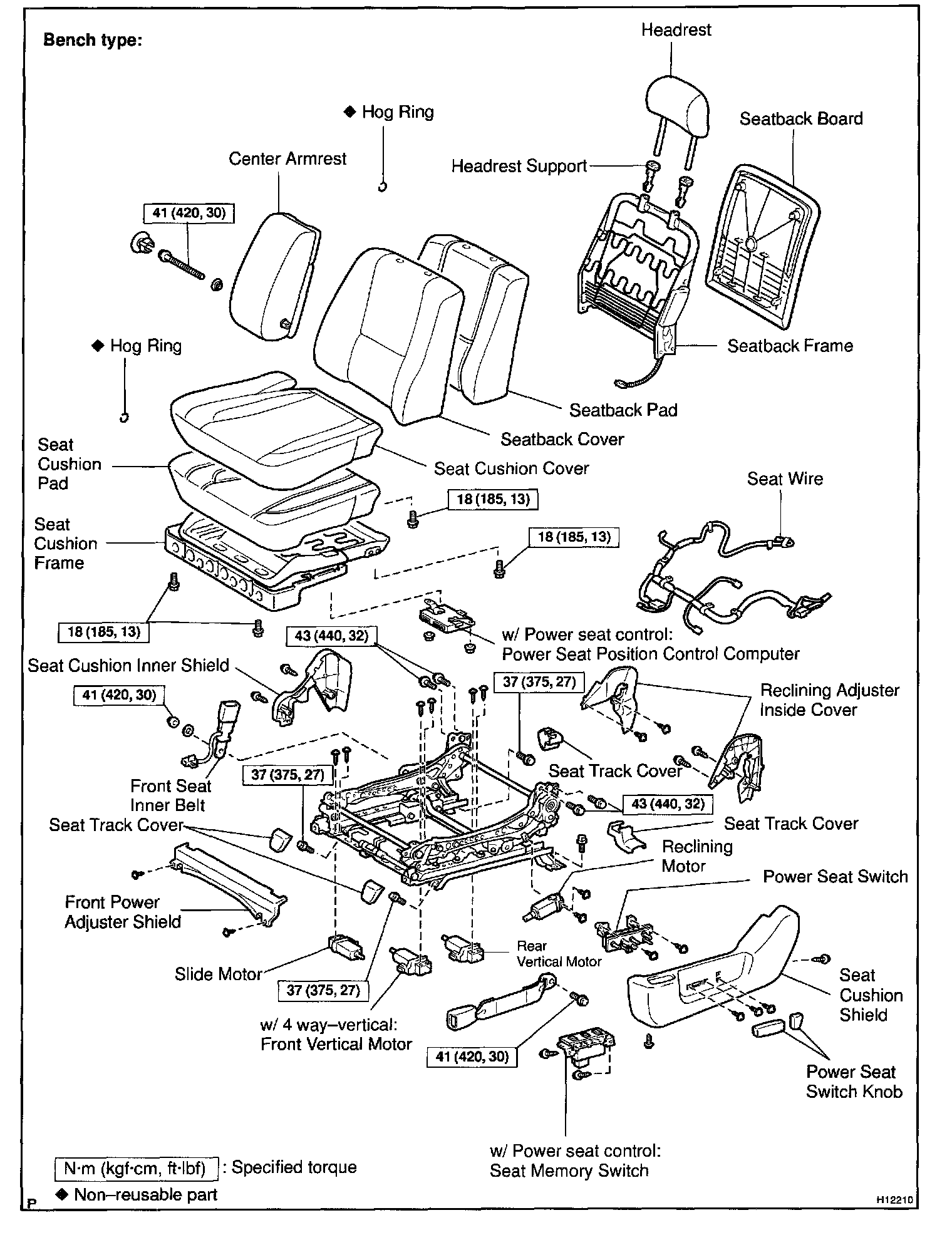

Front Seat (Power Adjuster Type) Part 1:

Front Seat (Power Adjuster Type) Part 2:

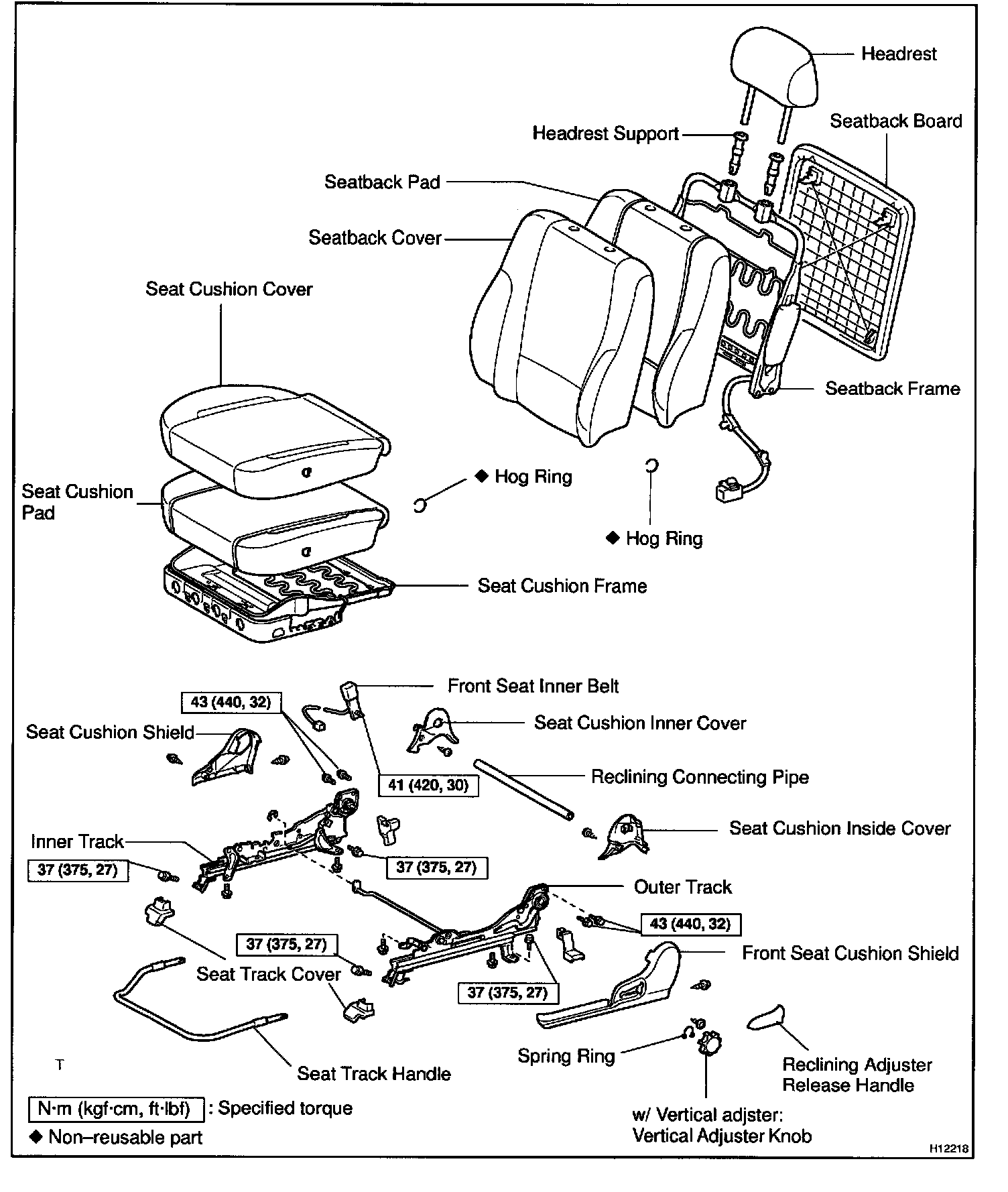

Front Seat (Manual Adjuster Type):

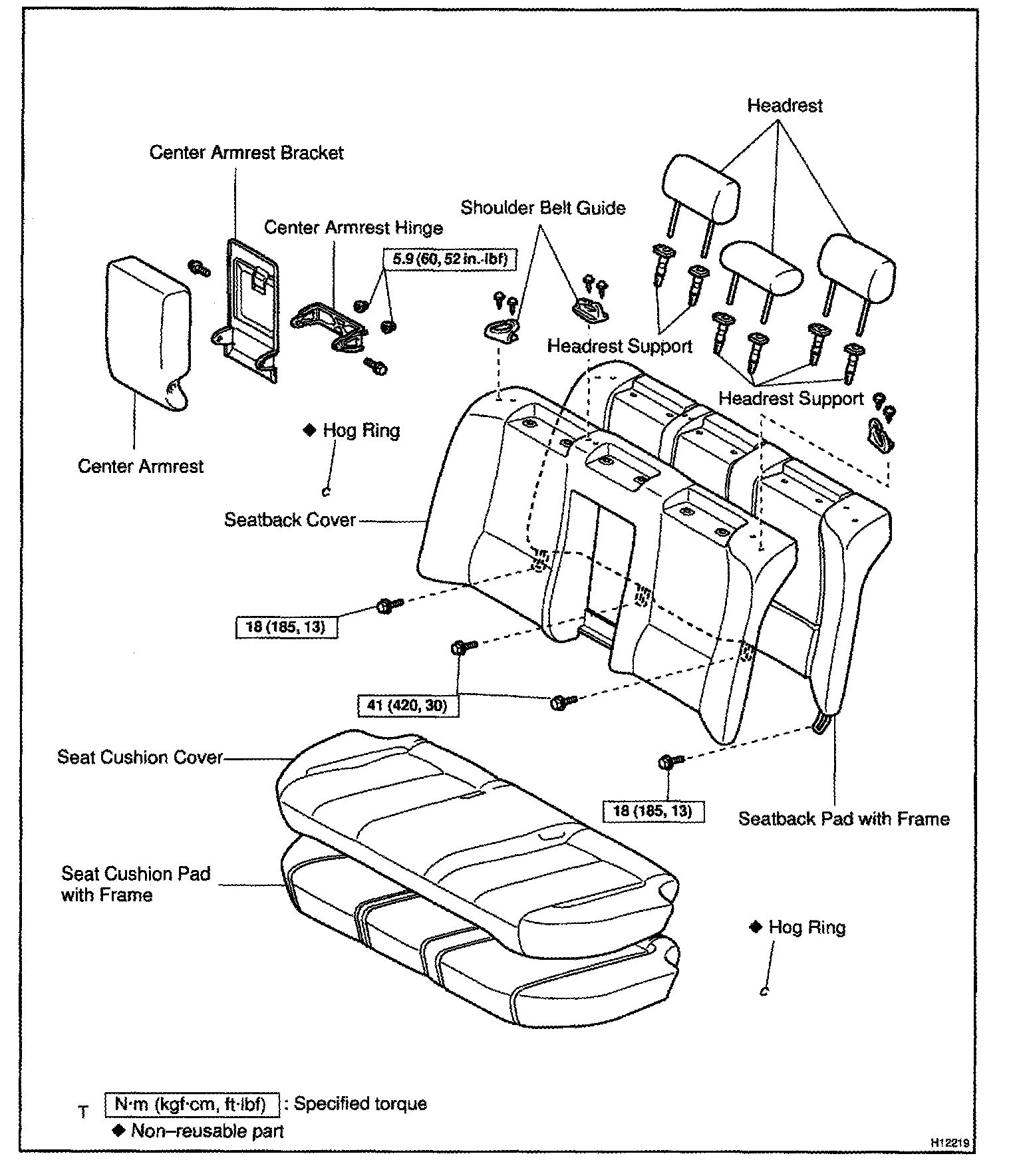

Rear Seat:

Seat Belt (Part 1):

Seat Belt (Part 2):

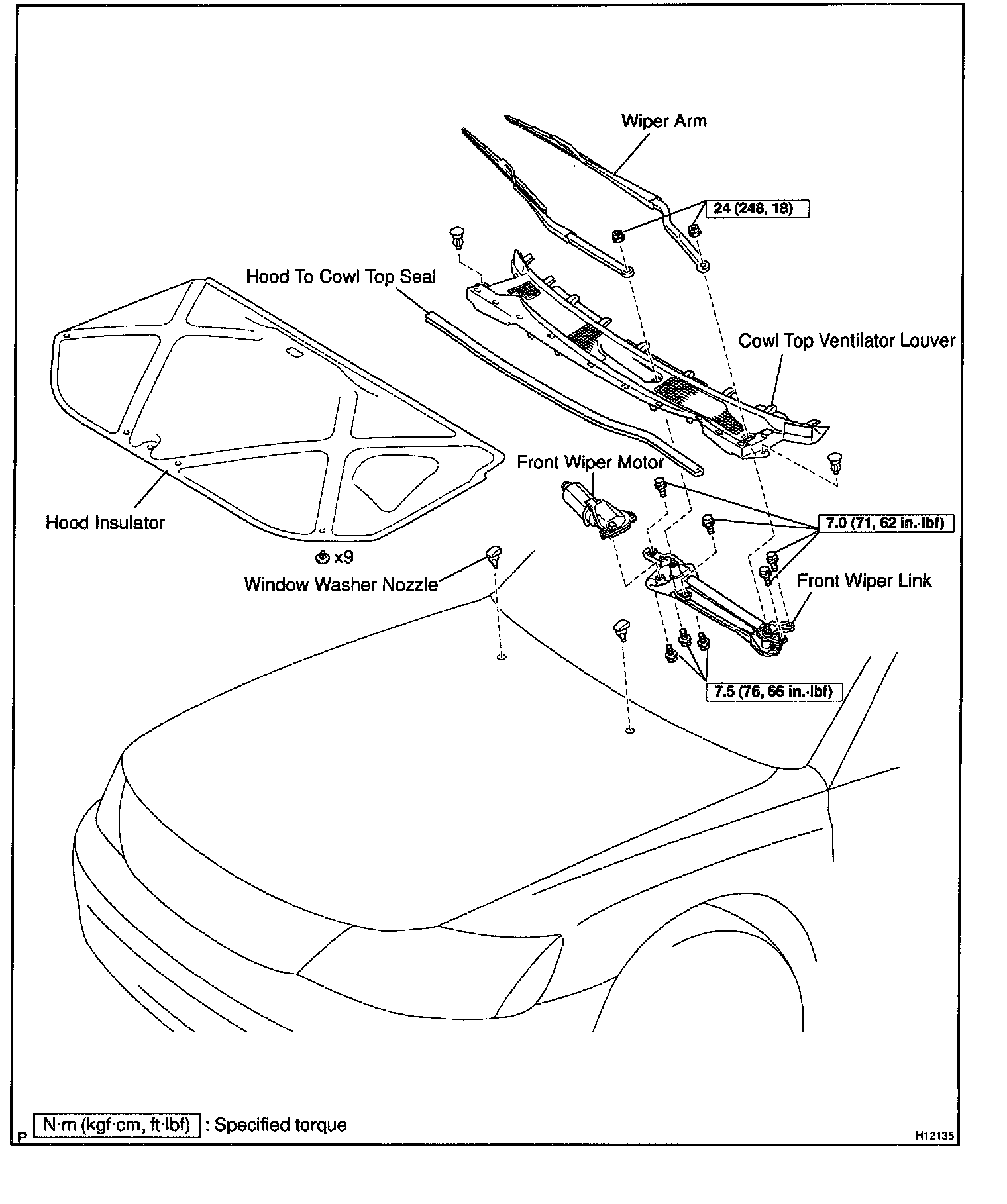

Front Wiper And Washer:
