Cylinder Head Torque and Sequence
Cylinder Head
12 Pointed Cylinder Head Bolts
Torque 54 Nm (550 kgf-cm, 40 ft. lbs.) +90°
Tightening Sequence

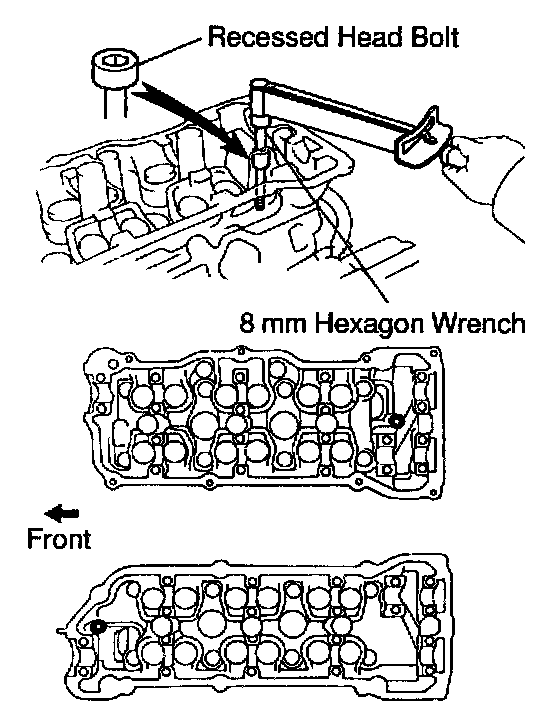

Recessed Head Cylinder Head Bolts
Torque 18.5 Nm (185 kgf-cm, 13 ft. lbs.)
Tightening Sequence
Maximum Warpage
Intake Manifold Assembly
Torque 15 Nm (150 kgf-cm, 11 ft. lbs.)
Tightening Sequence
Bearing Cap Bolt Torque 16 Nm (160 kgf-cm, 12 ft. lbs.)
Tightening Sequence:
RH Intake Camshaft
RH Exhaust Camshaft
LH Intake Camshaft
LH Exhaust Camshaft
Exhaust Manifold
Torque 49 Nm (500 kgf-cm, 36 ft. lbs.)
