Control Switch Circuit (Cruise Control Switch)
Main Switch Circuit (Cruise Control Switch)CIRCUIT DESCRIPTIONWhen the cruise control main switch is turned
OFF, the
cruise control does not operate.

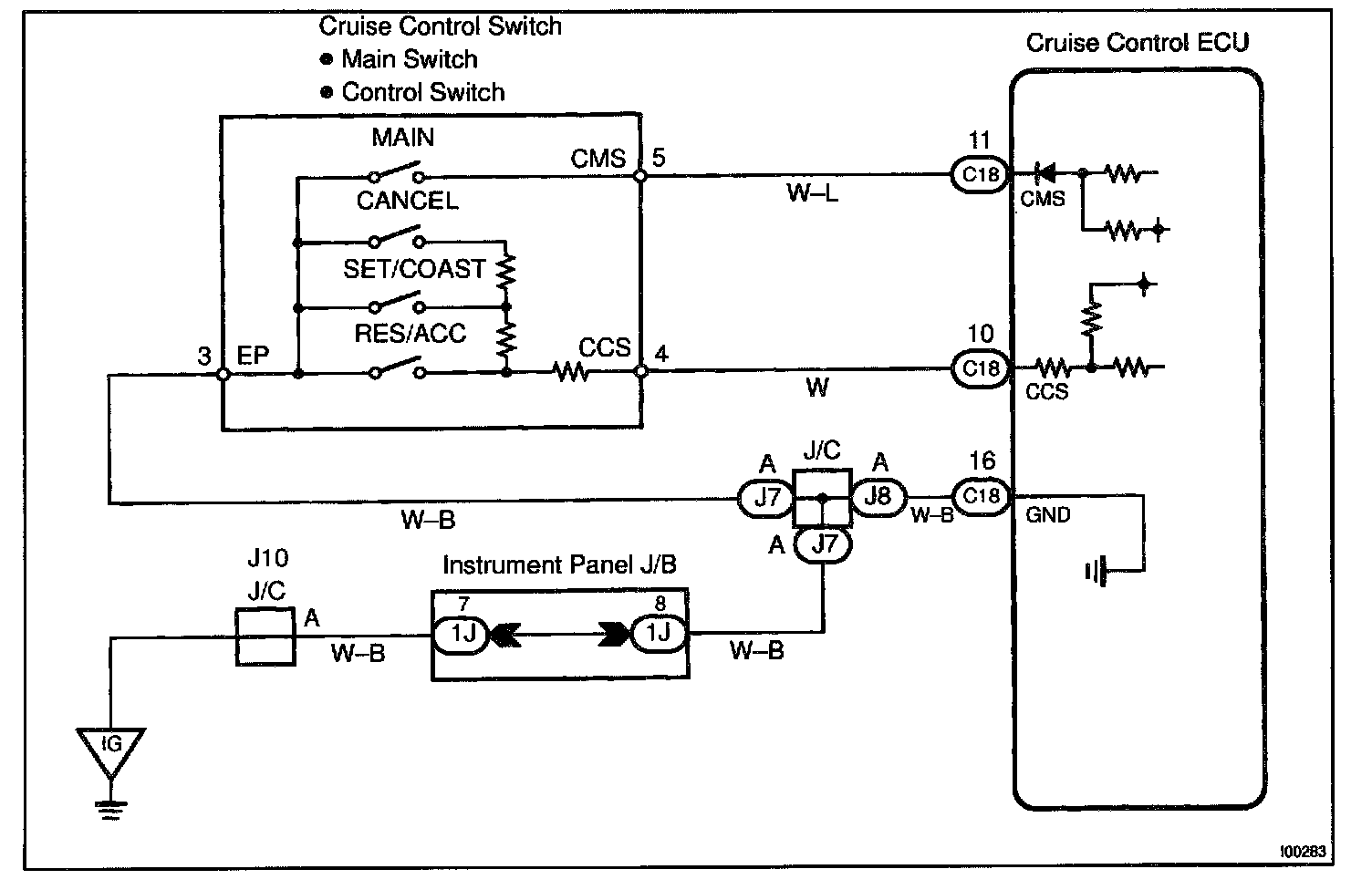

Wiring Diagram:

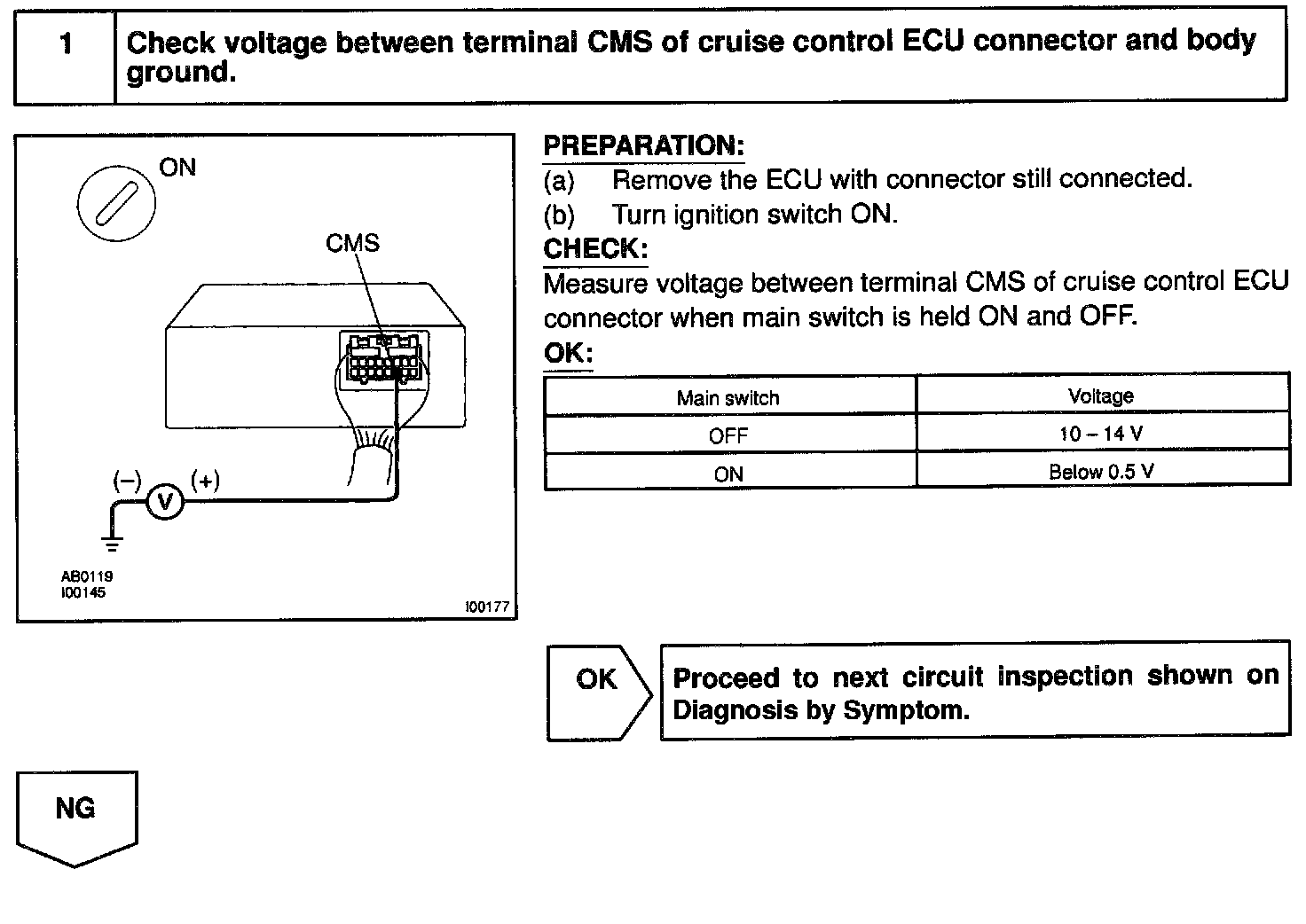

Step 1:

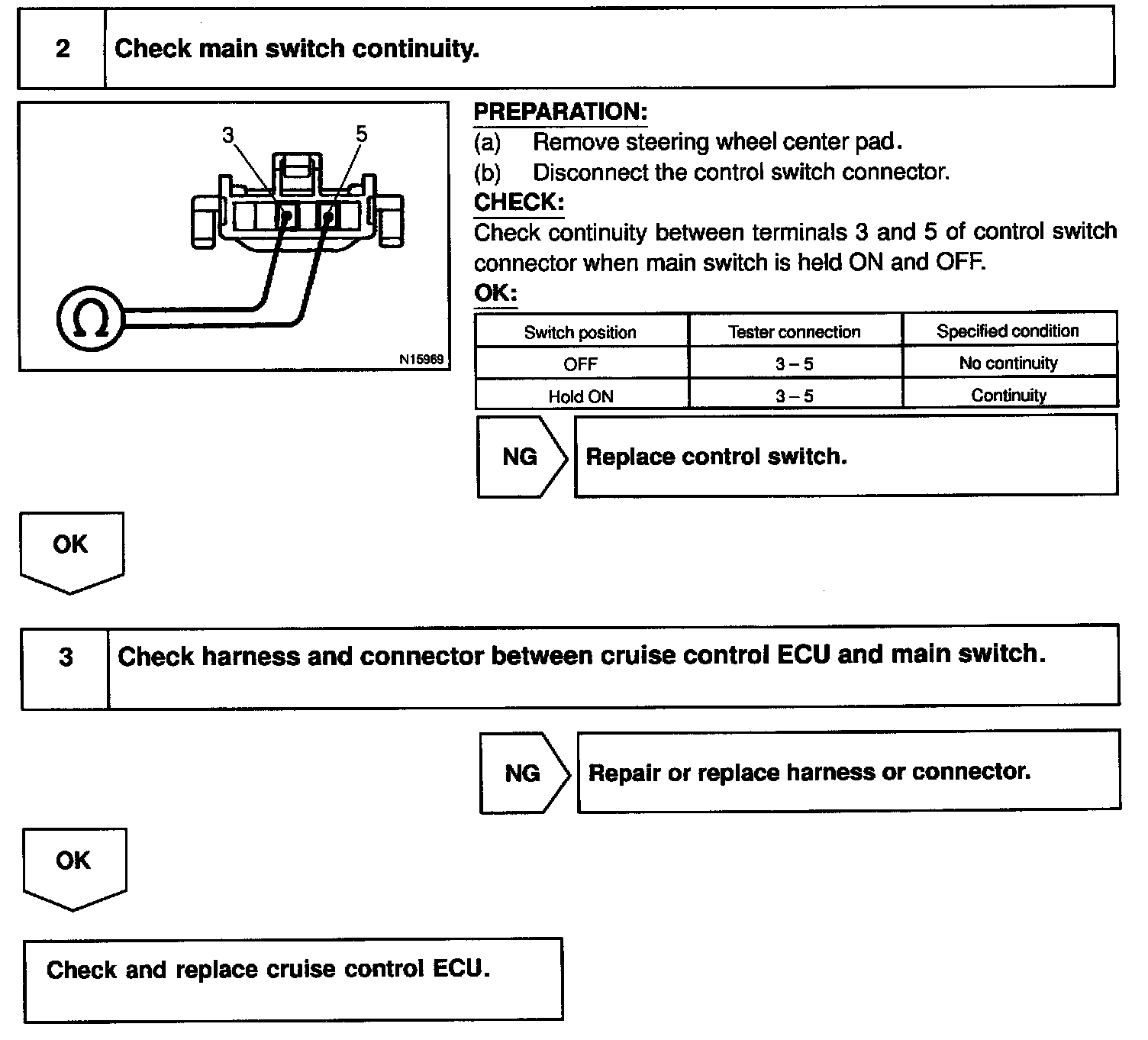

Steps 2 - 3:
INSPECTION PROCEDURE
