Connector Code Lists

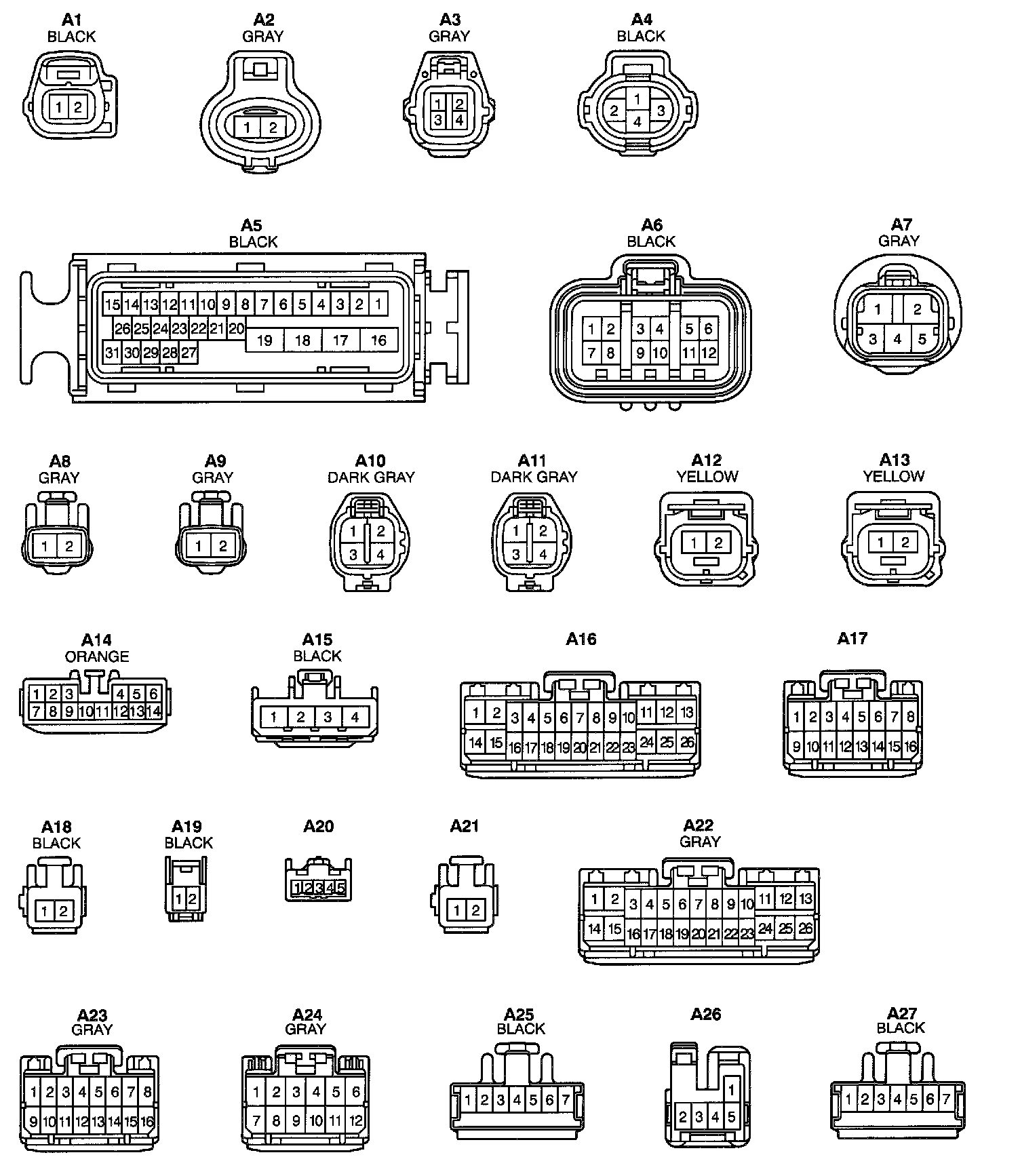

Connector Views (A1 - A27):

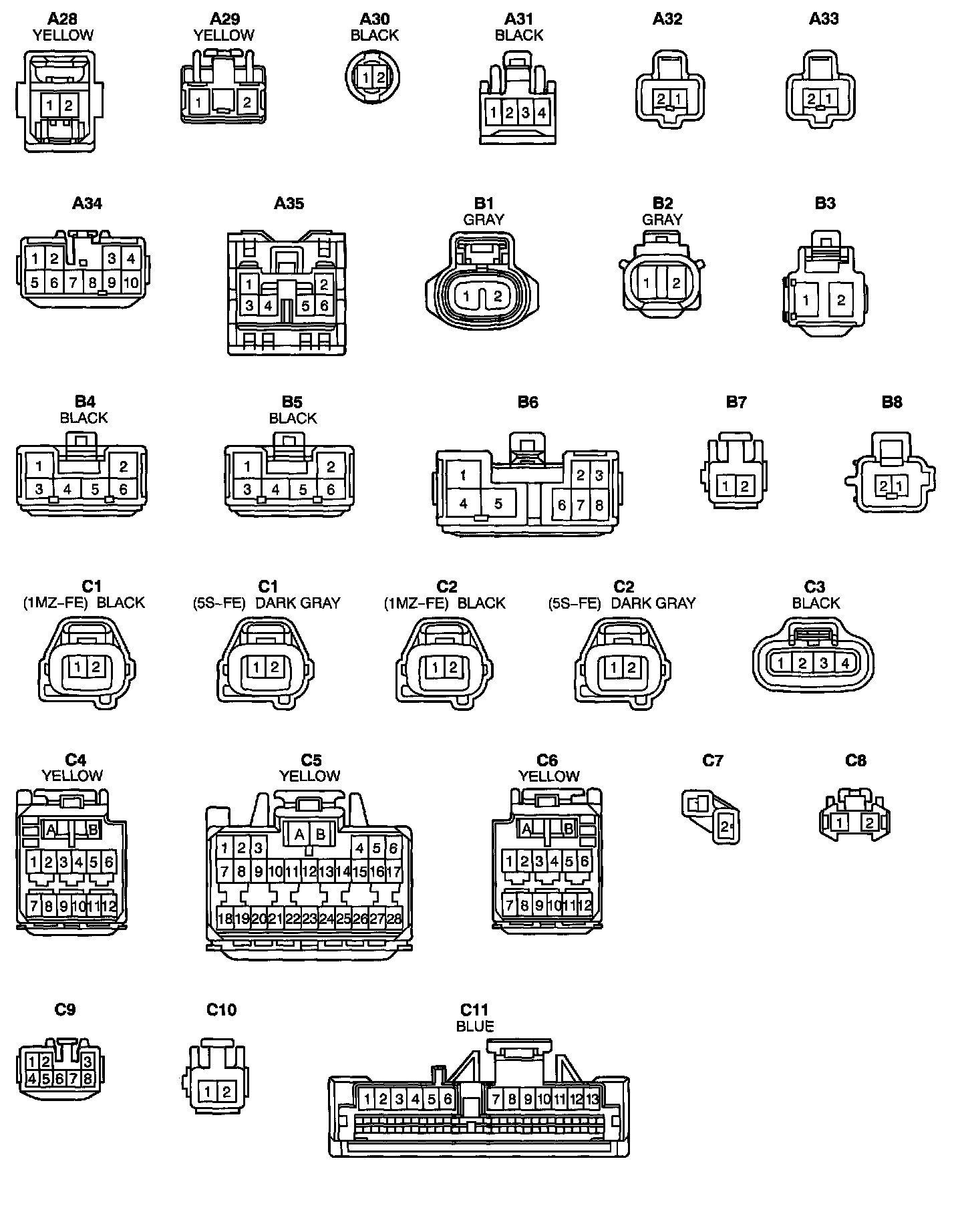

Connector Views (A28 - C11):

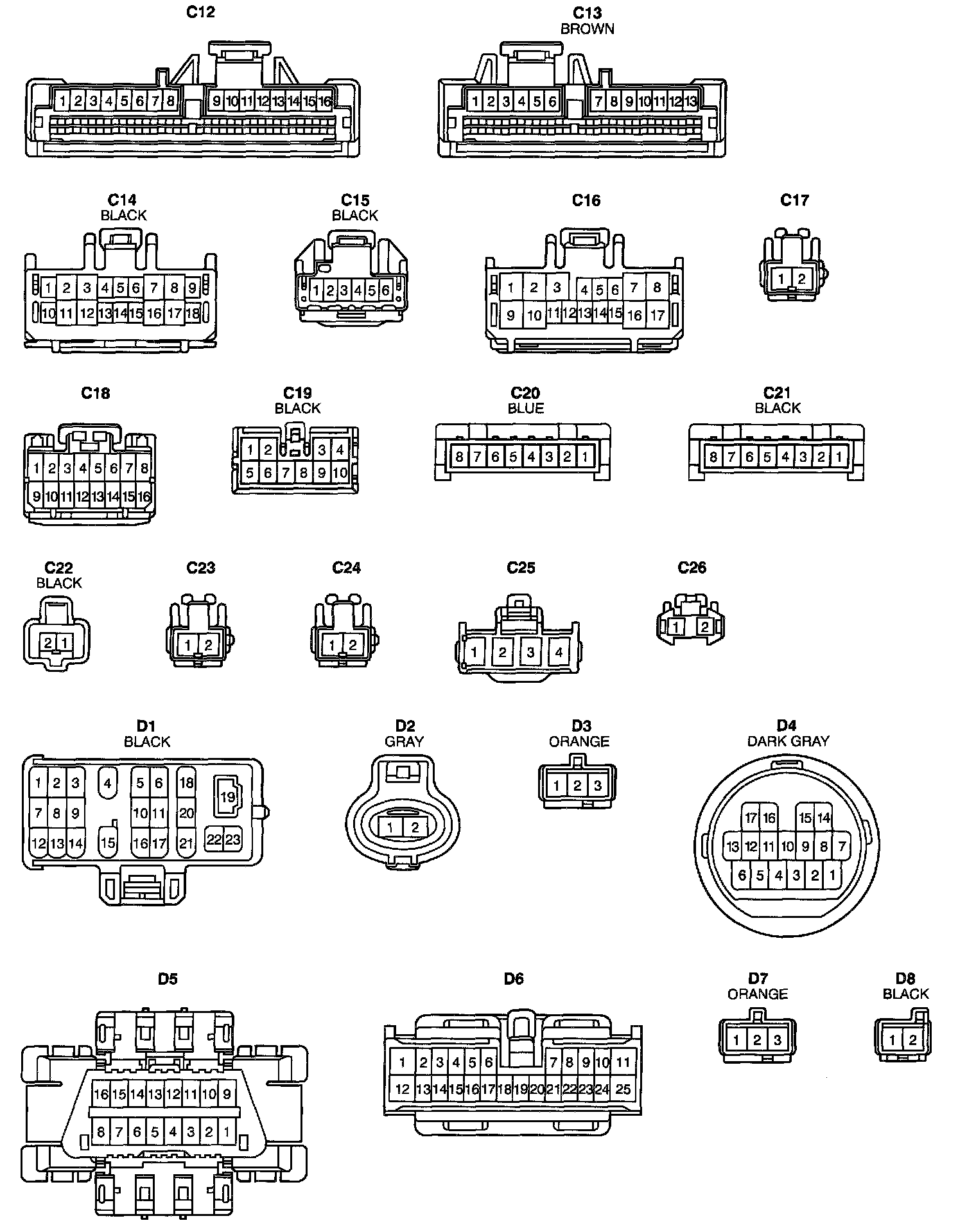

Connector Views (C12 - D8):

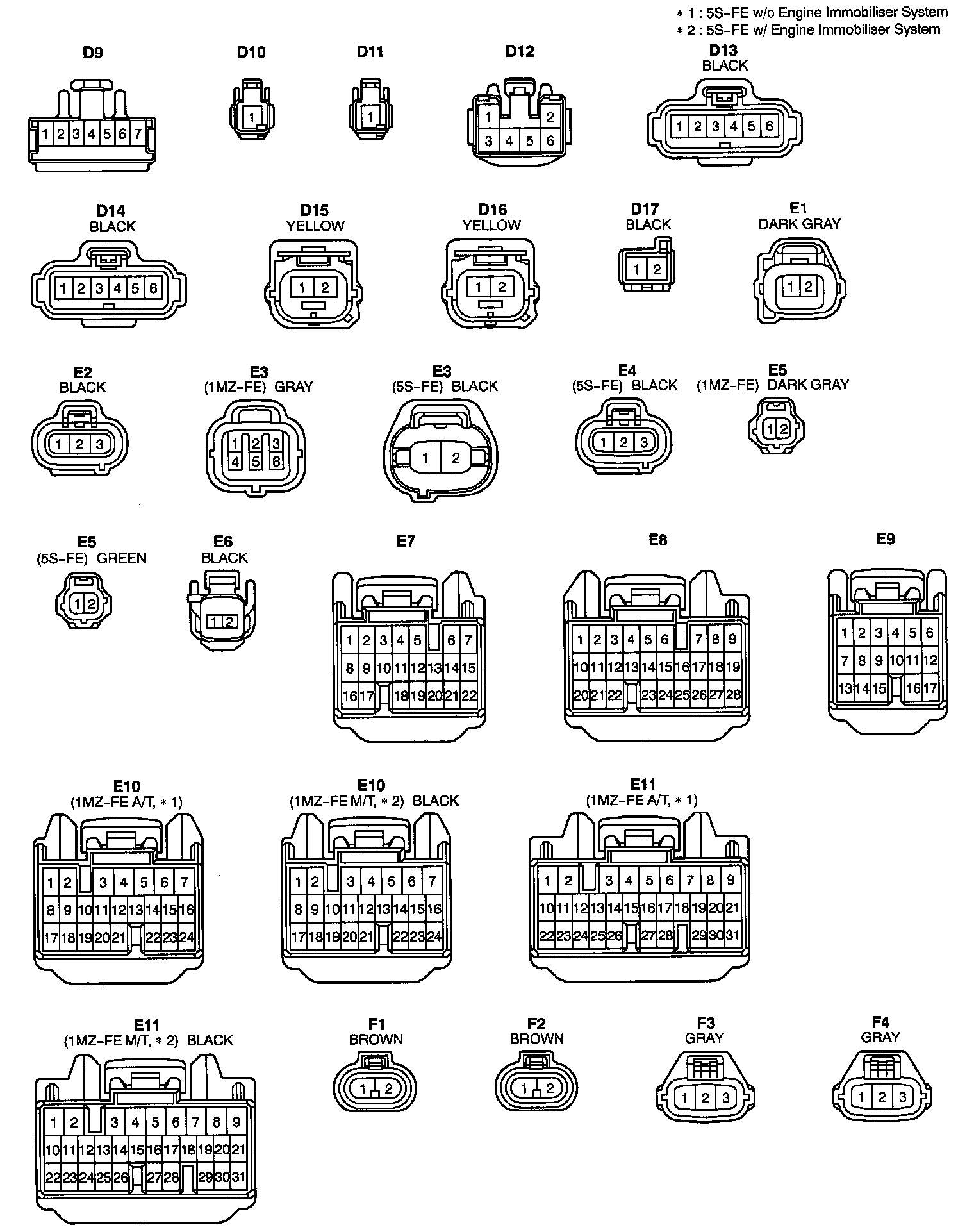

Connector Views (D9 - F4):

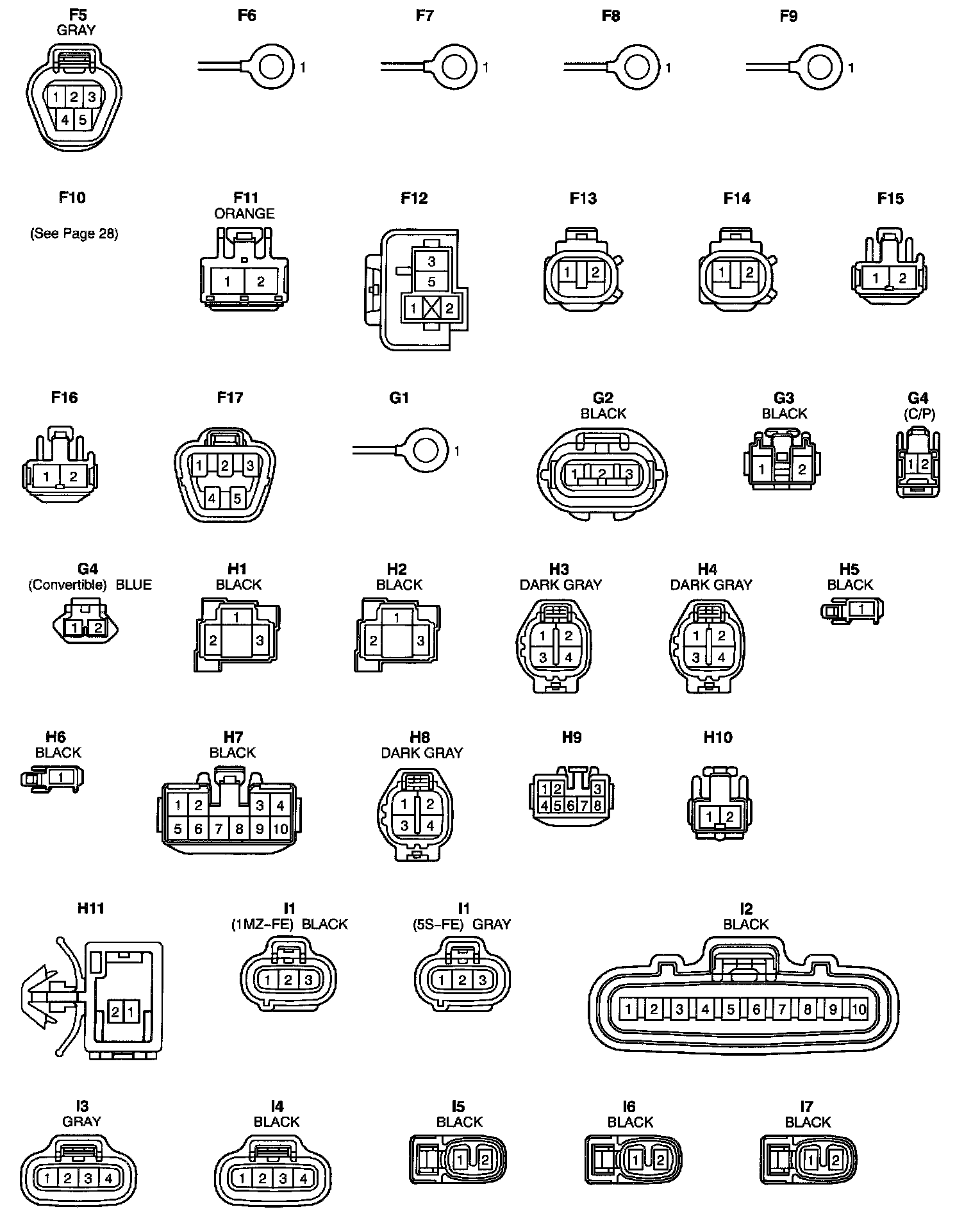

Connector Views (F5 - I7):



Connector Views (I8 - J17):

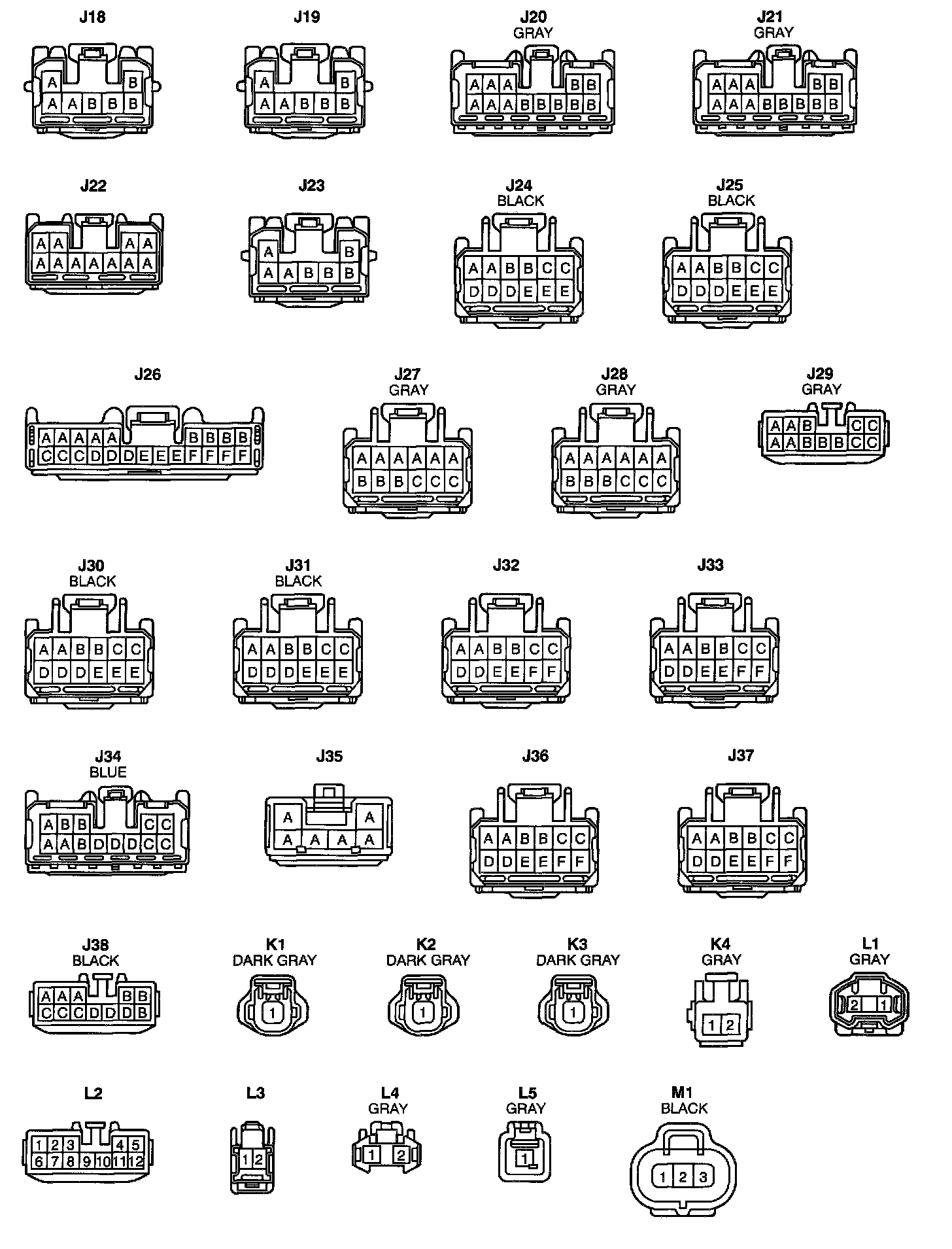

Connector Views (J18 - M1):

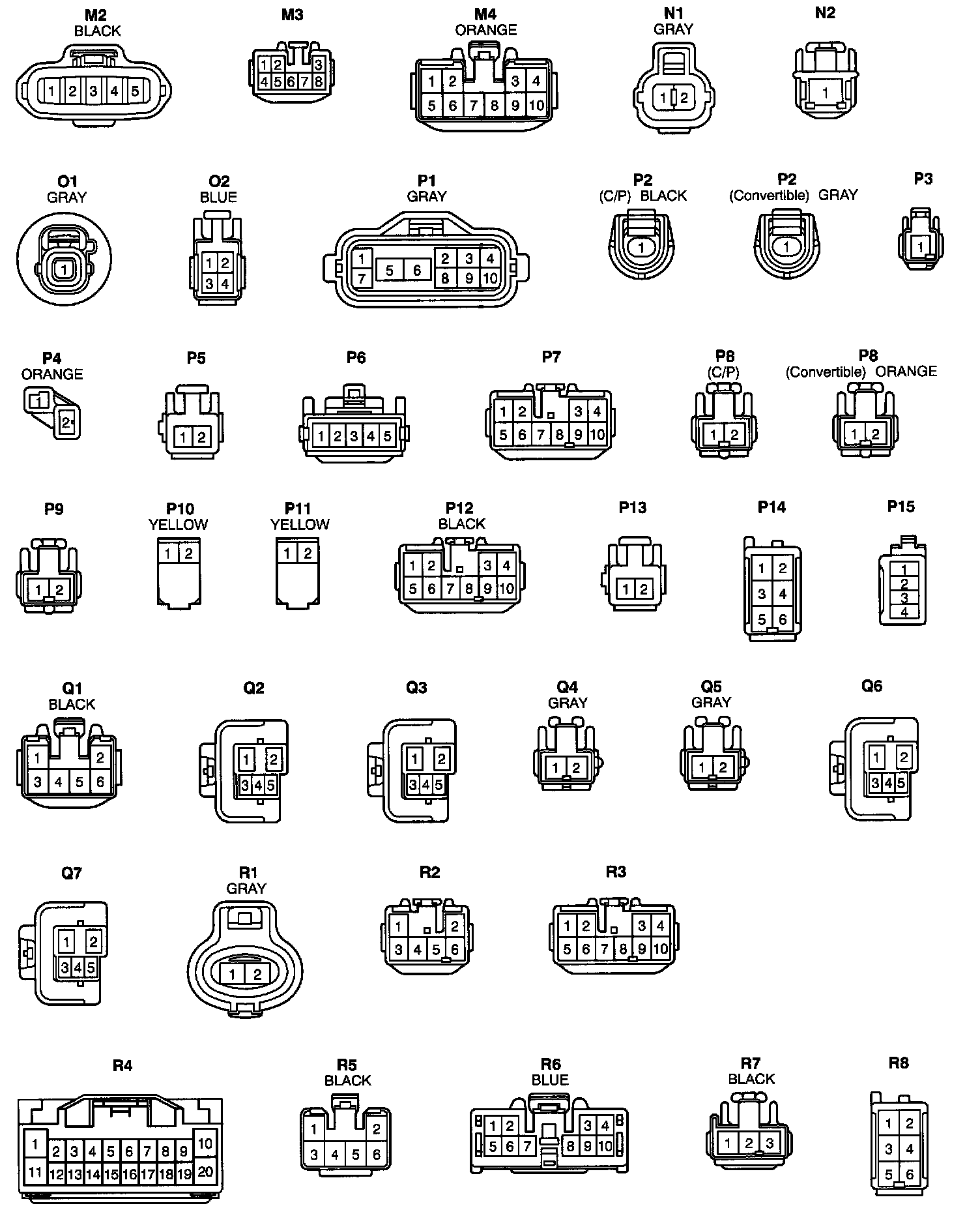

Connector Views (M2 - R8):

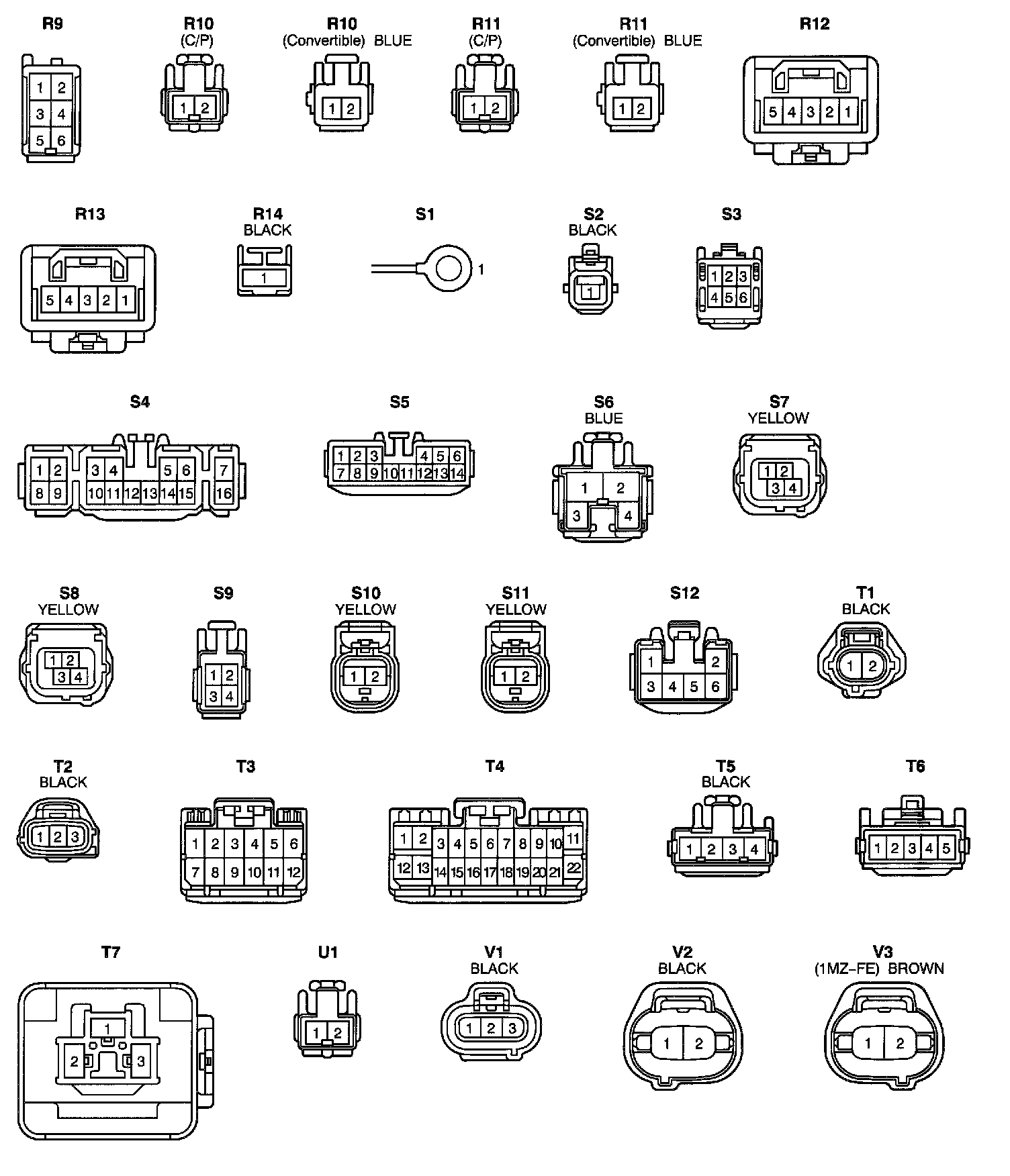

Connector Views (R9 - V3):

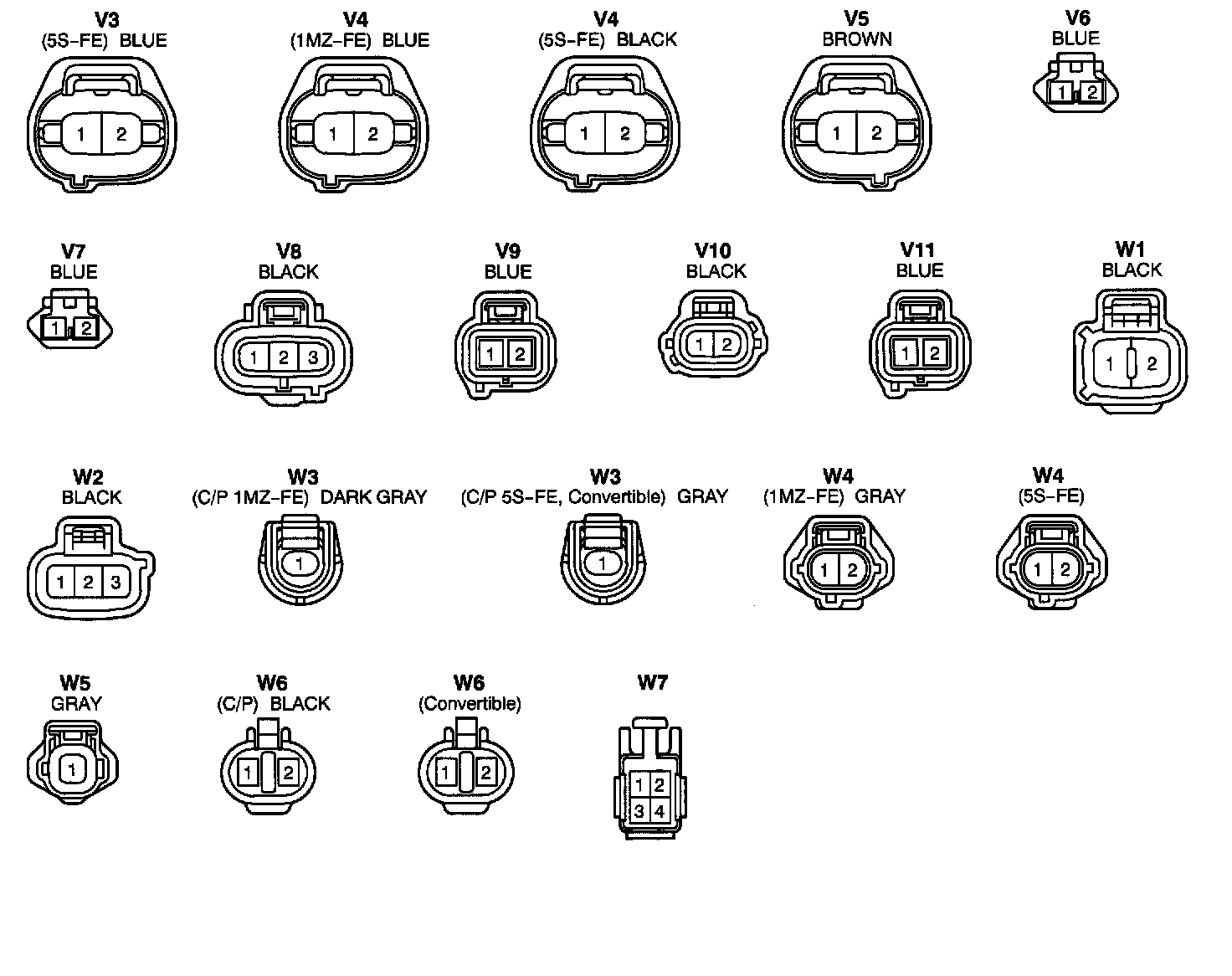

Connector Views (V3 - W7):
