Removal and Installation

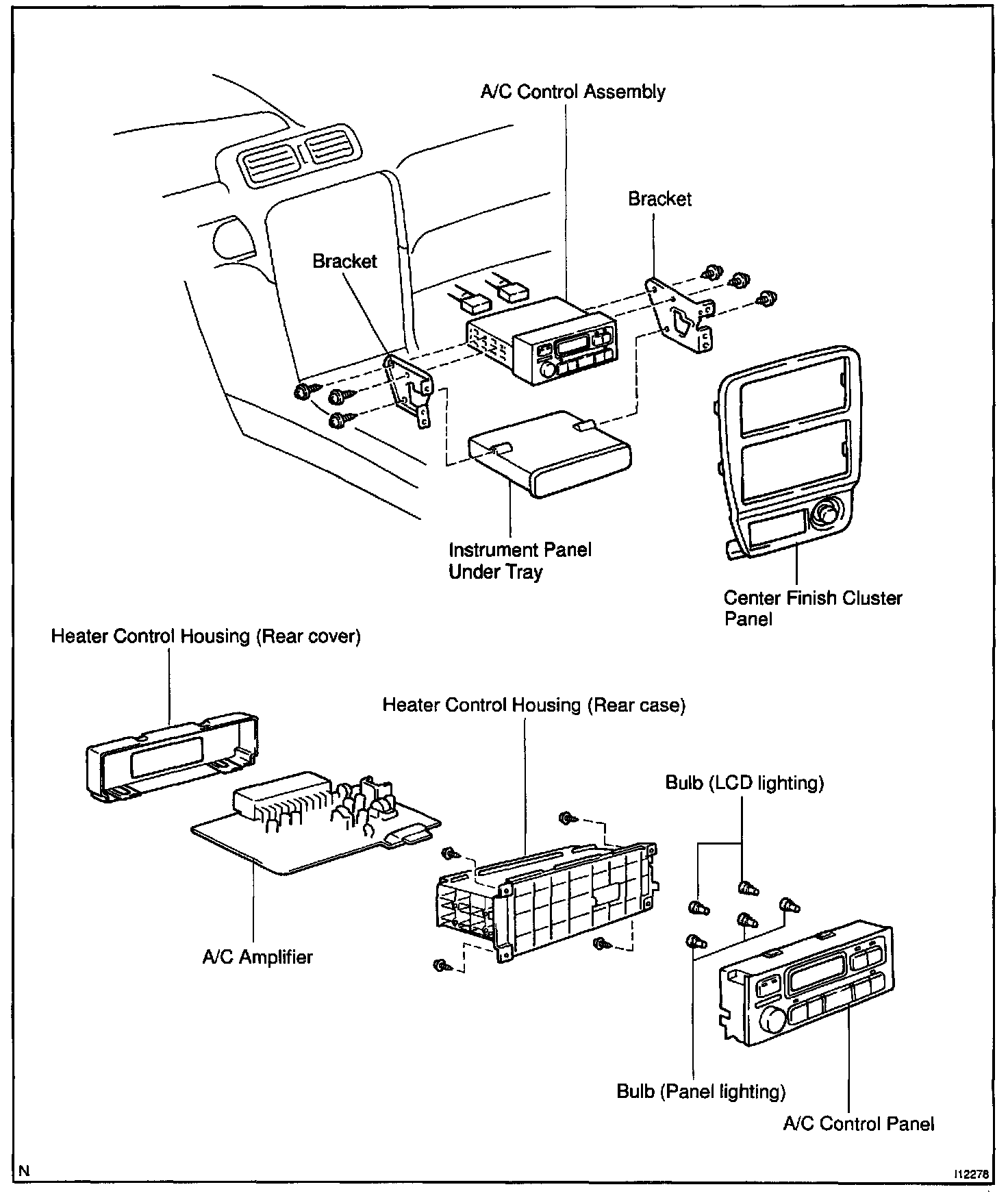

Air Conditioning Control Assembly (Auto A/C):
REMOVAL 1.
REMOVE CENTER CLUSTER FINISH PANEL
2.
REMOVE A/C CONTROL ASSEMBLY
a.
Remove the 4 screws and pull out the A/C control assembly with stereo opening cover then disconnect the connectors.
b.

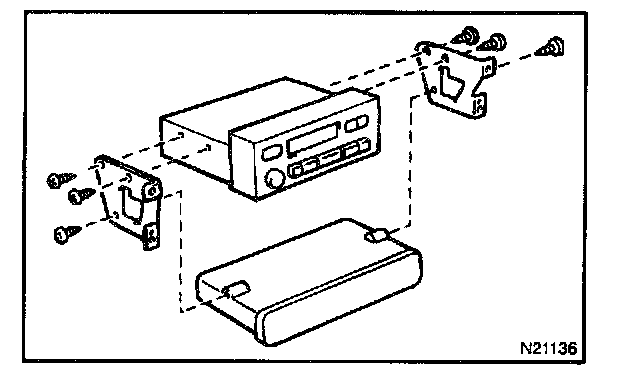

Remove the 6 screws and 2 brackets.
c.
Separate the A/C control assembly and stereo opening cover.
INSTALLATION Installation is in the reverse order of removal.
