Ignition Timing Connector: Locations

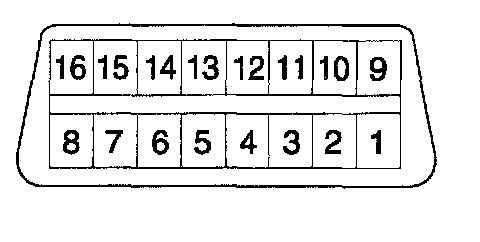

Connector View Of DLC3:




Position Of Parts In Instrument Panel (Part 1):





Connect terminals 13 (TC) and 4 (CG) of the DLC3 to check the ignition timing.
