Splice Locations

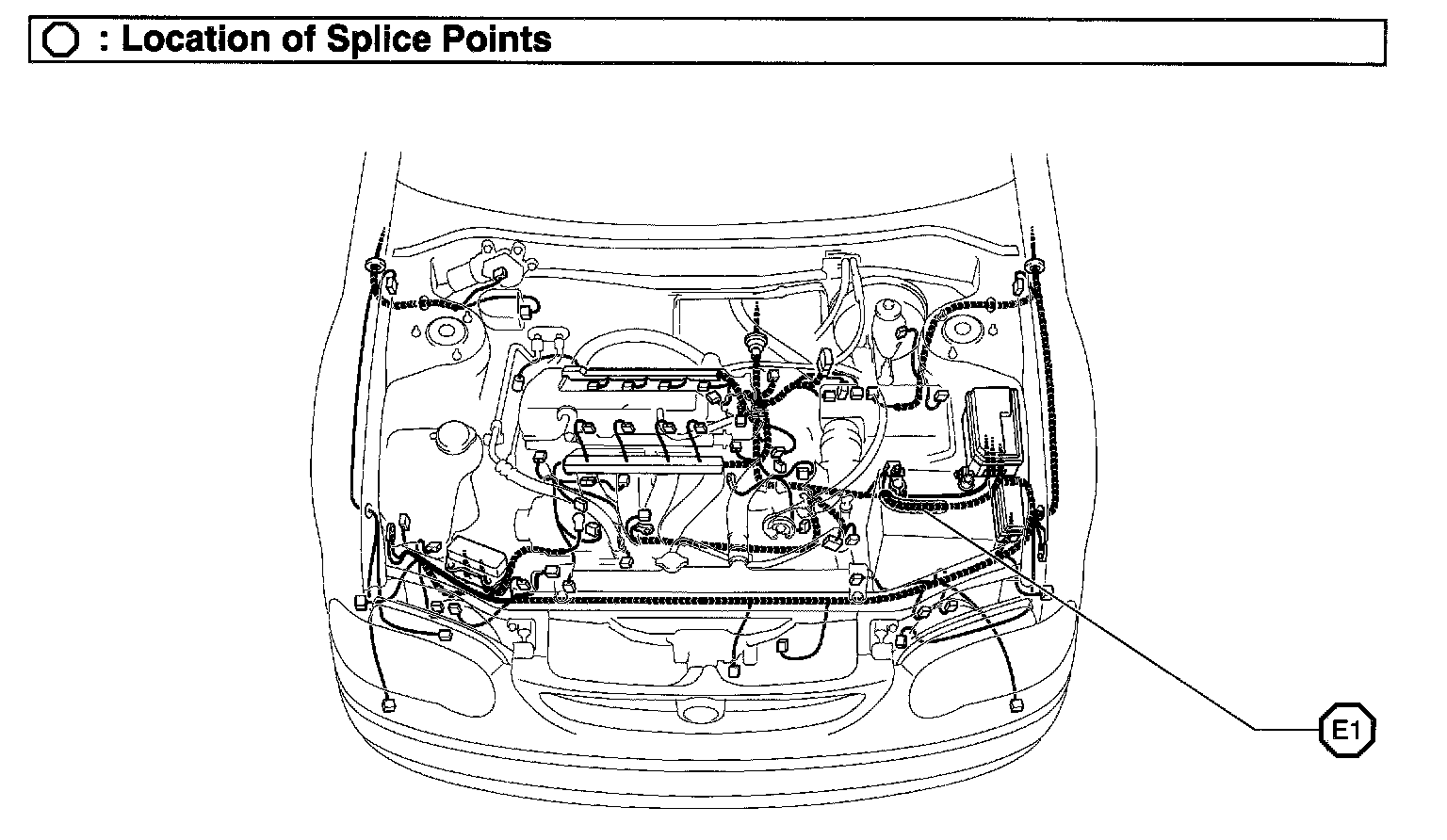

Engine Compartment:

Splice Location
E1 Engine Room Main Wire

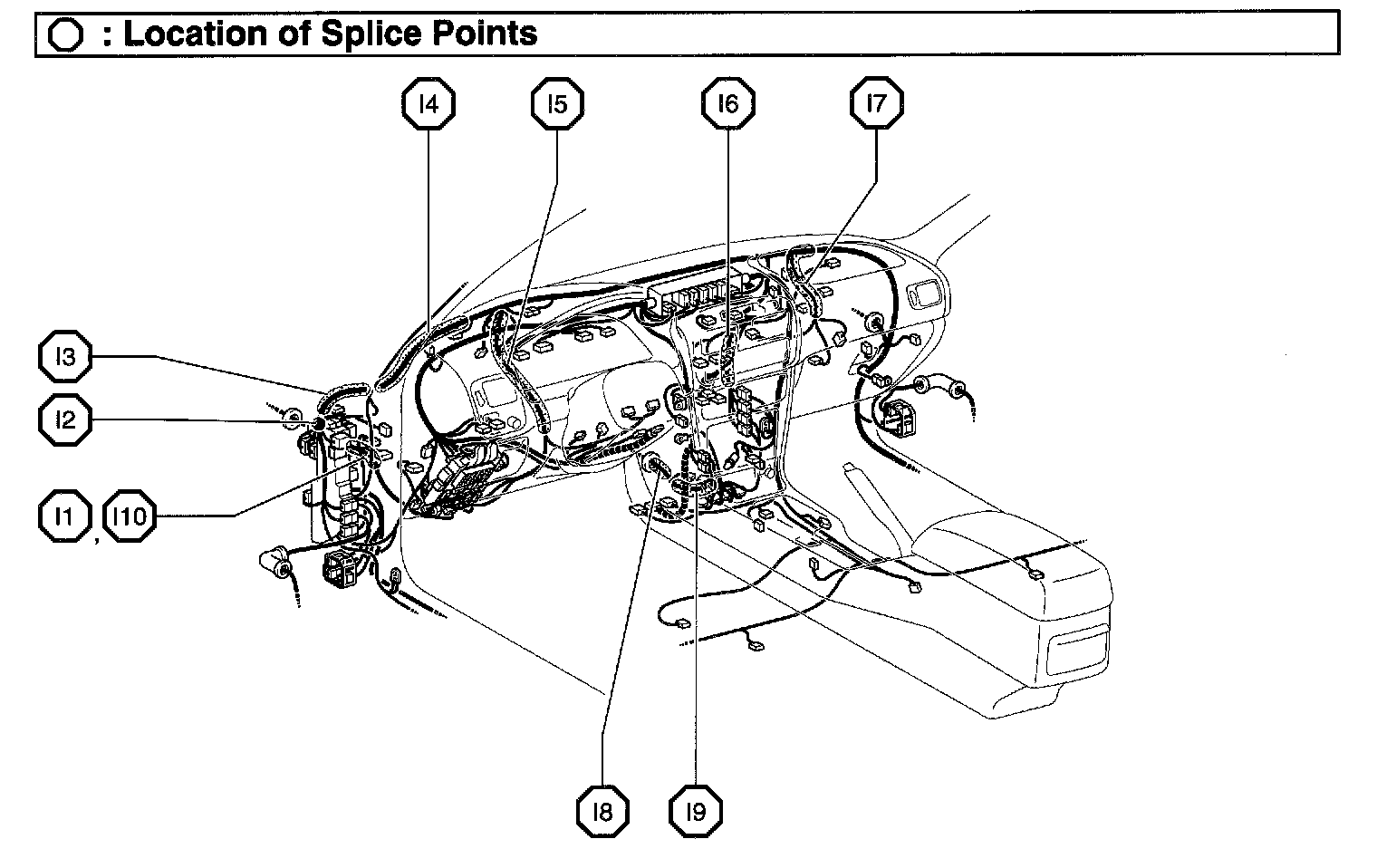

Instrument Panel / Console:

Splice Location
I1 Engine Room Main Wire
I2
I3
I4 Cowl Wire
I5
I6 Cowl Wire
I7 Cowl Wire
I8 Engine Wire
I9 Engine Wire
I10 Engine Room Main Wire

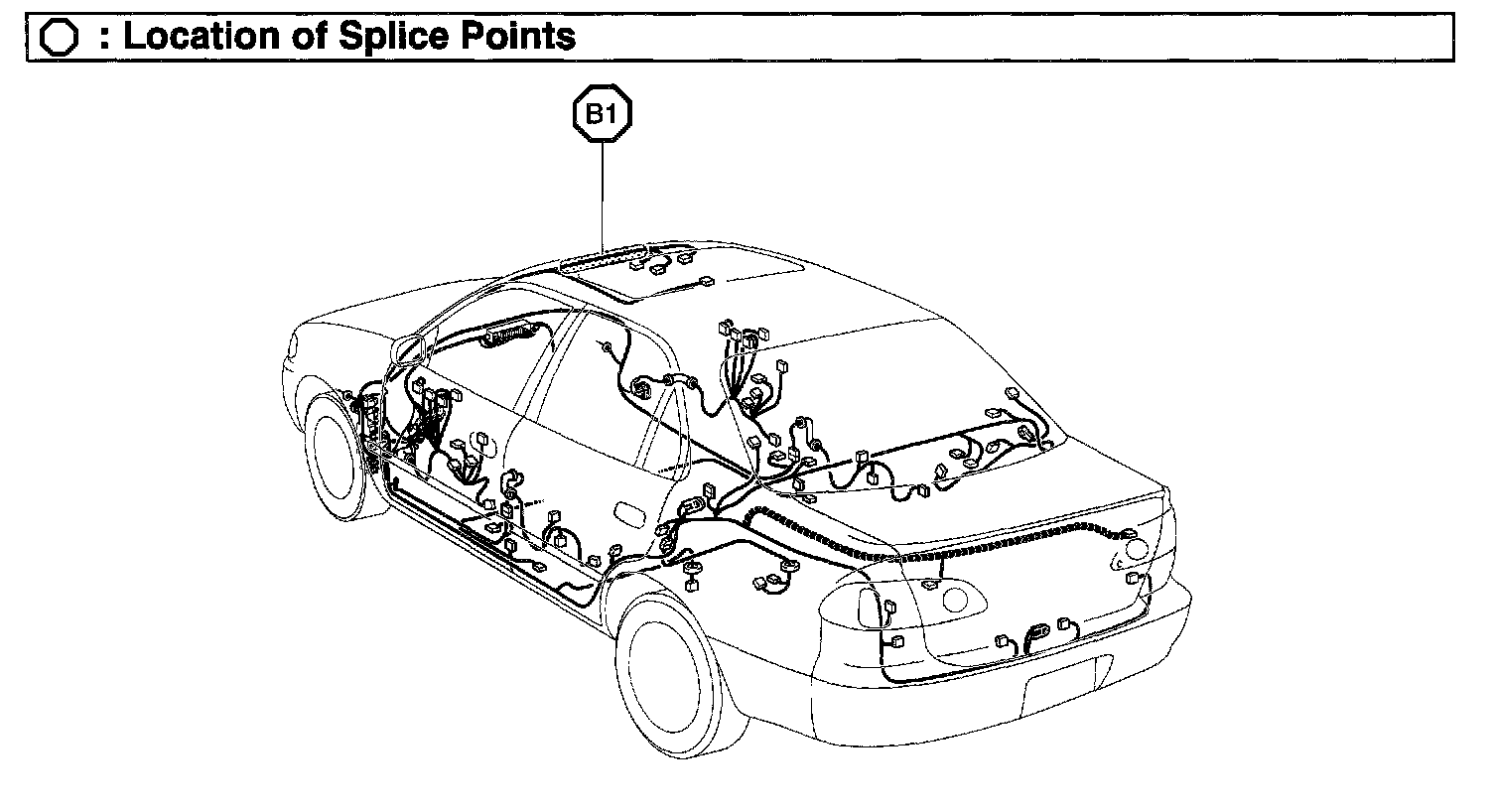

Body:

Splice Location
B1 Roof Wire
