Crankshaft Position Sensor: Service and Repair
Crankshaft Position Sensor:
REMOVAL 1.

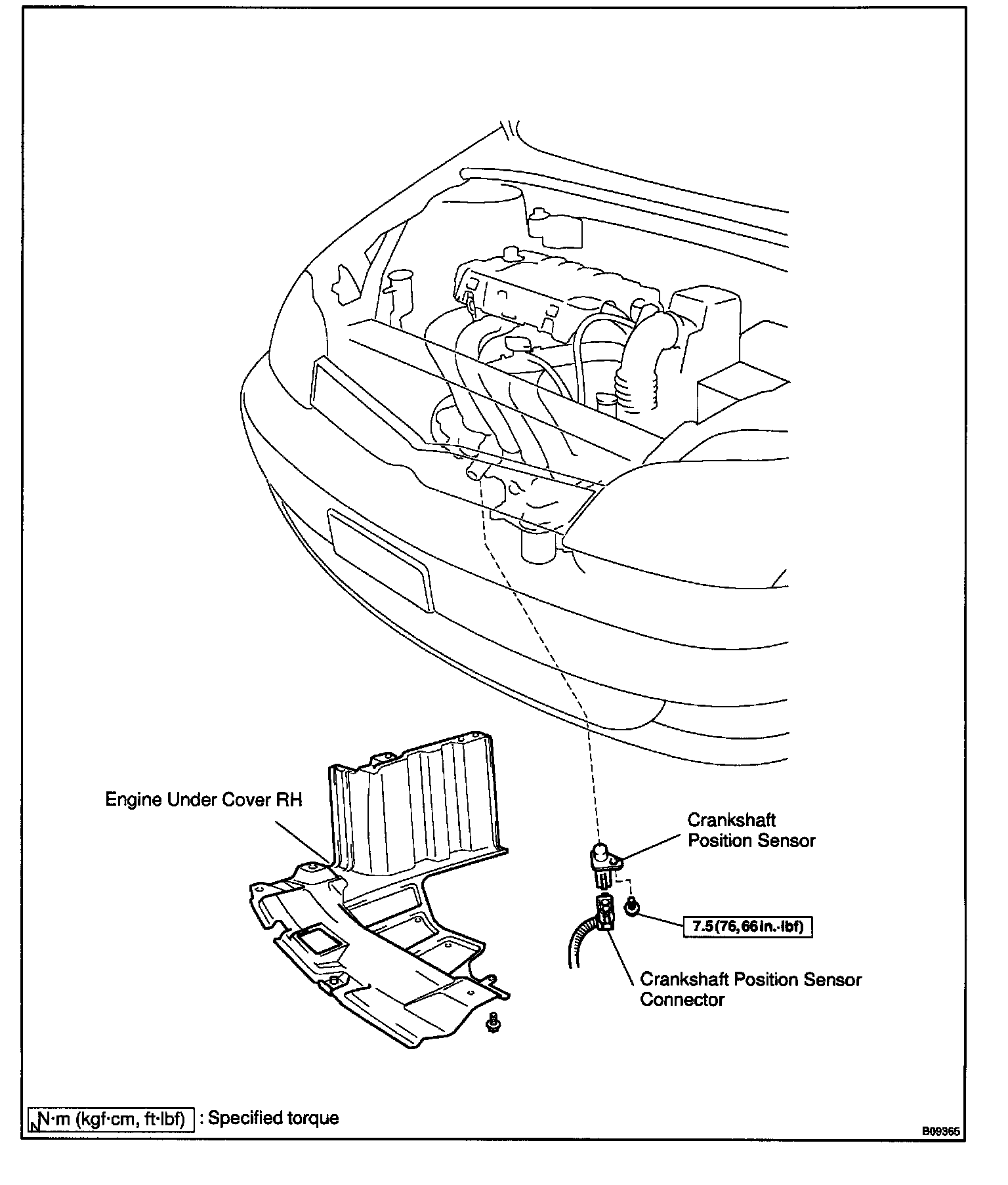

REMOVE ENGINE UNDER COVER RH
2.
REMOVE
CRANKSHAFT POSITION SENSOR a.

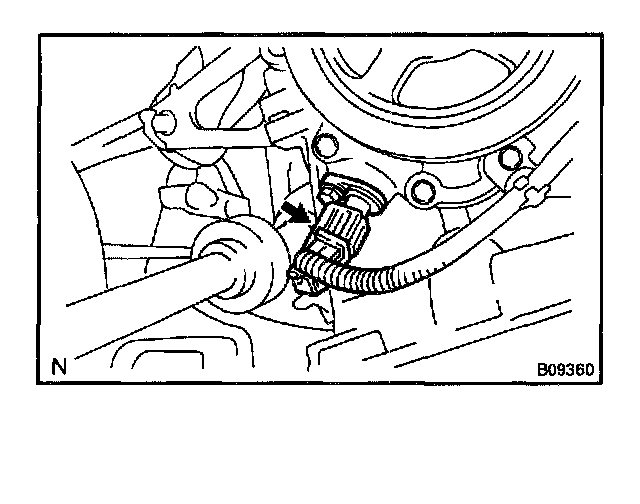

While sliding the connector lock, remove the connector
b.
Remove the bolt and
crankshaft position sensor.
Torque:
7.5 N.m (76 kgf.cm, 66 in.lbf)INSTALLATIONInstallation is in the reverse order of removal.
