Ignition Coil: Service and Repair
Ignition Coil:
REMOVAL 1.
REMOVE NO.2 CYLINDER HEAD COVER
2.
DISCONNECT 4
IGNITION COIL CONNECTORS
3.

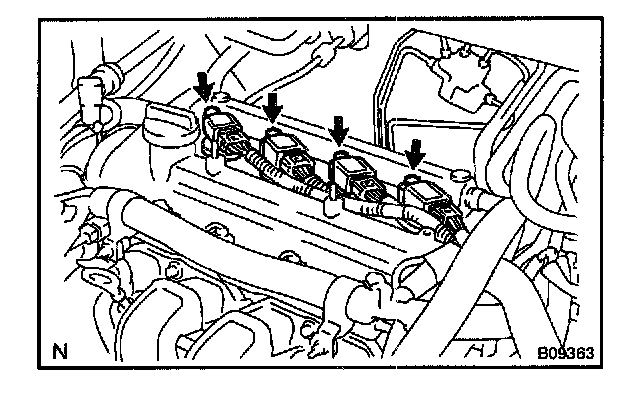

REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
Remove the 4 bolts and pull out the 4
ignition coils (with igniter).
Torque:
9.0 N.m (92 kgf.cm, 80 in.lbf)INSTALLATIONInstallation is in the reverse order of removal.
