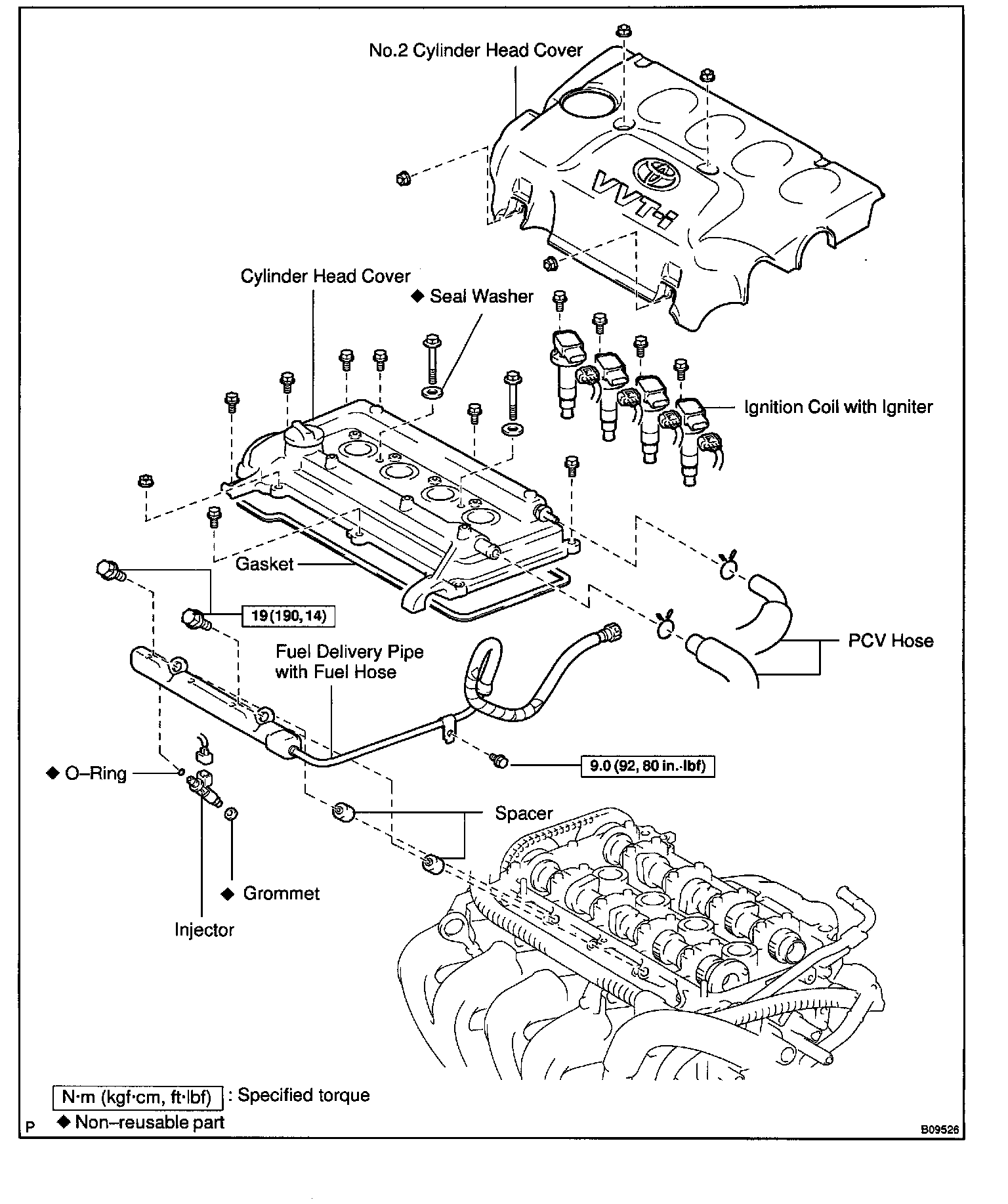

Fuel Injector

Injector:

2 bolts holding the delivery pipe to the cylinder head.
Torque:.....................19 N.m (190 kgf.cm, 14 ft.lbf)

Bolt holding the fuel pipe to the cylinder head.
Torque:.....................9.0 N.m (92 kgf.cm, 80 in.lbf)
