Key Confinement Prevention Function Does Not Work Properly

Key Confinement Prevention Function Does Not Work Properly (Manual Operation and Interlocked With Key Are Active)

CIRCUIT DESCRIPTION
MPX body ECU senses, by the unlock warning switch, that the key is in the key cylinder. Because of this, the MPX body ECU will unlock all the doors immediately after locking them if a door has been locked while the key is in the key cylinder.

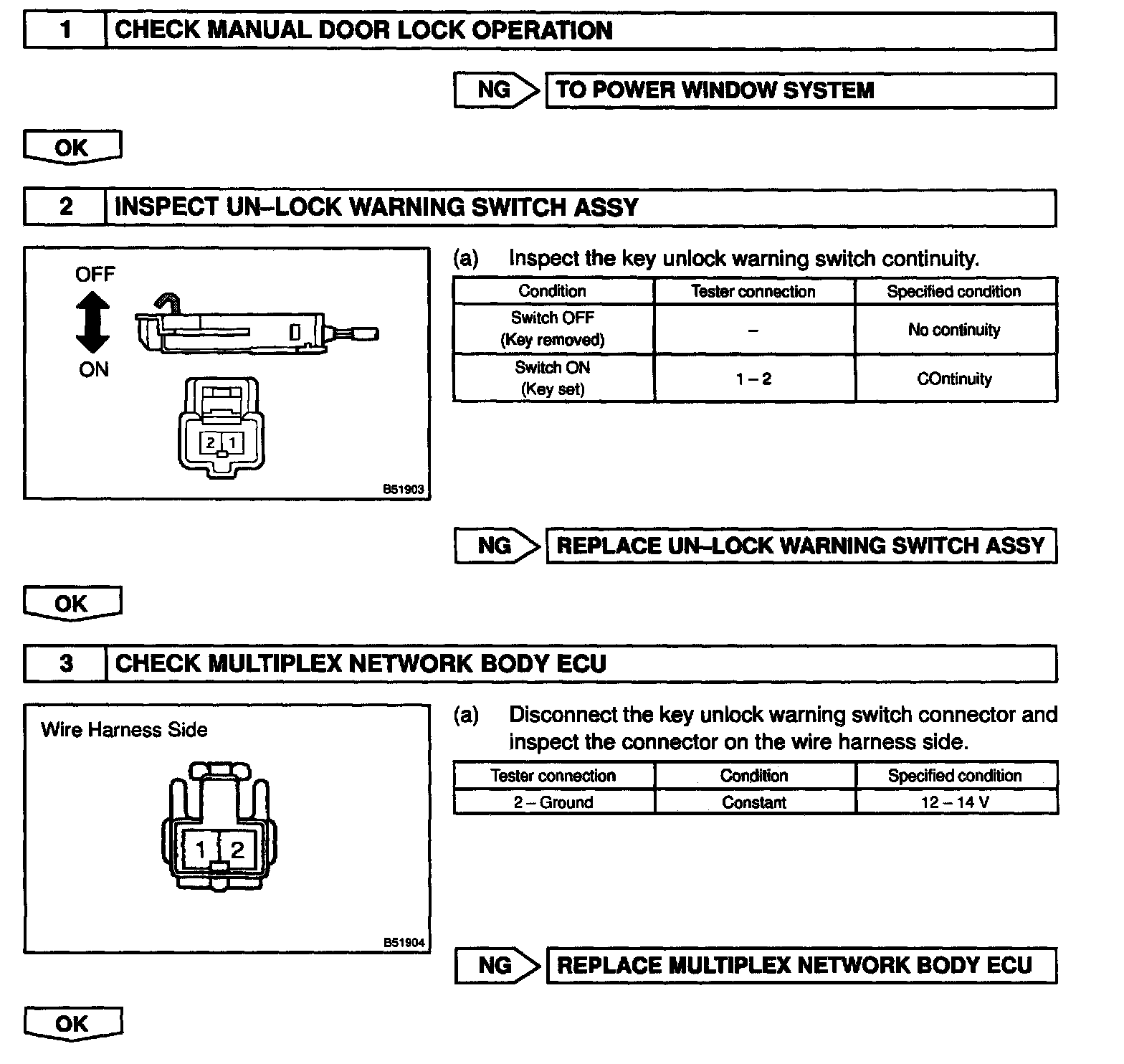

Steps 1 - 3:

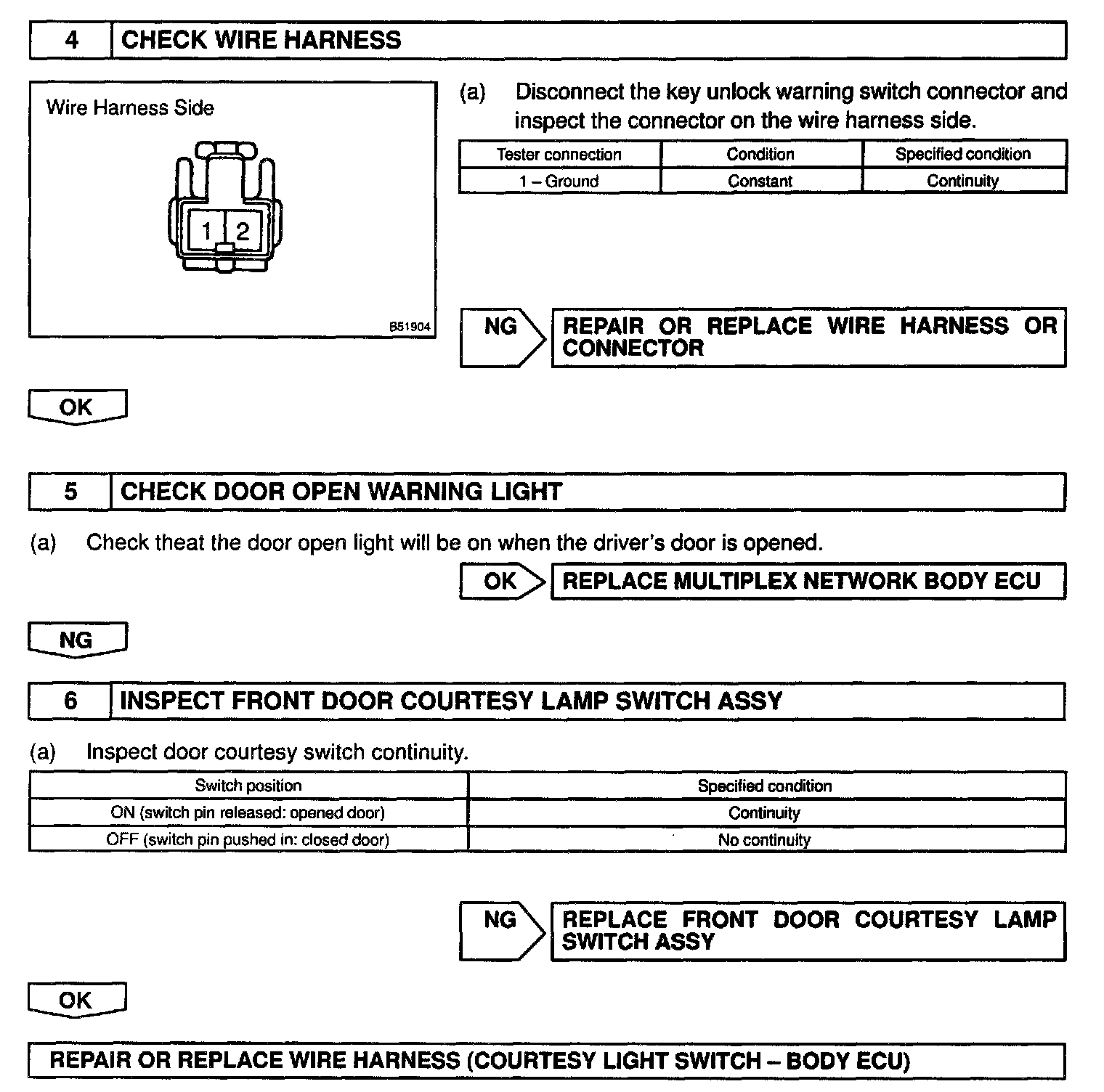

Steps 4 - 6:

INSPECTION PROCEDURE
