Components

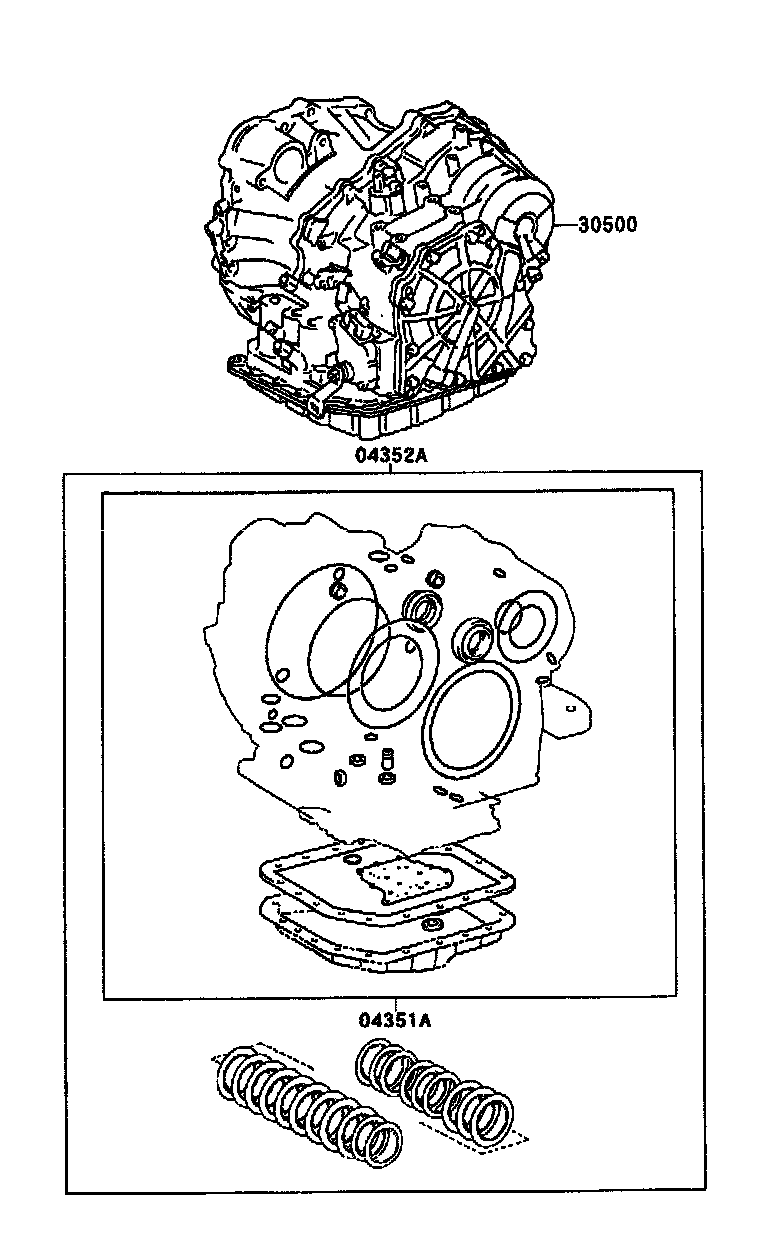

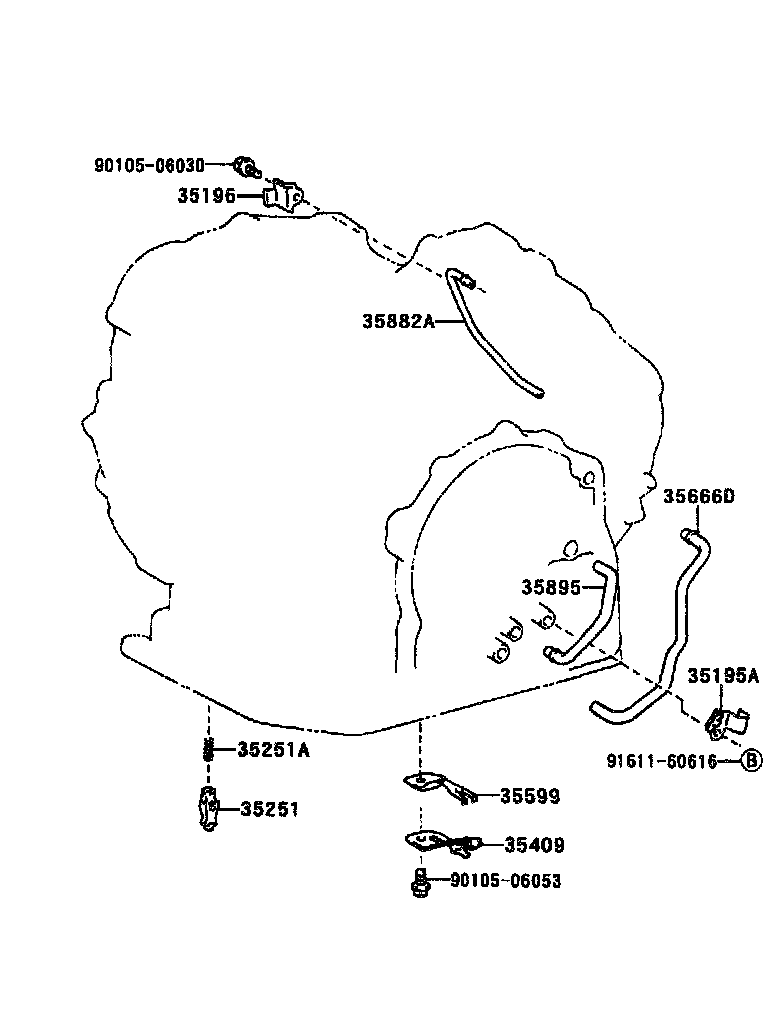

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

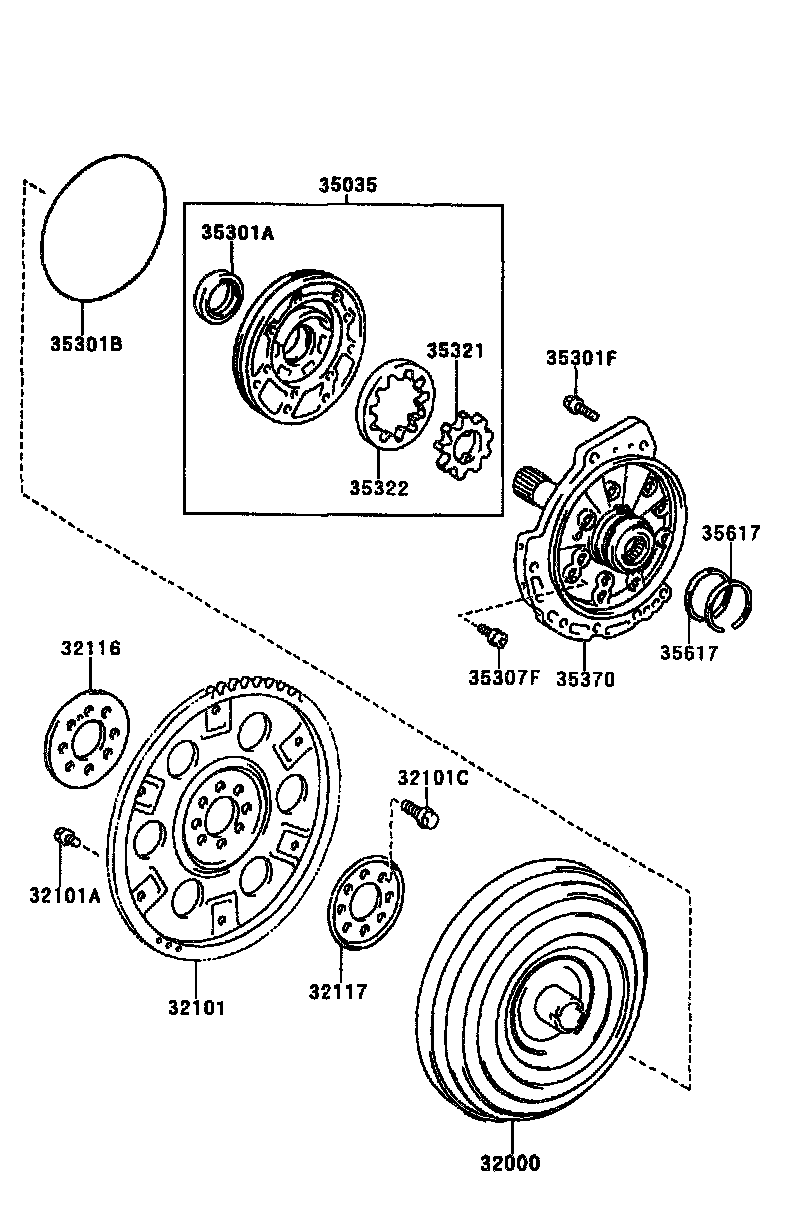

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)





TRANSMISSION CASE & OIL PAN (ATM)





OVERDRIVE GEAR (ATM)

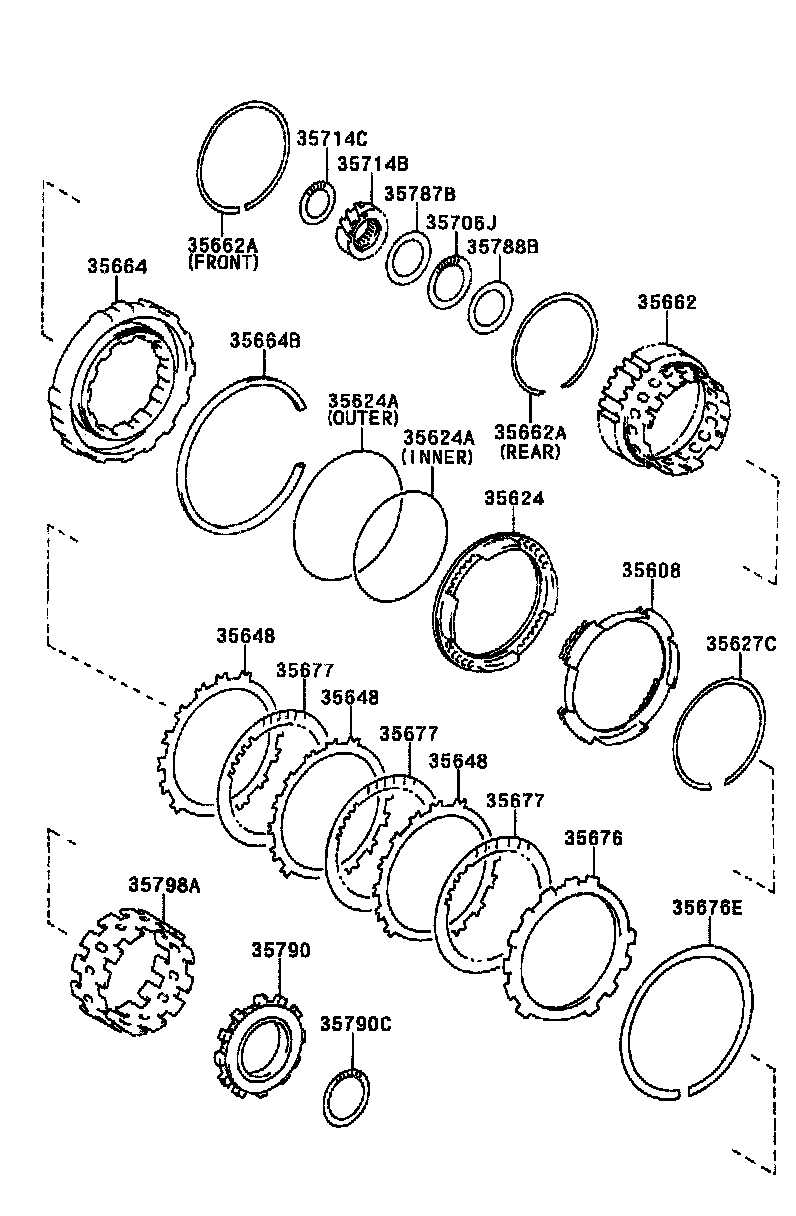

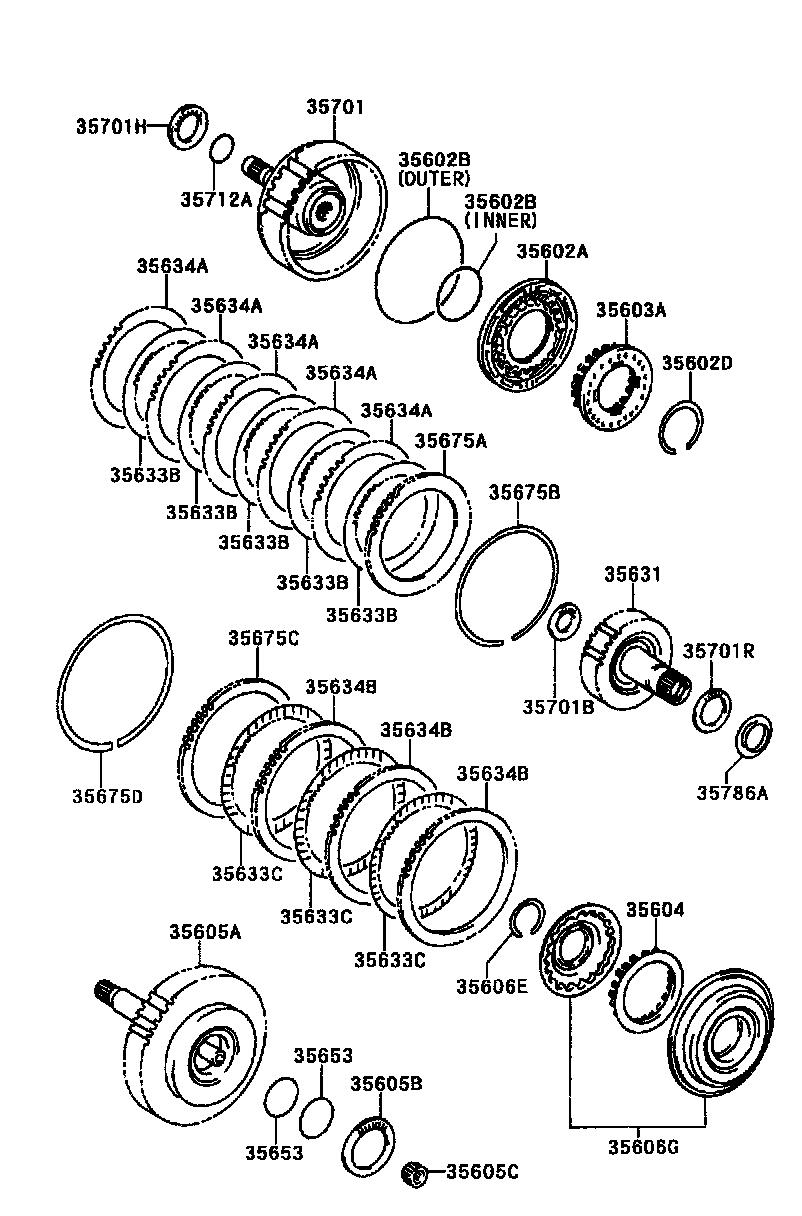

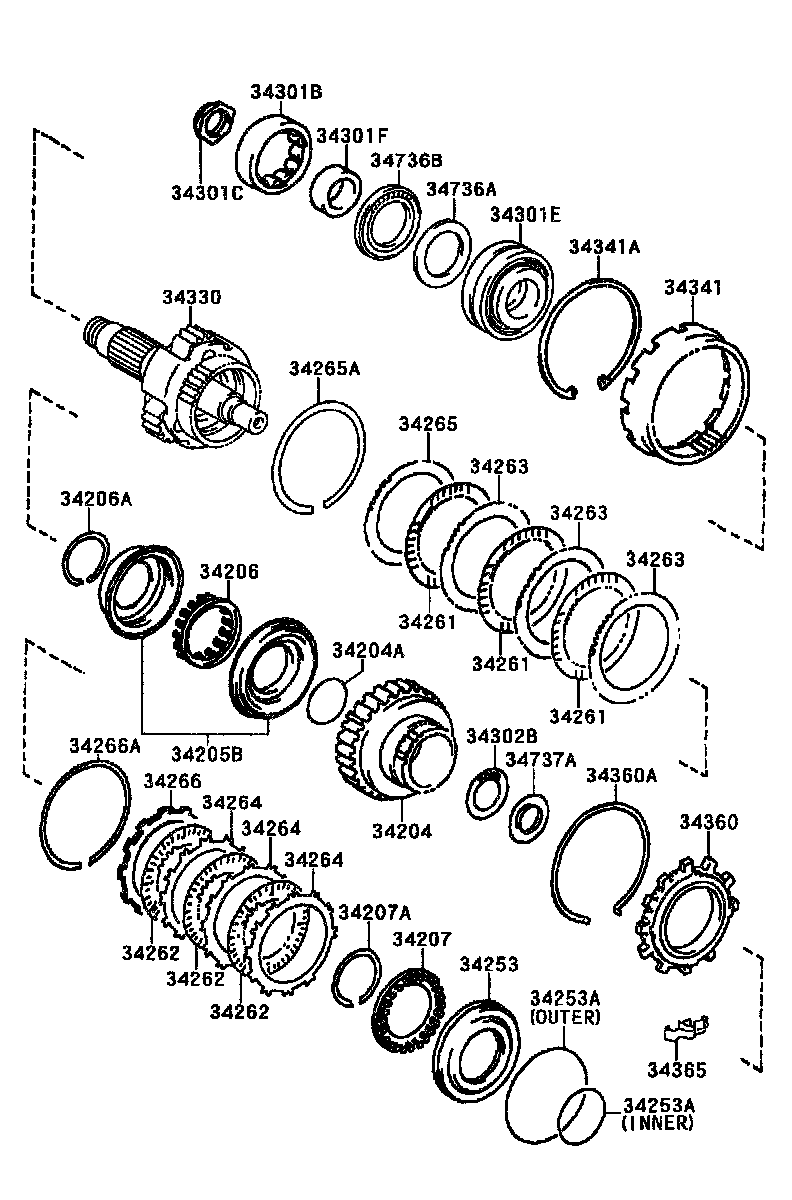

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)





CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

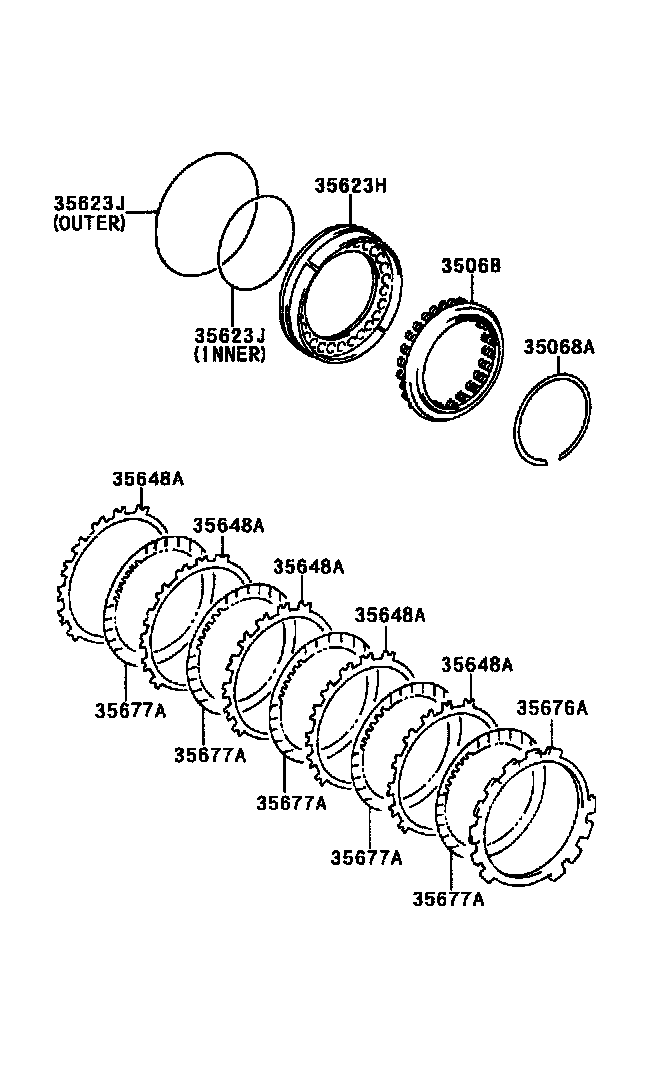

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

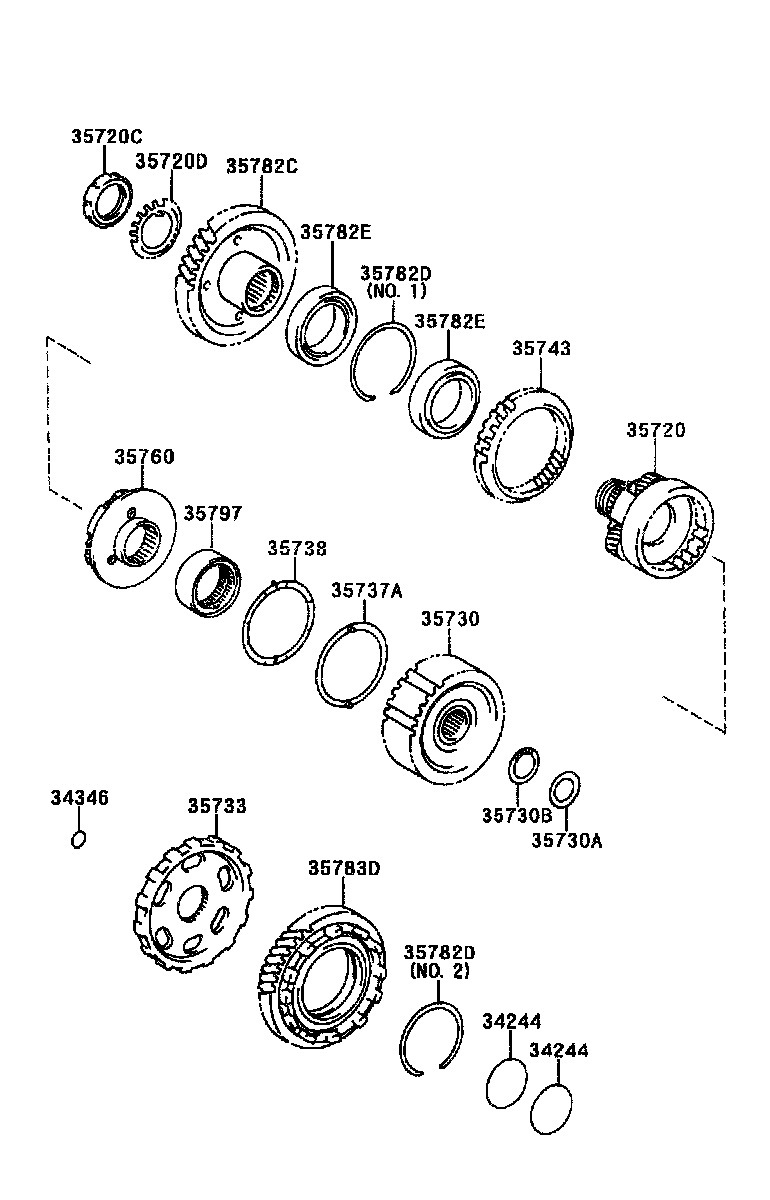

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR (ATM)

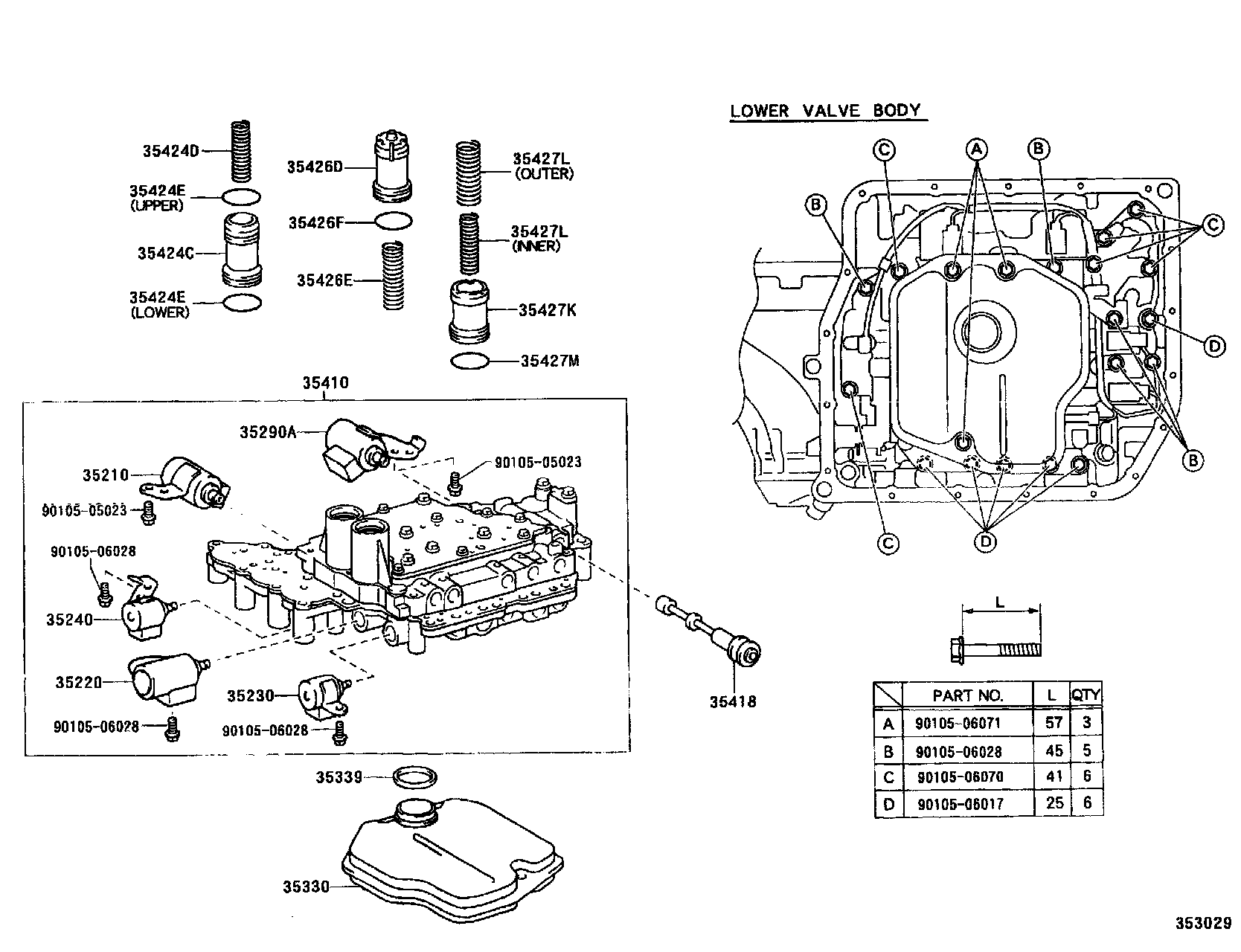

VALVE BODY & OIL STRAINER (ATM)





Part 1 of 3





Part 2 of 3





Part 2 of 3

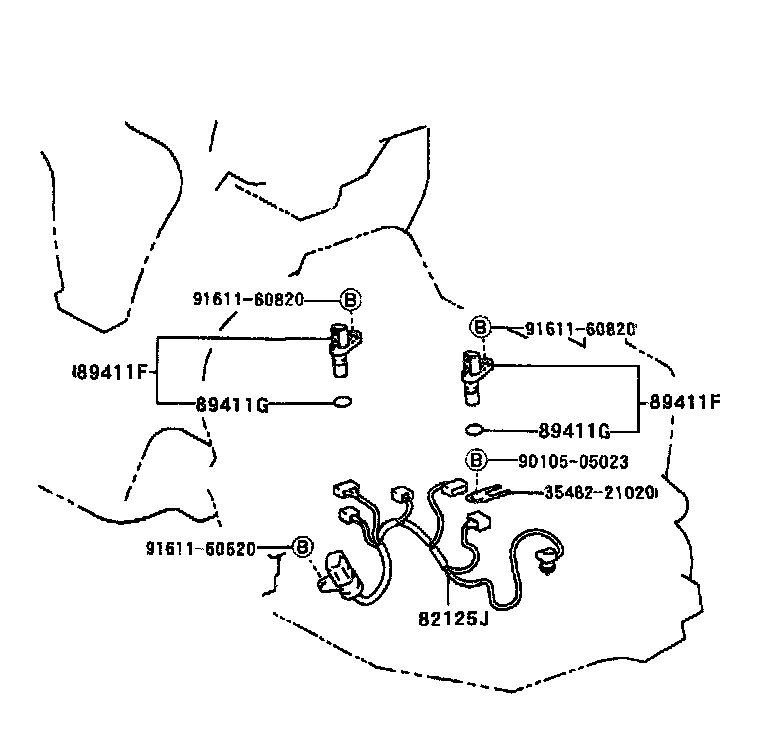

THROTTLE LINK & VALVE LEVER (ATM)





FRONT AXLE HOUSING & DIFFERENTIAL
