Fuse Block: Locations

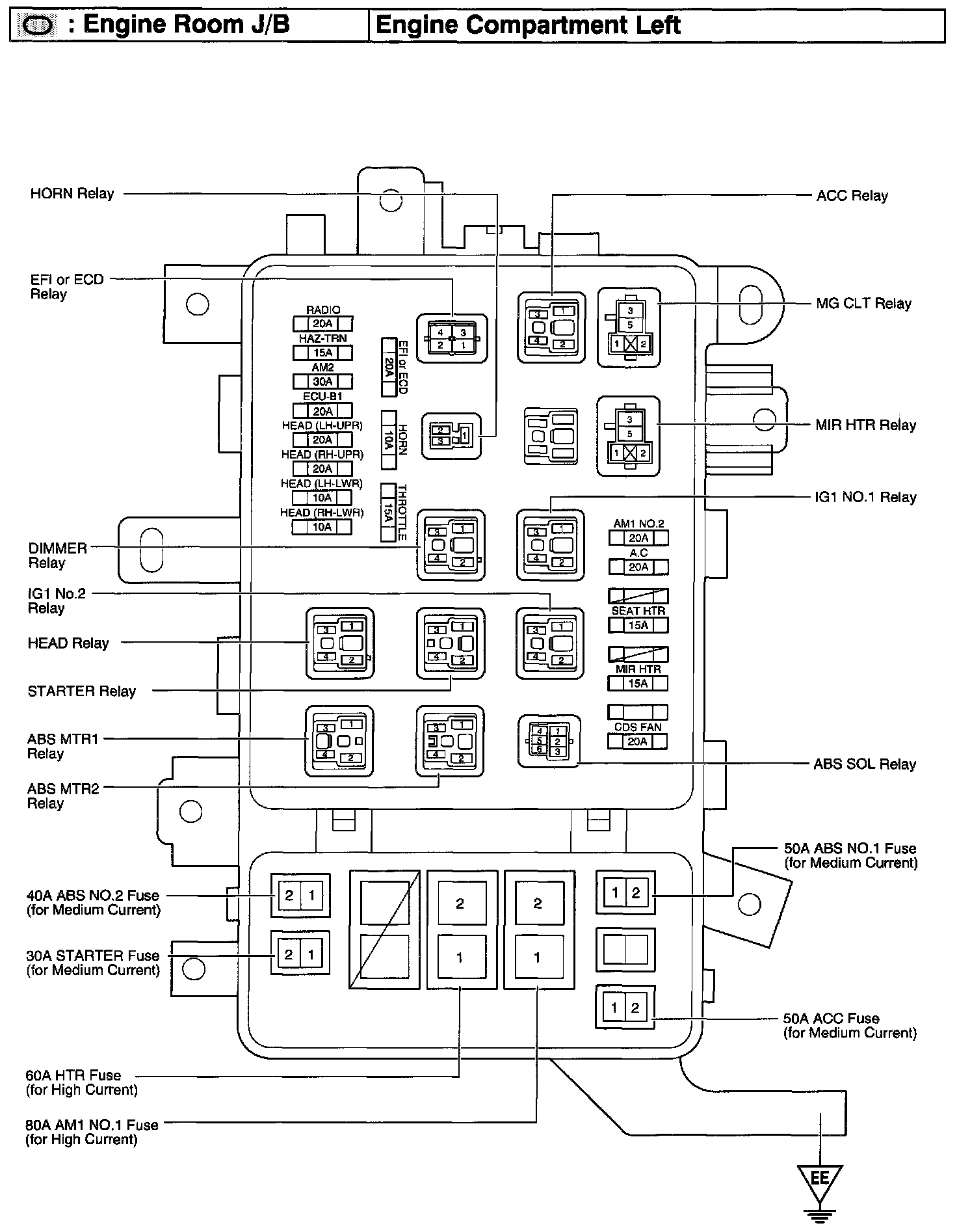

Engine Room J/B (Part 1):

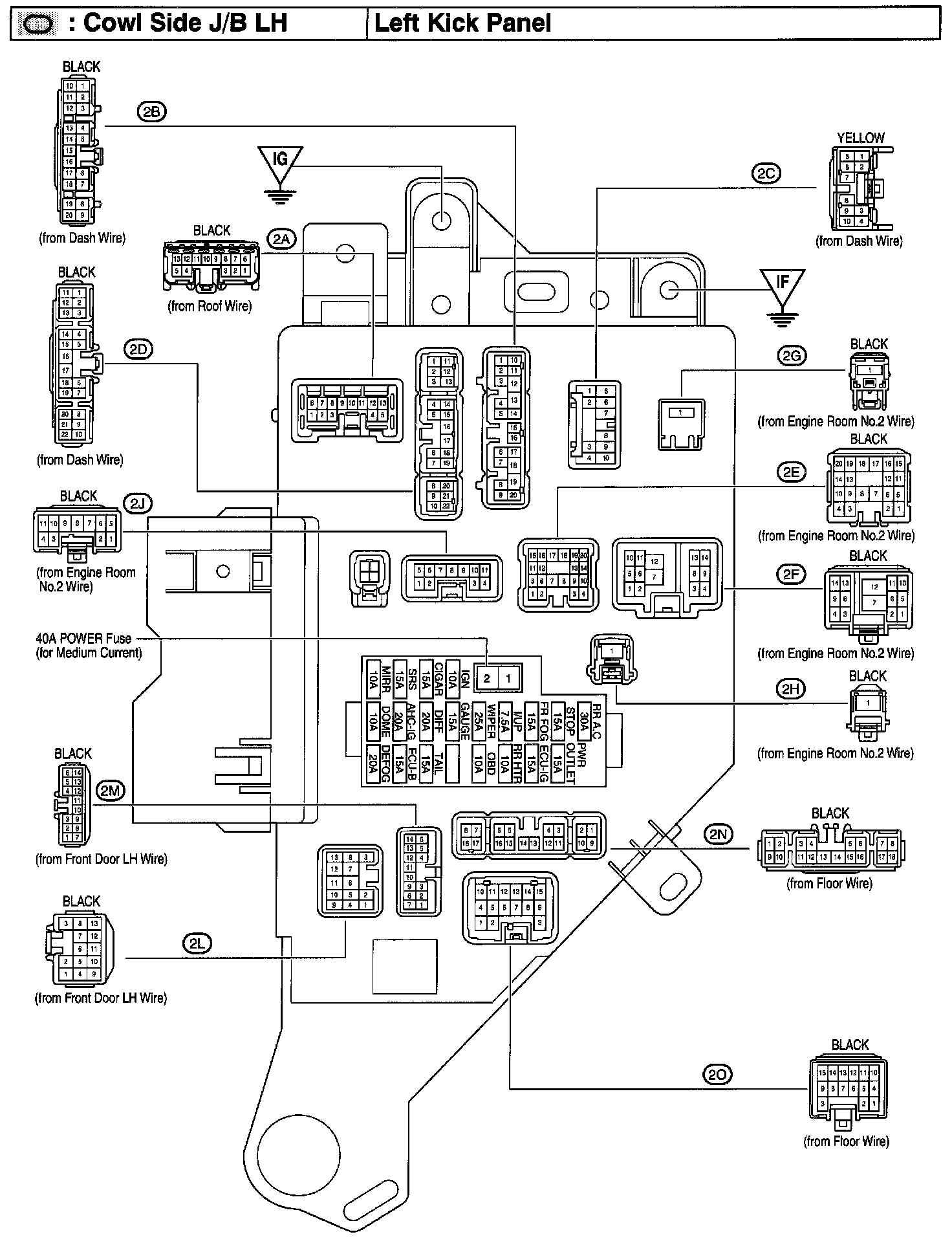

Cowl Side J/B LH (Part 1):

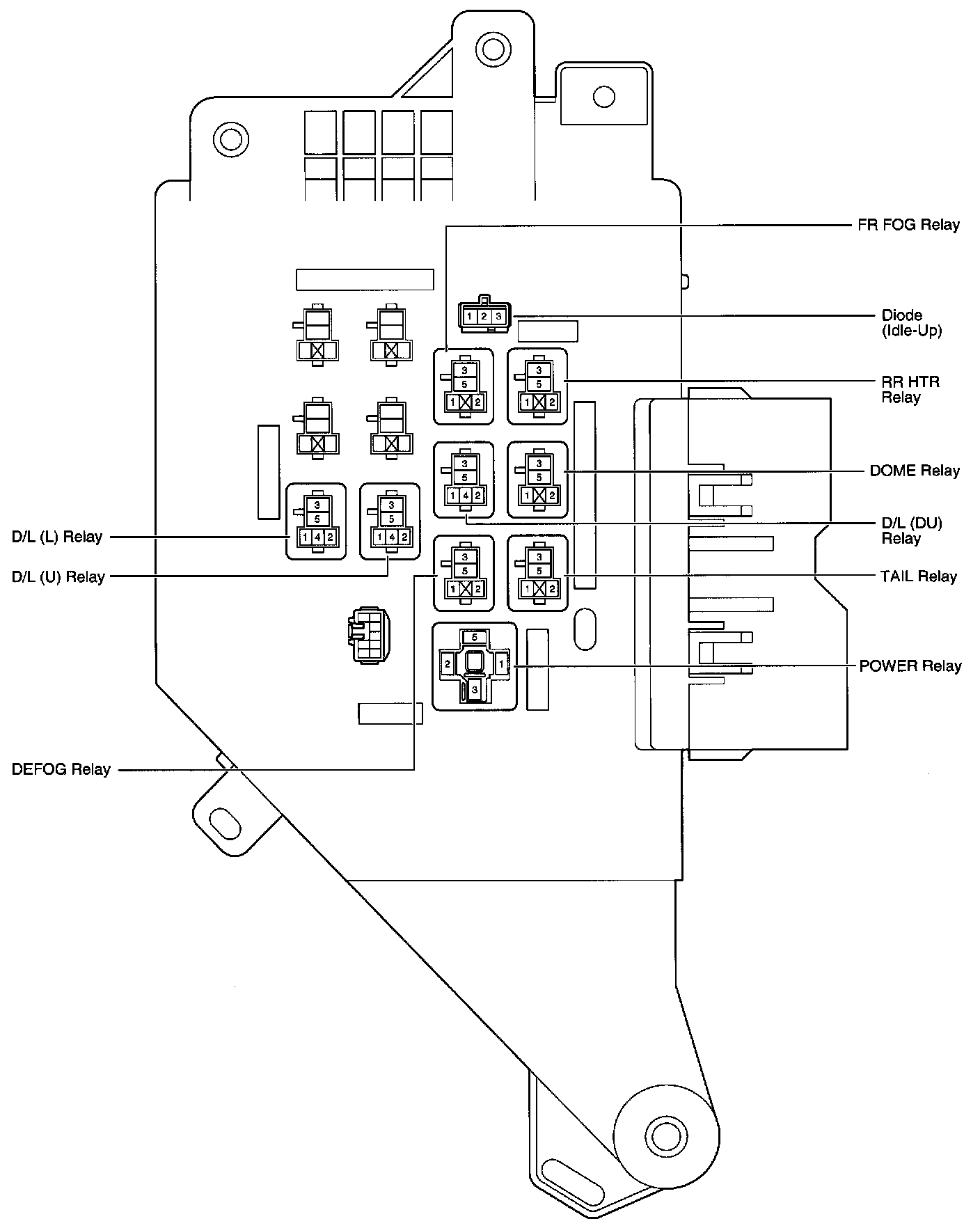

Cowl Side J/B LH (Part 2):

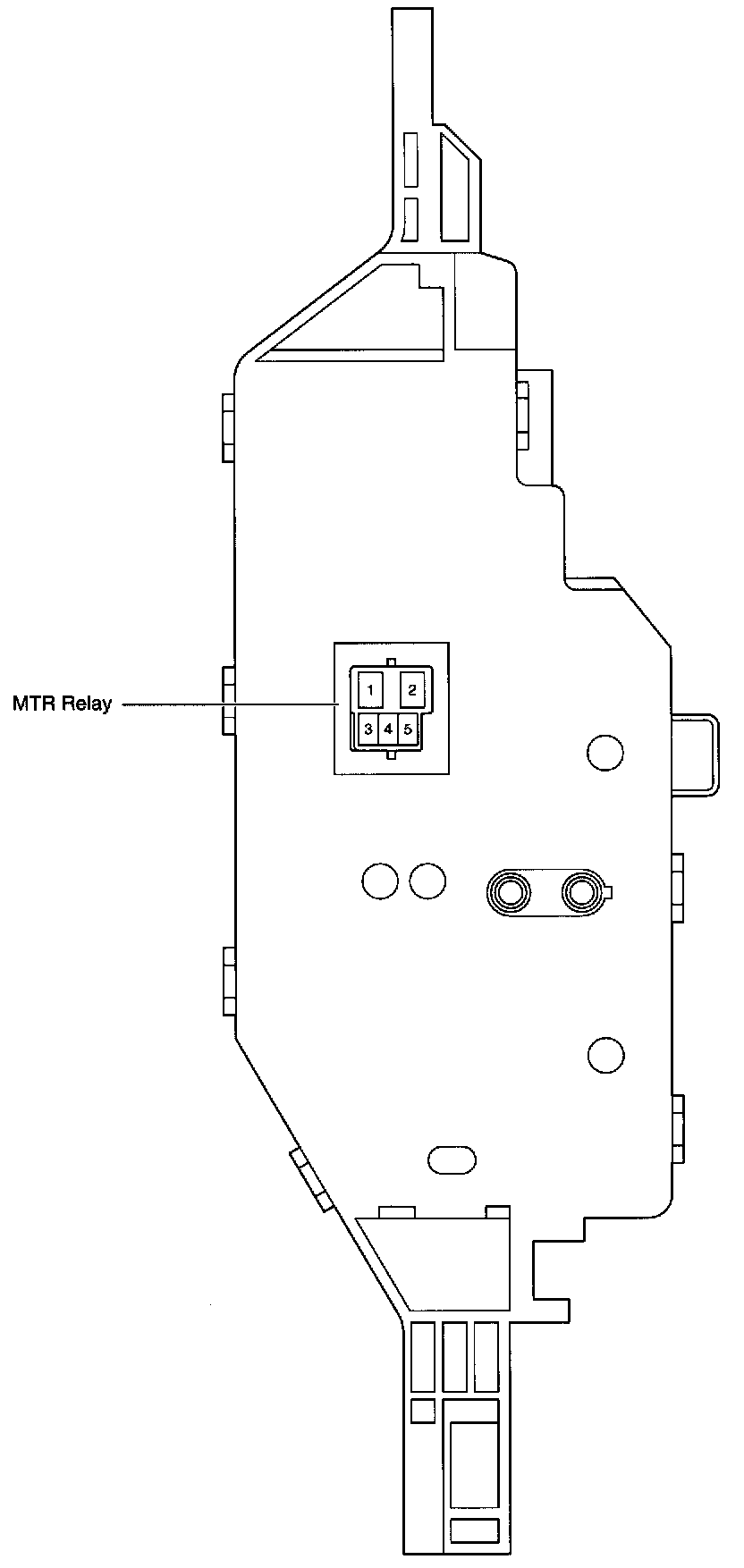

Cowl Side J/B RH (Part 2):

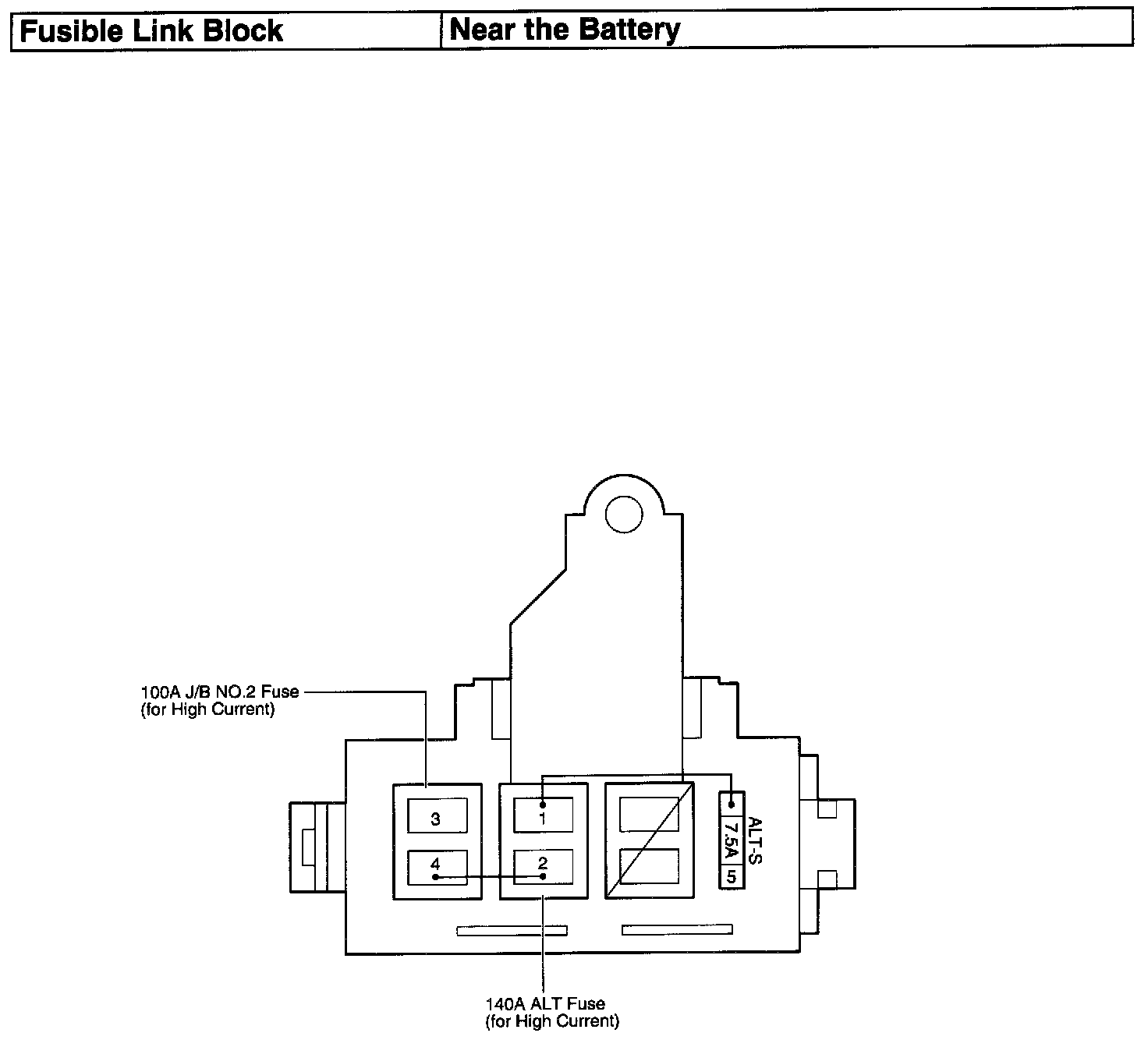

Fusible Link Block:
Details

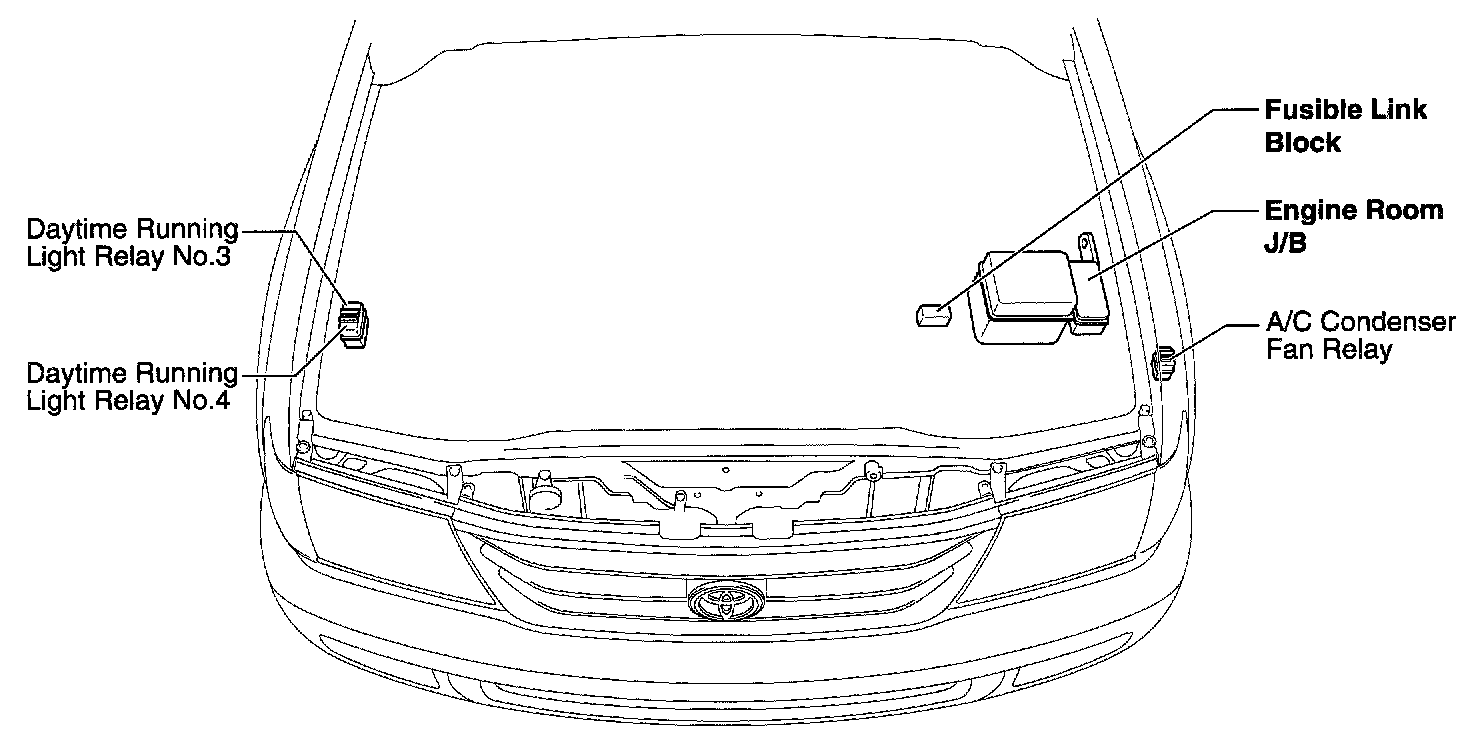

Engine Compartment:
Instrument Panel Locations:
Body Locations:
Locations
