Fuse: Application and ID

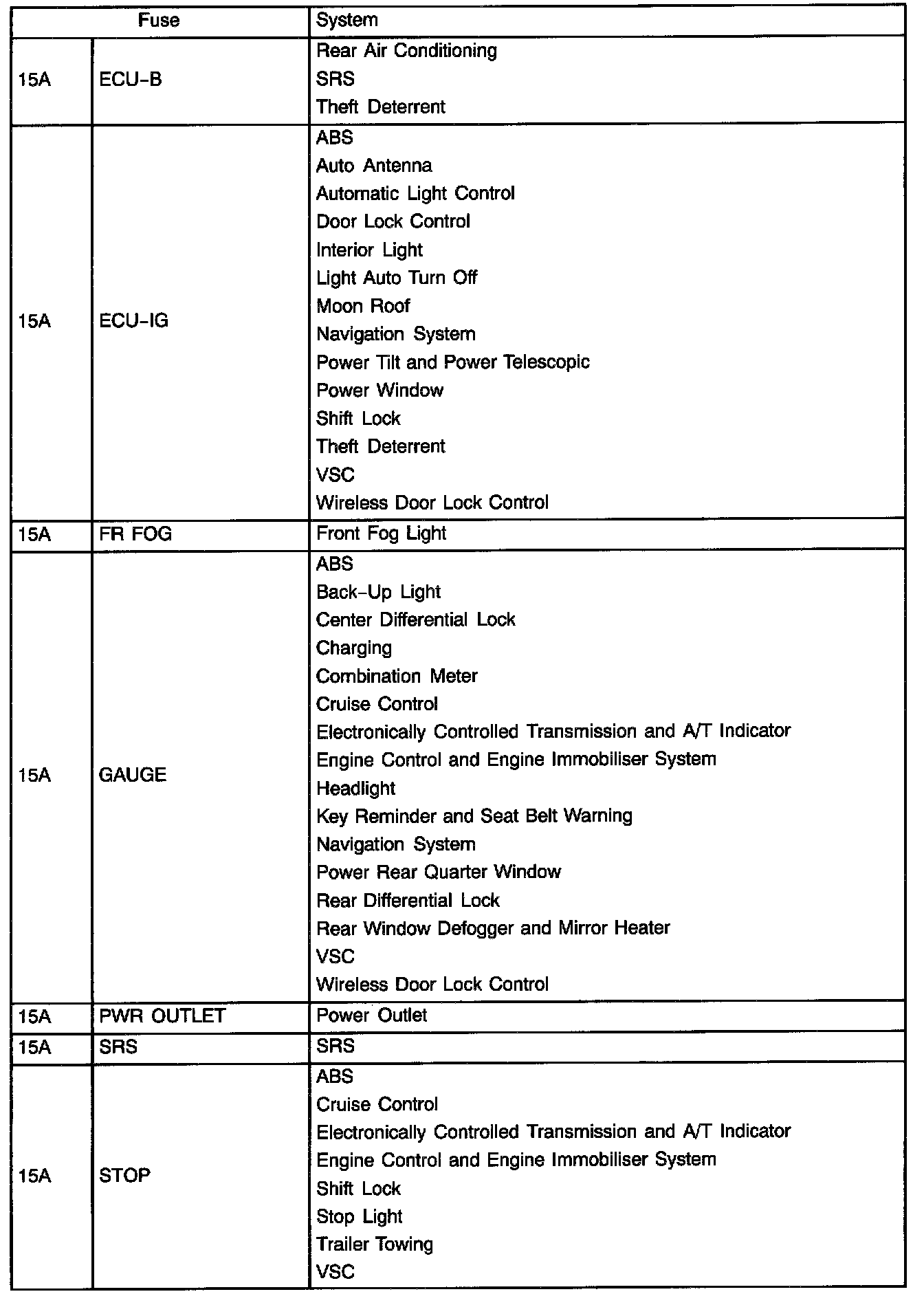

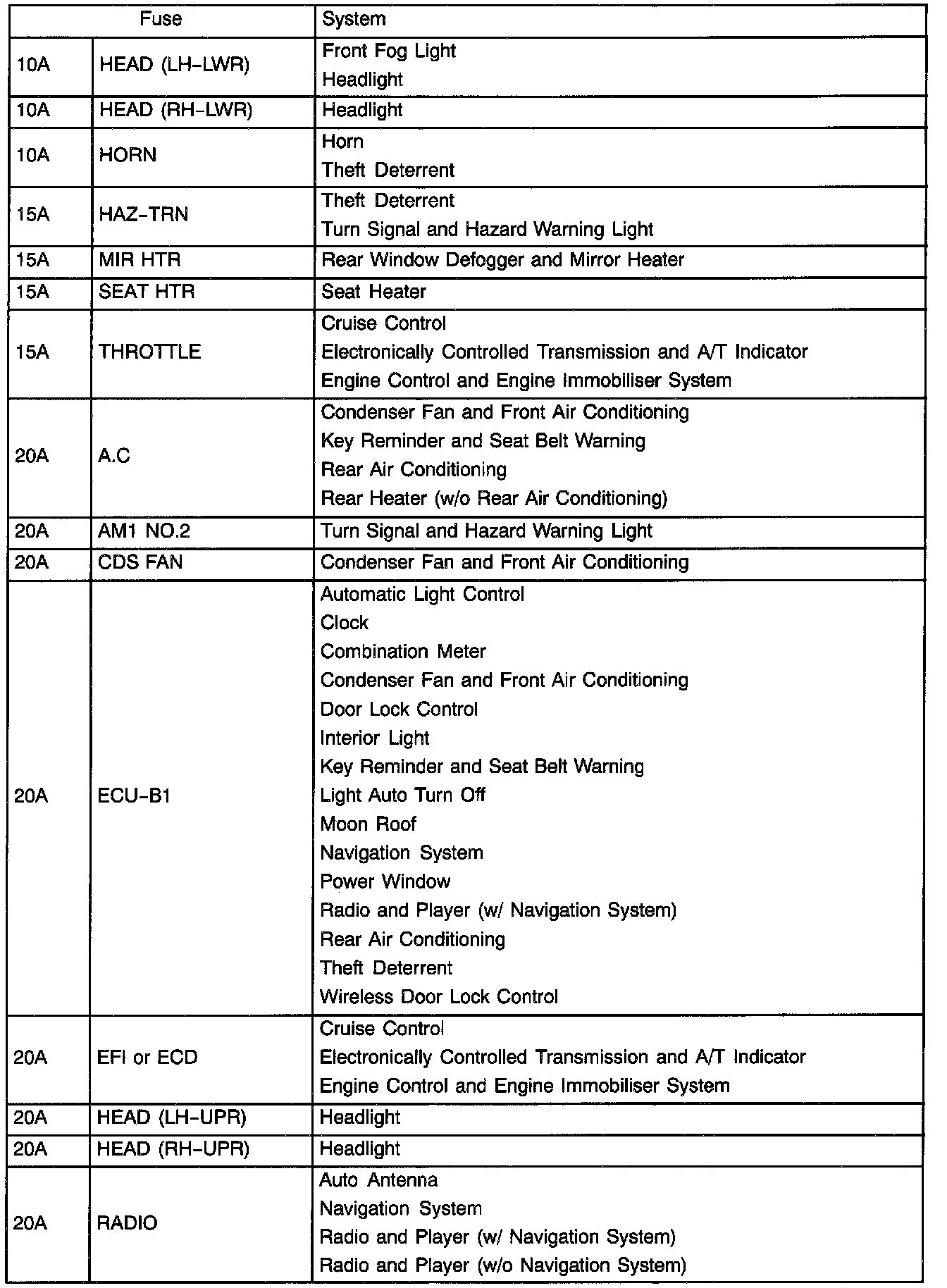

Engine Room J/B Fuse Applications (Part 1):

Engine Room J/B Fuse Applications (Part 2):

Fusible Link Block (F6) Fuse Applications:

Engine Room Fuse Details

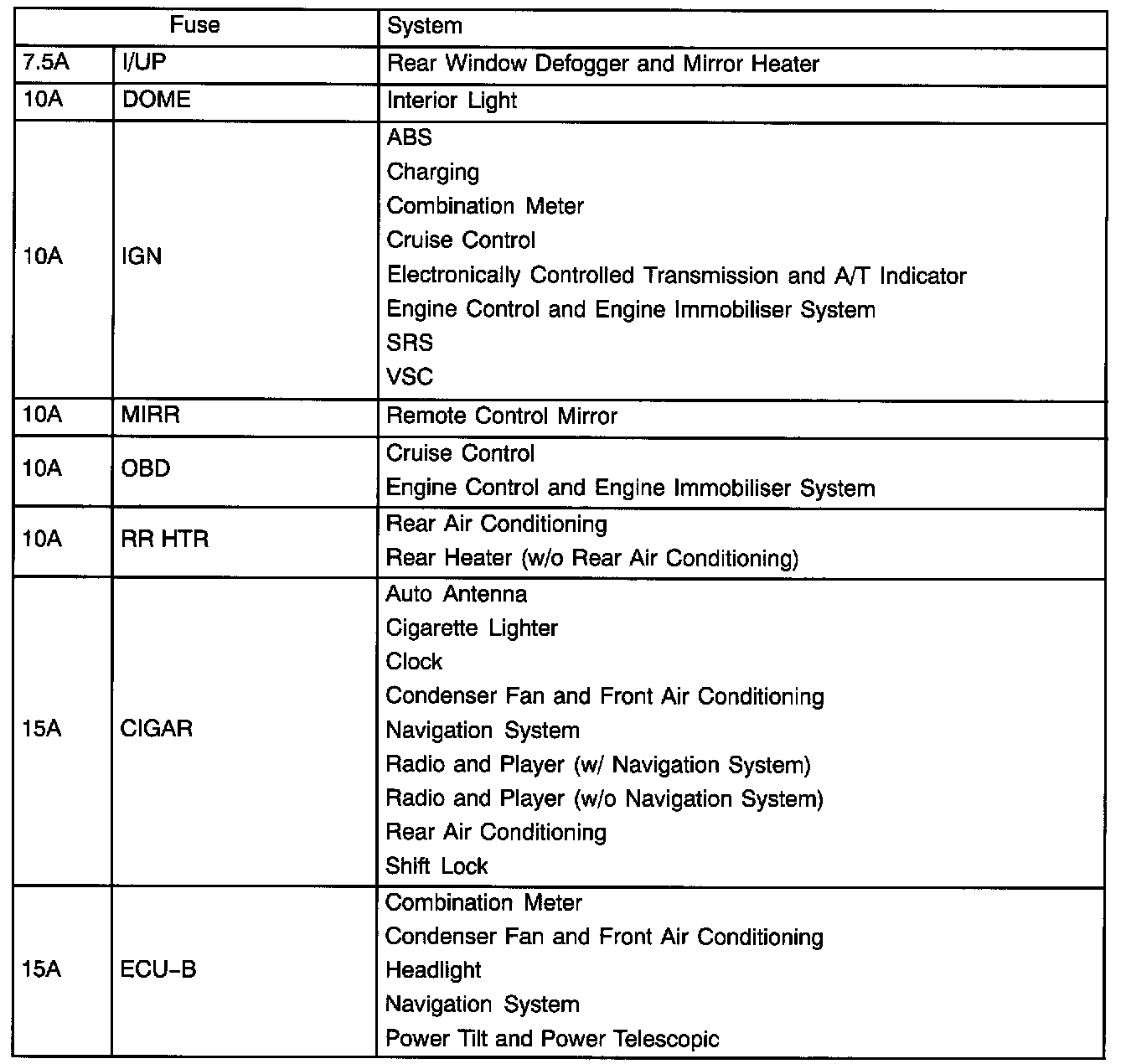

Cowl Side J/B LH Fuse Applications (Part 1):

Cowl Side J/B LH Fuse Applications (Part 2):

Cowl Side J/B LH Fuse Applications (Part 3):

Interior Panel Fuse Details
