Temperature Switch

INSPECTION

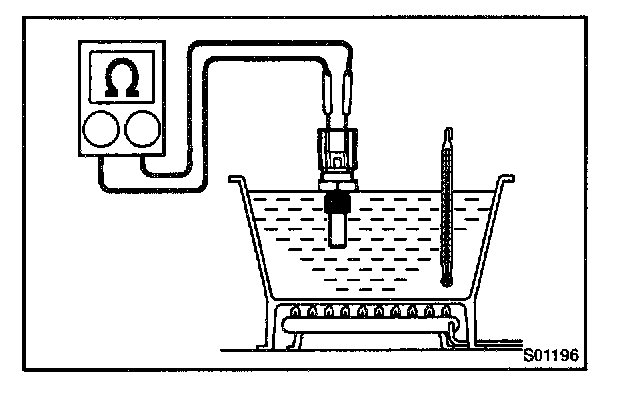

INSPECT WATER TEMPERATURE SWITCH
Using a ohmmeter and thermometer, check continuity between terminals.

Standard:
No continuity at 48 °C (118.4 °F) or less
Continuity at more than 55 °C (131 °F)
