Load Compensator: Testing and Inspection
ON-VEHICLE INSPECTION

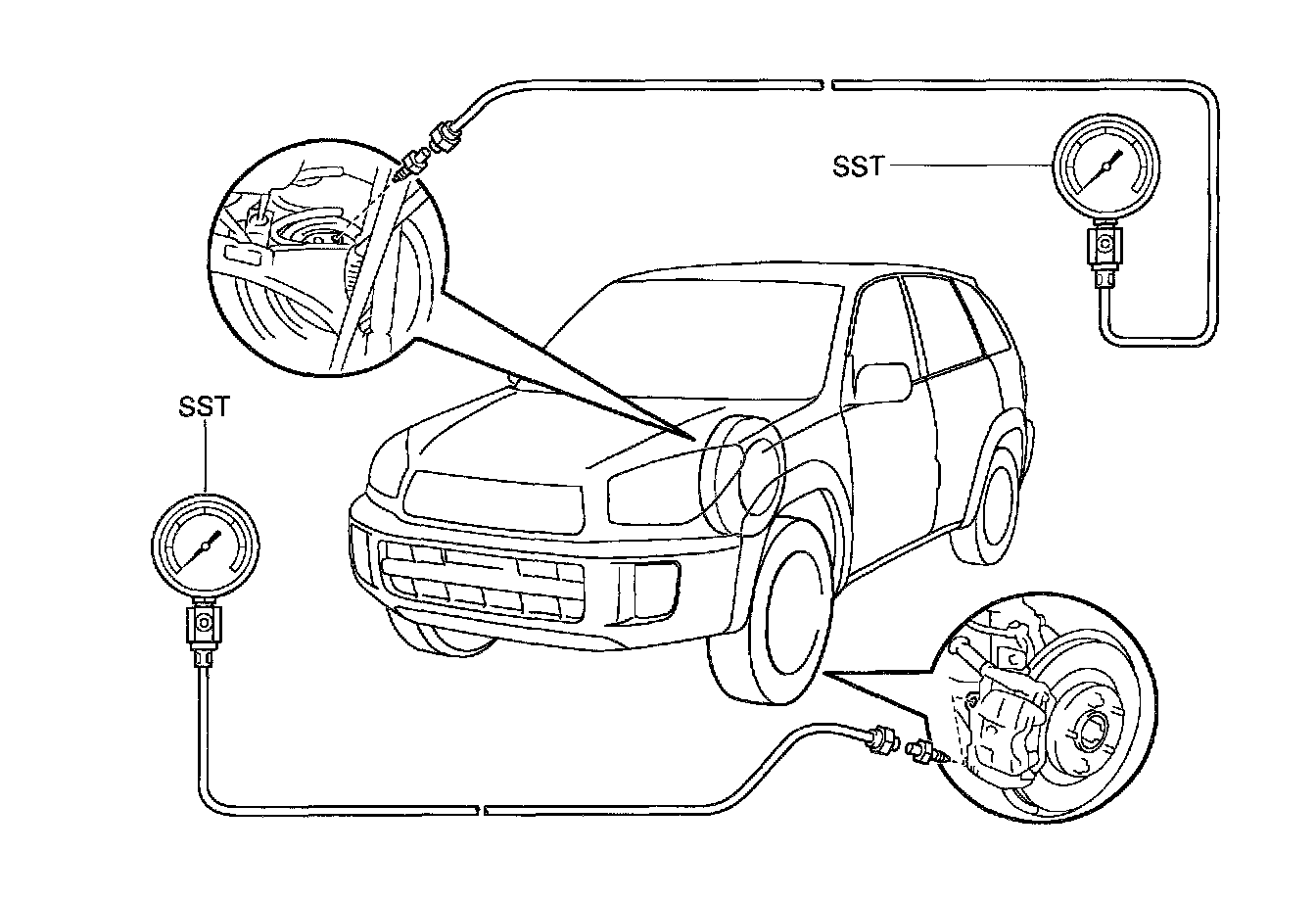

1. INSTALL LSPV GAUGE (SST) AND BLEED AIR
SST 09709-29018
2. RAISE MASTER CYLINDER PRESSURE AND CHECK REAR WHEEL CYLINDER PRESSURE
When inspecting the fluid pressure, inspect the left front and right rear together, and the right front and left rear together.
If the rear wheel cylinder pressure is incorrect, replace the P valve assembly.
3. BLEED BRAKE SYSTEM
4. CHECK FOR LEAKS
