Engine Torque and Sequence

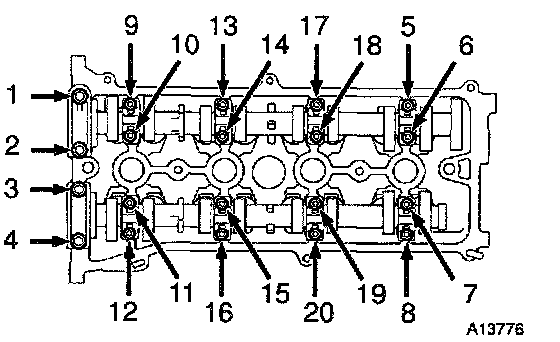

Camshaft Bearing Cap Bolt Removal Sequence:

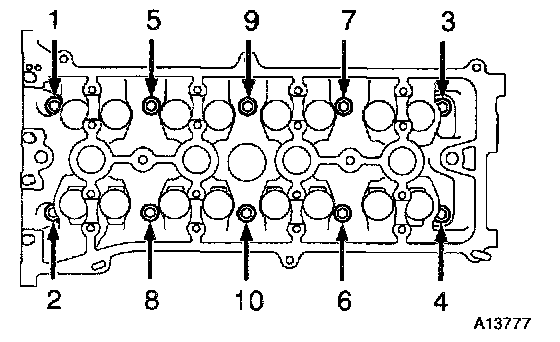

Cylinder Head Bolt Removal Sequence:

Cylinder Head Bolt Torque Sequence:

Camshaft Bearing Cap Bolt Torque Sequence:

Cylinder head bolts
Step 1 79 Nm (58 ft lb)
Step 2 Tighten 90°
Camshaft bearing cap bolts
Bolt No. 1 and No. 2 29.5 Nm (22 ft lb)
Others 9 Nm (80 in lb)
Intake manifold bolts 30 Nm (22 ft lb)
Exhaust manifold bolts 37 Nm (27 ft lb)

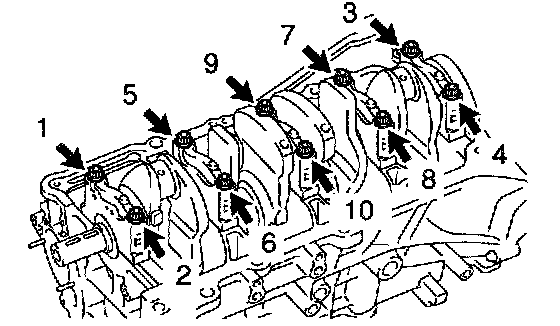

Main Bearing Cap Bolt Removal Sequence:

Main Bearing Cap Bolt Torque Sequence:

Main bearing cap bolts
Step 1 20 Nm (15 ft lb)
Step 2 40 Nm (30 ft lb)
Step 3 Tighten 90°
Connecting rod bolts
Step 1 24.5 Nm (18 ft lb)
Step 2 Tighten 90°
Crankshaft pulley bolt 170 Nm (125 ft lb)
Flywheel mounting bolts 130 Nm (96 ft lb)
Flexplate mounting bolts 41 Nm (30 ft lb)
Oil pump
Body cover 8.8 Nm (80 in lb)
Pump to block 18.6 Nm (14 ft lb)
Drive shaft nut 29.5 Nm (20 ft lb)
Water pump
Body nuts 9 Nm (80 in lb)
Pulley bolts 26 Nm (19 ft lb)
