Rear Door Unlock Detection Switch Circuit
CIRCUIT DESCRIPTIONThe door unlock detection switch is built in the door lock motor assembly. This switch is
ON when the door lock knob is in the unlock position and
OFF when the lock knob is in the lock position. The ECU detects the door lock knob conditions is this circuit.

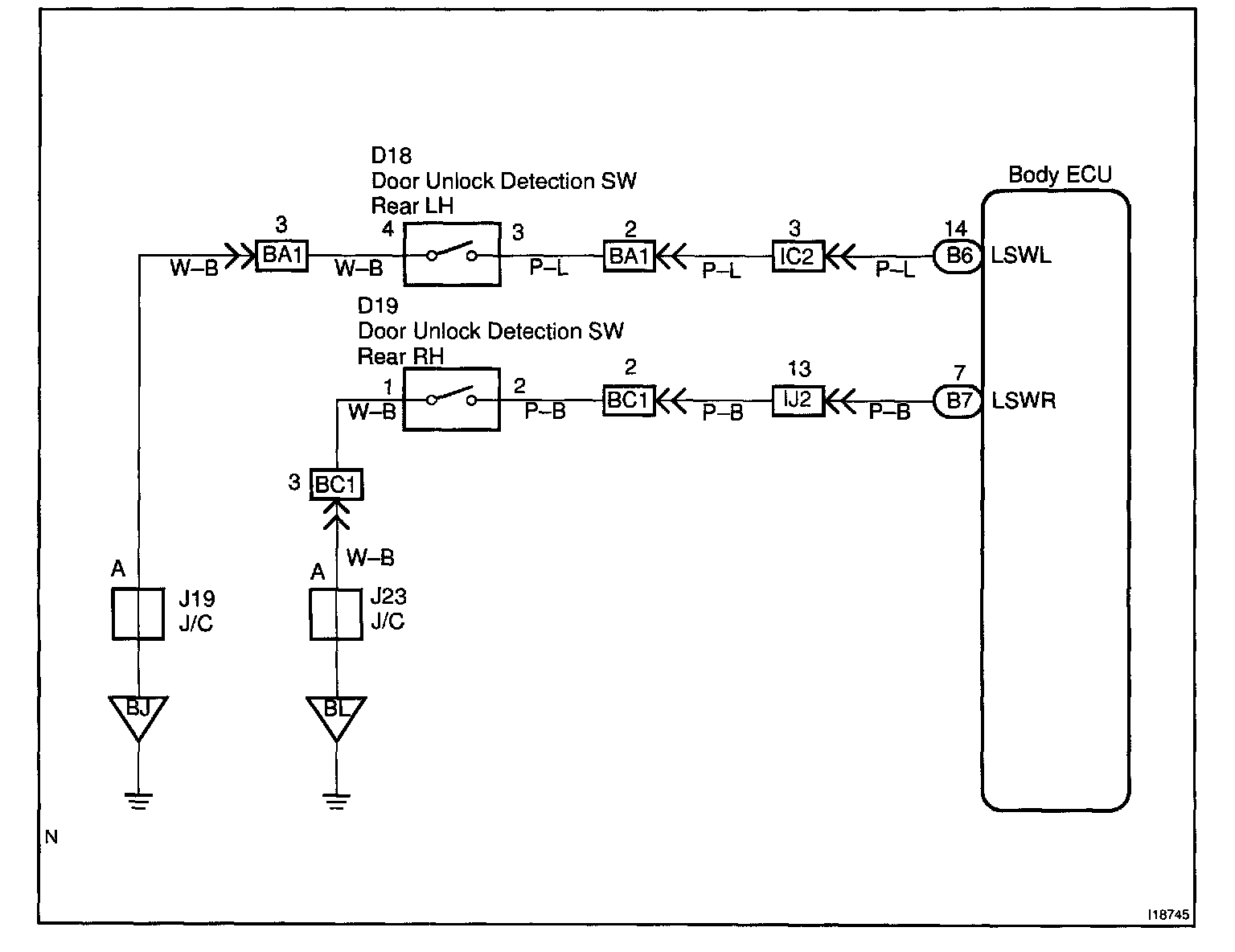

Wiring Diagram:

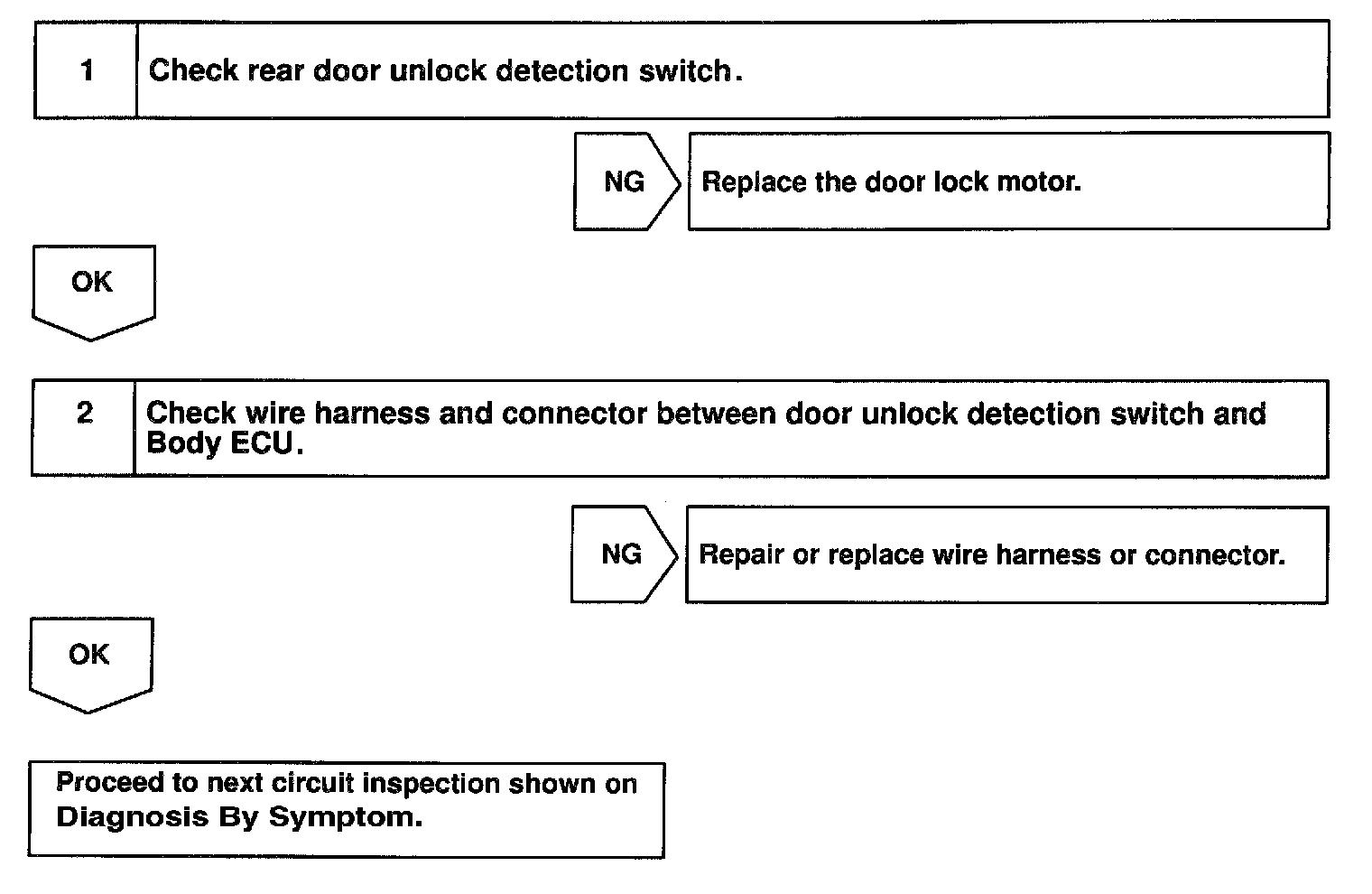

Steps 1 - 2:
INSPECTION PROCEDURE
