Disassembly and Reassembly

DISASSEMBLY

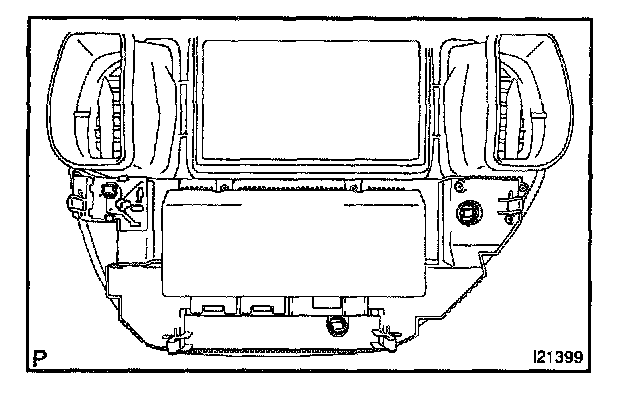

1. REMOVE BULBS
Remove the 3 bulbs.




2. REMOVE A/C AMPLIFIER

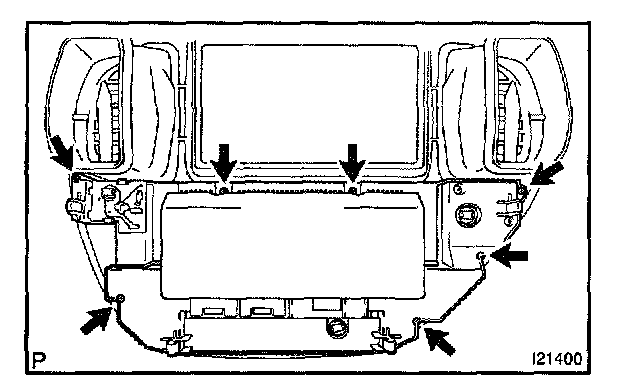

a. Remove the 7 screws and heater control housing.




b. Disconnect the 2 connectors.

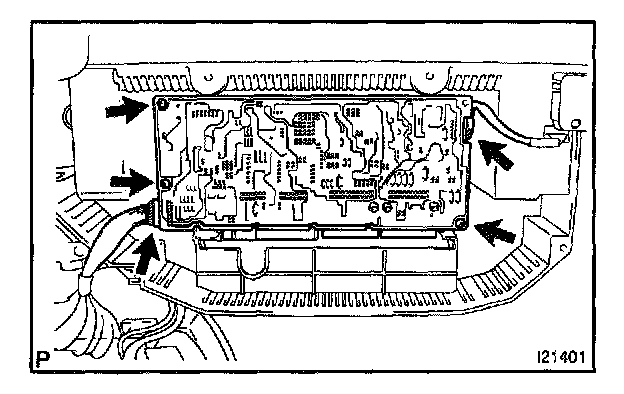

c. Remove the 3 screws and A/C amplifier.

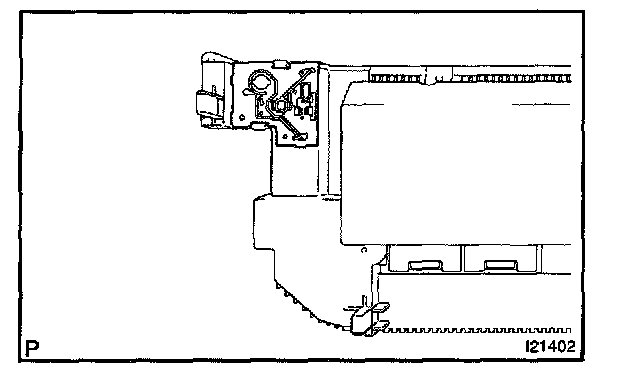

d. Remove the passenger seat belt indicator circuit.




3. REMOVE INTEGRATION CIRCUIT

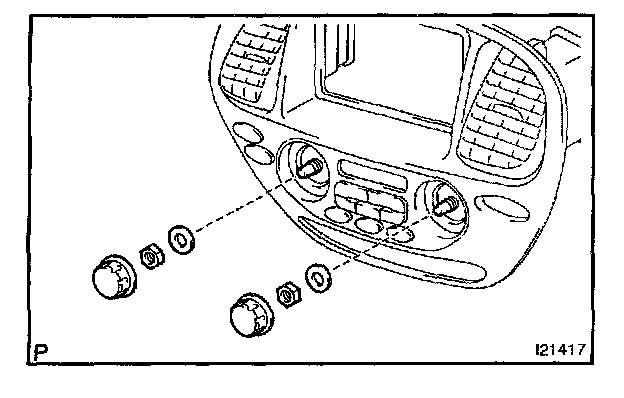

a. Remove the 2 nobs.
b. Remove the 2 nuts and 2 watches.

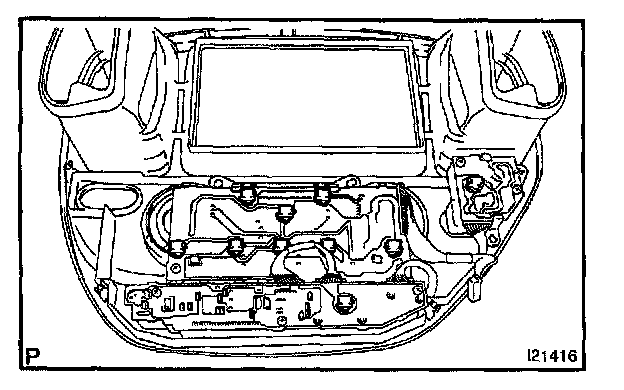

c. Remove the 8 bulbs.

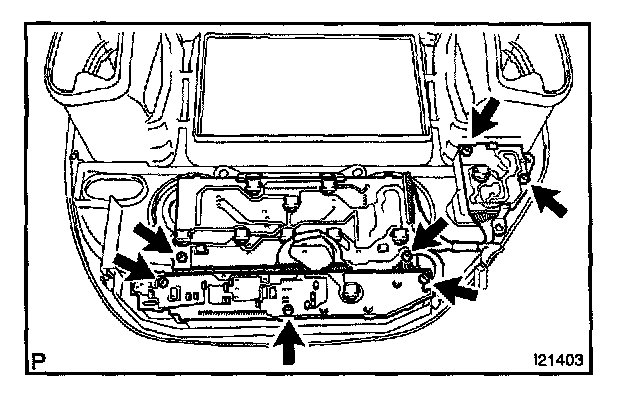

d. Remove the 7 screws and integration circuit.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
