Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor NO.1 on-vehicle repair

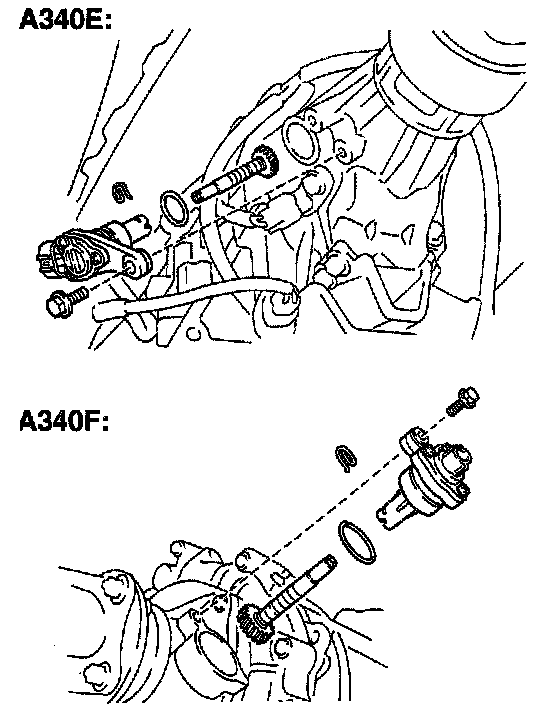

Vehicle Speed Sensor NO.1:

1. DISCONNECT NO.1 VEHICLE SPEED SENSOR CONNECTOR
2. REMOVE NO.1 VEHICLE SPEED SENSOR

Remove the bolt and No.1 vehicle speed sensor.






3. DISASSEMBLE NO.1 VEHICLE SPEED SENSOR

(a) Remove the o-ring from the speed meter driven gear assembly.
(b) Remove the clip and speed meter driven gear from the speed meter driven gear sleeve.

4. ASSEMBLE NO.1 VEHICLE SPEED SENSOR

(a) Install the speed meter driven gear and clip to the speed meter driven gear sleeve.
(b) Coat a new 0-ring with ATF.
(c) Install the o-ring to the speed meter driven gear assembly.

5. INSTALL NO.1 VEHICLE SPEED SENSOR

Install the No.1 vehicle speed sensor with the bolt.

Torque: 16 Nm (160 kgf.cm, 12 ft.lbf)

6. CONNECT NO.1 VEHICLE SPEED SENSOR CONNECTOR



Vehicle Speed Sensor NO.2 on-vehicle repair

Vehicle Speed Sensor NO.2:

1. DISCONNECT NO.2 VEHICLE SPEED SENSOR CONNECTOR
2. REMOVE NO.2 VEHICLE SPEED SENSOR

(a) Remove the bolt and No.2 vehicle speed sensor.
(b) Remove the o-ring from the No. 2 vehicle speed sensor.

9. INSTALL NO.2 VEHICLE SPEED SENSOR

(a) Coat a new o-ring with ATF and install it to the No.2 vehicle speed sensor.

(b) Install the No.2 vehicle speed sensor with the bolt.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

2. CONNECT NO.2 VEHICLE SPEED SENSOR CONNECTOR
