Fuel Injector
Injector (Part 1):

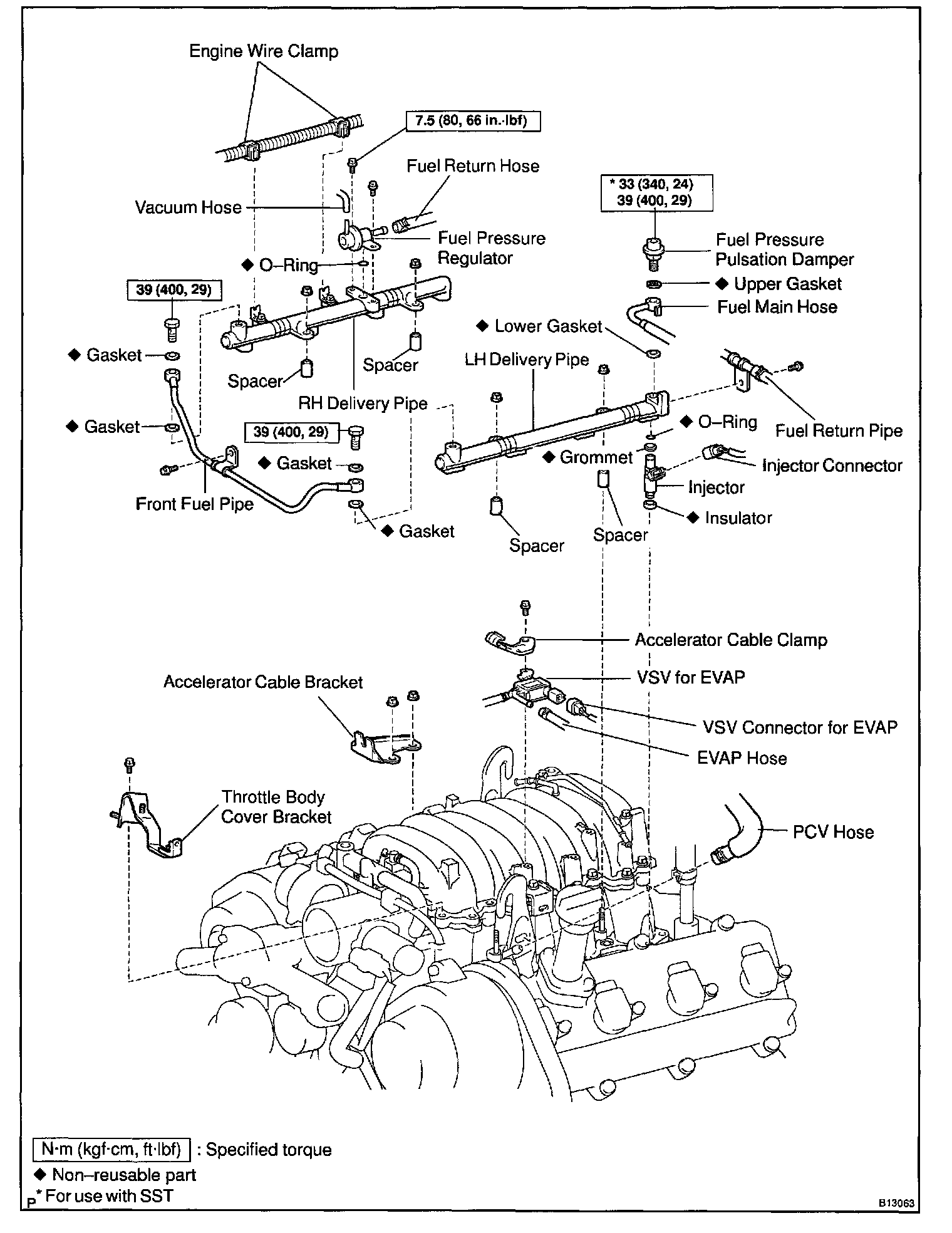

Injector (Part 2):
front fuel pipe with the bolt, 4 new gaskets and 2 union bolts.
Torque:
39 N.m (400 kg.cm, 29 ft.lb) for union bolts
7.5 N.m (80 kg.cm, 66 in. lb) for bolt
bolt holding the clamp on the fuel return pipe to the LH delivery pipe.
Torque: 7.5 N.m (80 kg.cm, 66 in.lb)
4 nuts holding the delivery pipes to the lower intake manifold.
Torque: 18 N.m (185 kg.cm, 13 ft.lb)
accelerator cable bracket with the 2 nuts.
Torque: 18 N.m (185 kg.cm, 13 ft.lb)
