Body Components

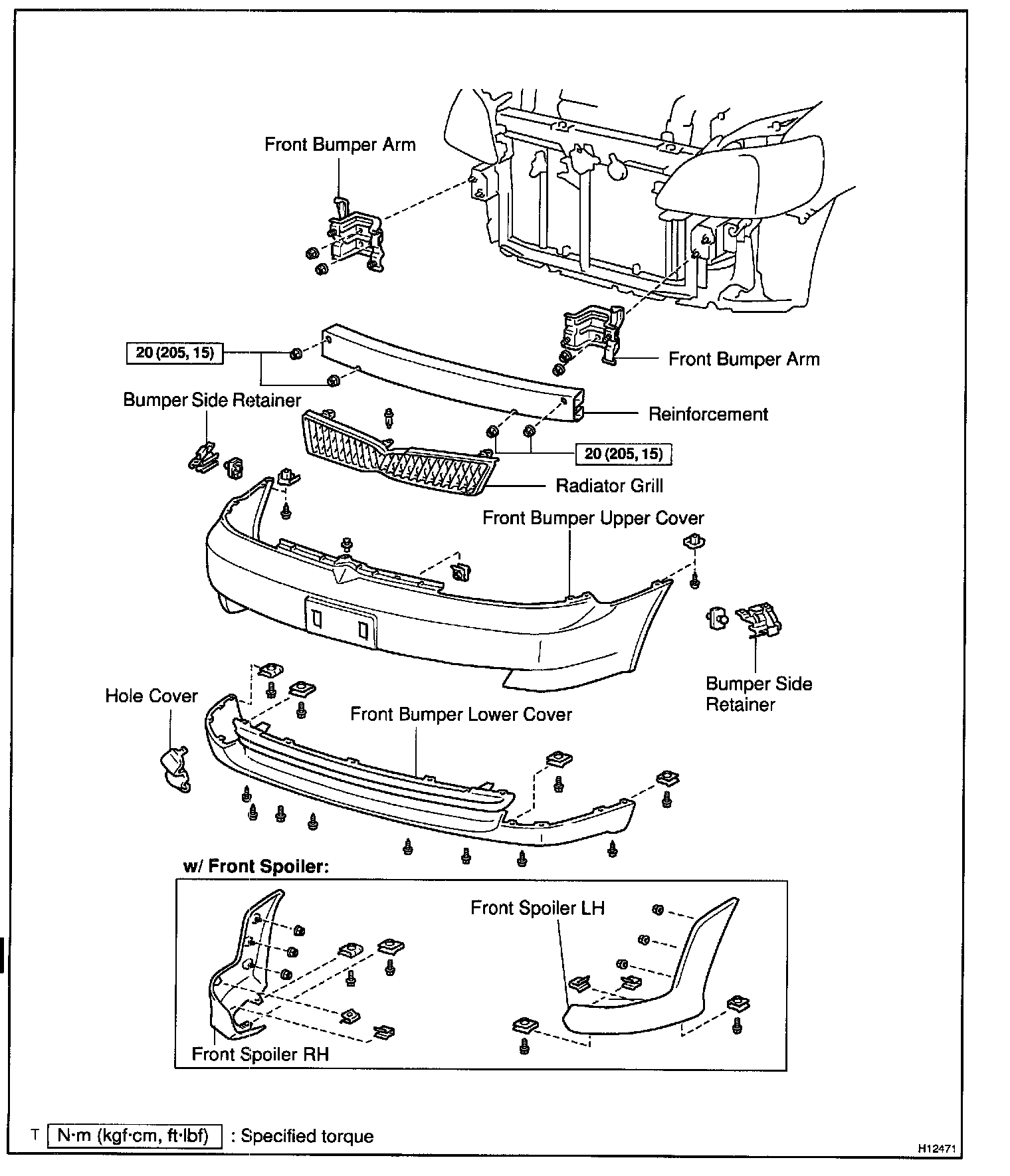

Front Bumper:

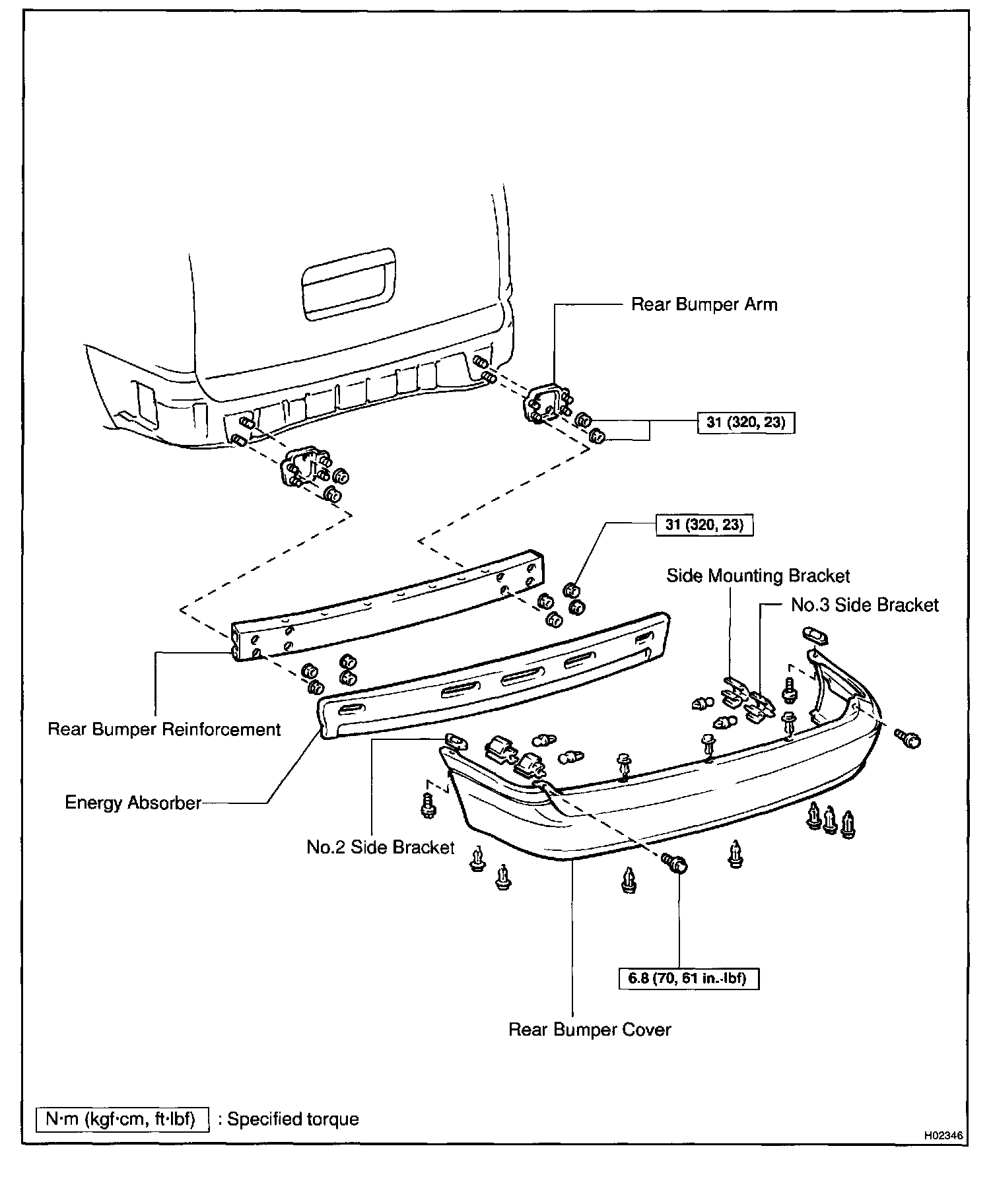

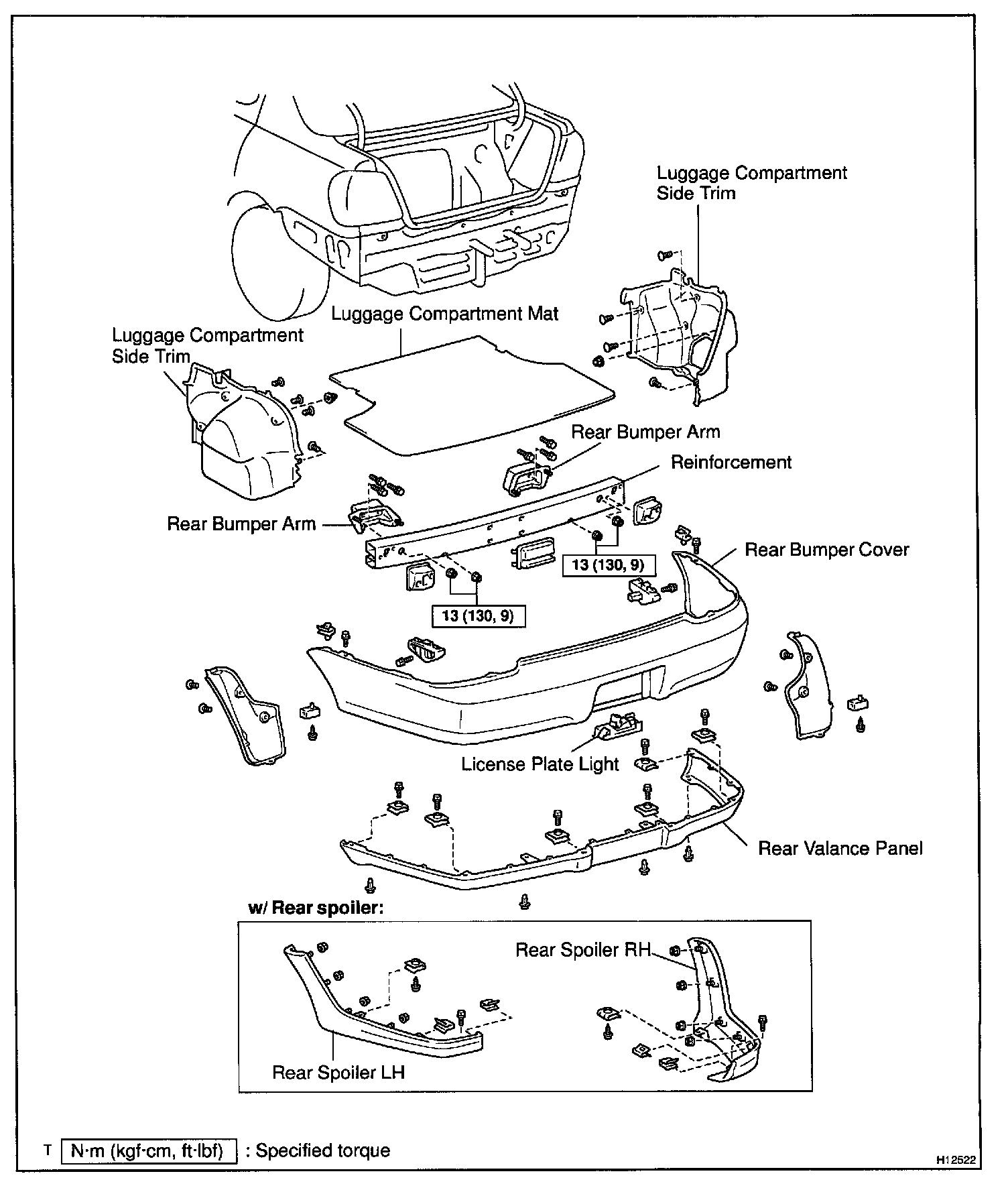

Rear Bumper:

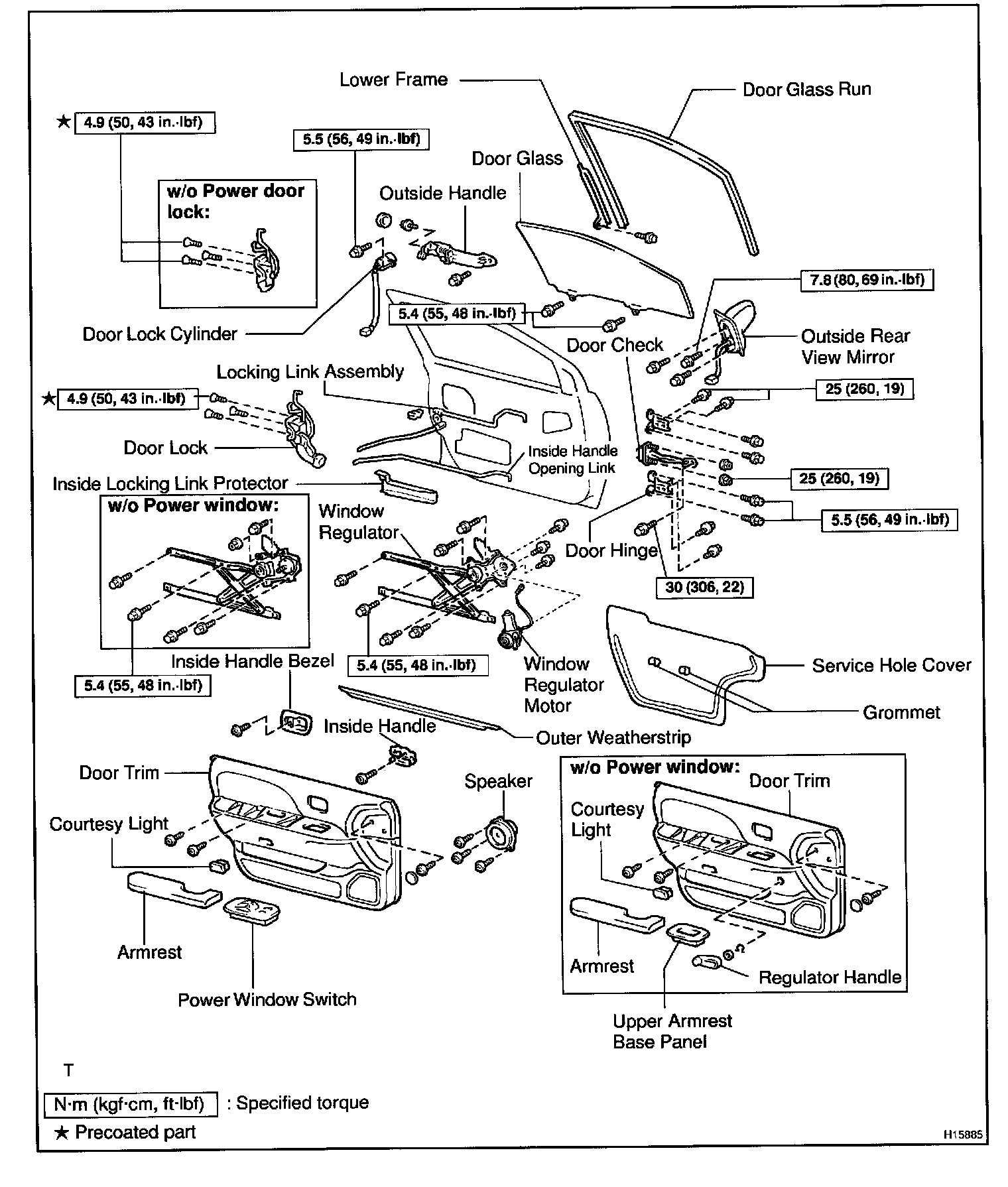

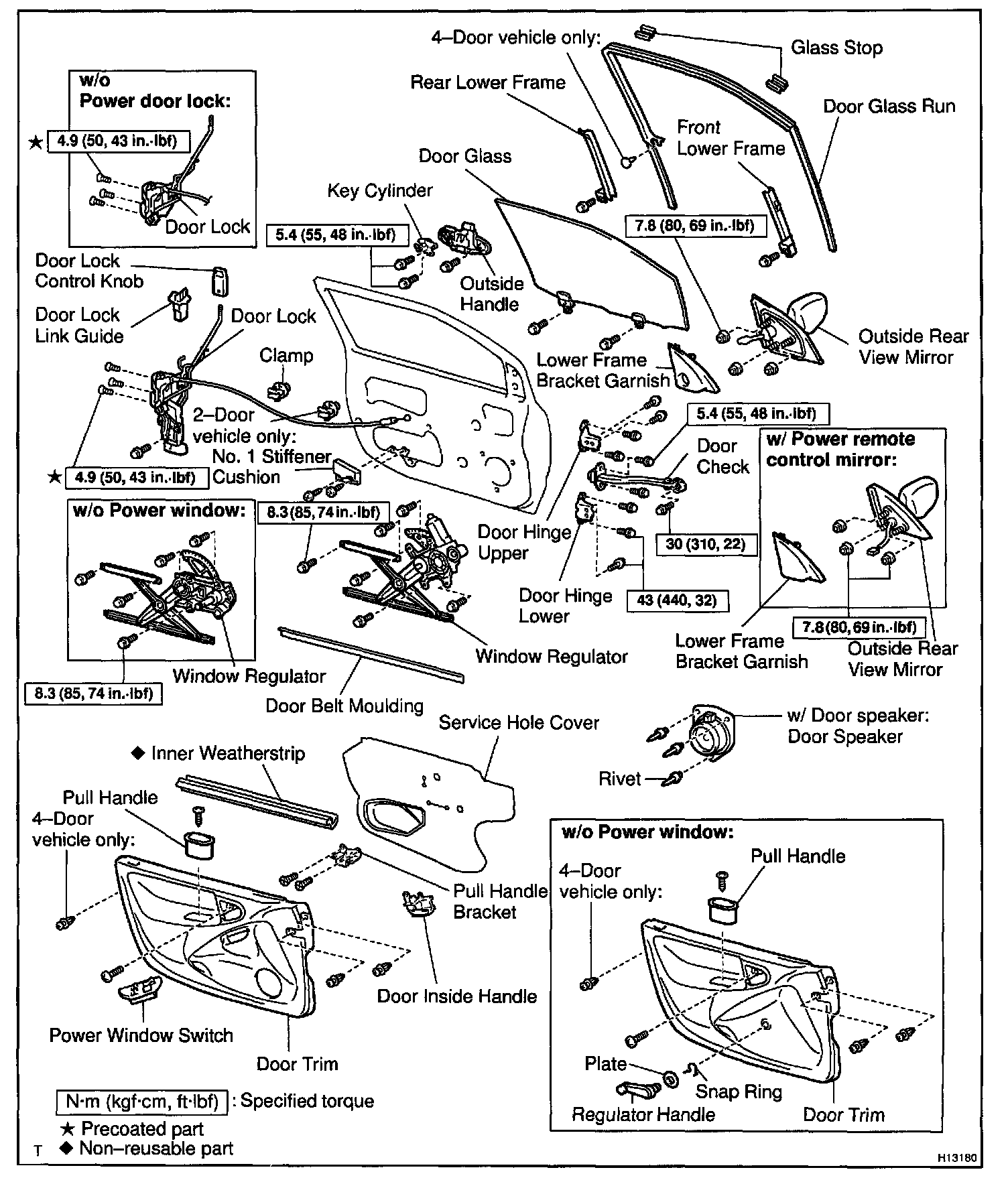

Front Door:

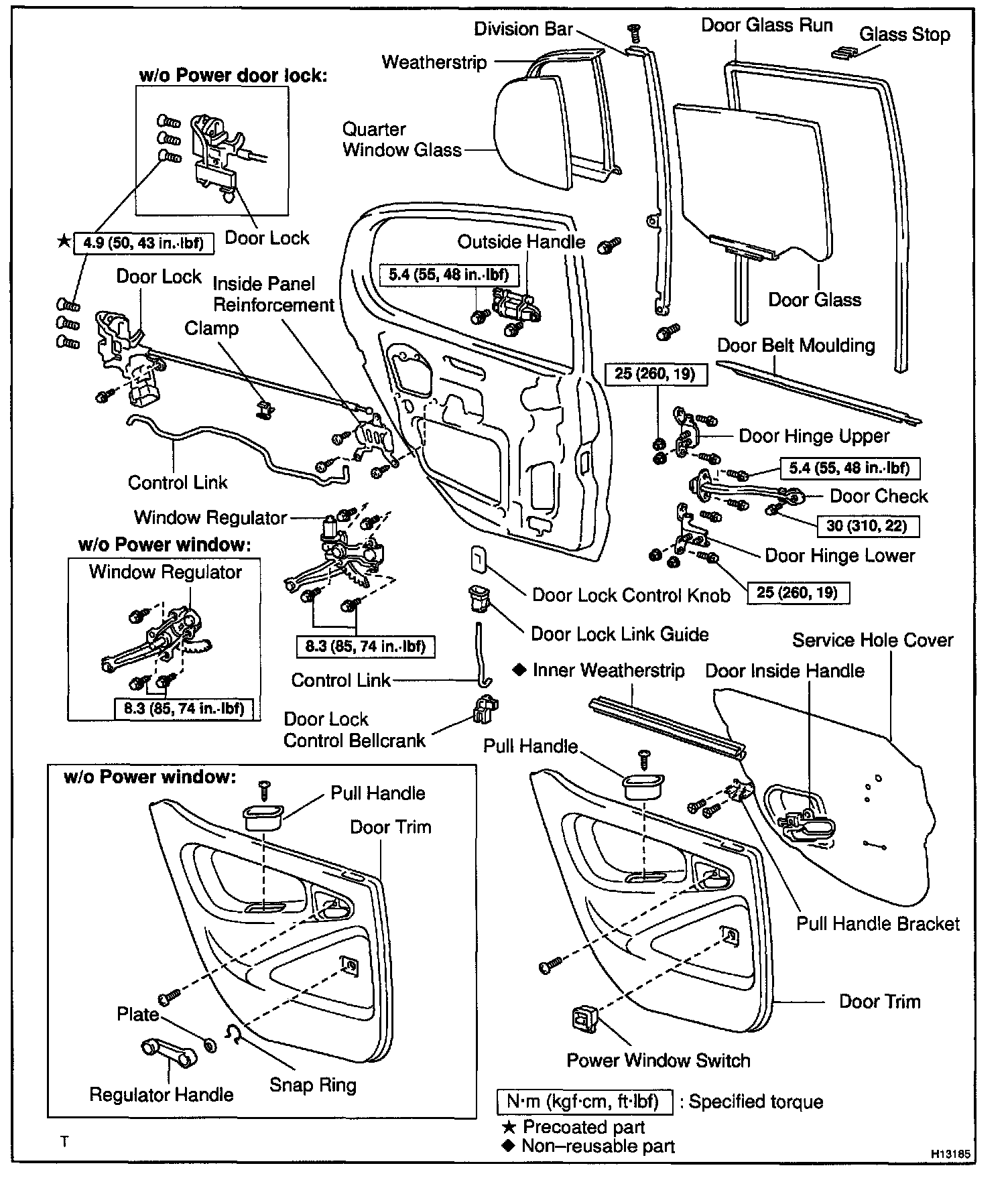

Rear Door:

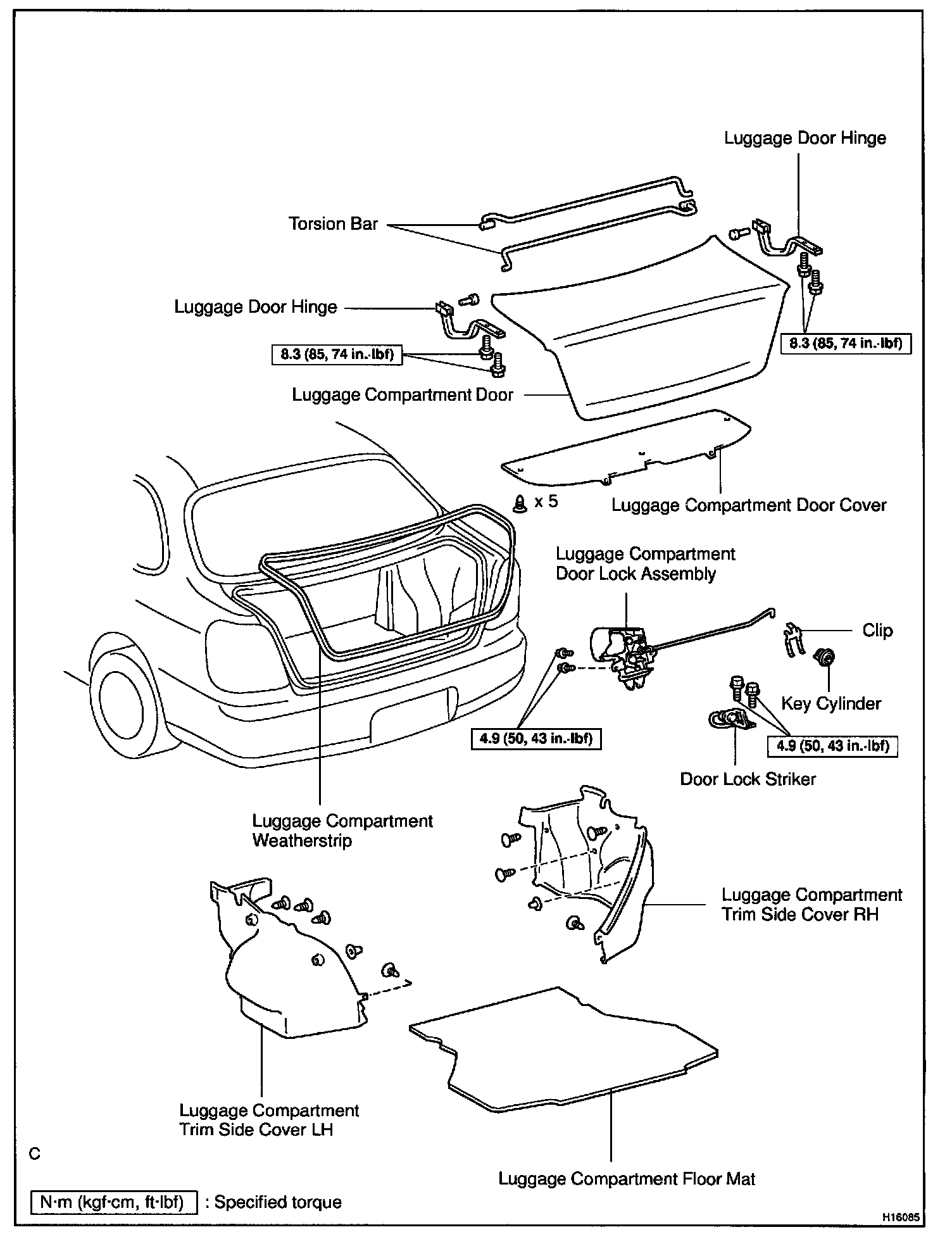

Luggage Compartment Door And Hinge (Part 1):



Luggage Compartment Door And Hinge (Part 2):

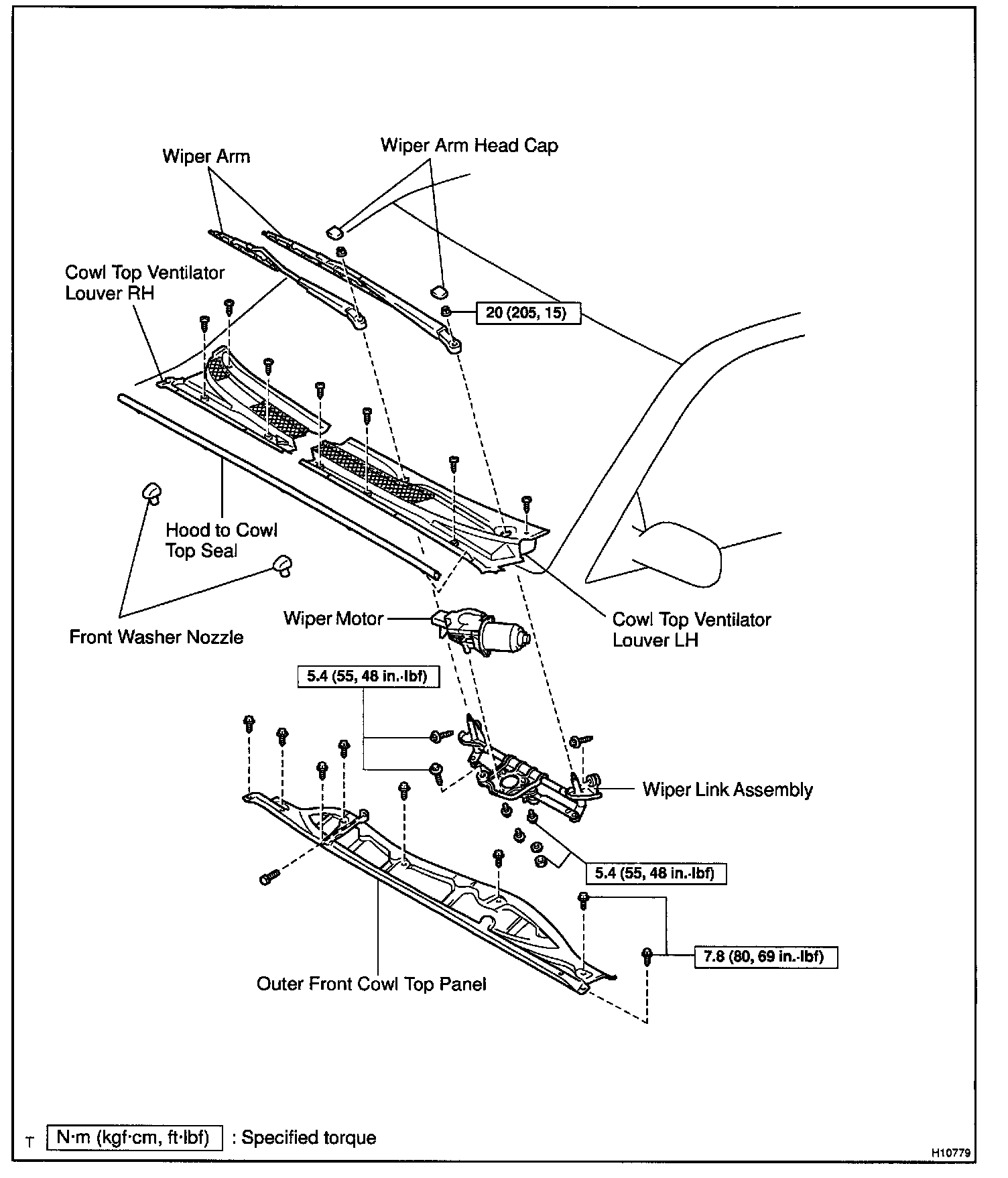

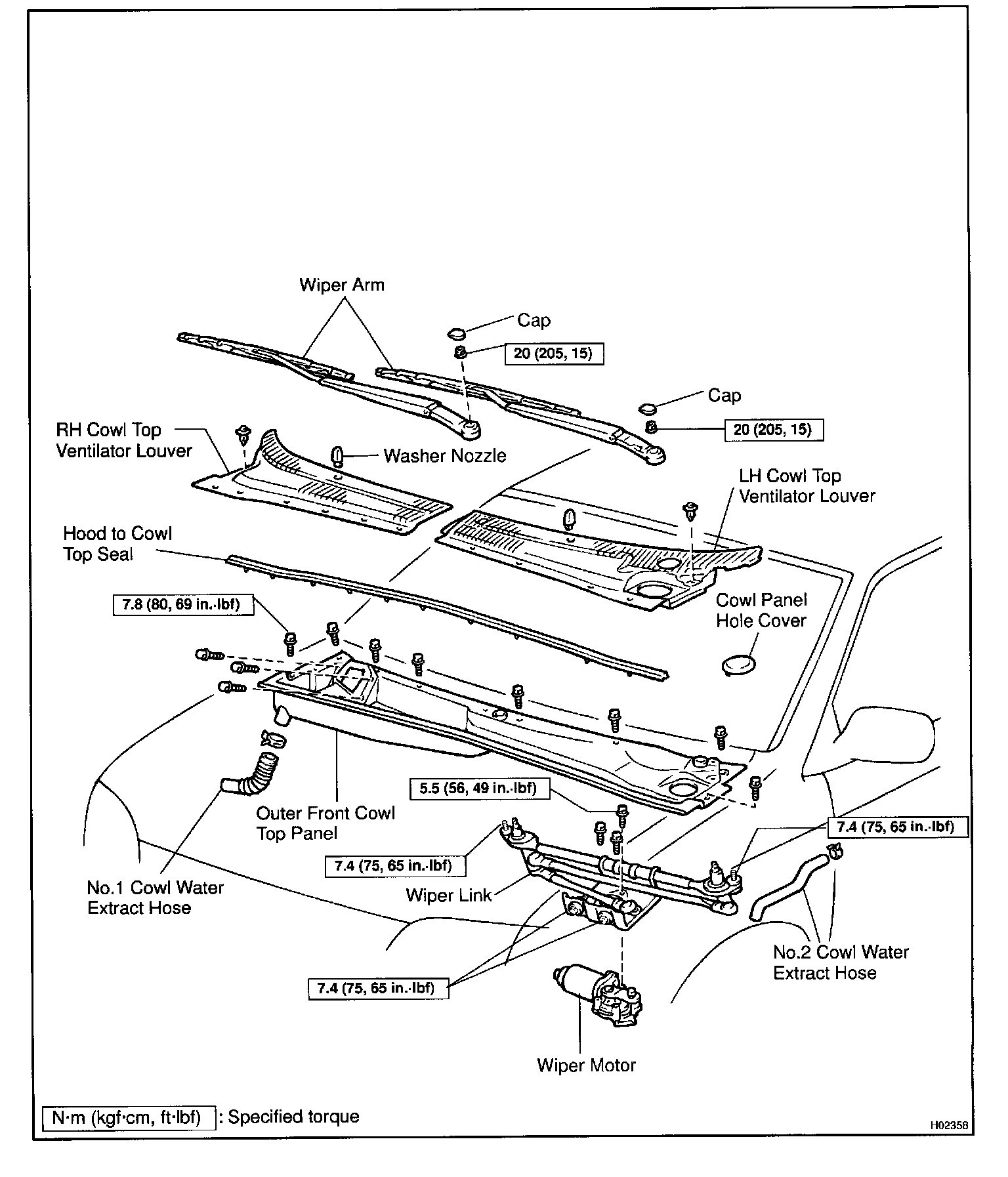

Front Wiper And Washer:

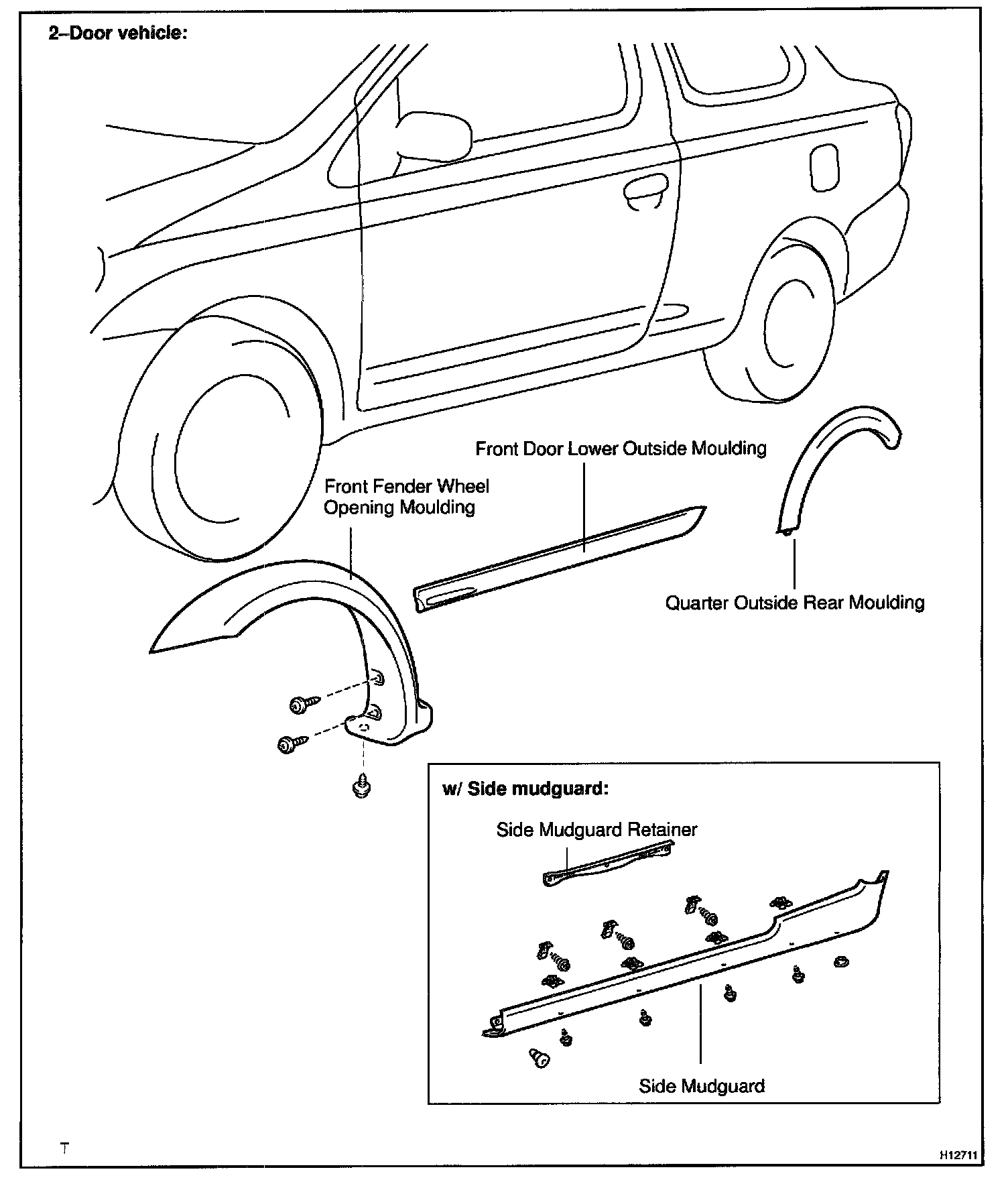

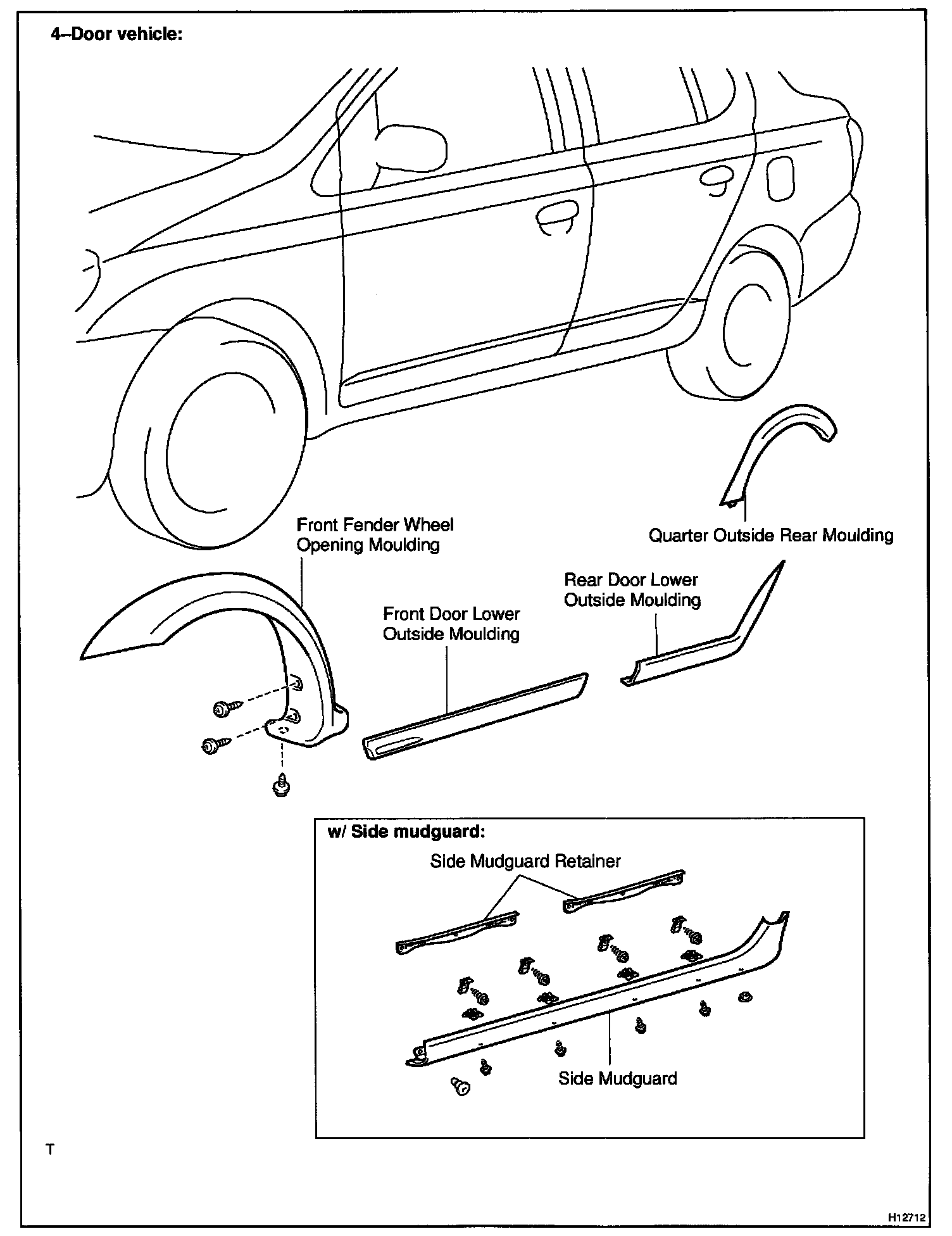

Body Outside Moulding (Part 1):



Body Outside Moulding (Part 2):

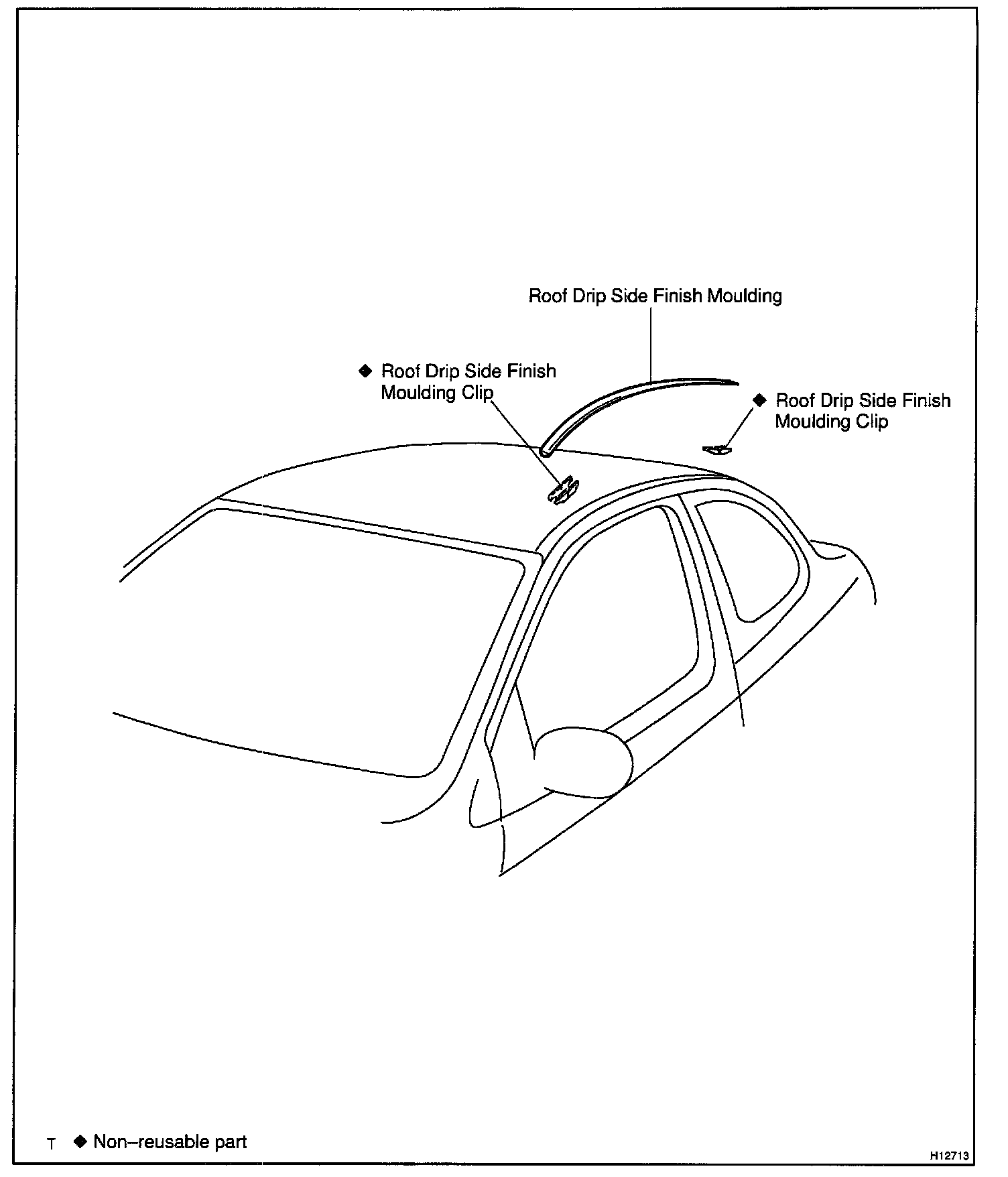

Roof Drip Side Finish Moulding:

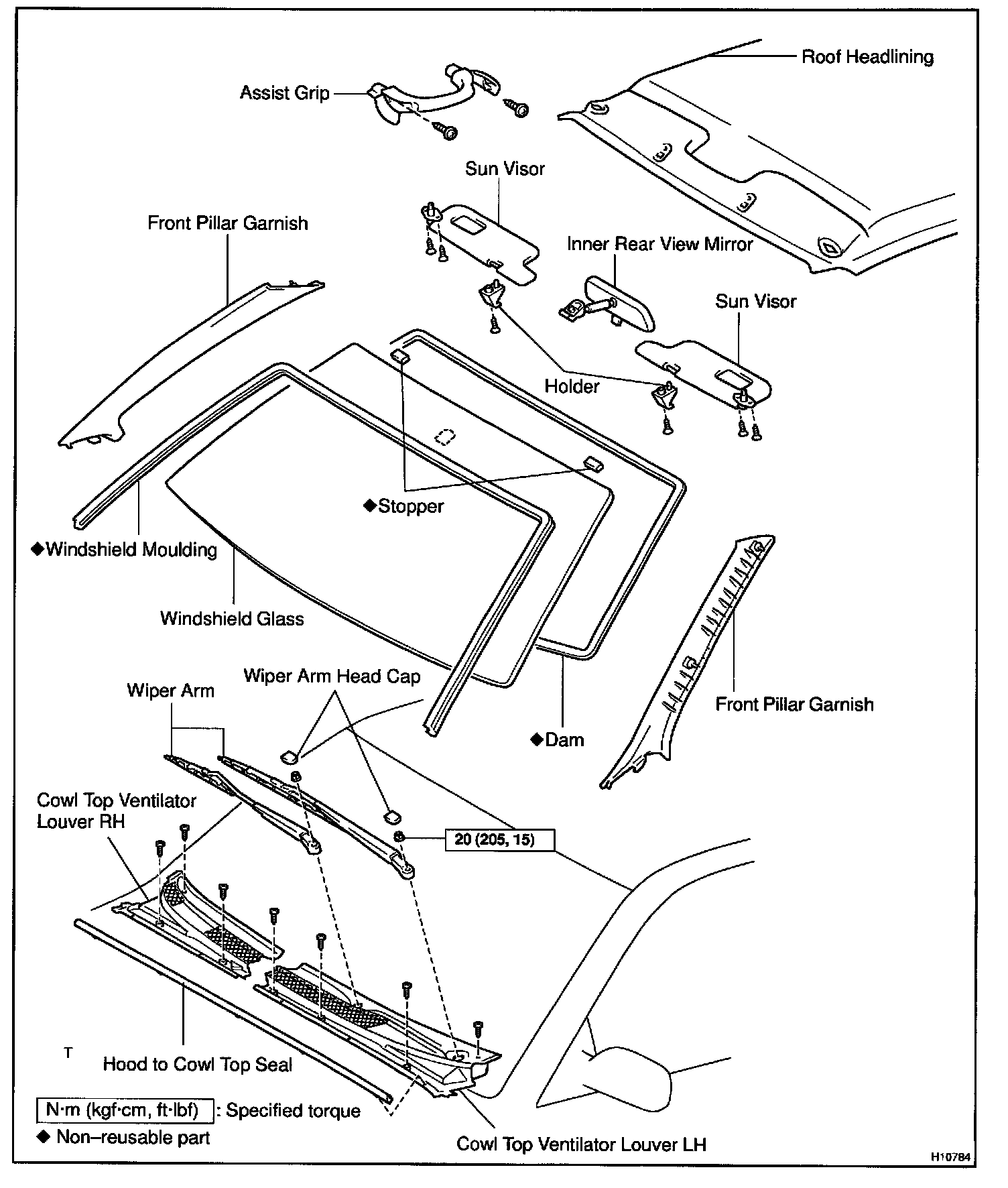

Windshield:

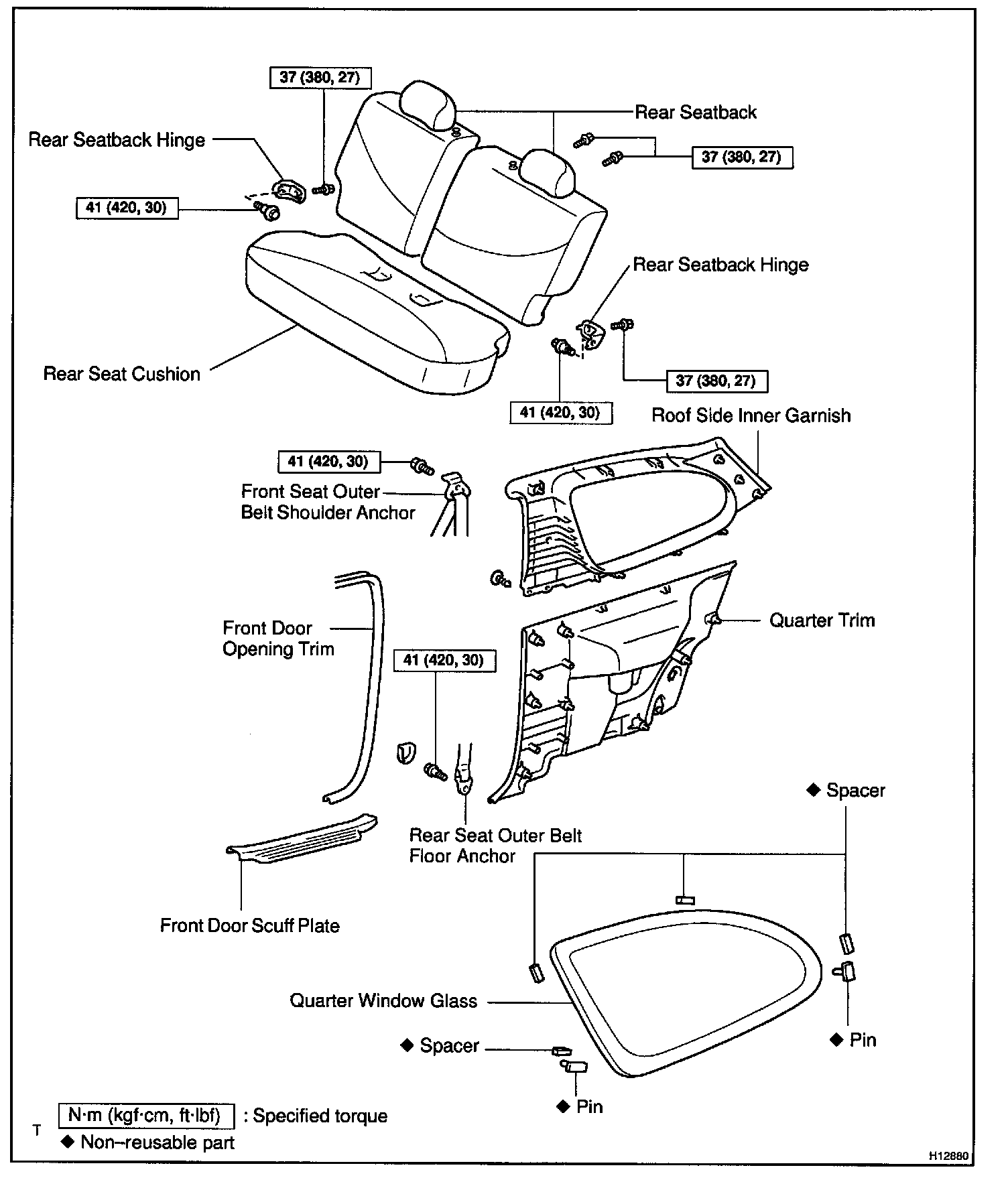

Quarter Window Glass:

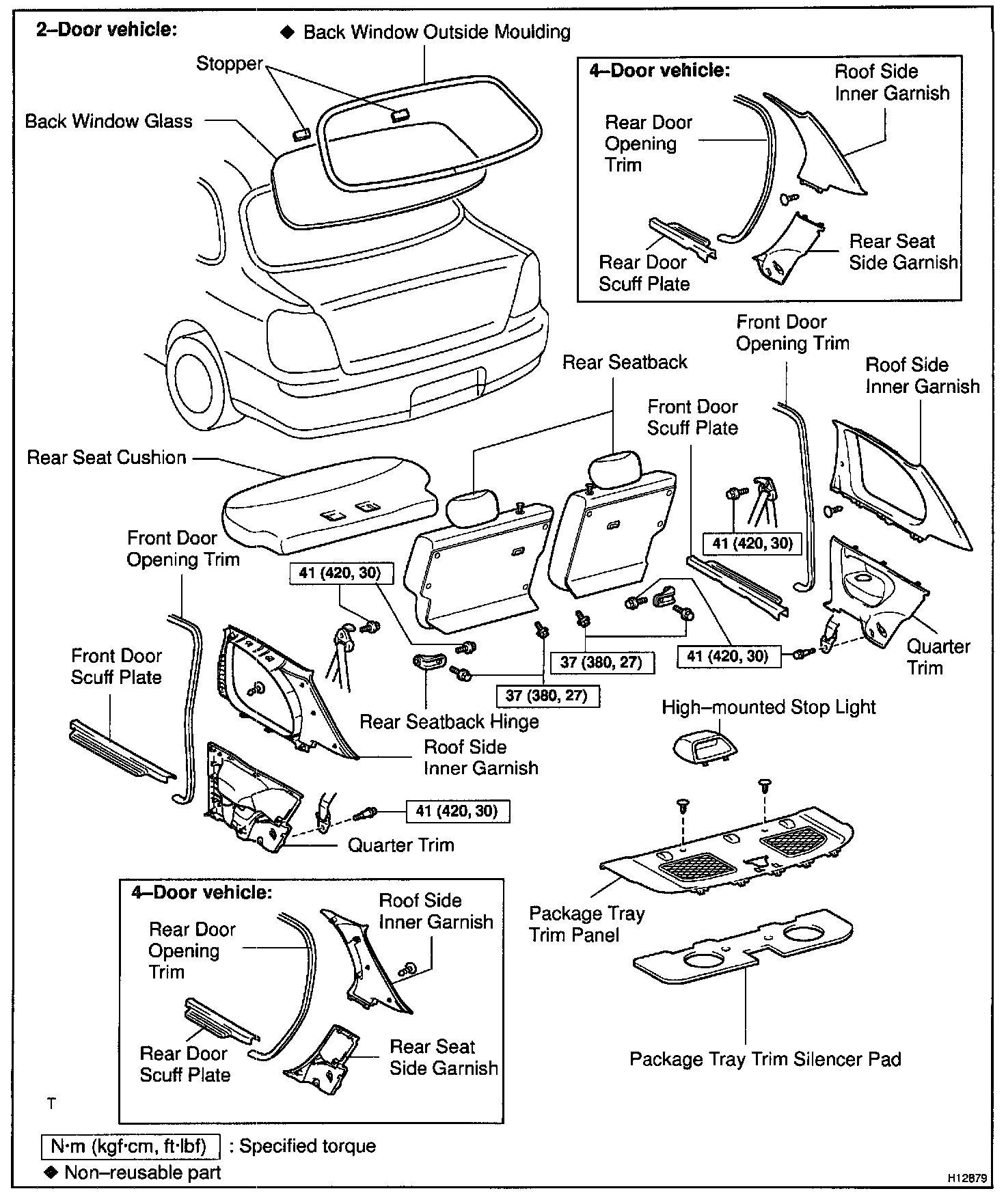

Back Window Glass:



Instrument Panel (part 1):



Instrument Panel (part 2):

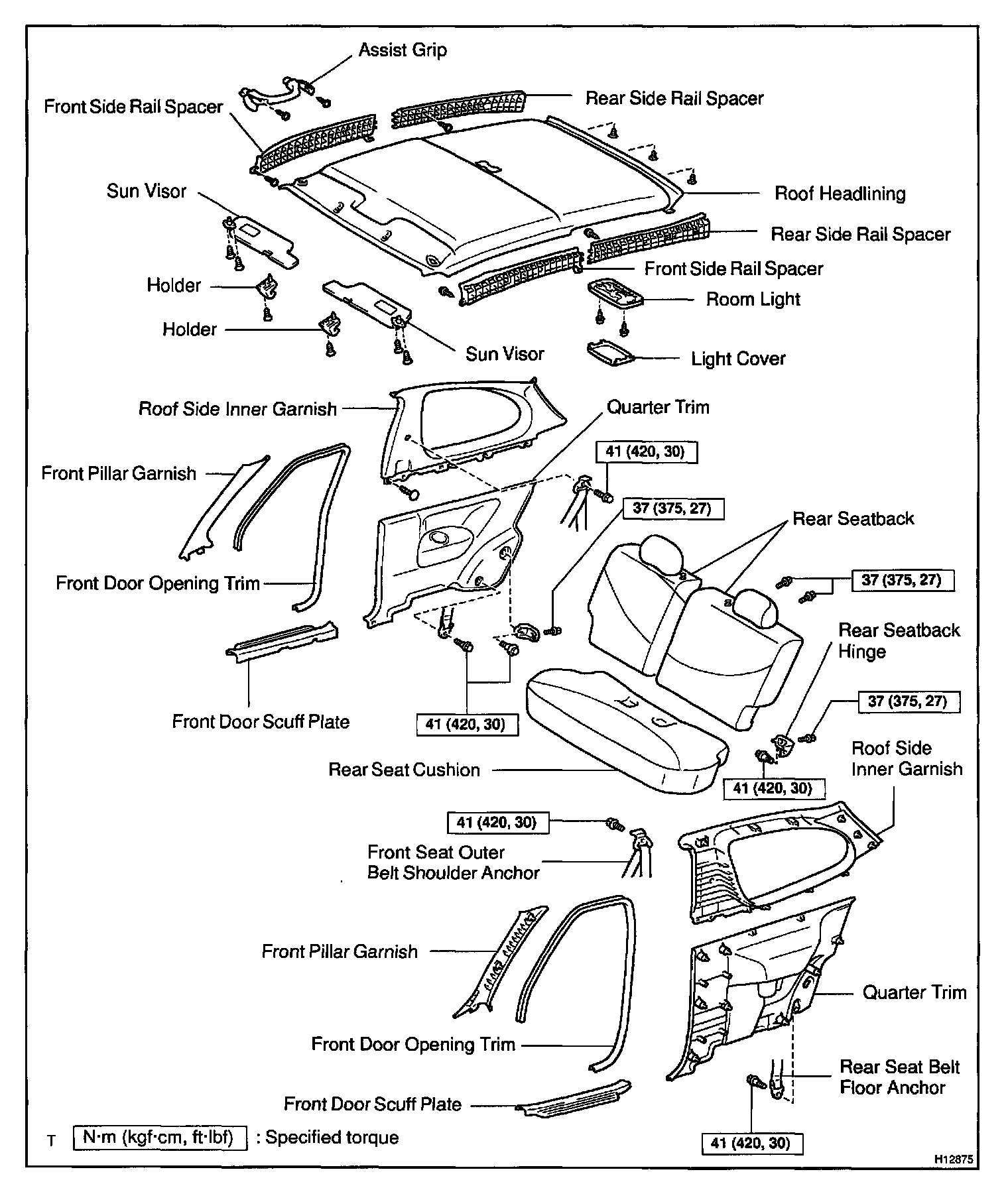

Roof Headlining (2 - Door):

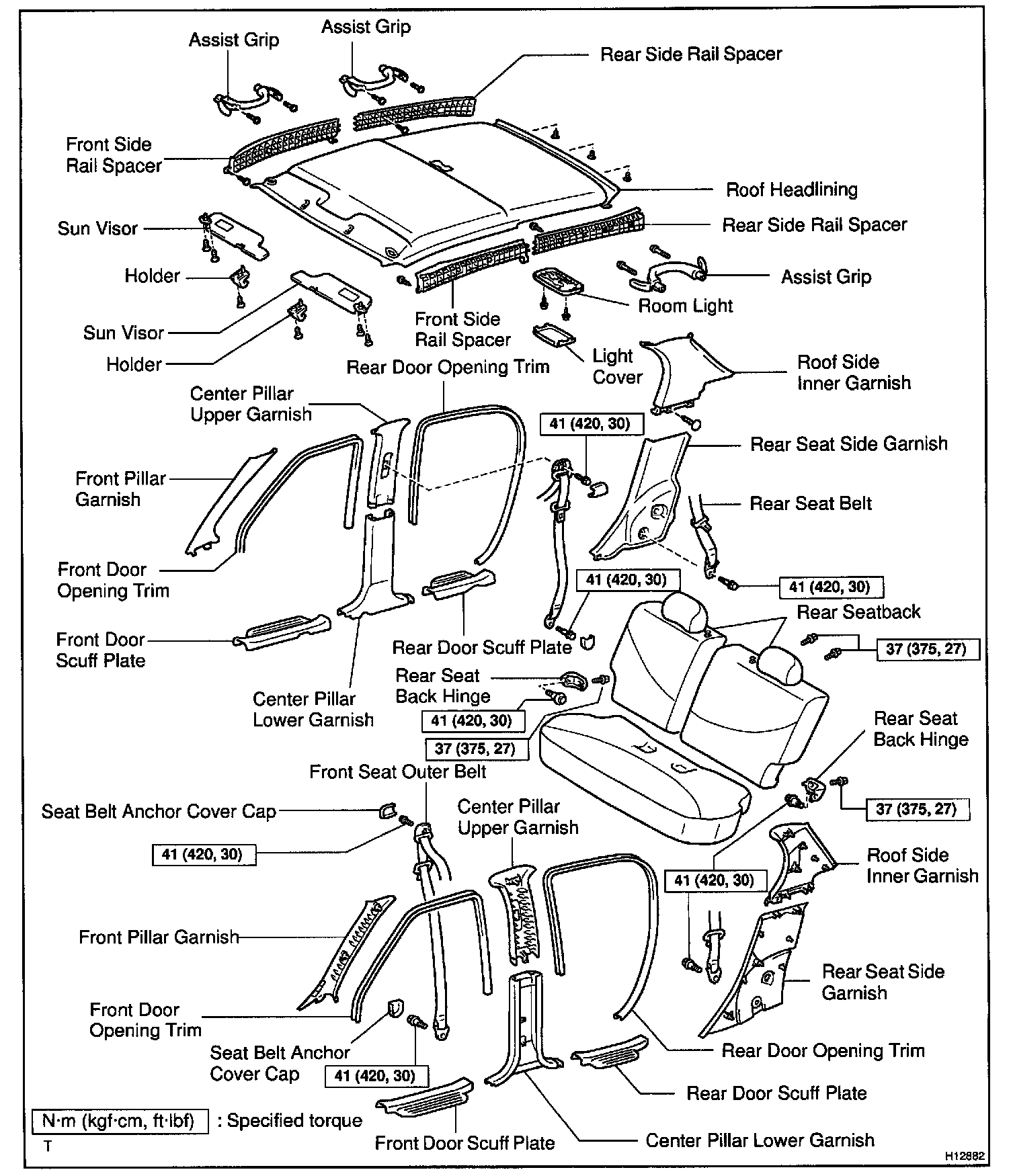

Roof Headlining (4 - Door):

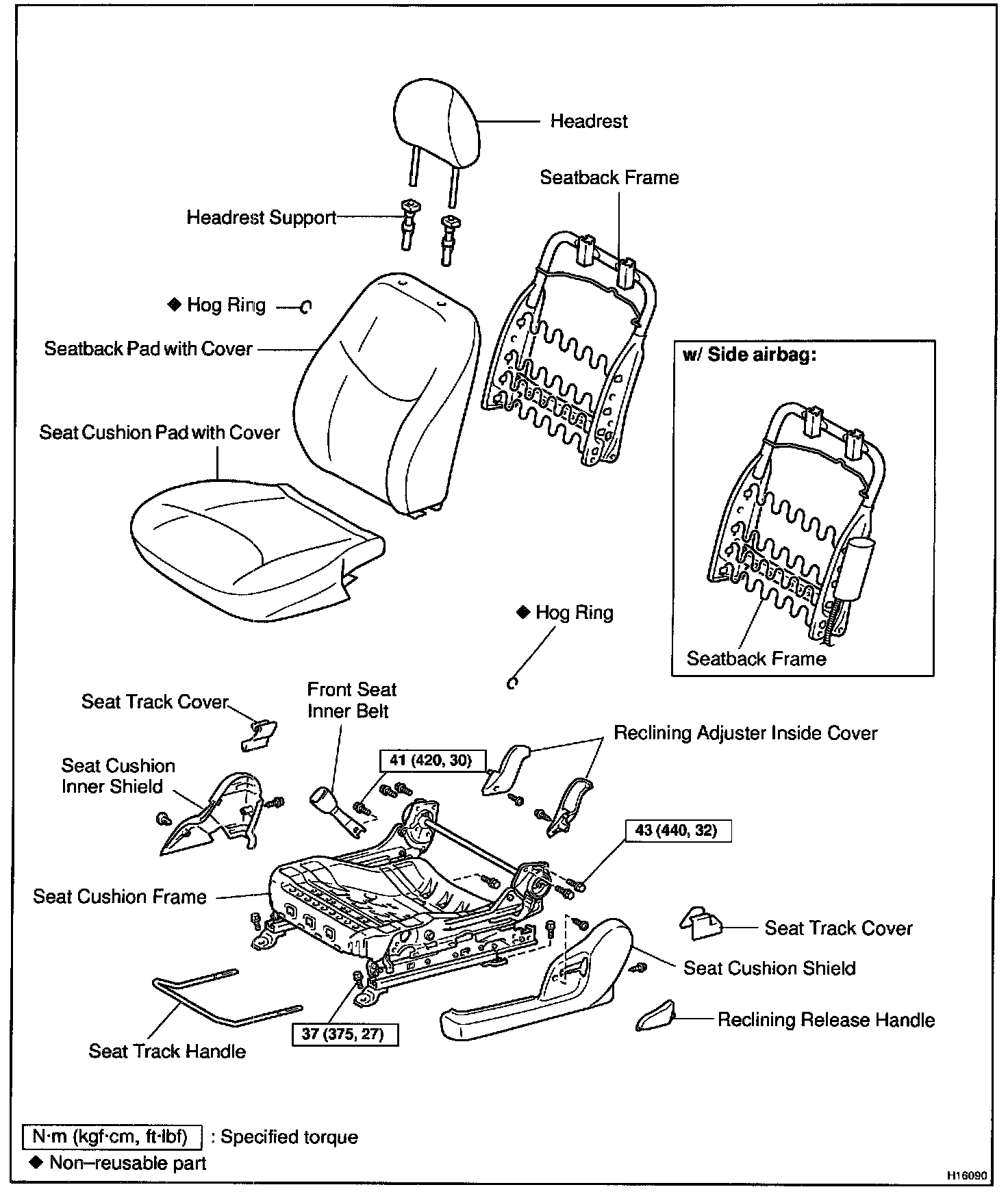

Front Seat:

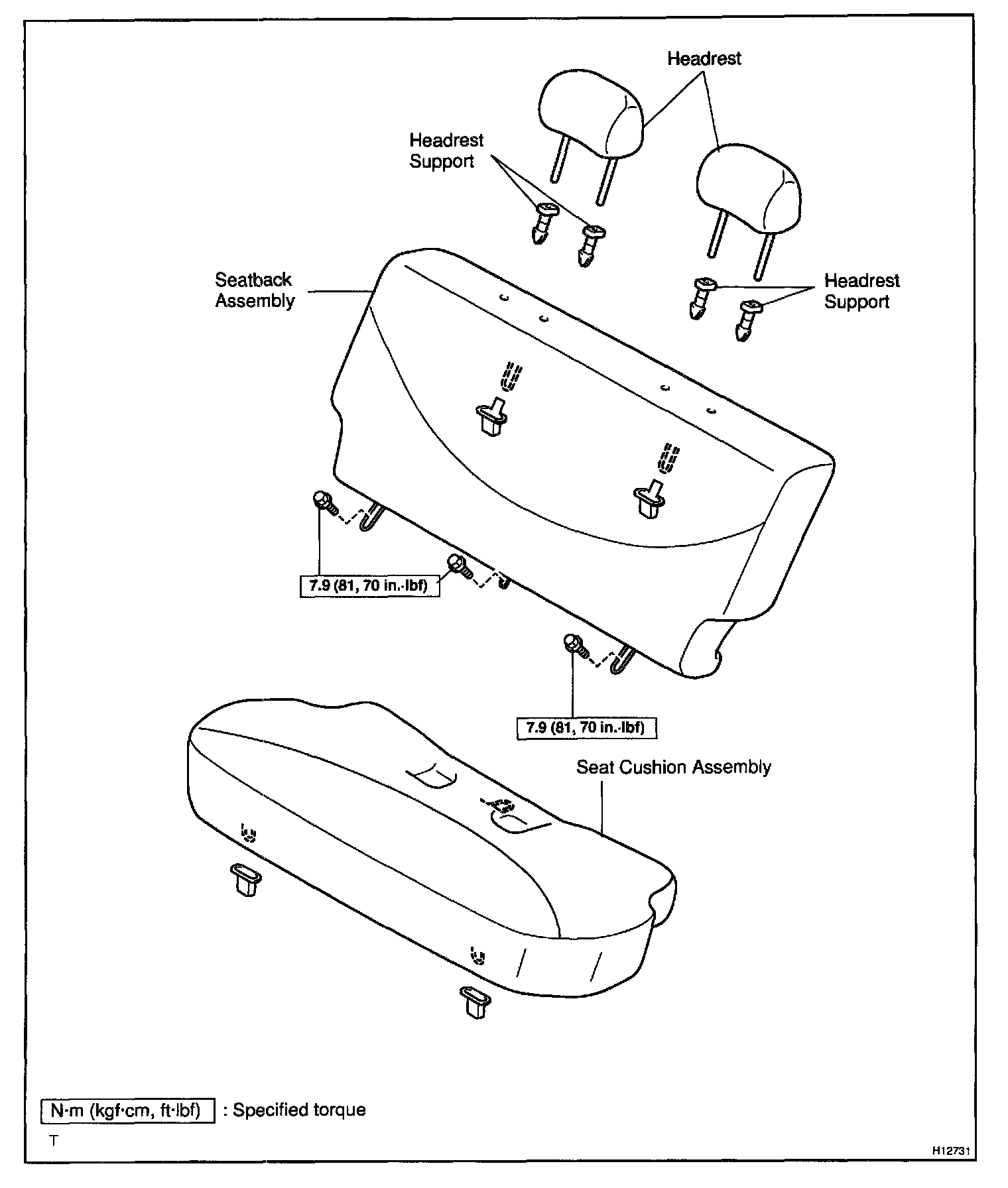

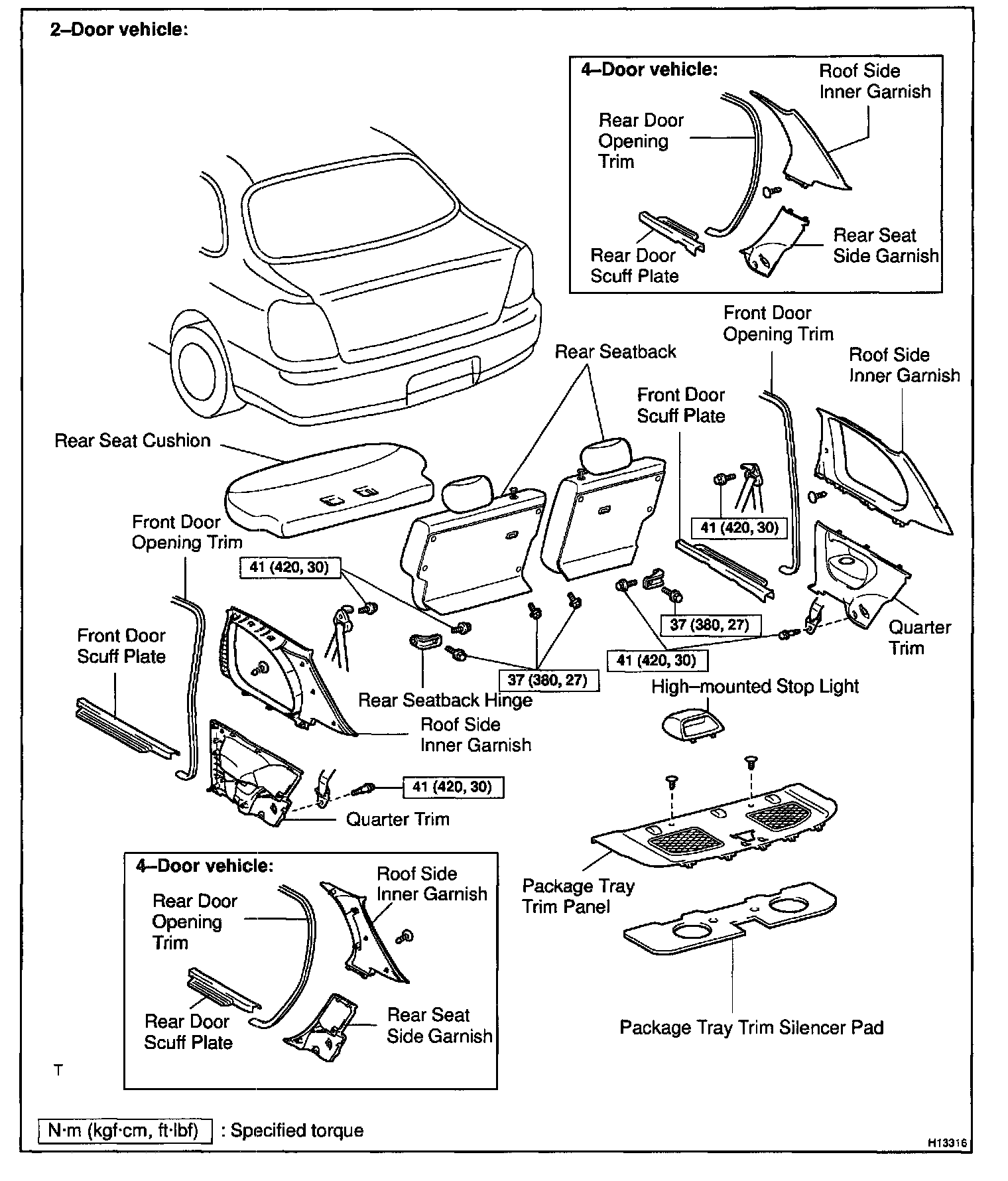

Rear Seat (bench Type):

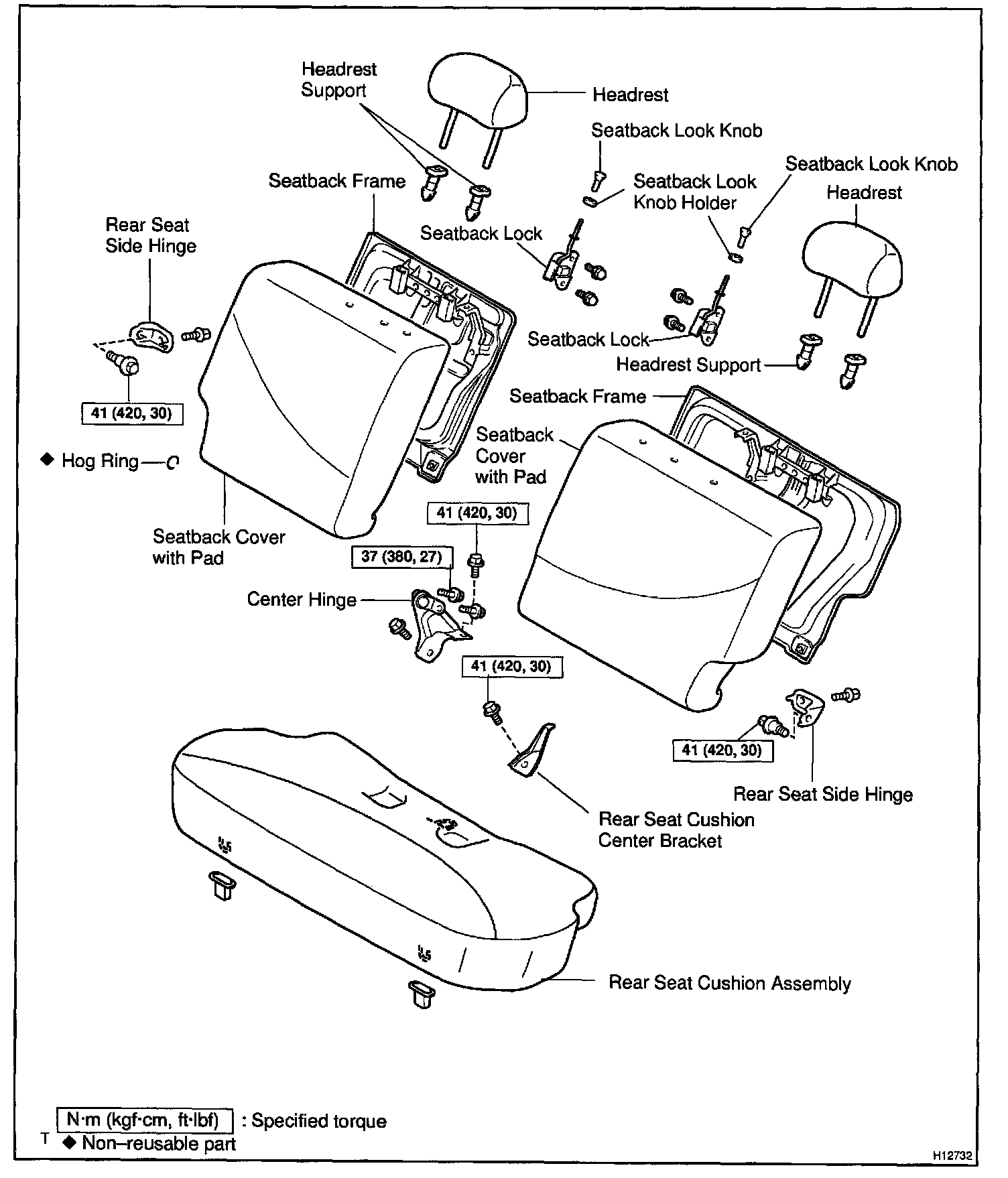

Rear Seat (split Type):

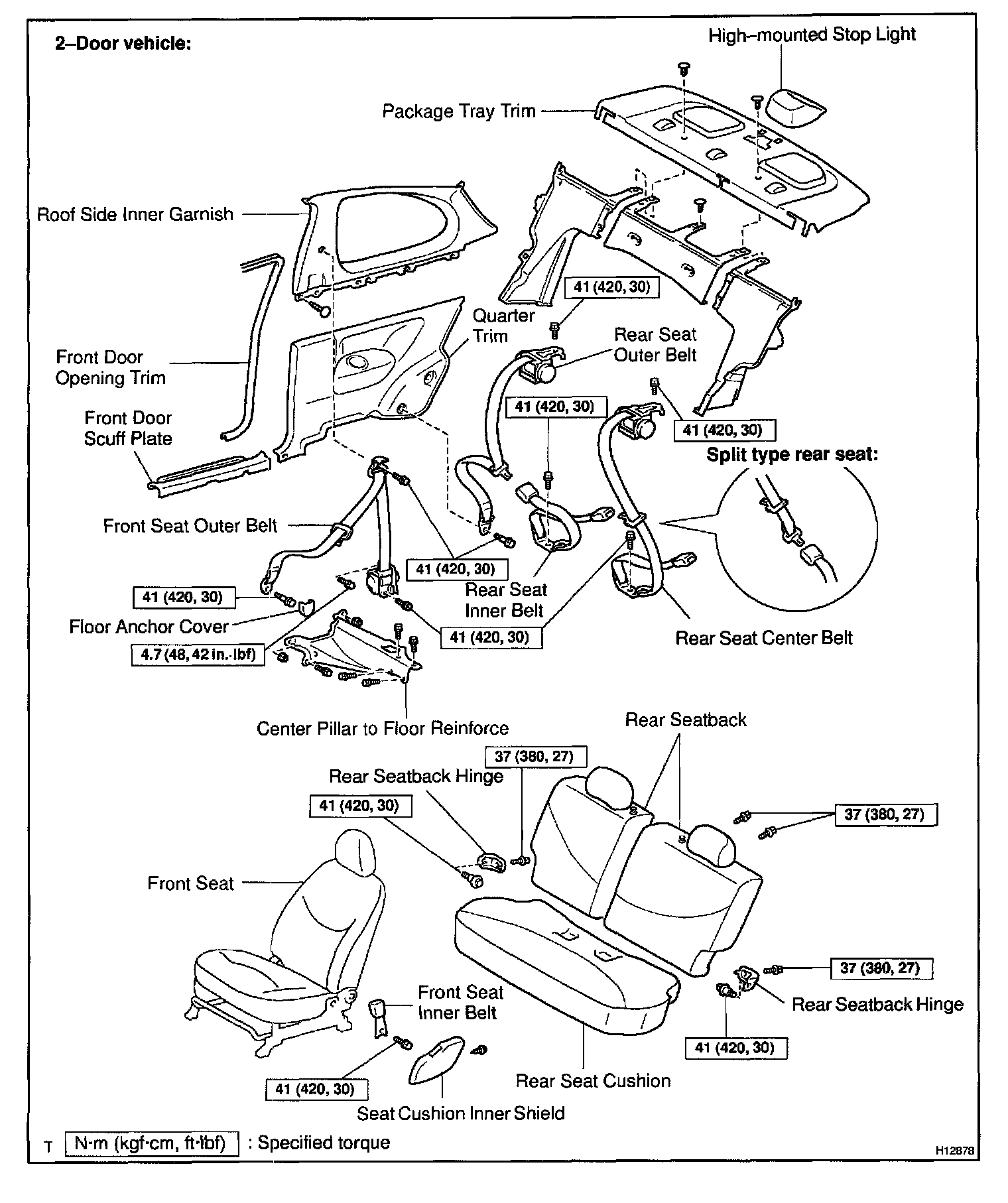

Seat Belt (2 Door):

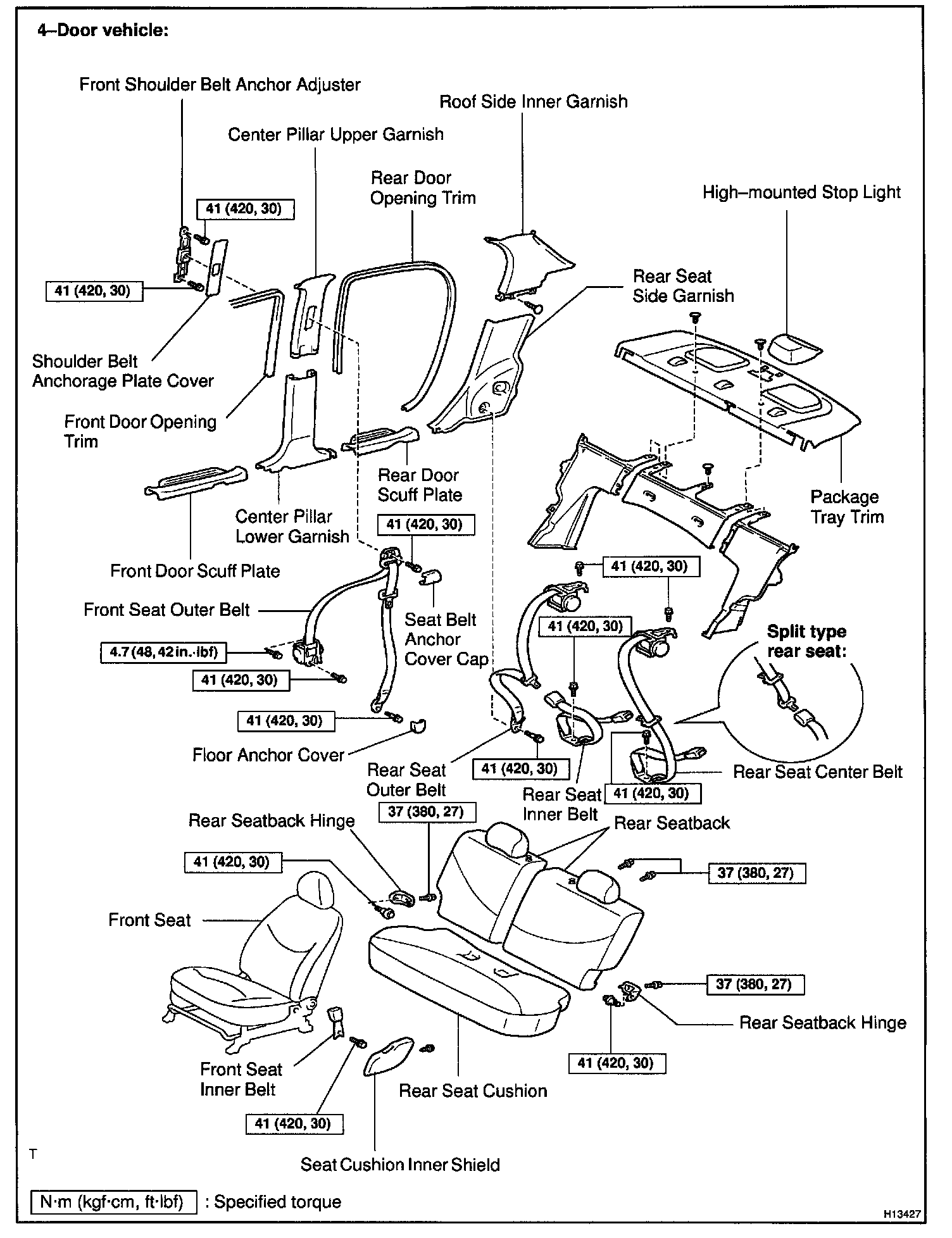

Seat Belt (4 Door):

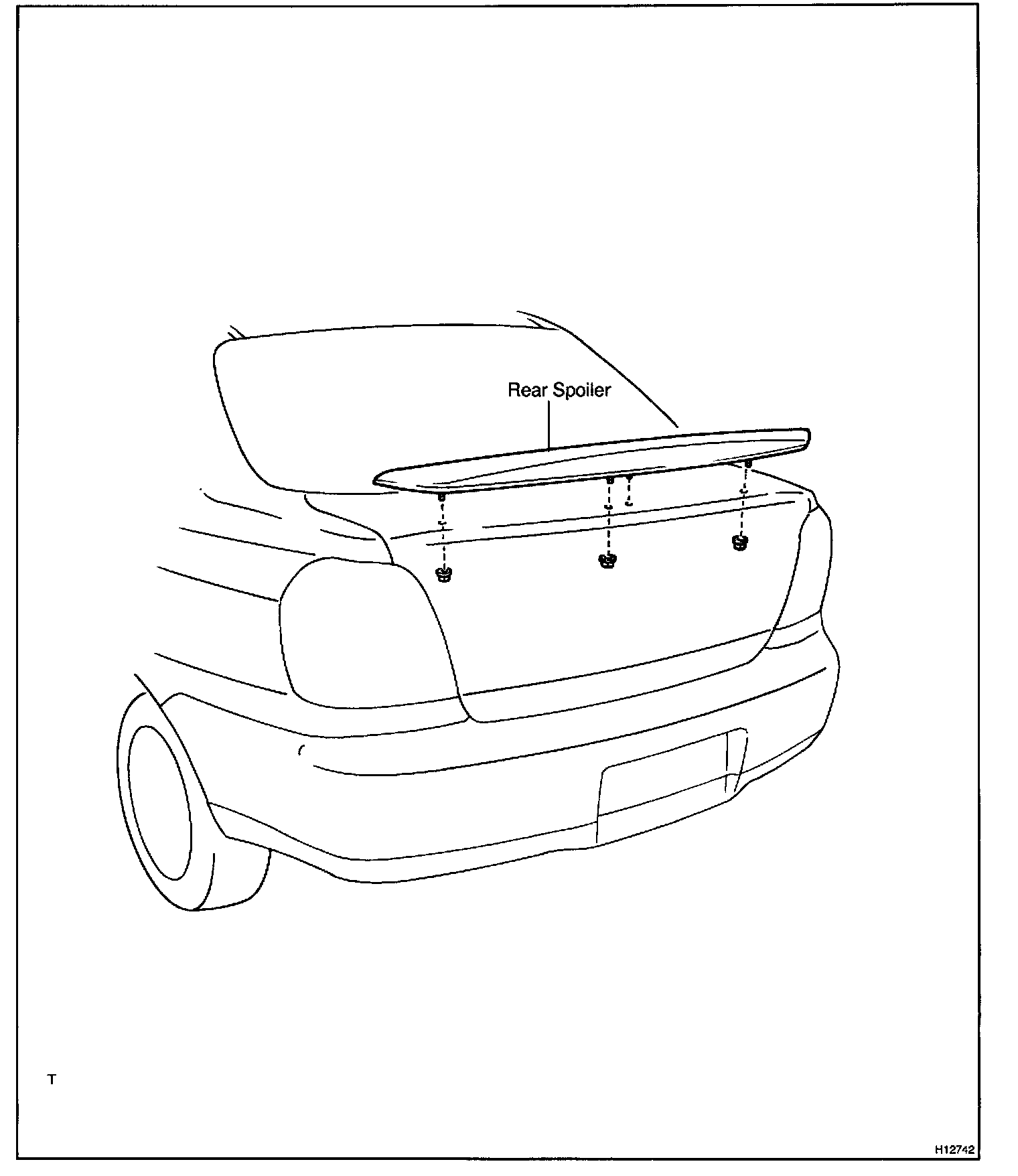

Spoiler:

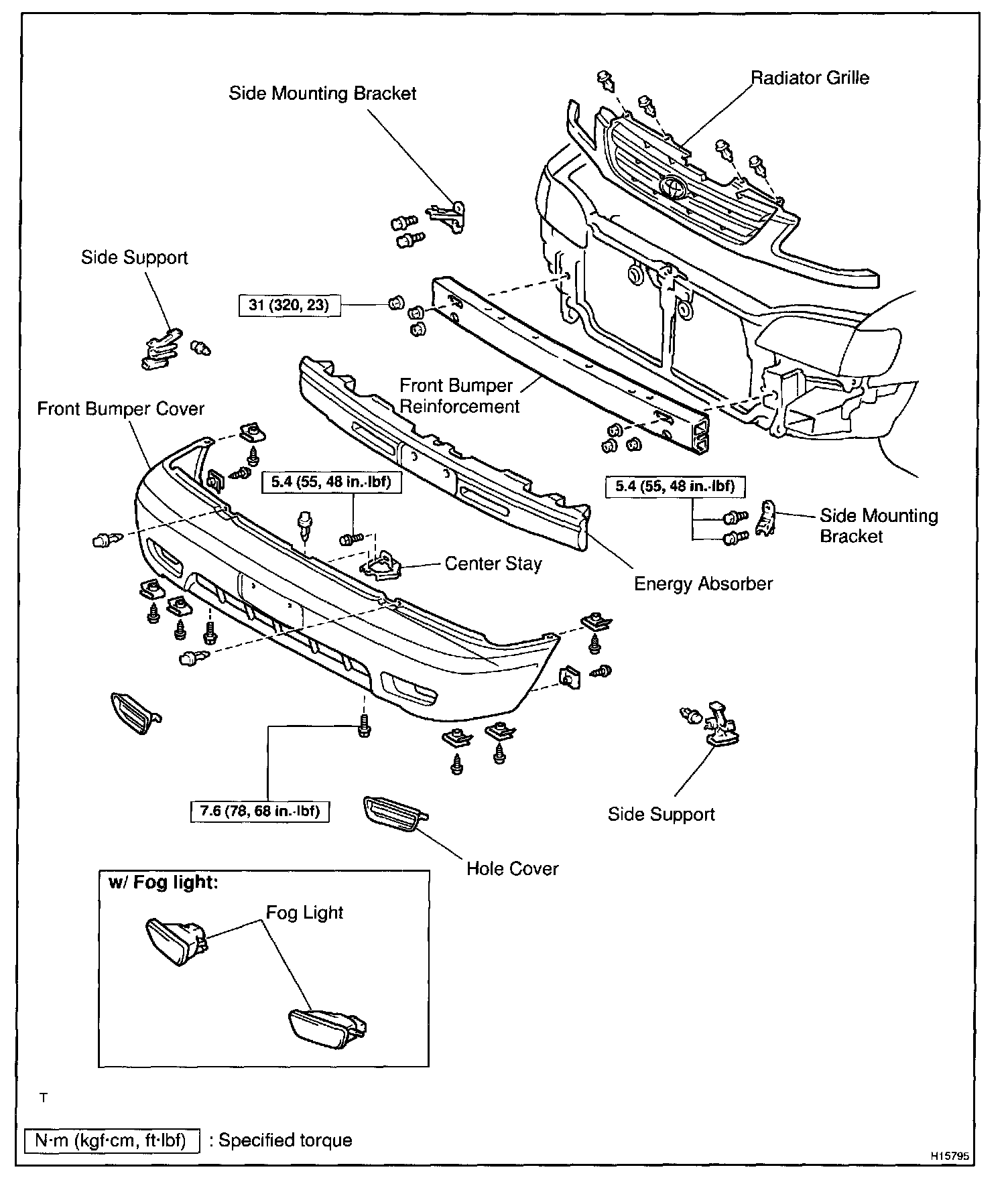

Front Bumper:



Rear Bumper:



Front Door:

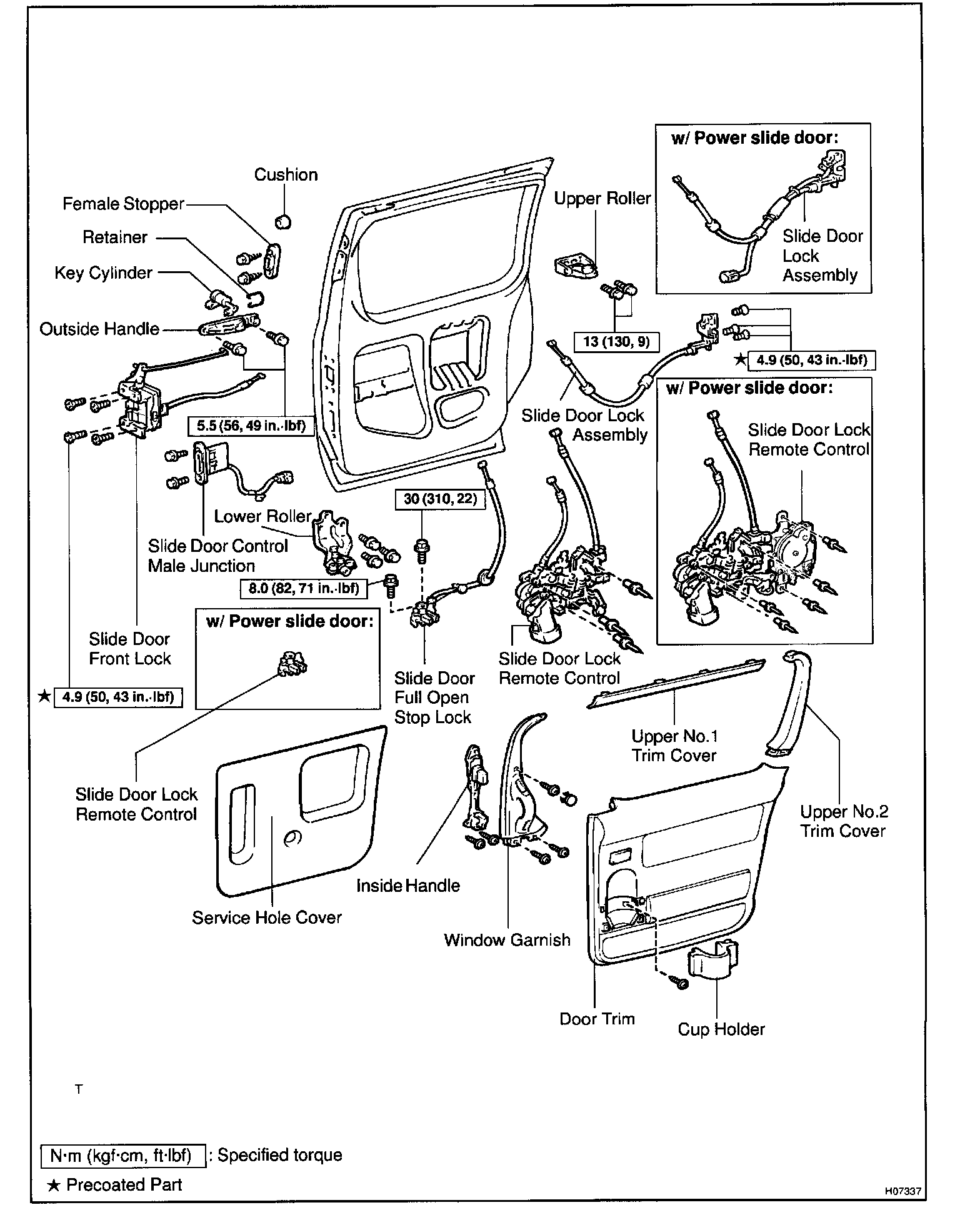

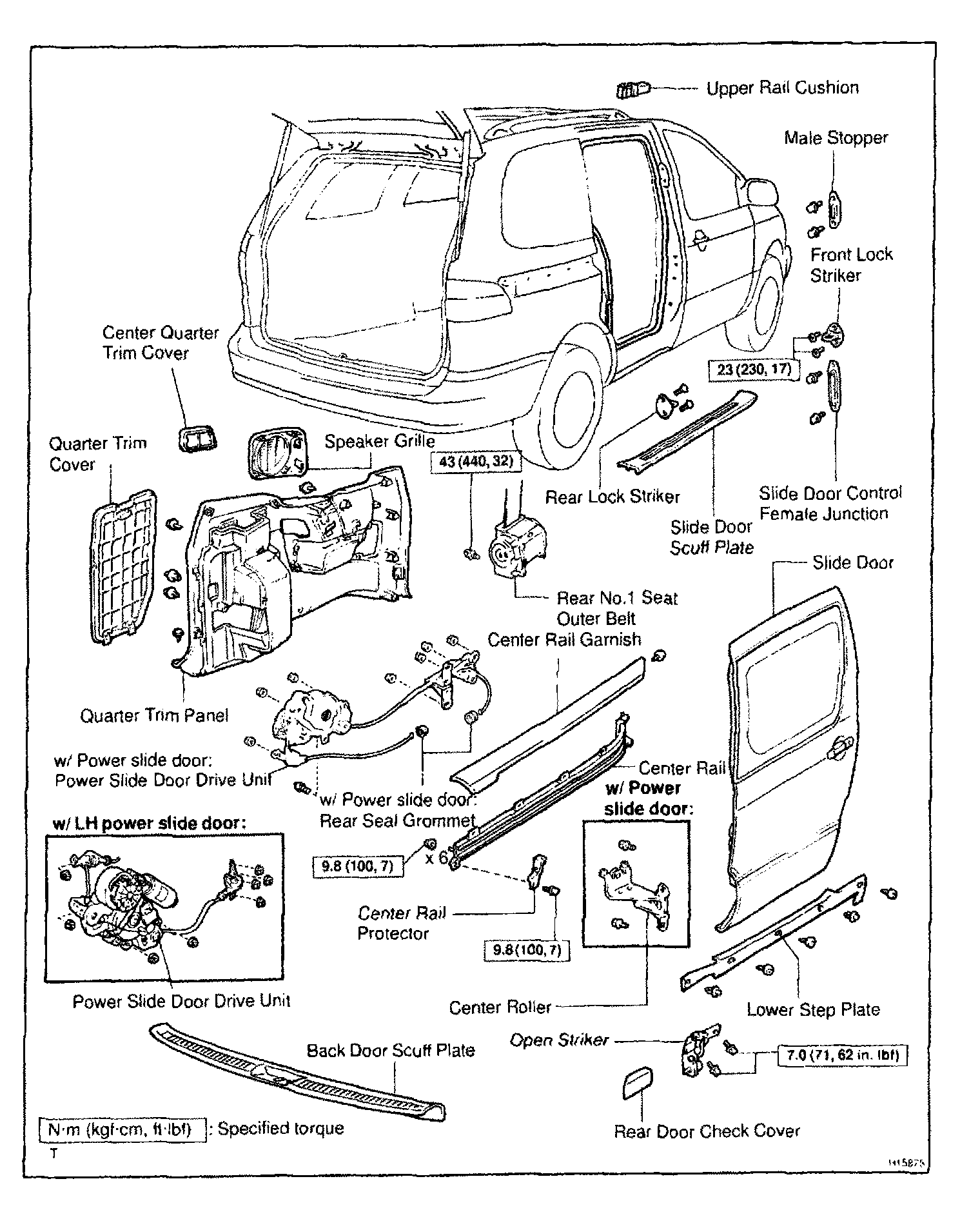

Slide Door (Part 1):



Slide Door (Part 2):

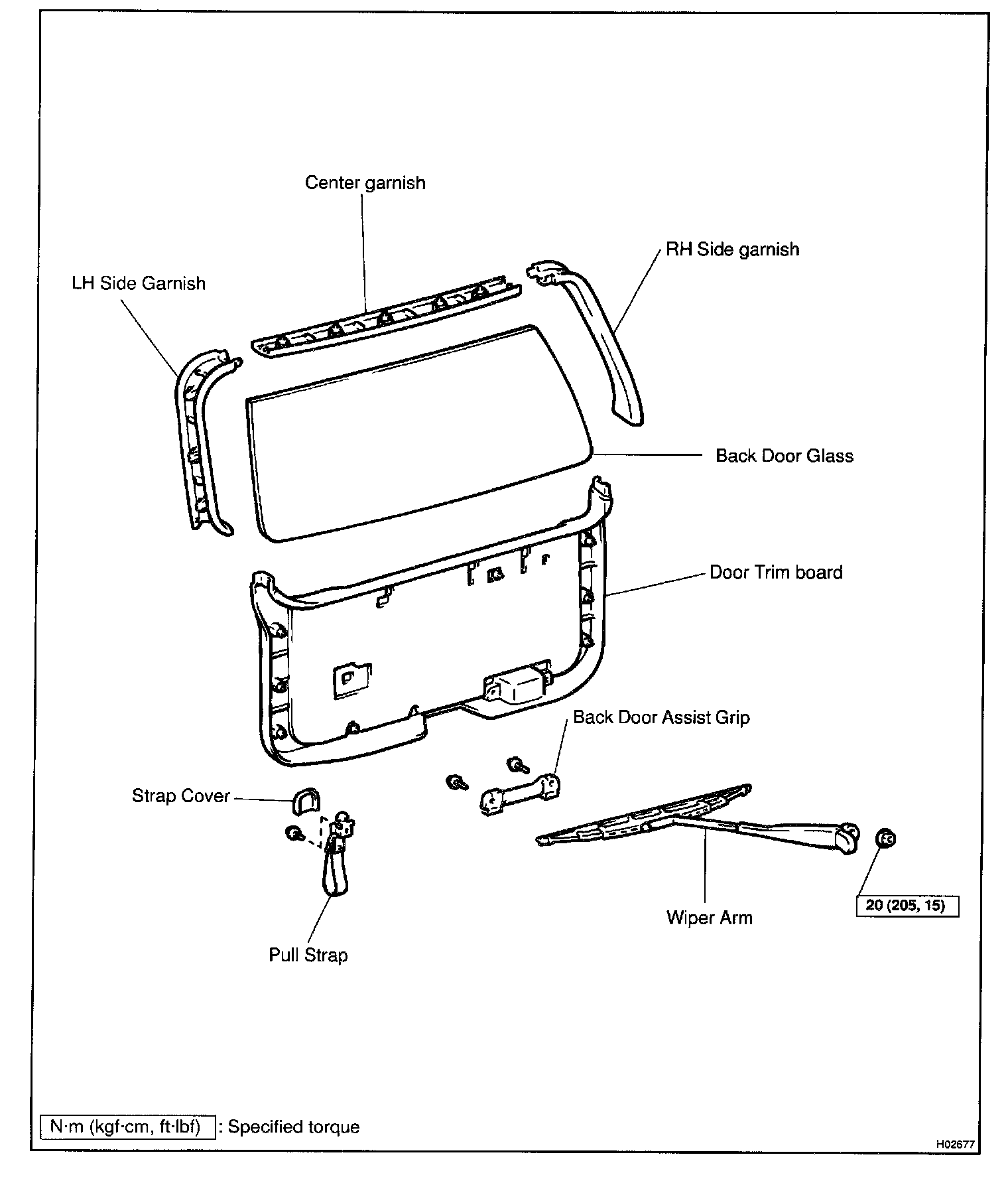

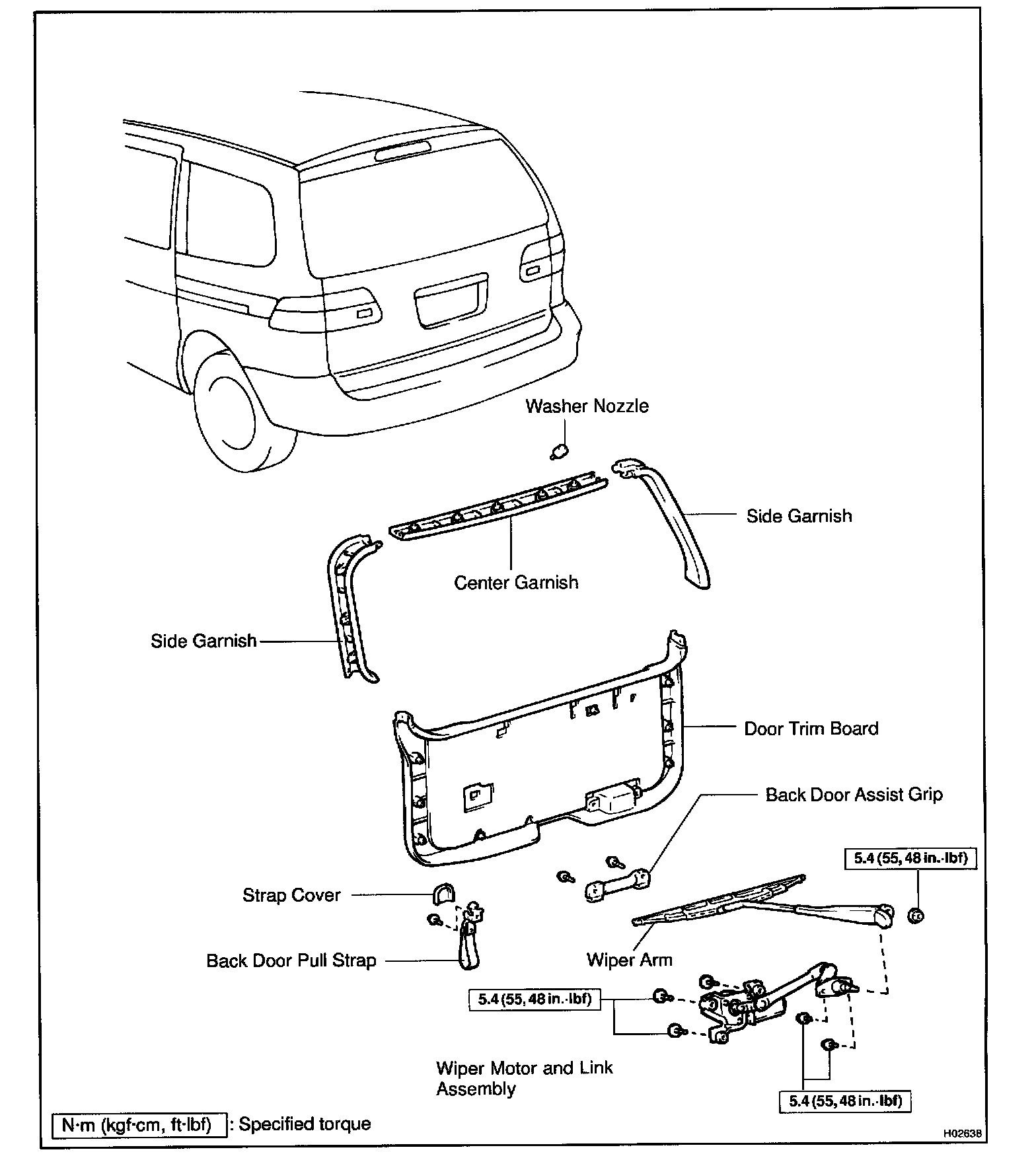

Back Door:



Front Wiper And Washer:



Rear Wiper And Washer:

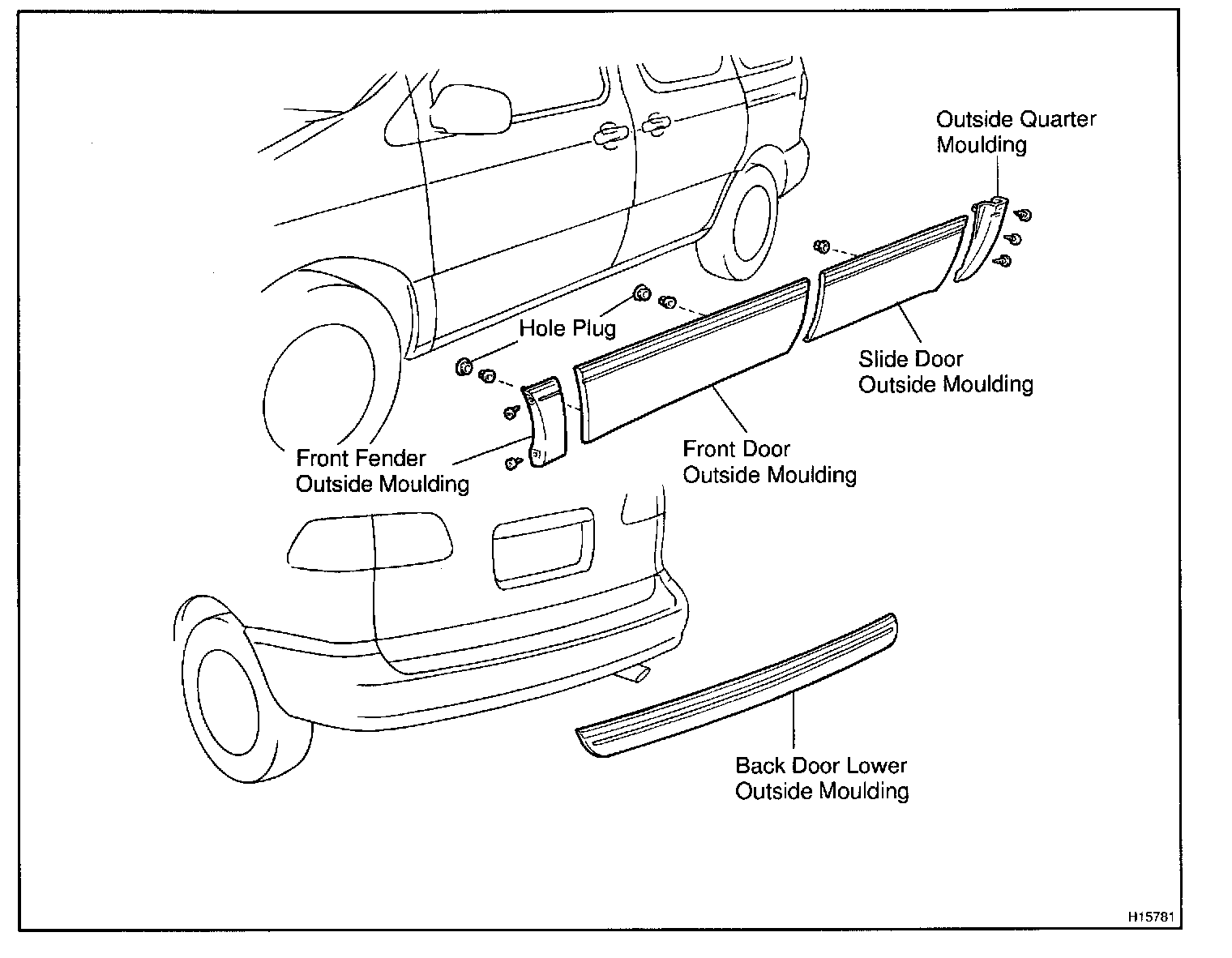

Body Outside Moulding:

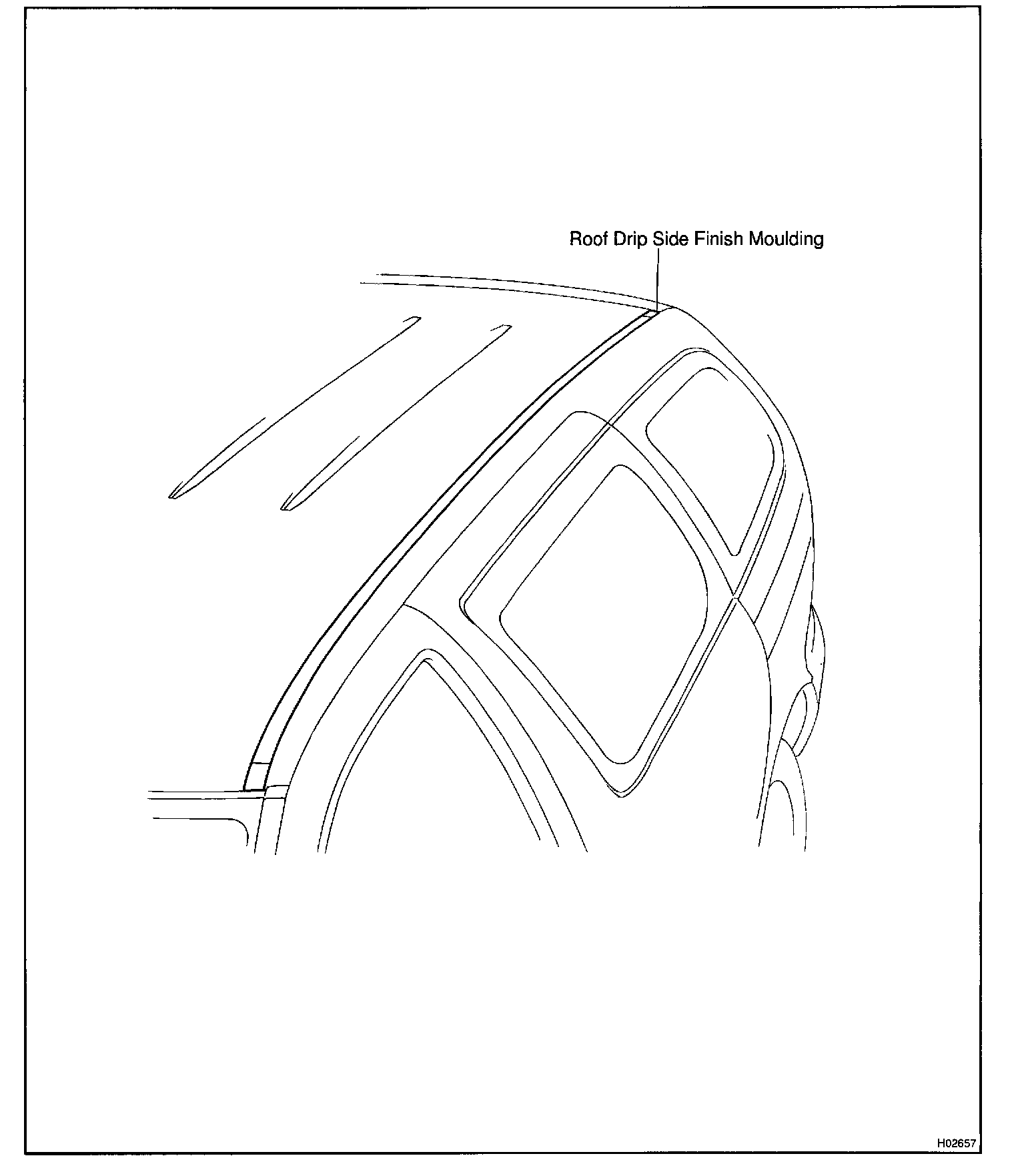

Roof Drip Side Finish Moulding:

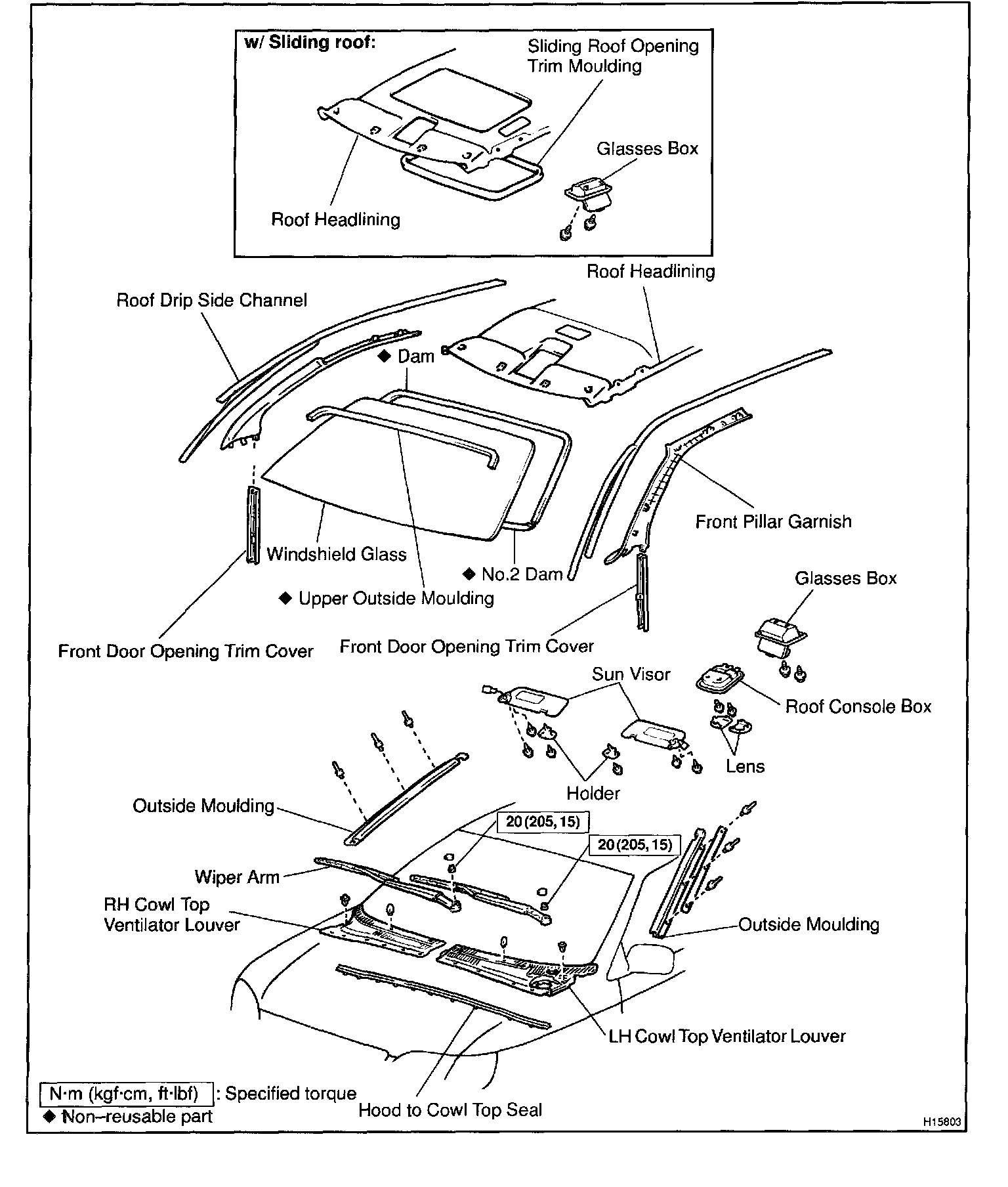

Windshield:

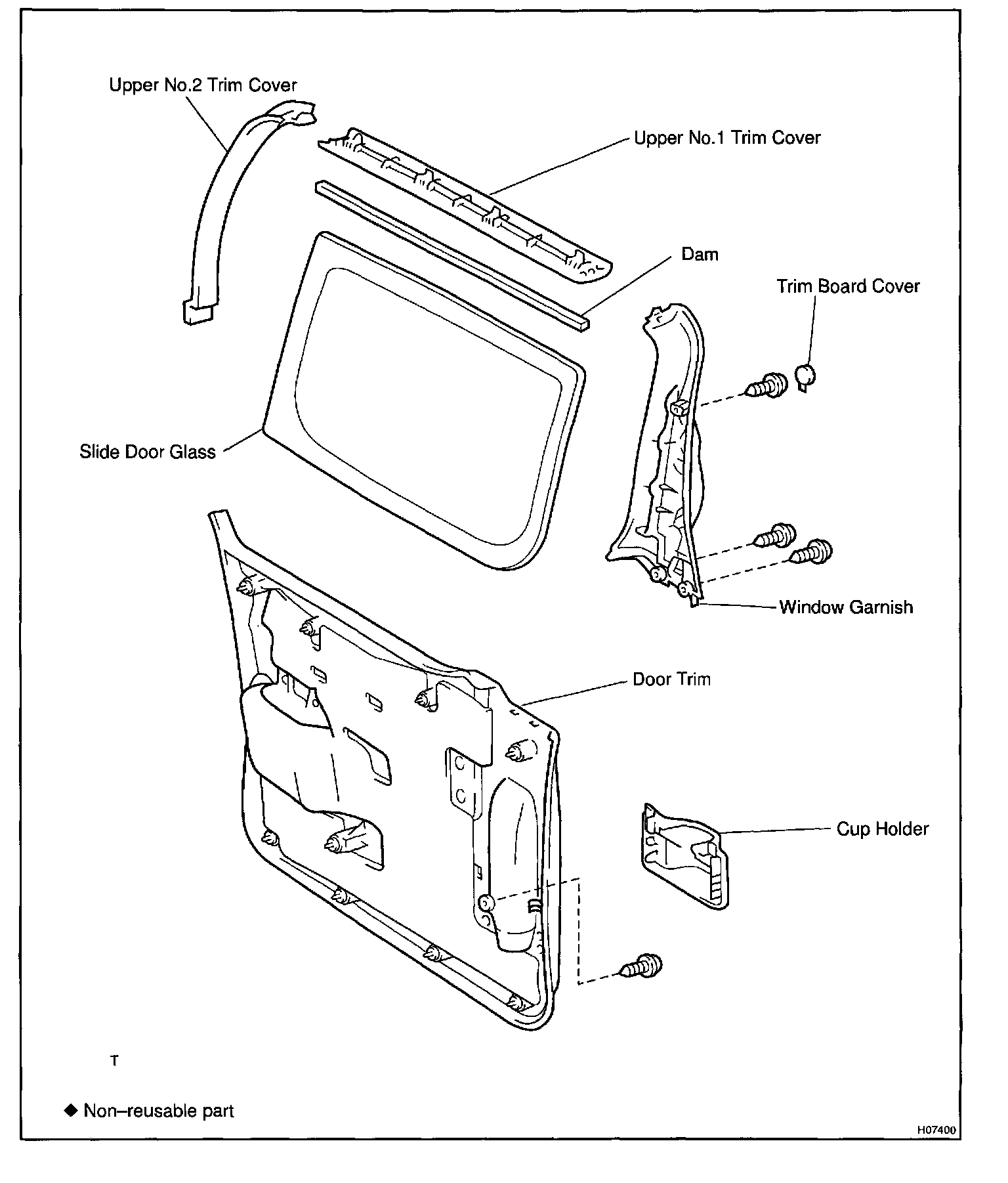

Slide Door Glass:

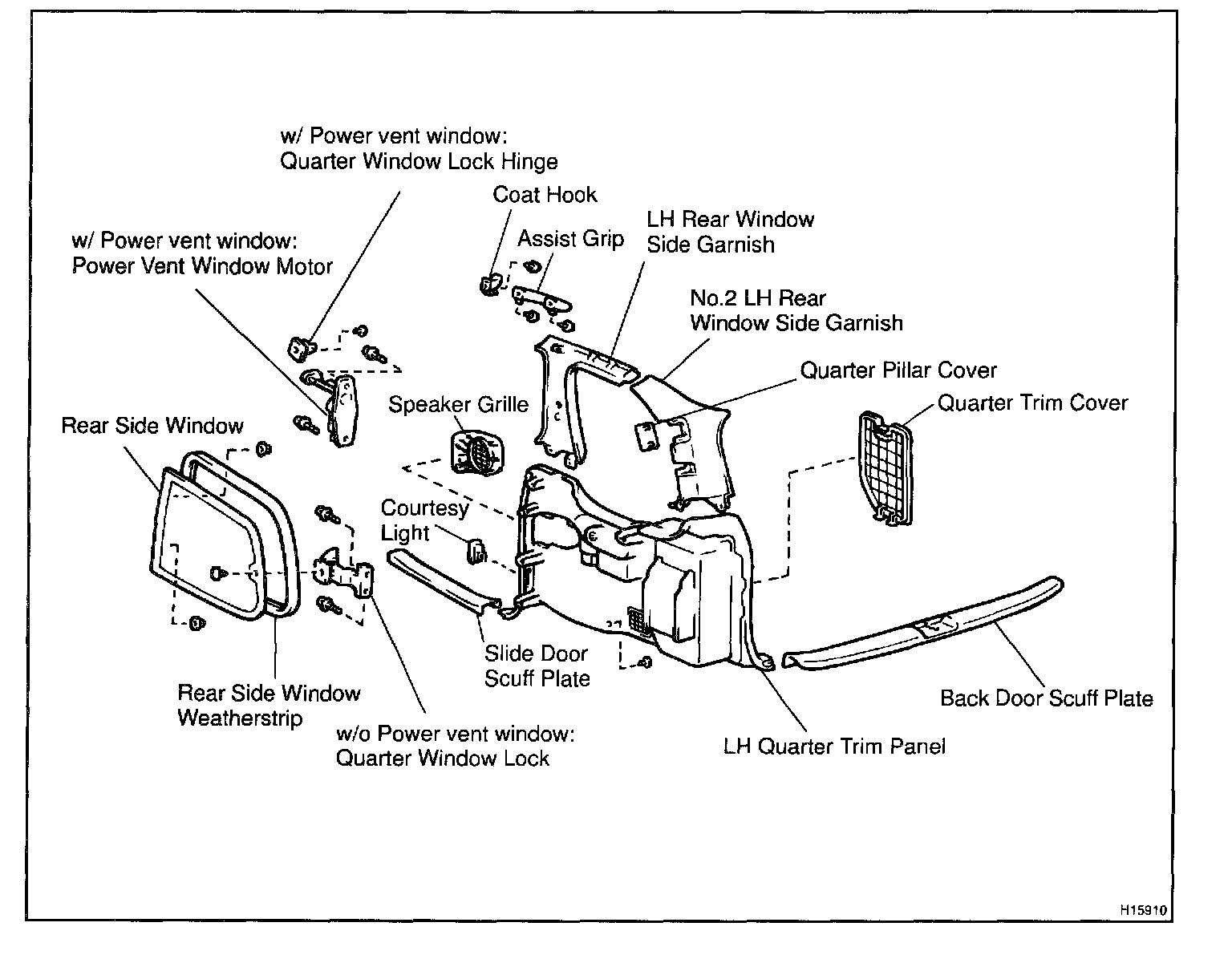

Rear Side Window Glass (LH):

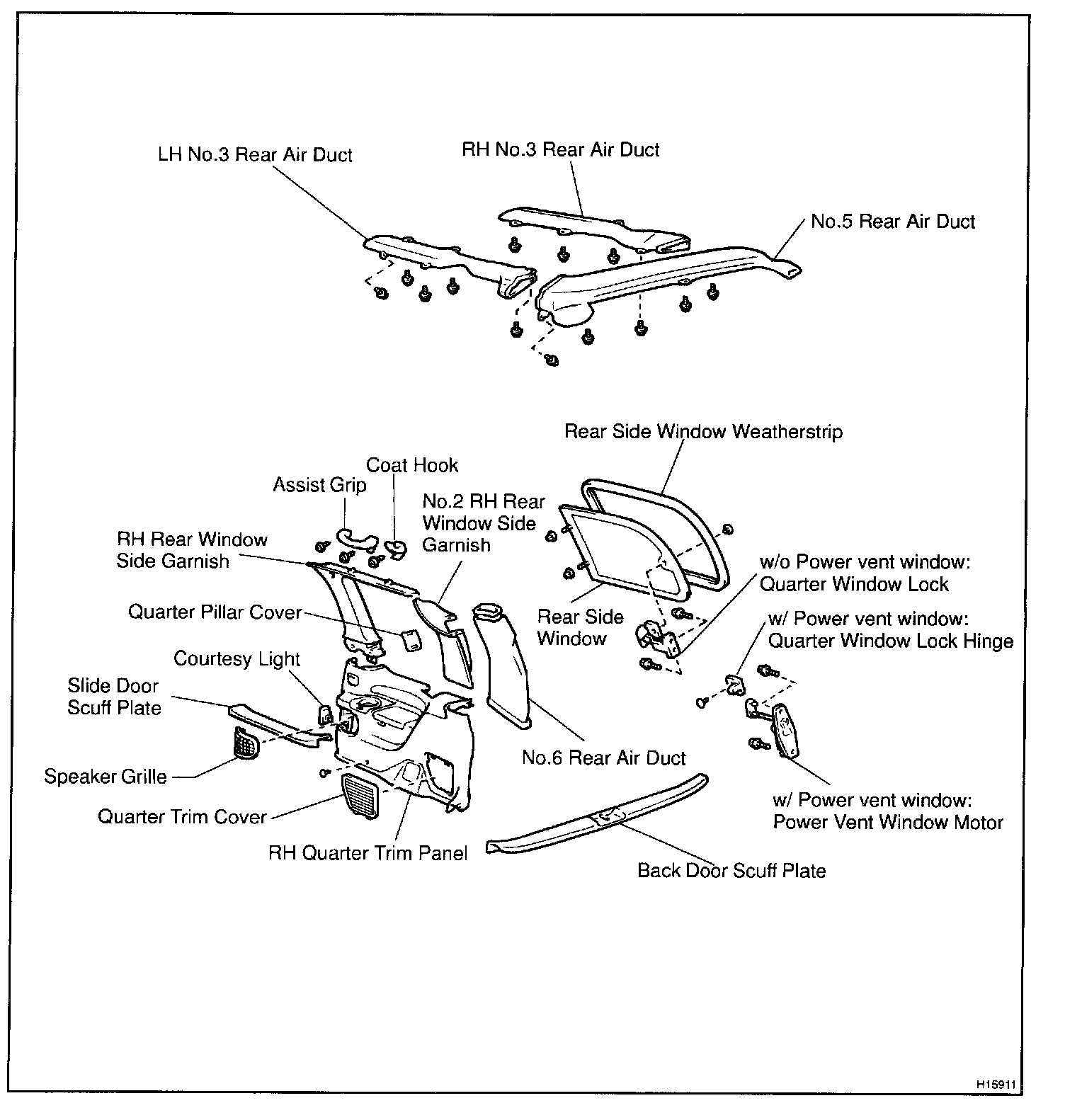

Rear Side Window Glass (RH):



Back Door Glass:

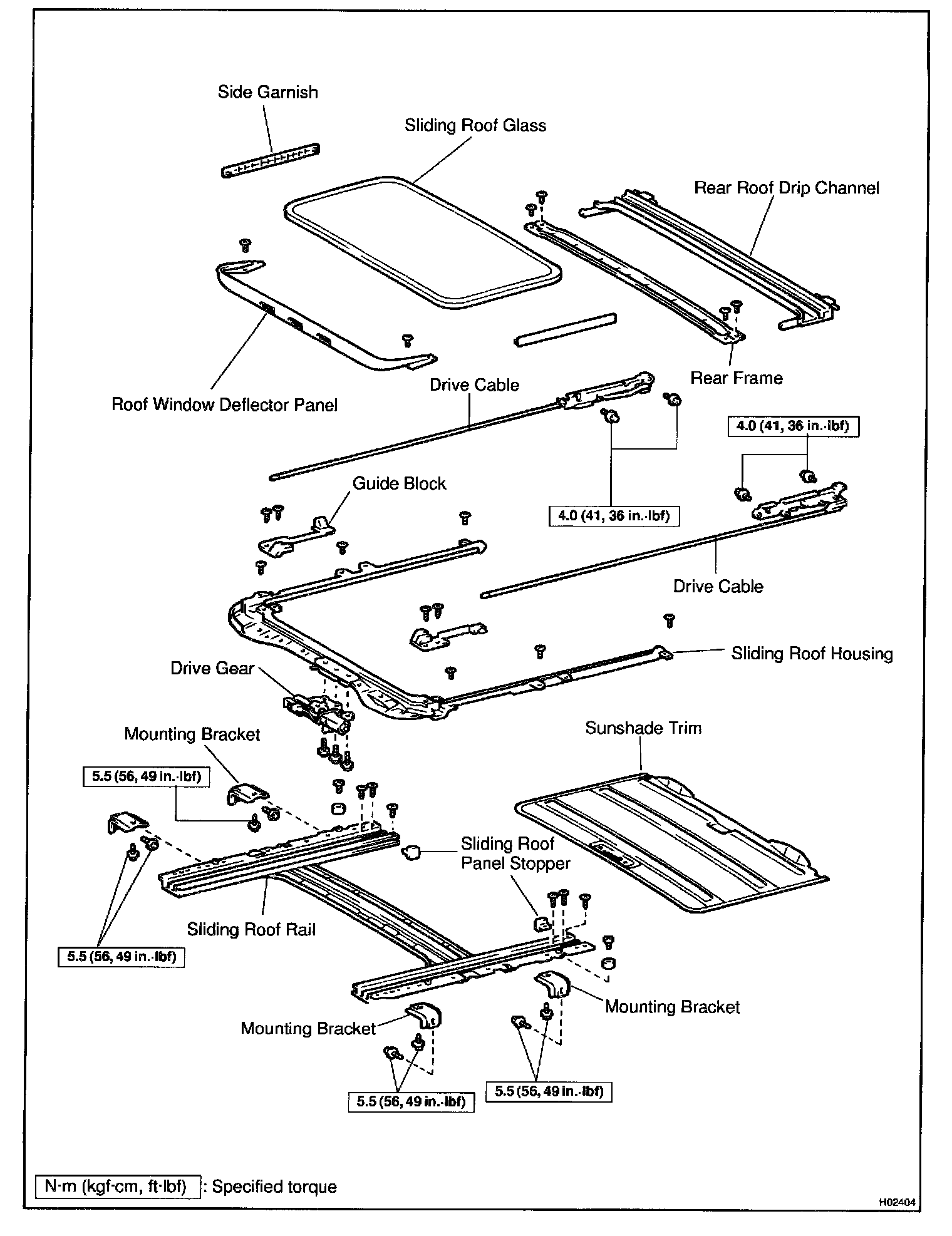

Sliding Roof (Part 1):



Sliding Roof (Part 2):

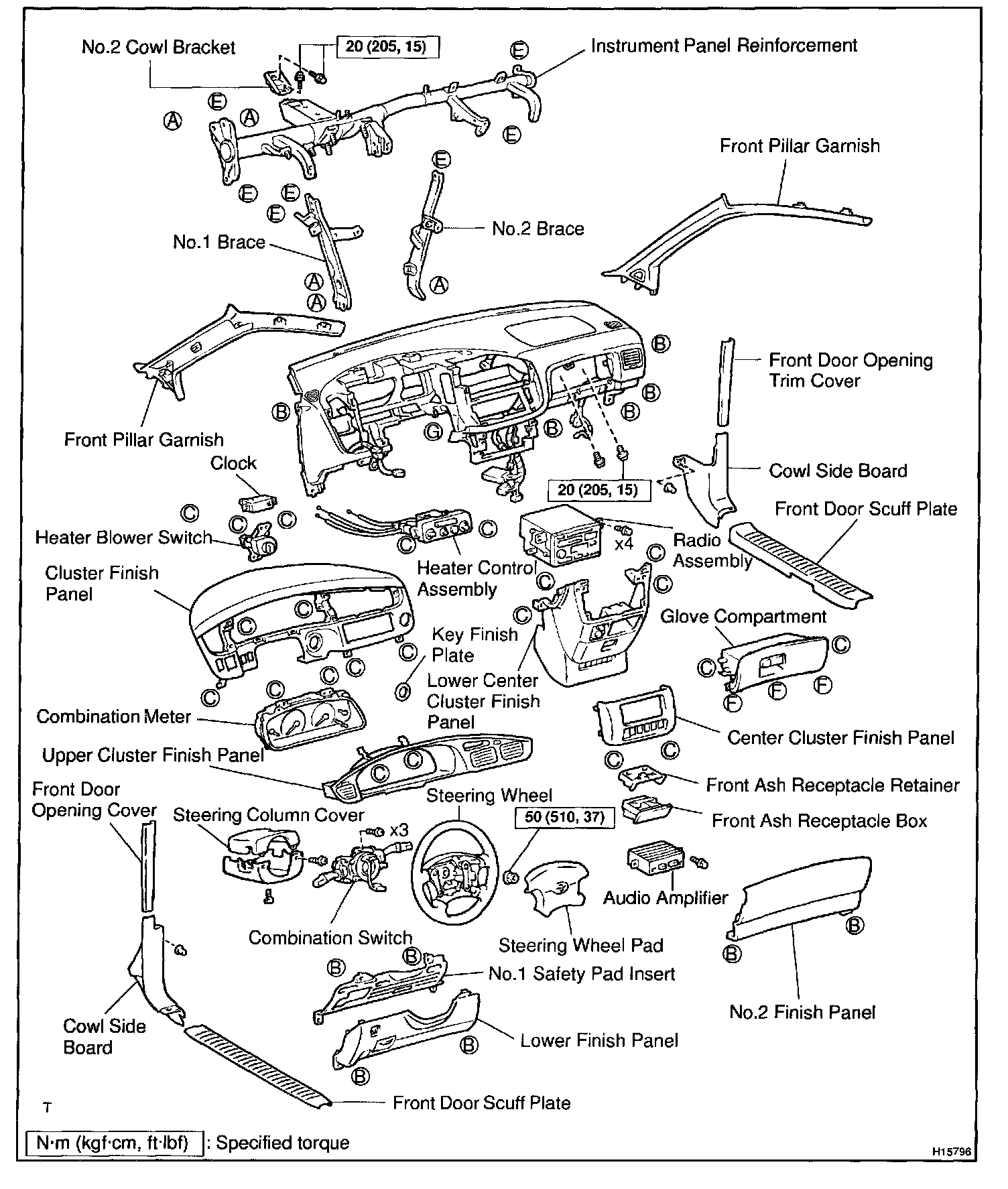

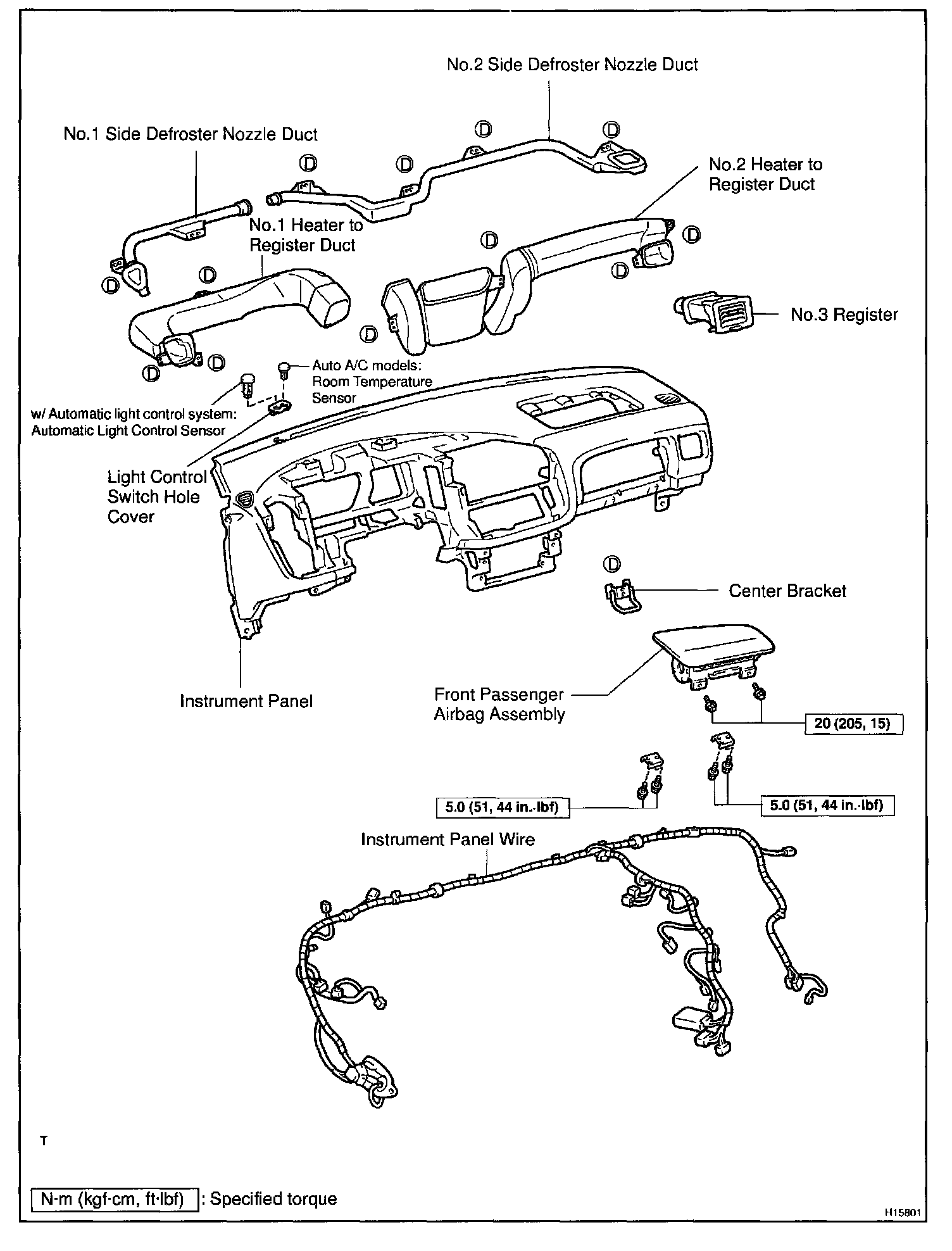

Instrument Panel (Part 1):



Instrument Panel (Part 2):

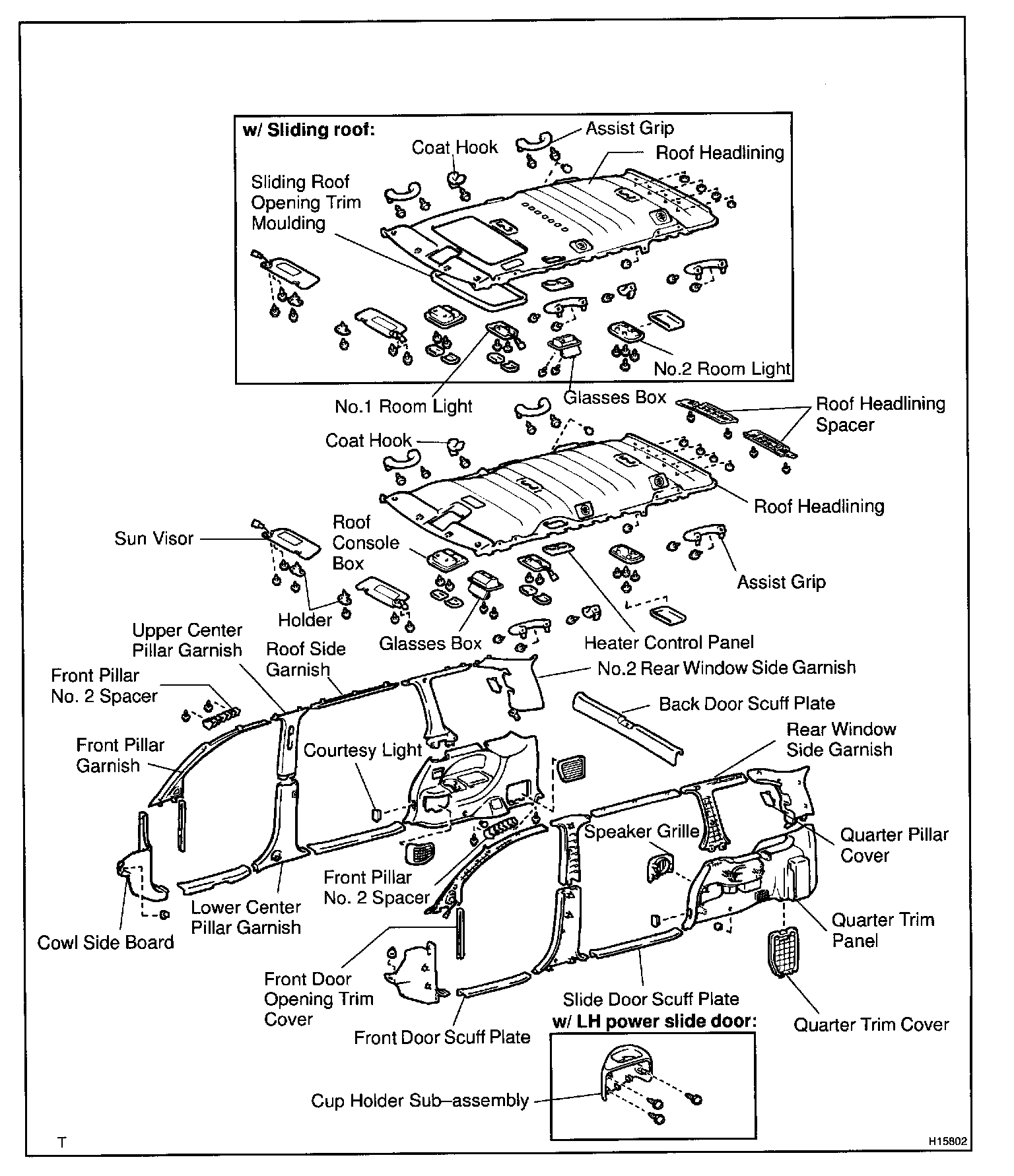

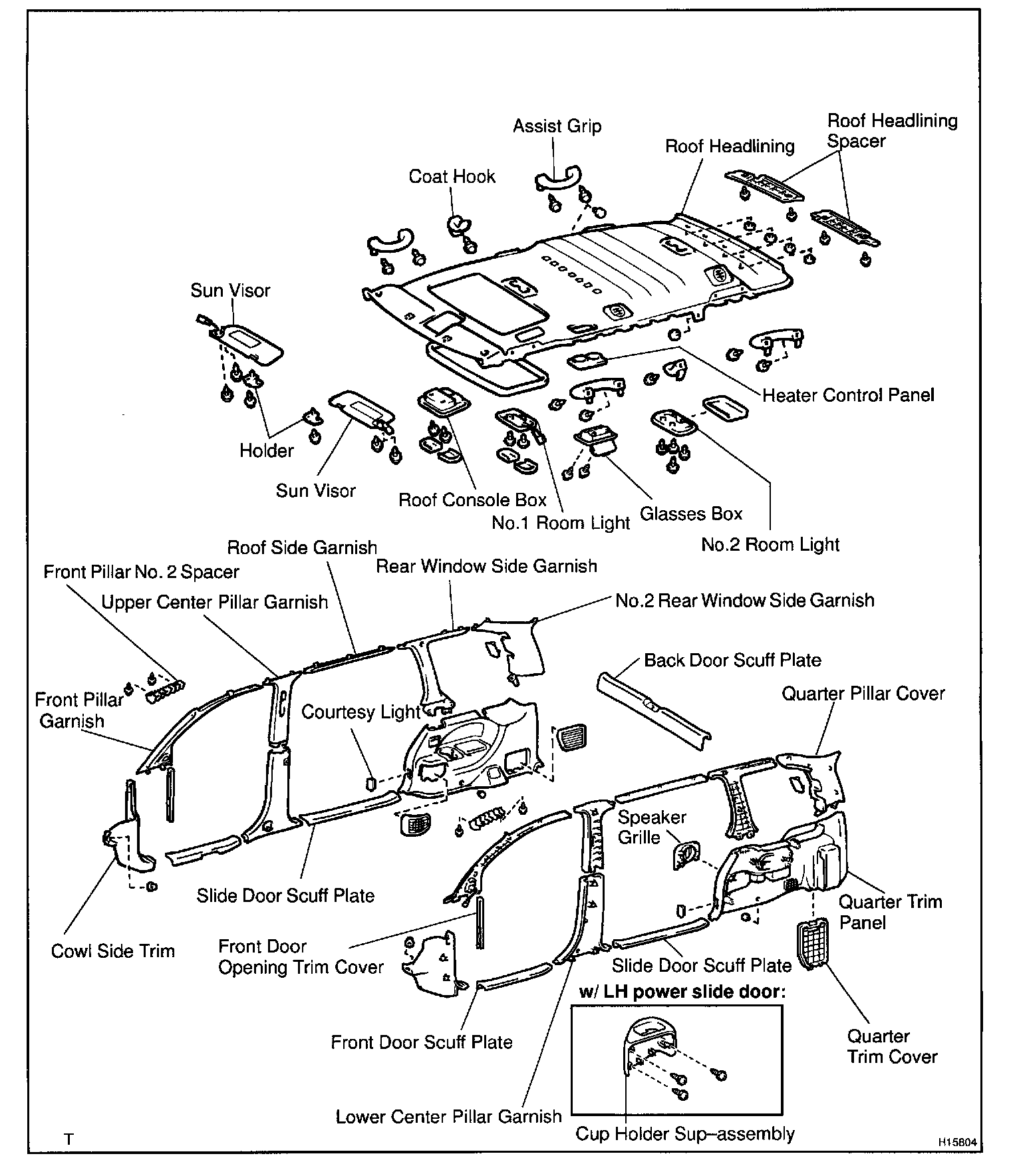

Roof Headlining:



Front Seat (Power Adjuster Type):



Front Seat (Manual Adjuster Type):



Rear No.1 Seat (Seperate Type LH):



Rear No.1 Seat (Seperate Type RH):



Rear No.1 Seat (Bench Type) (Part 1):



Rear No.1 Seat (Bench Type) (Part 2):



Rear No.2 Seat:

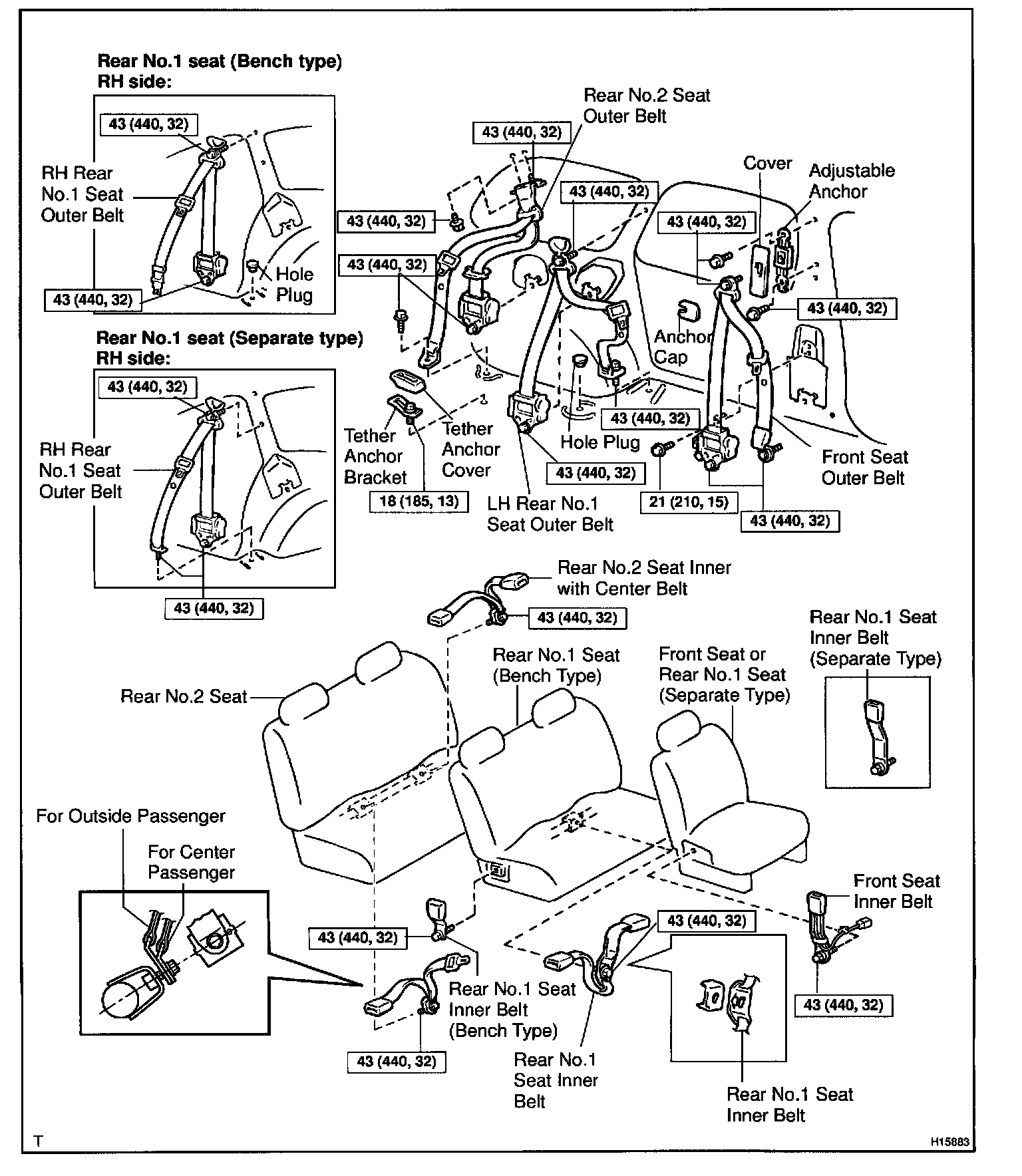

Seat Belt:



Roof Rail:
