Connector Code Lists

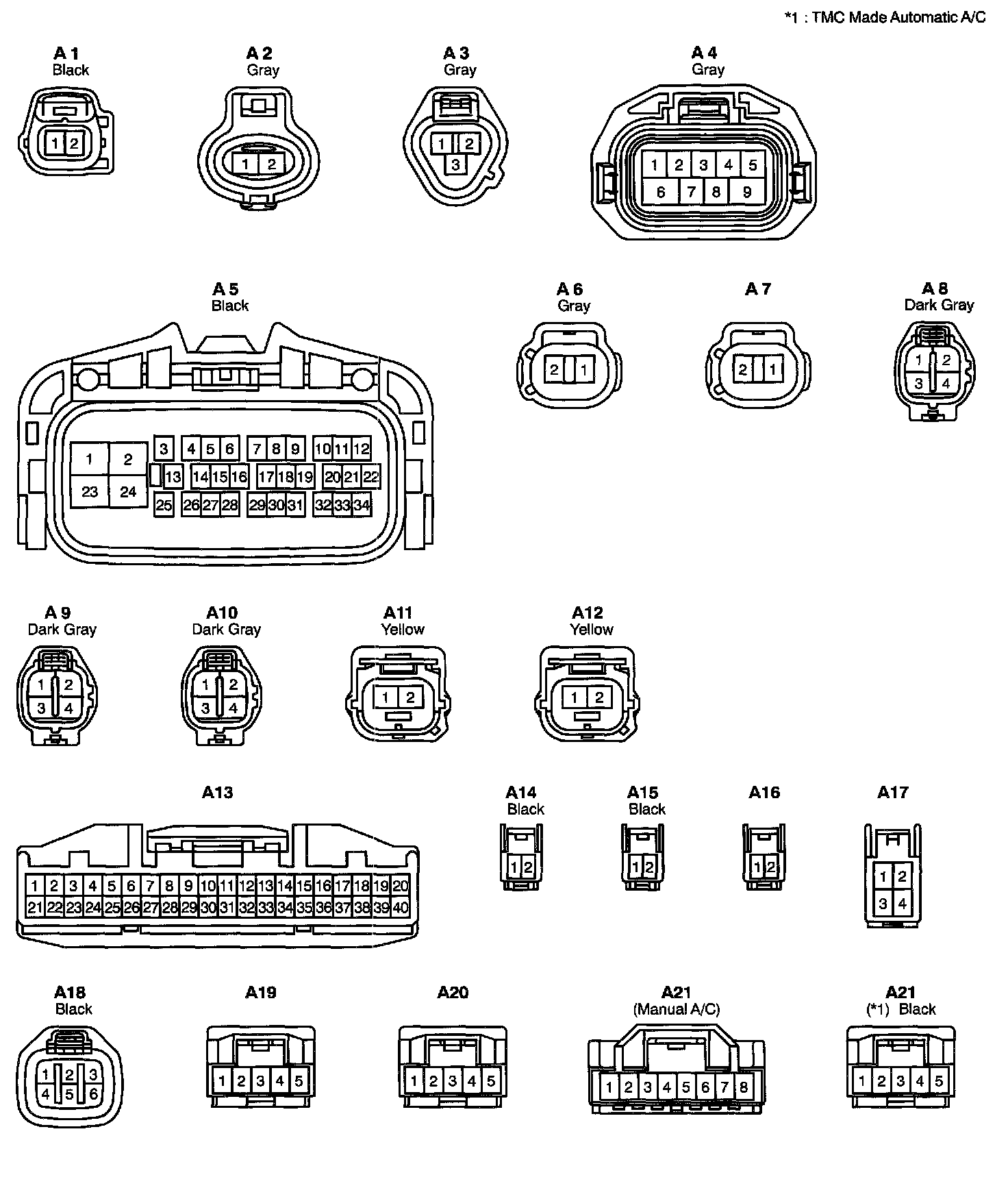

Connector Views (A1 - A21):

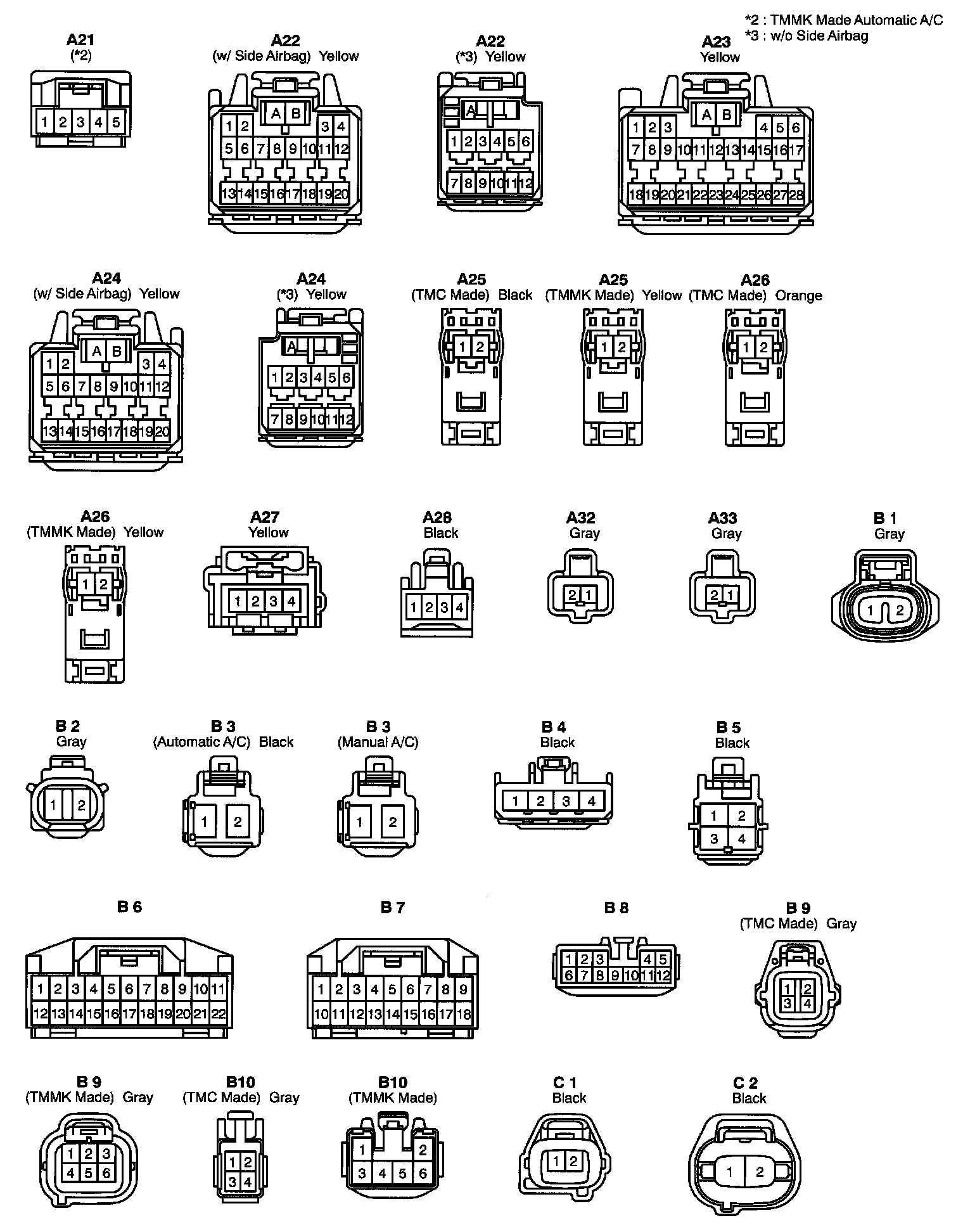

Connector Views (A21 - C2):

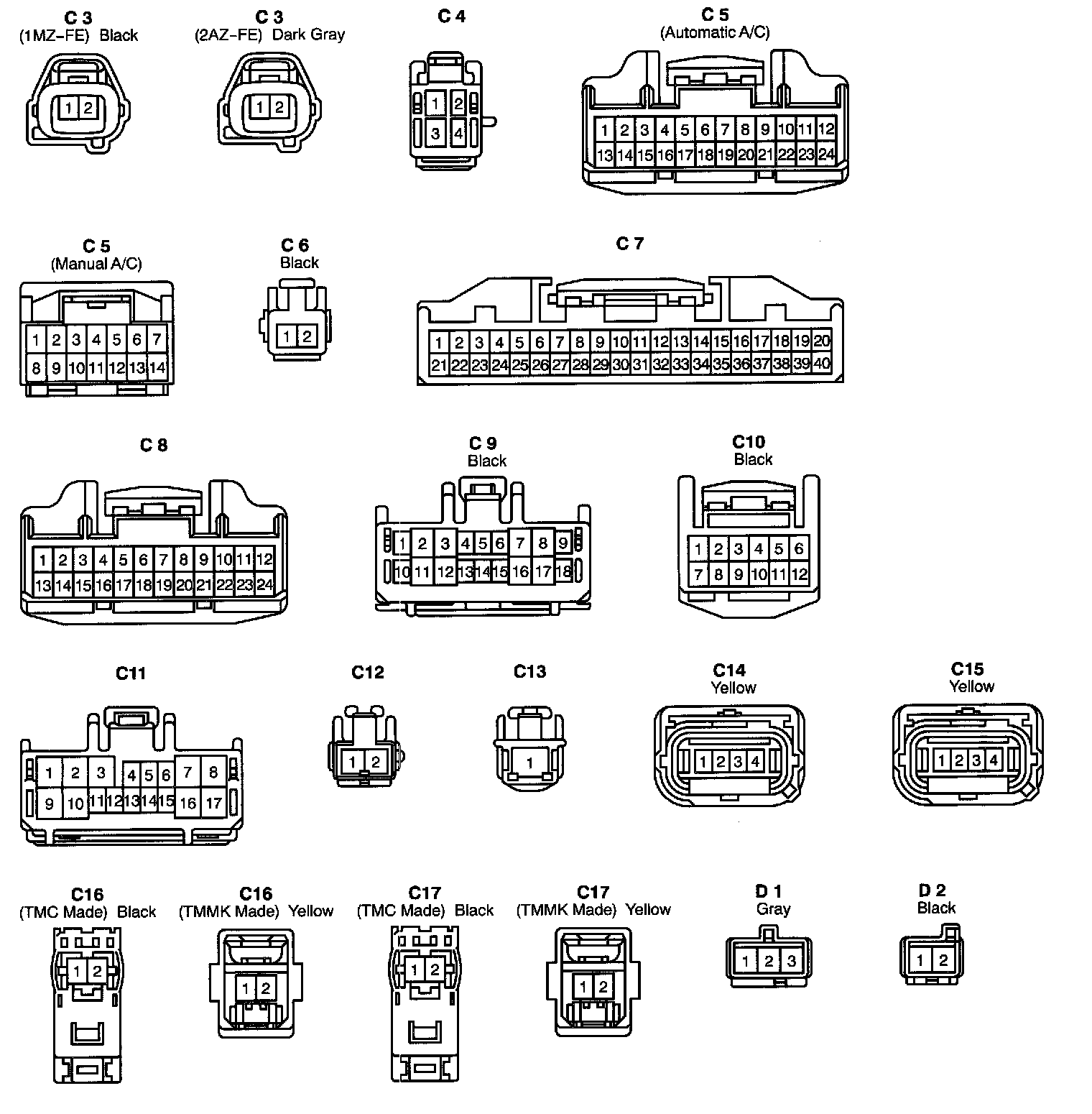

Connector Views (C3 - D2):

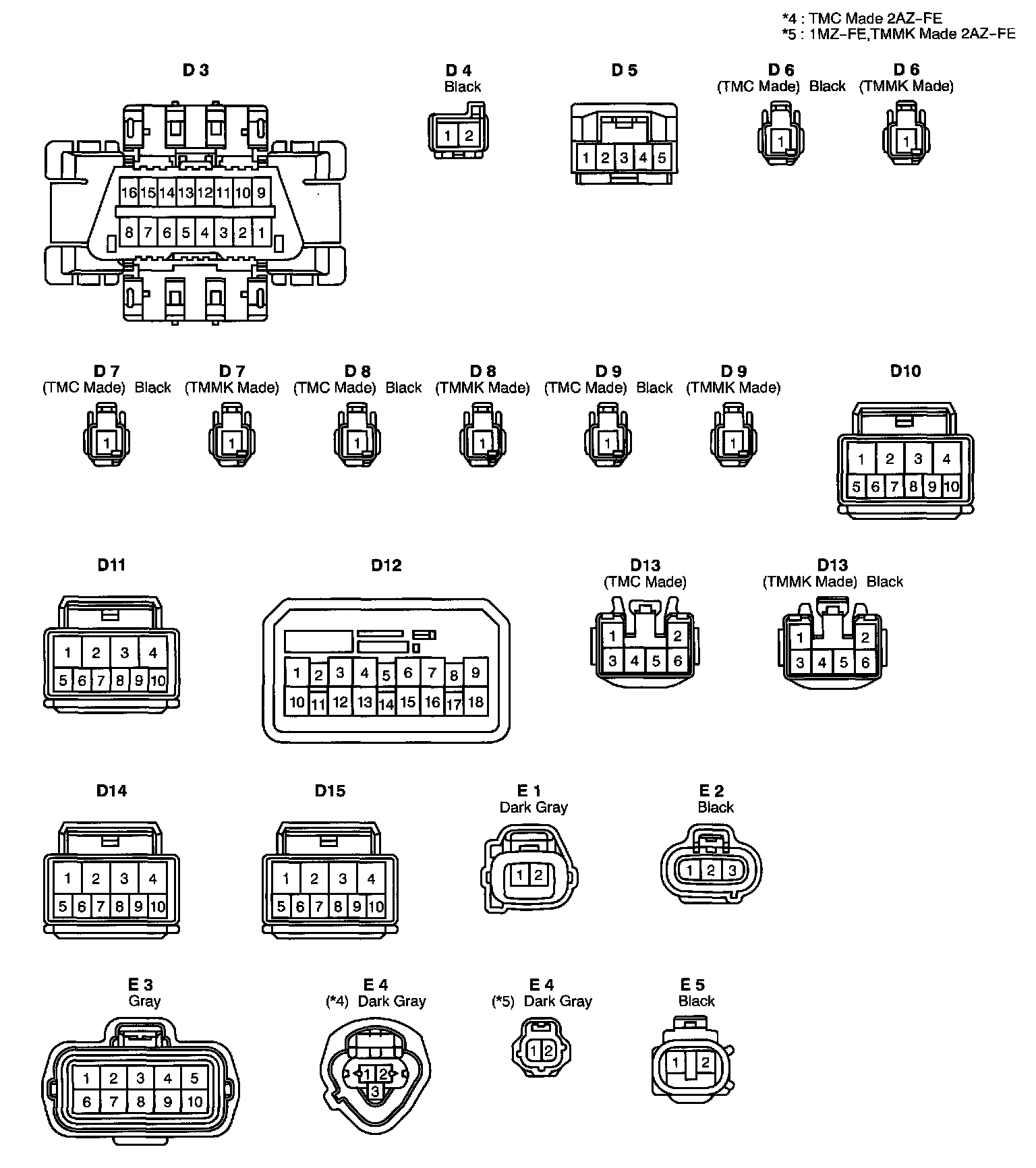

Connector Views (D3 - E5):



Connector Views (E6 - H9):

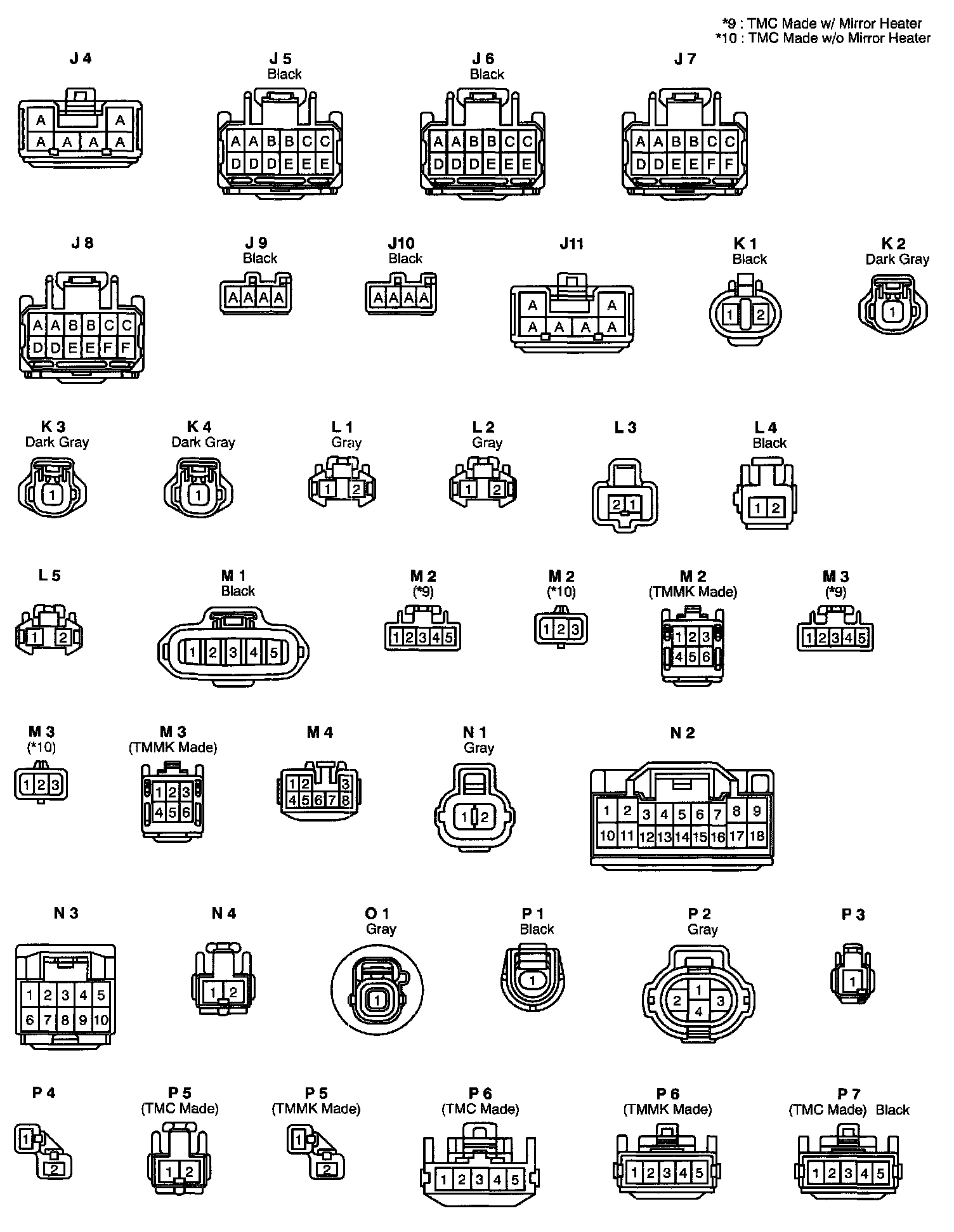

Connector Views (H10 - J3):



Connector Views (J4 - P7):

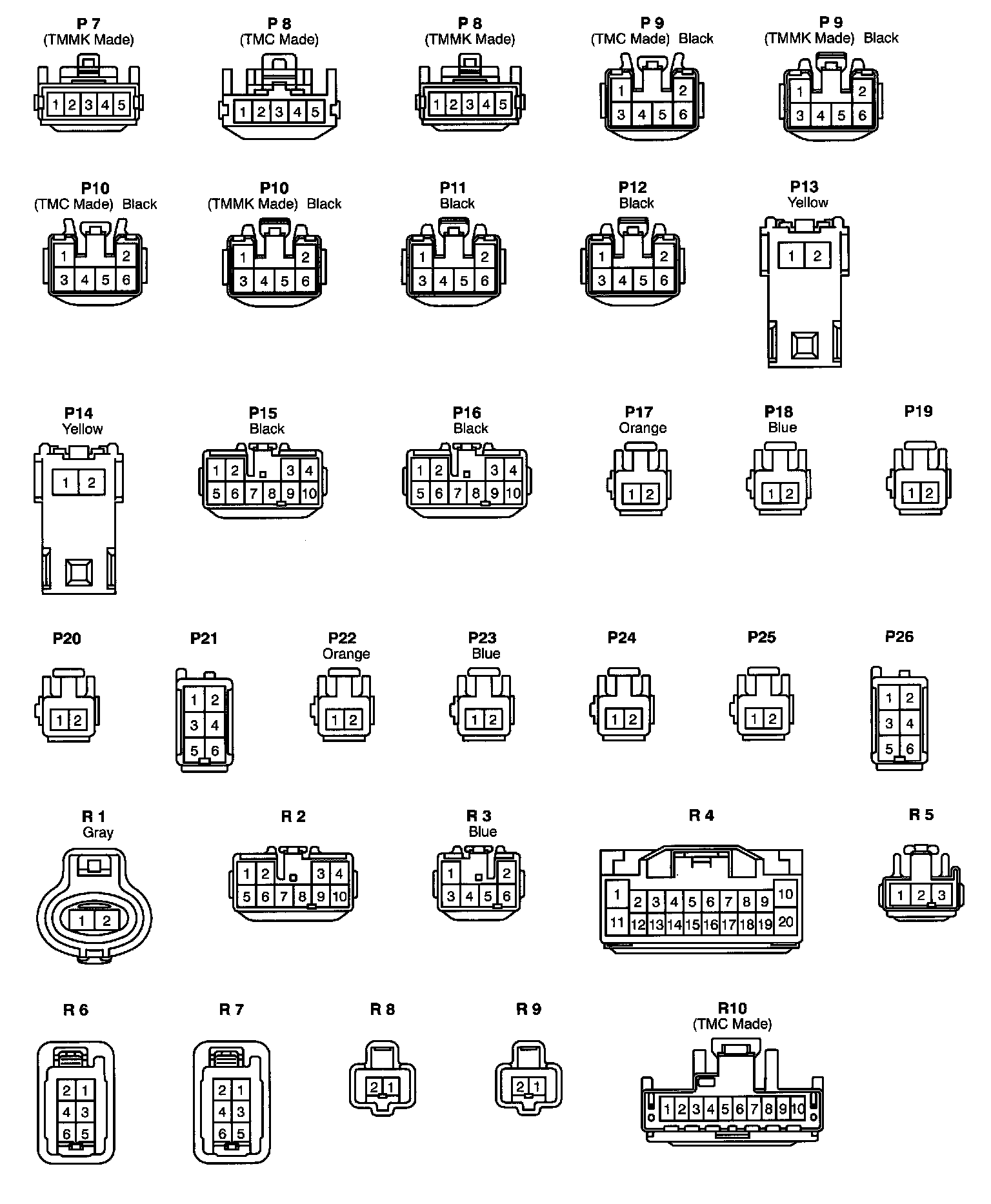

Connector Views (P7 - R10):

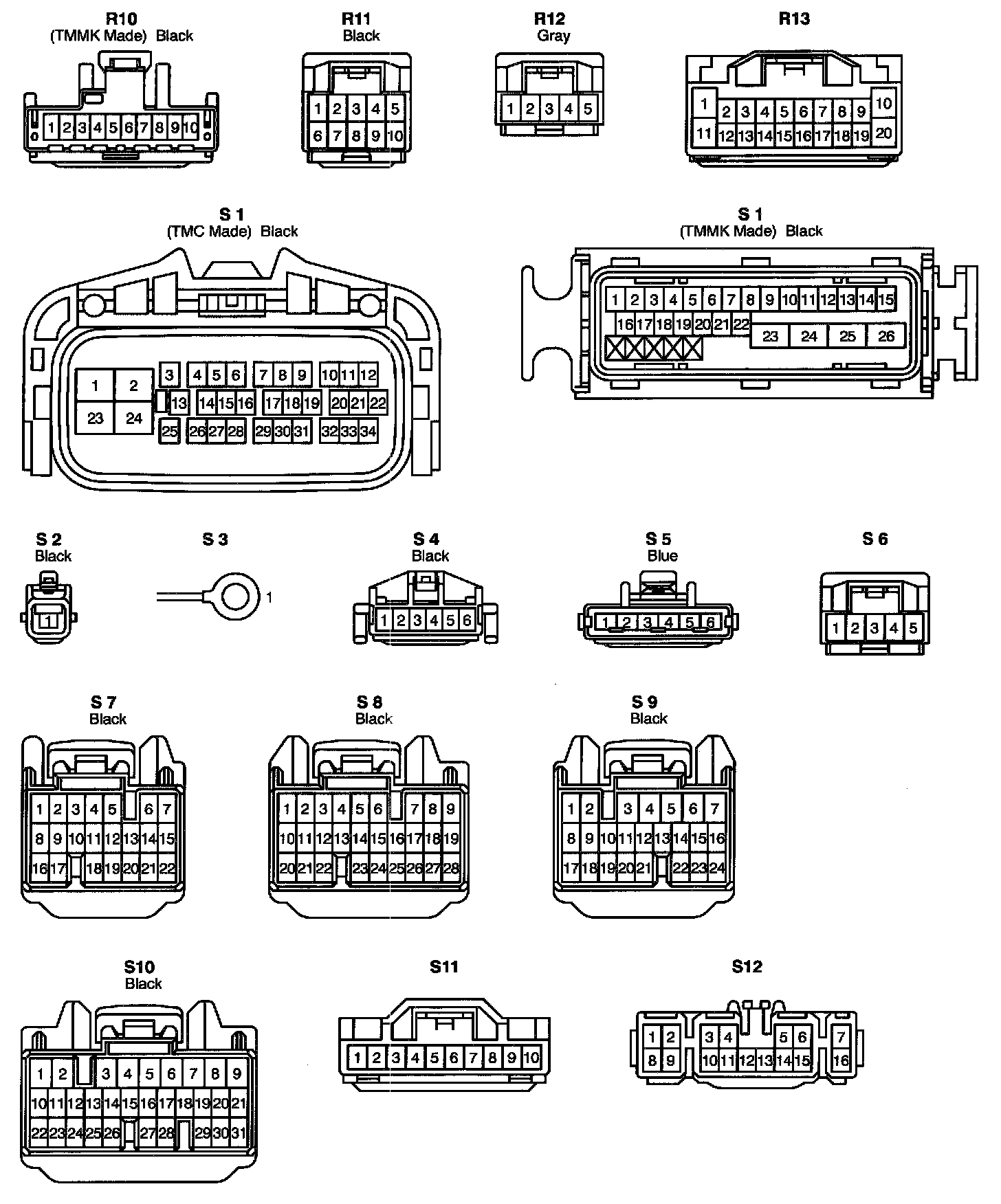

Connector Views (R10 - S12):

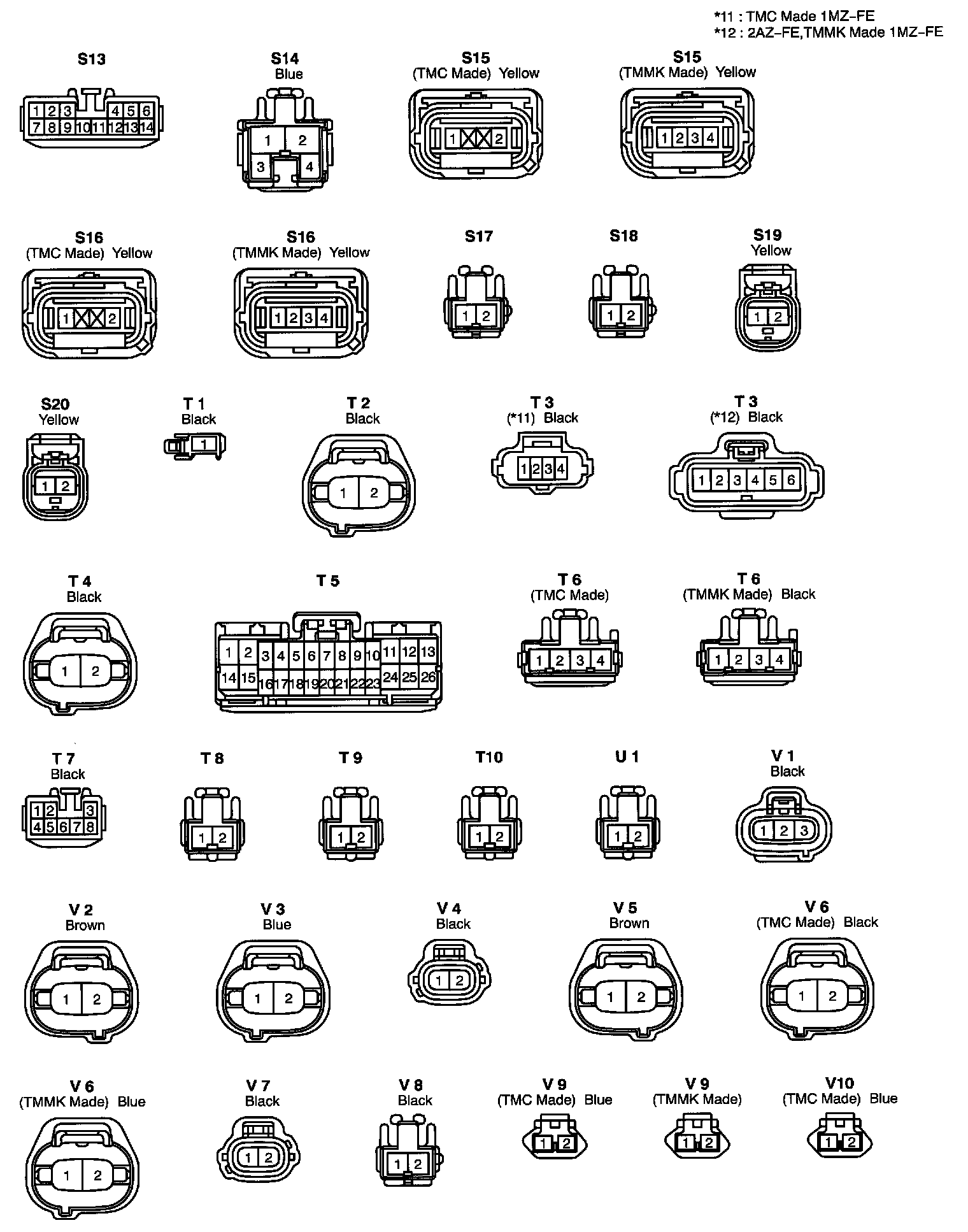

Connector Views (S13 - V10):



Connector Views (V10 - Y1):
