Connector Code Lists

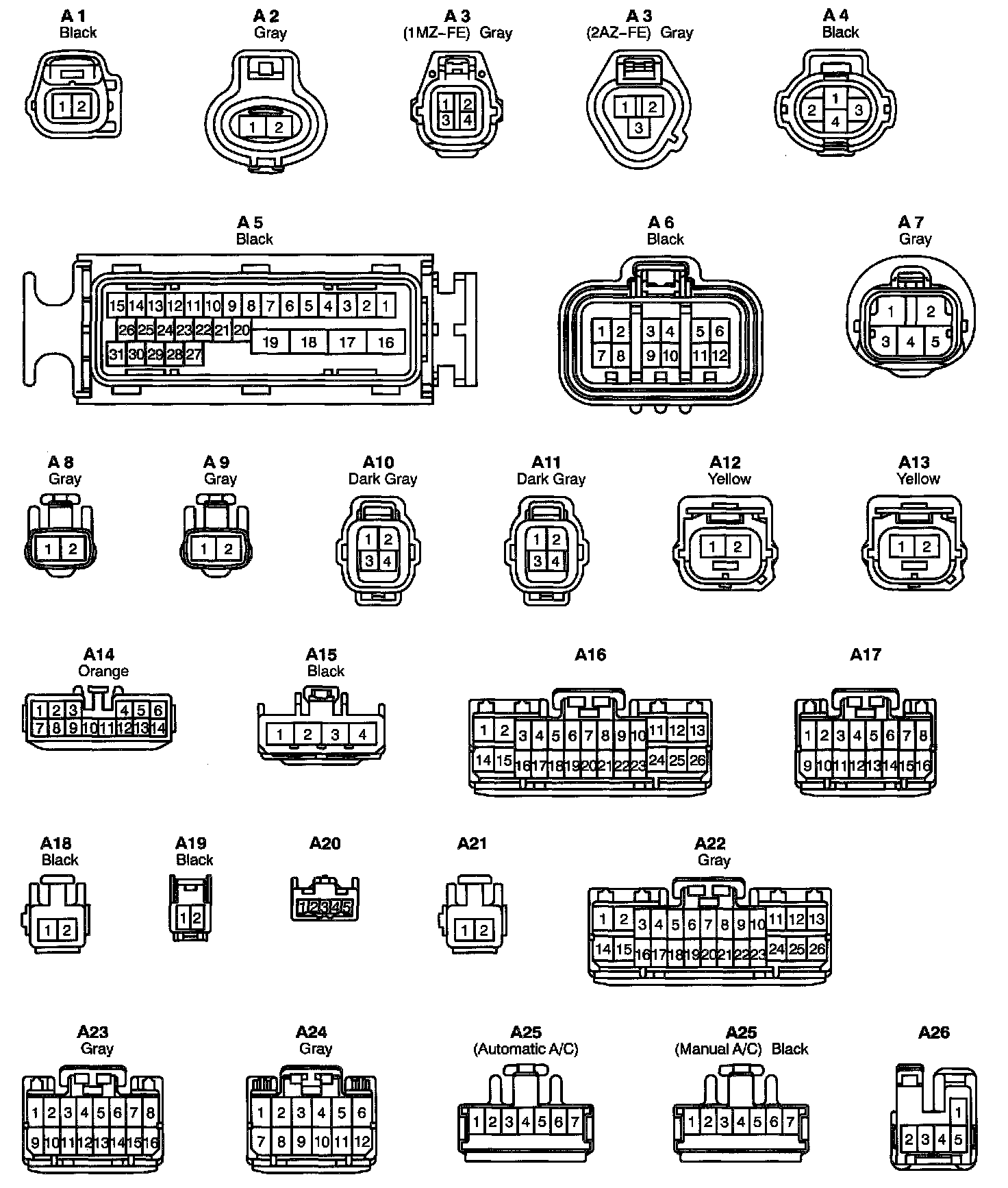

Connector Views (A1 - A26):

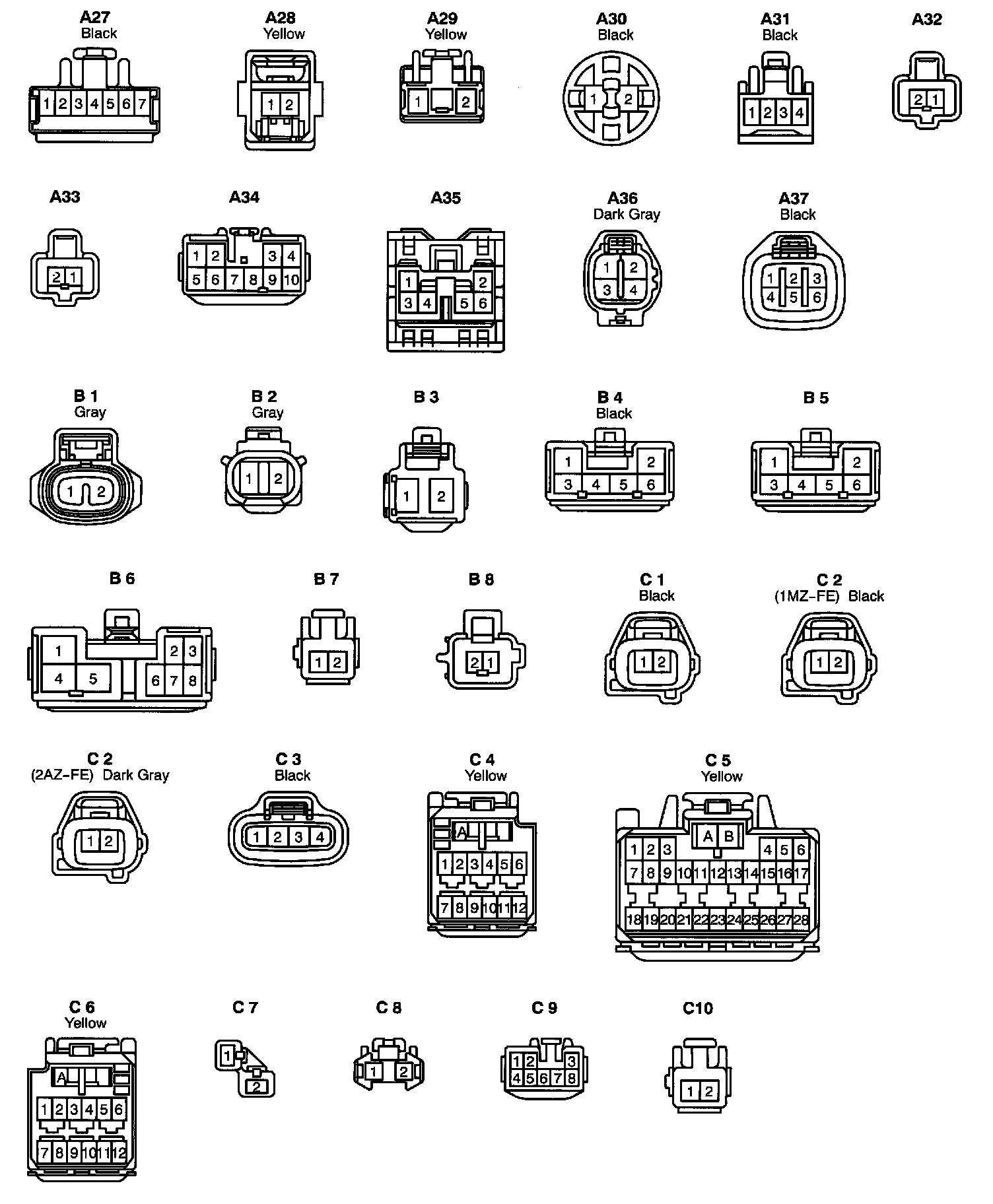

Connector Views (A27 - C10):

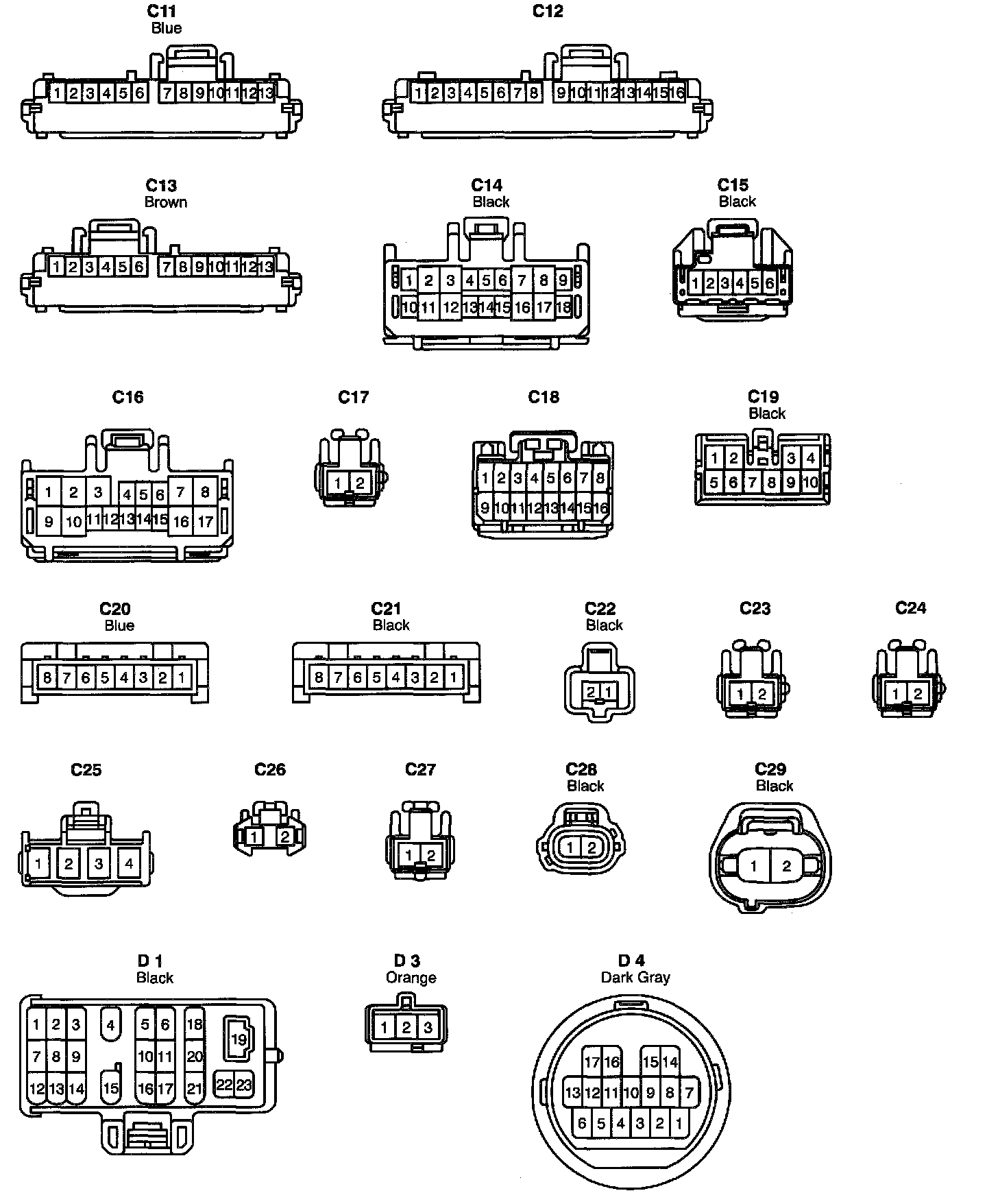

Connector Views (C11 - D4):

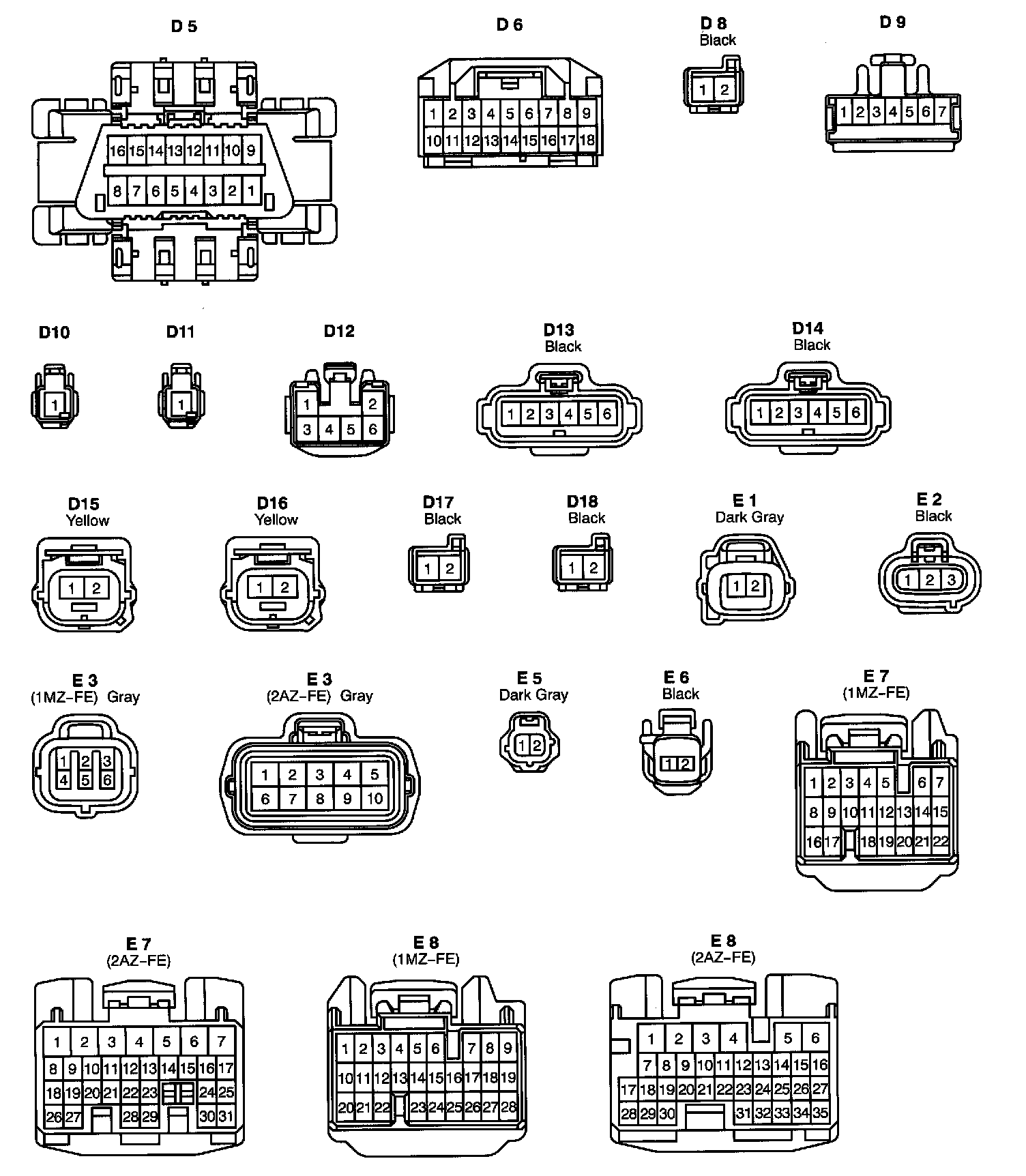

Connector Views (D5 - E8):

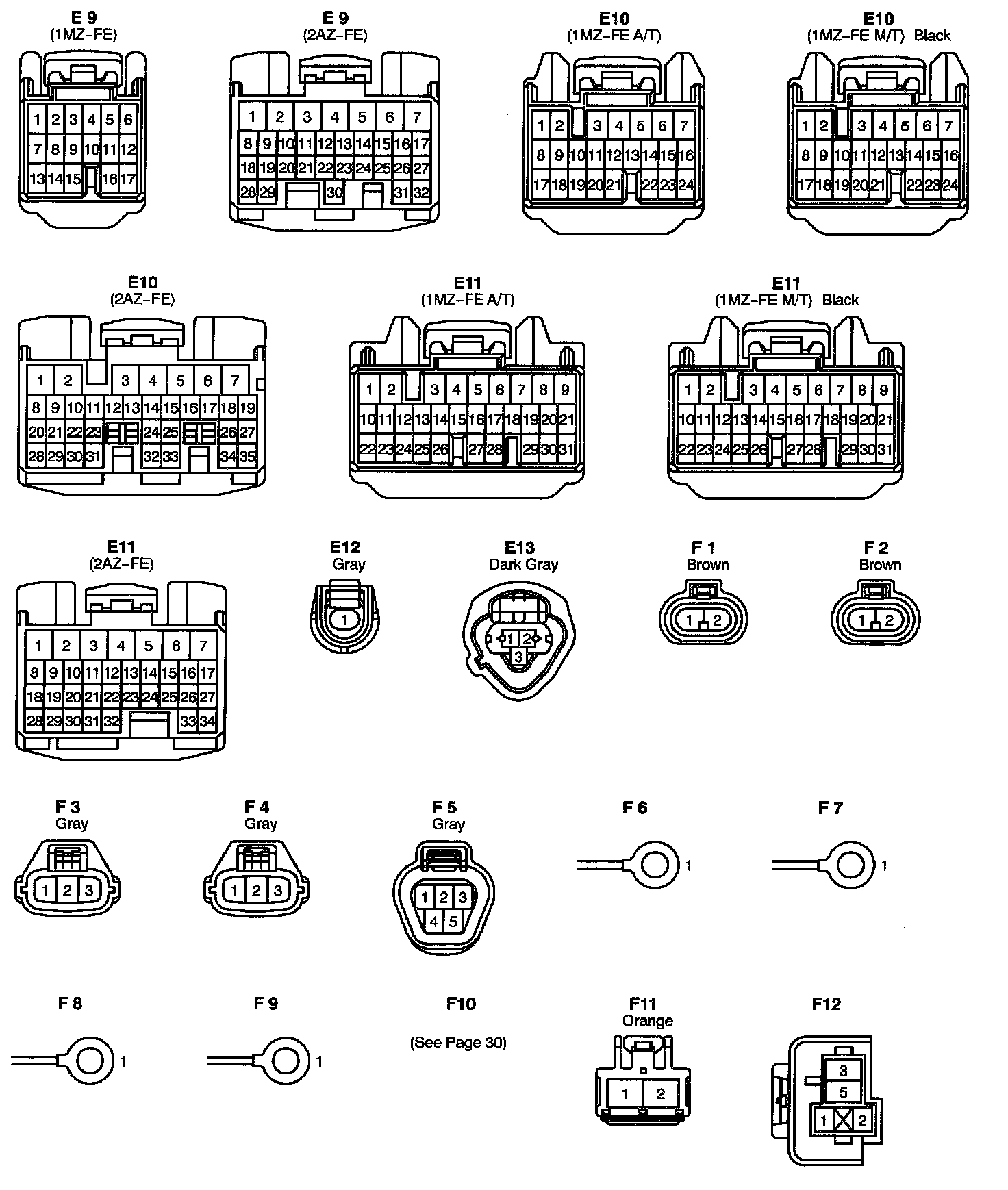

Connector Views (E9 - F12):

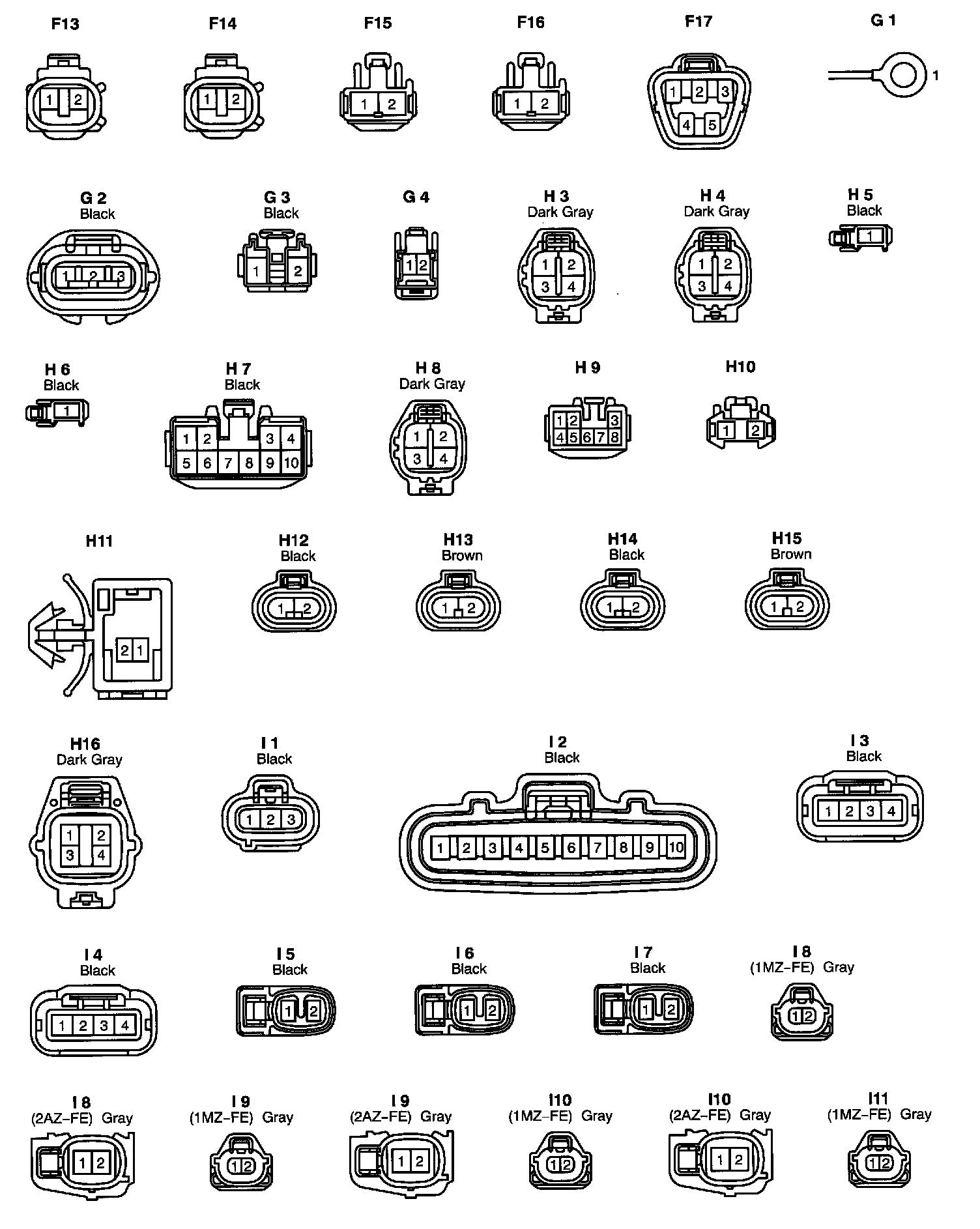

Connector Views (F13 - I11):

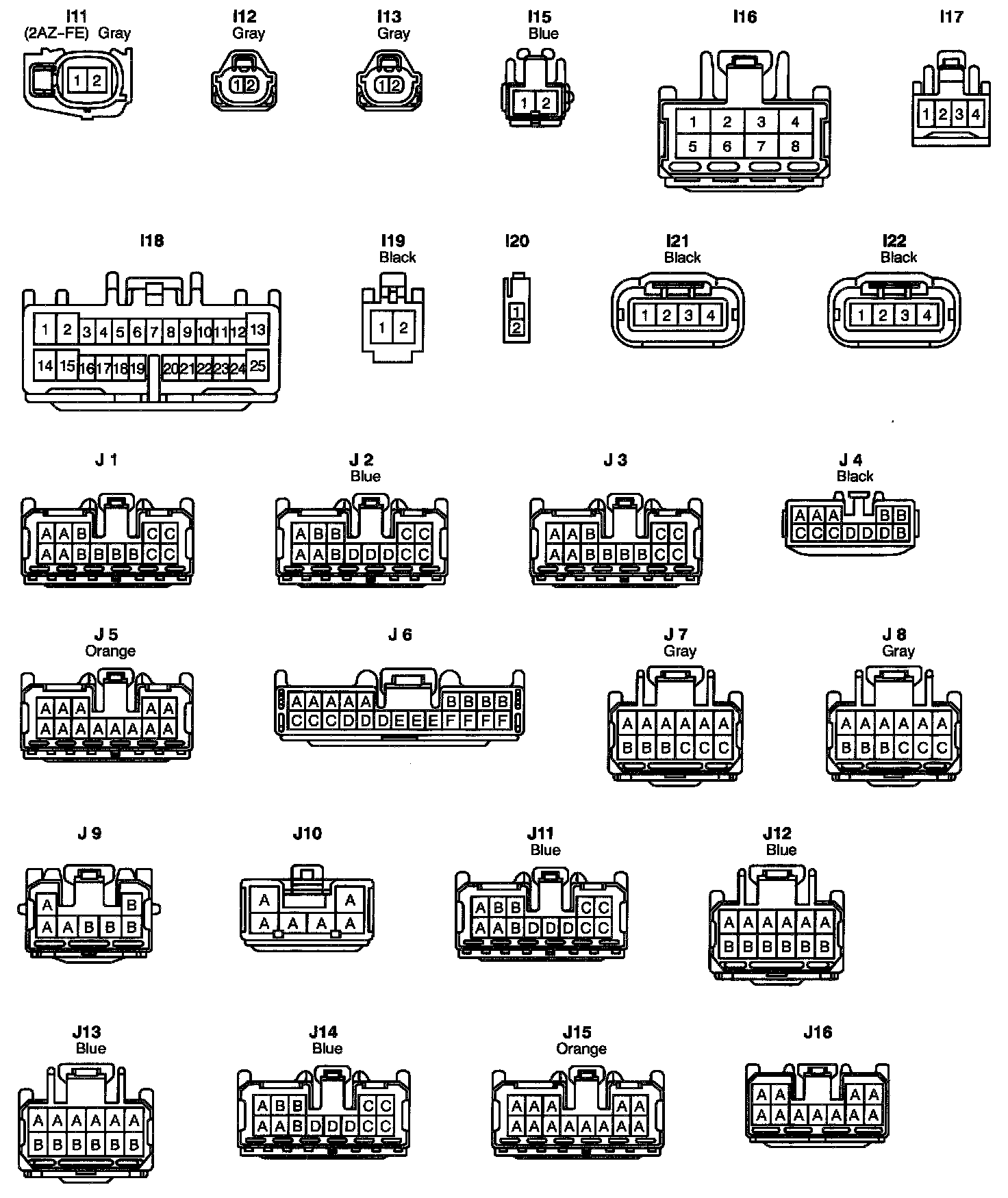

Connector Views (I11 - J16):

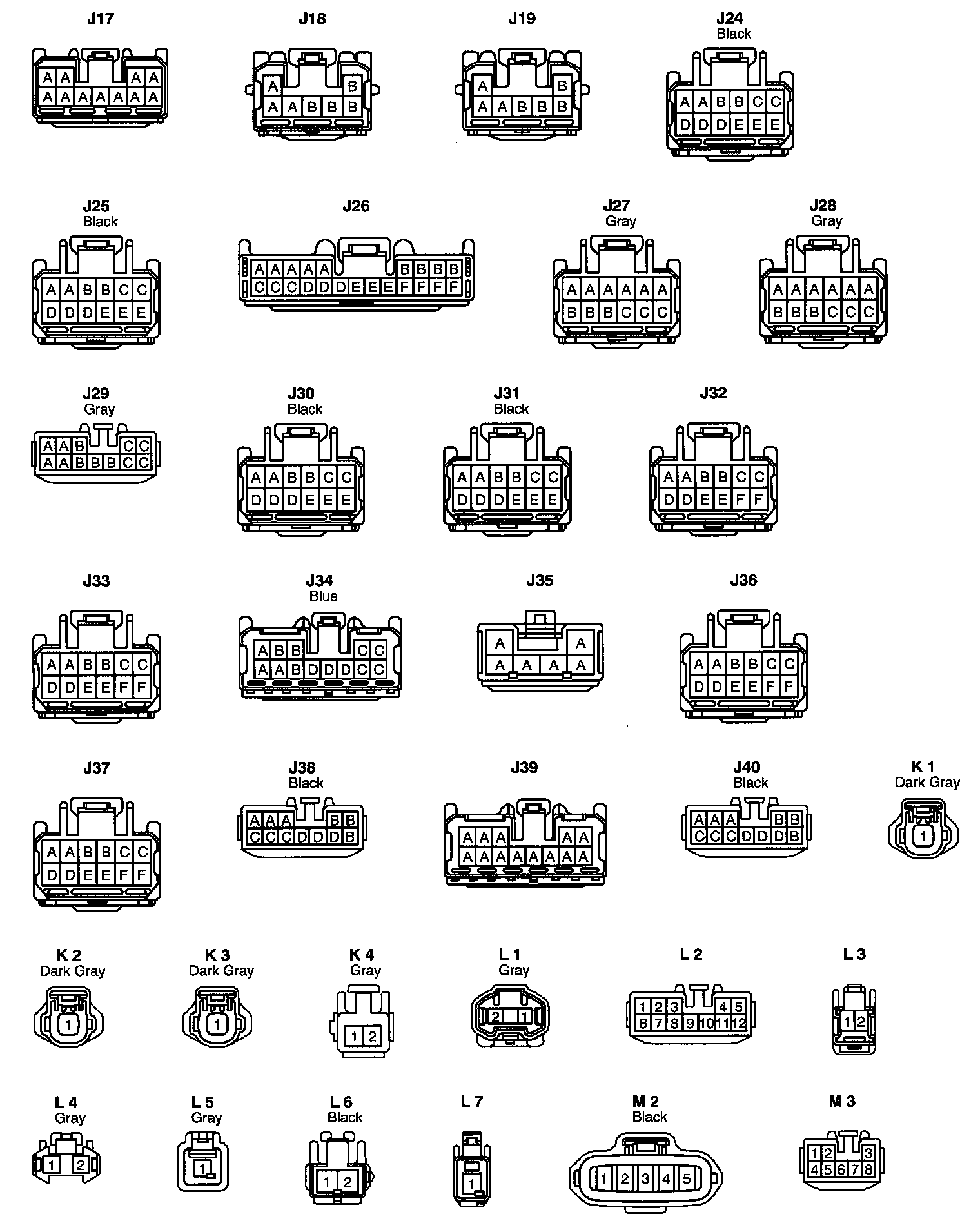

Connector Views (J17 - M3):

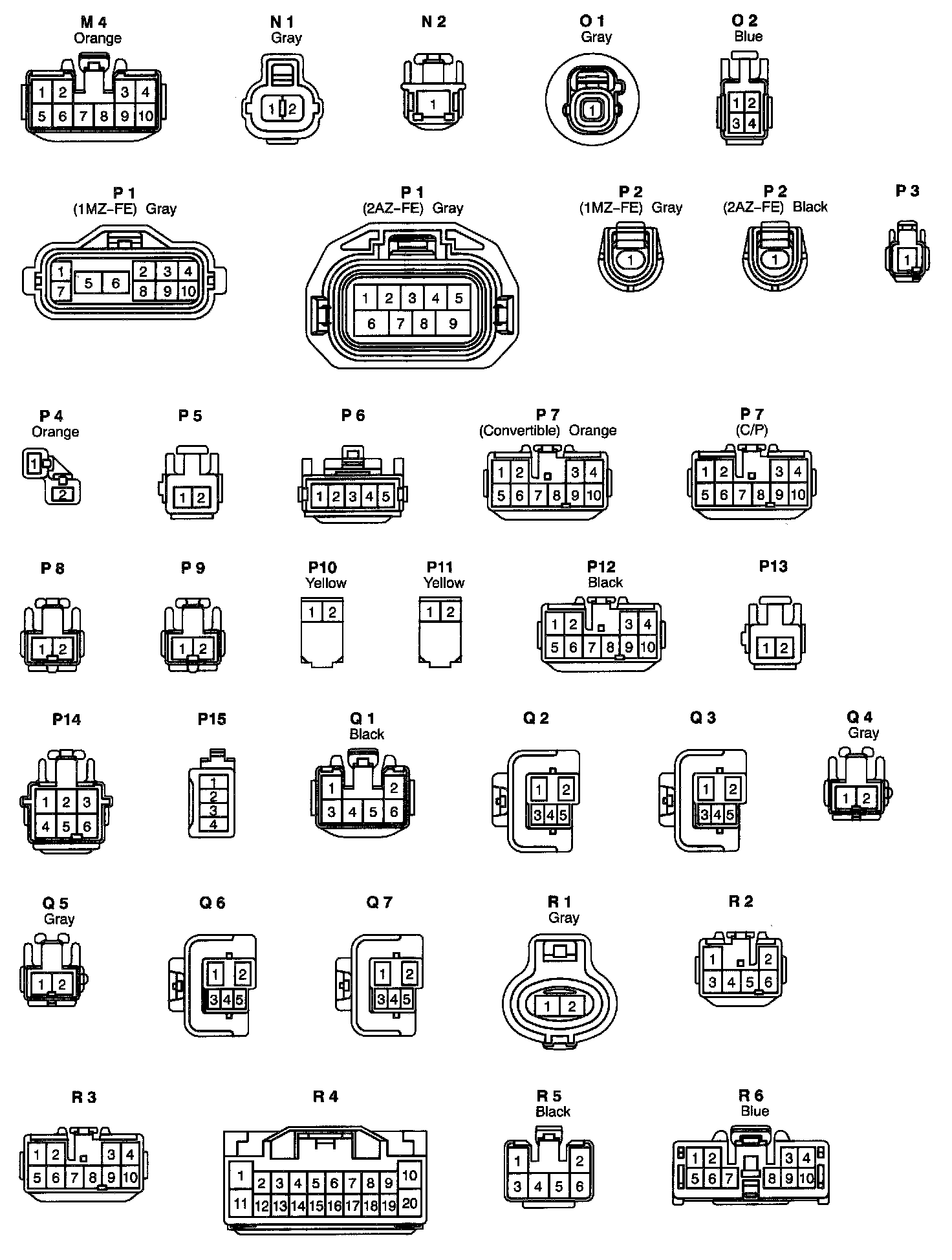

Connector Views (M4 - R6):

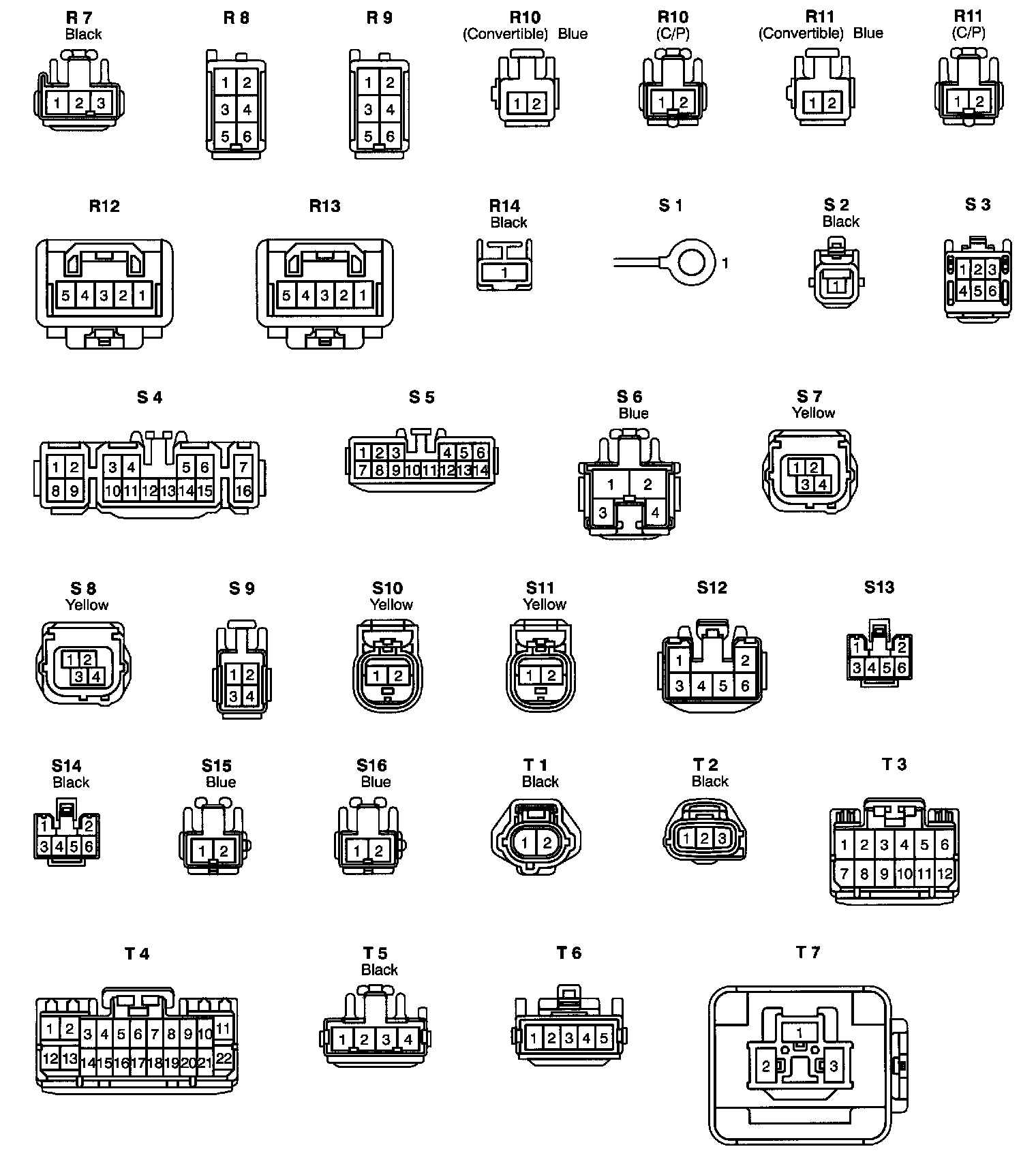

Connector Views (R7 - T7):

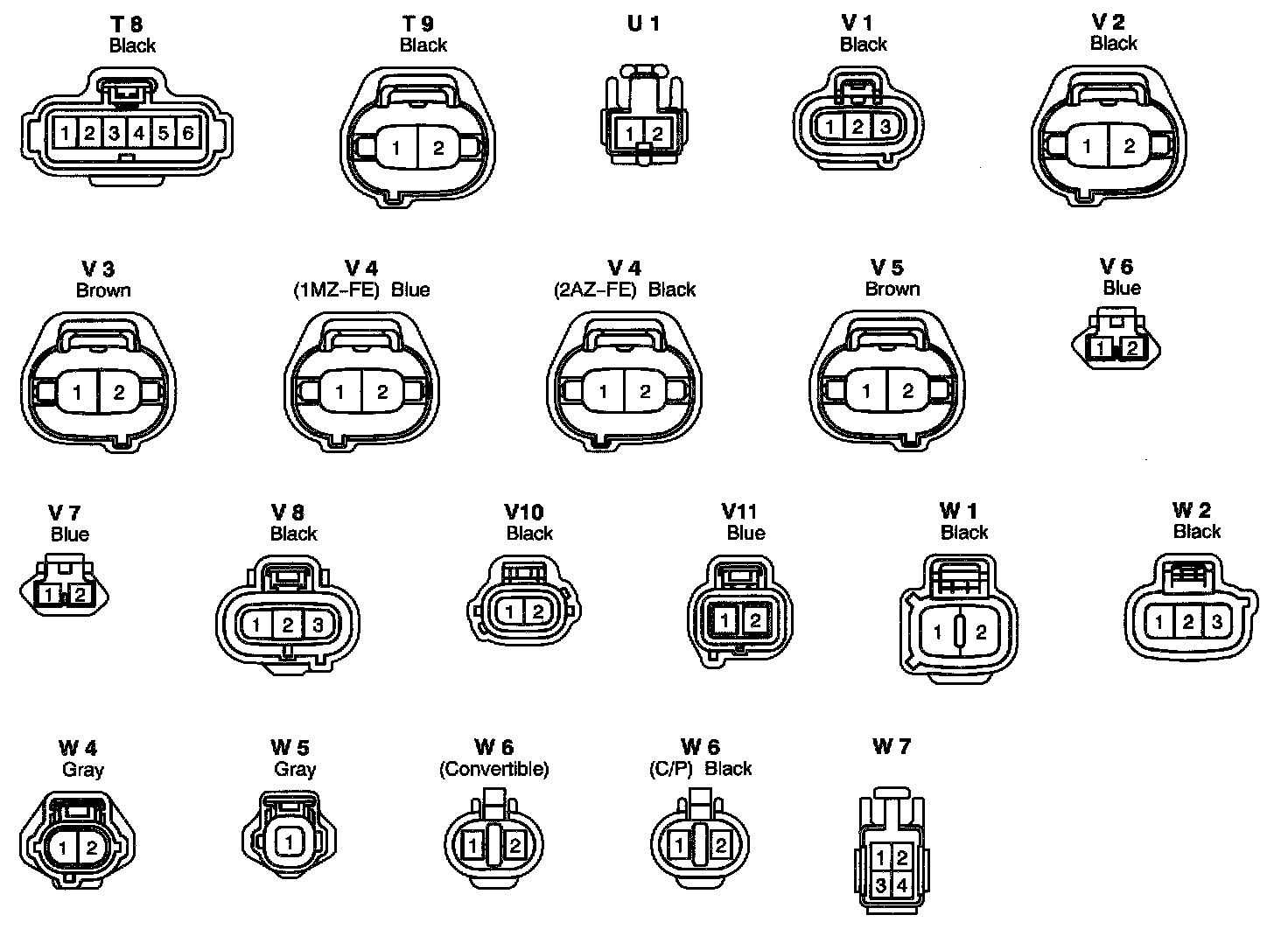

Connector Views (T8 - W7):
