Intake Manifold Torque and Data
Intake Manifold Torque
1ZZ-FE Engine 18.5 Nm (14 ft.lb)

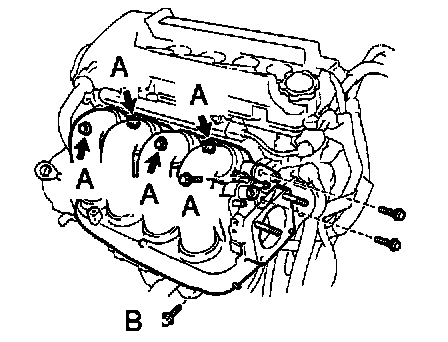

2ZZ-GE Engine
A 27 Nm (20 ft.lb)
B 46 Nm (34 ft.lb)
Intake Manifold Stay Torque 24 Nm (18 ft.lb)
Oil Dipstick and Guide Torque 25 Nm (18 ft.lb)
Intake Manifold Torque
1ZZ-FE Engine 18.5 Nm (14 ft.lb)
2ZZ-GE Engine
A 27 Nm (20 ft.lb)
B 46 Nm (34 ft.lb)
Intake Manifold Stay Torque 24 Nm (18 ft.lb)
Oil Dipstick and Guide Torque 25 Nm (18 ft.lb)
