Splice Locations

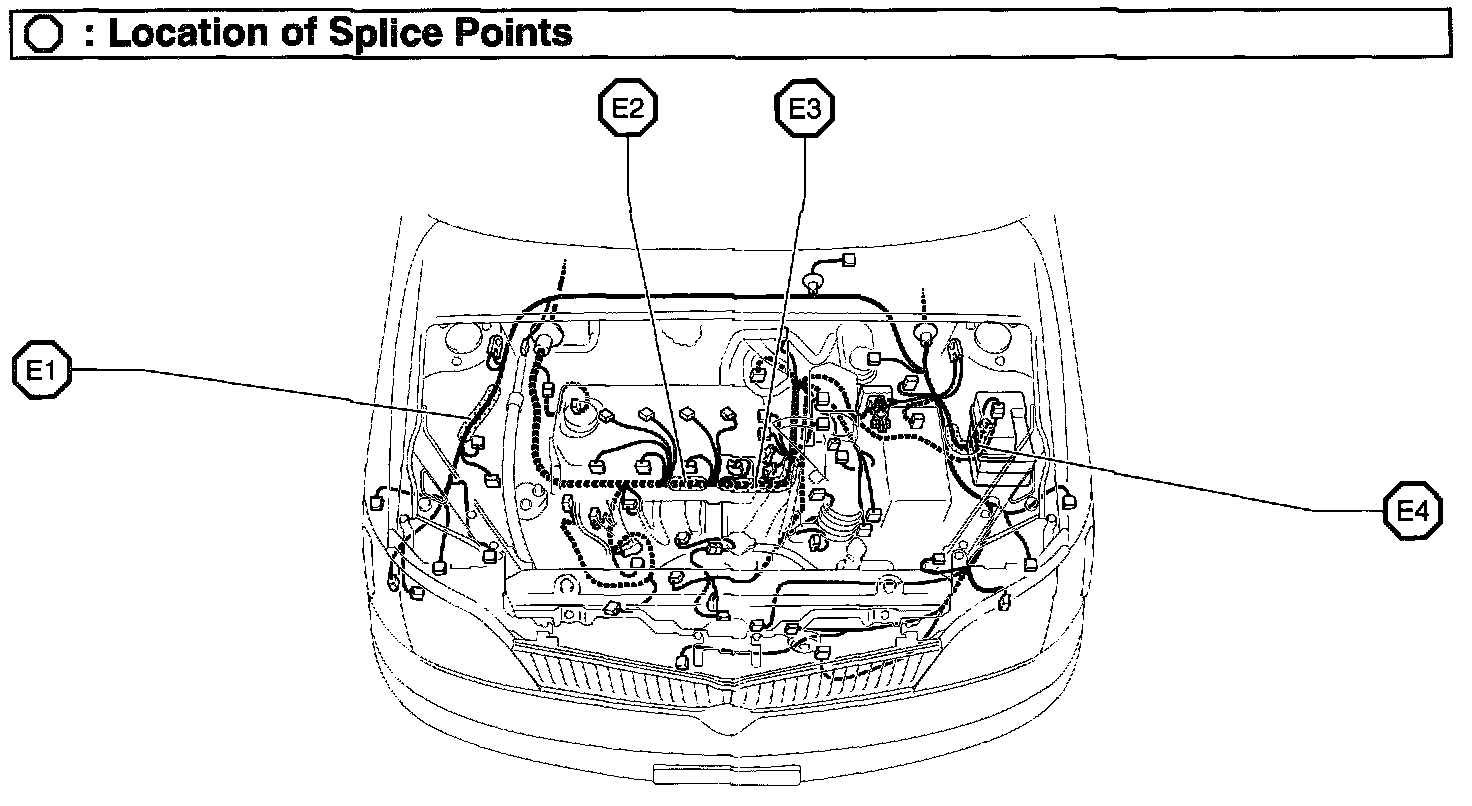

Engine Mechanical:
Splice Location
E1 Engine Room Main Wire
E2 Engine Wire
E3 Engine Wire
E4 Engine Room Main Wire

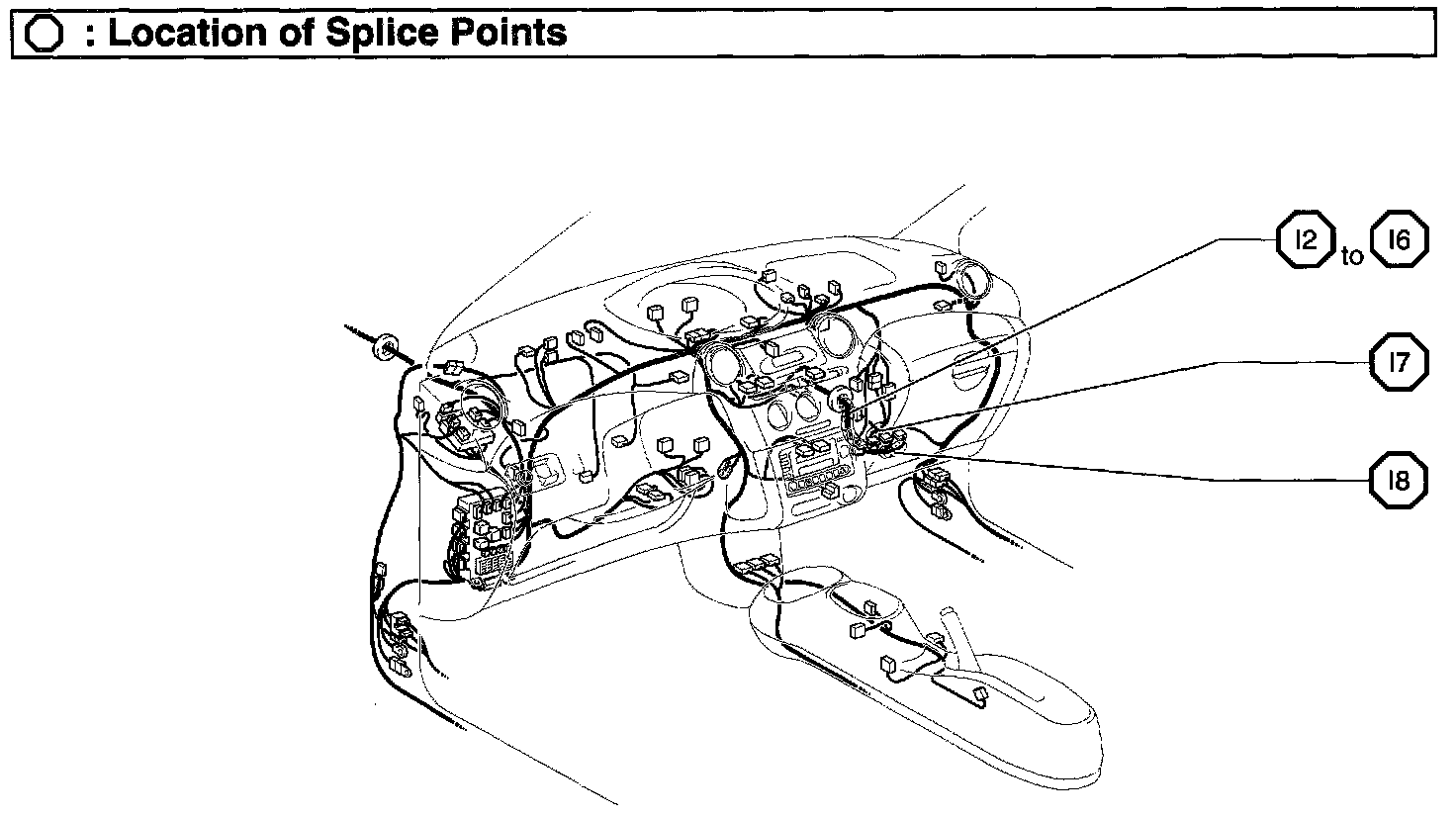

Instrument Panel:
Splice Location
I2 Engine Wire
I3 Engine Wire
I4 Engine Wire
I5 Engine Wire
I6 Engine Wire
I7 Engine Wire
I8 Engine Wire

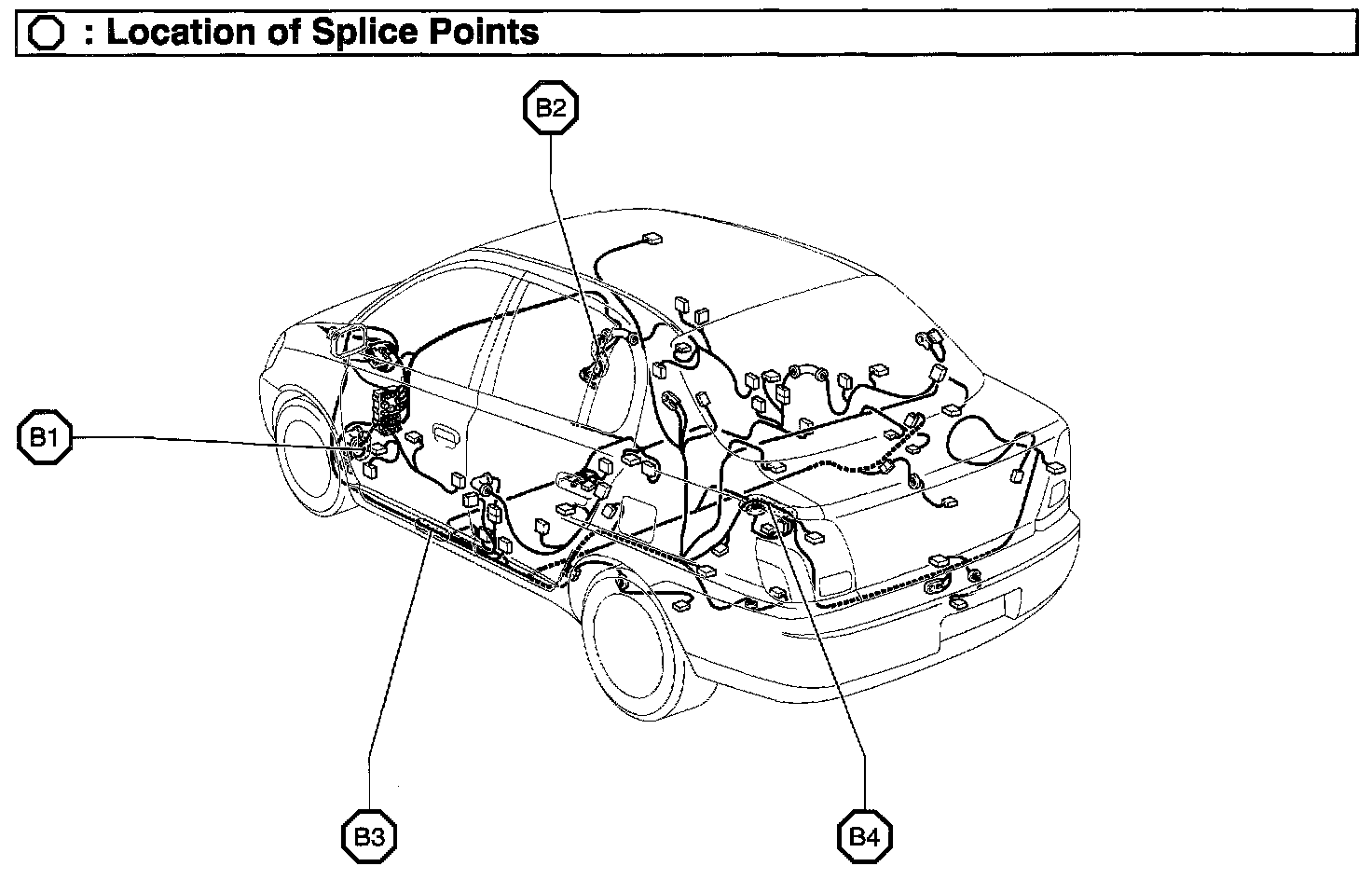

Body - 4-Door:

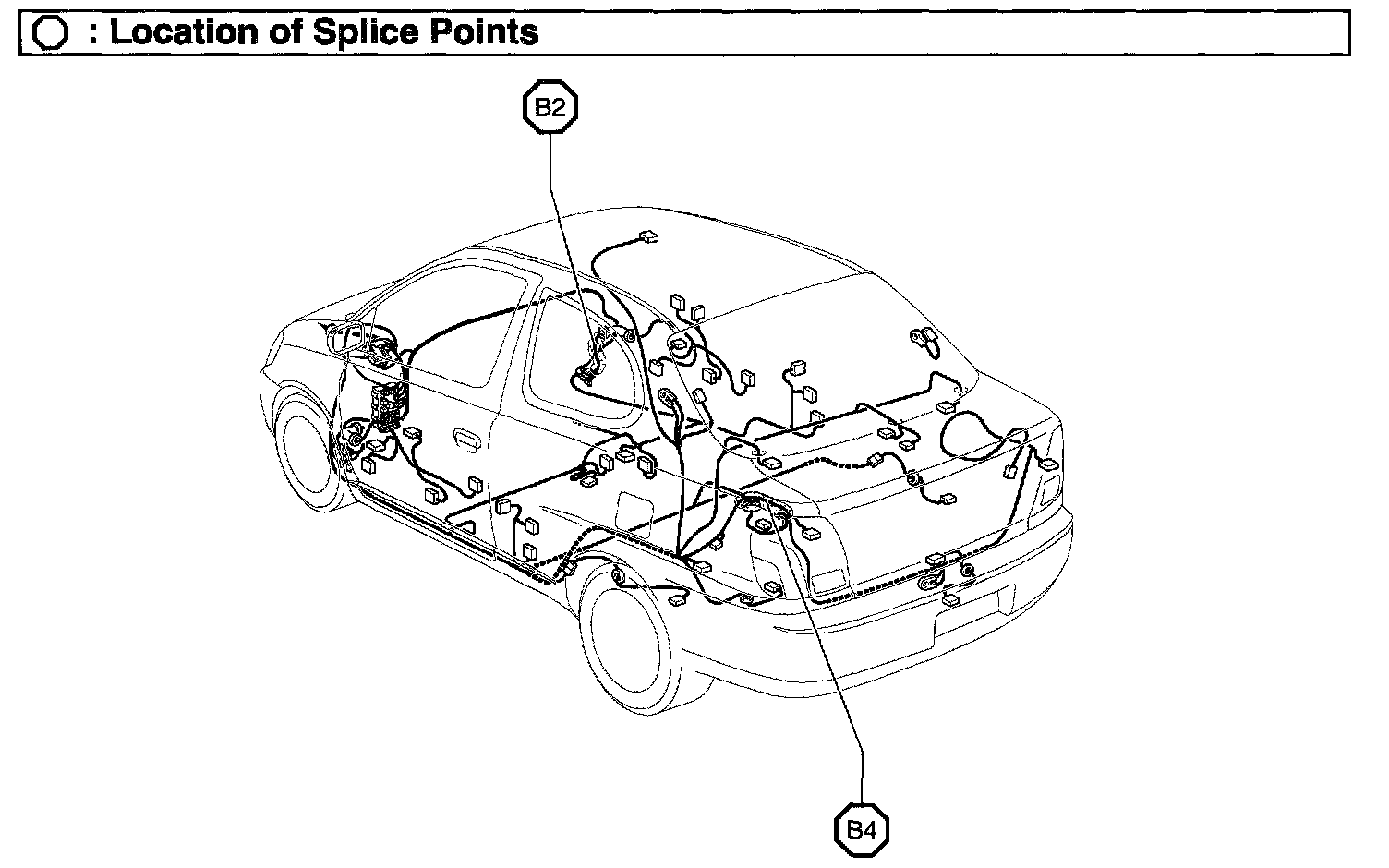

Body - 2-Door:
Splice Location
B1 Front Door LH Wire
B2 Front Door RH Wire
B3 Engine Wire
B4 Floor Wire
