Component Tests
CIRCUIT DESCRIPTION The O/D main switch is a momentary type switch. When pressing the O/D main switch, the O/D OFF indicator light lights up and ECM prohibits shifting to O/D, and when pressing it again, the O/D OFF indicator light goes off and ECM allows shifting to O/D. Turning the IG switch OFF will reset the O/D OFF indicator light.

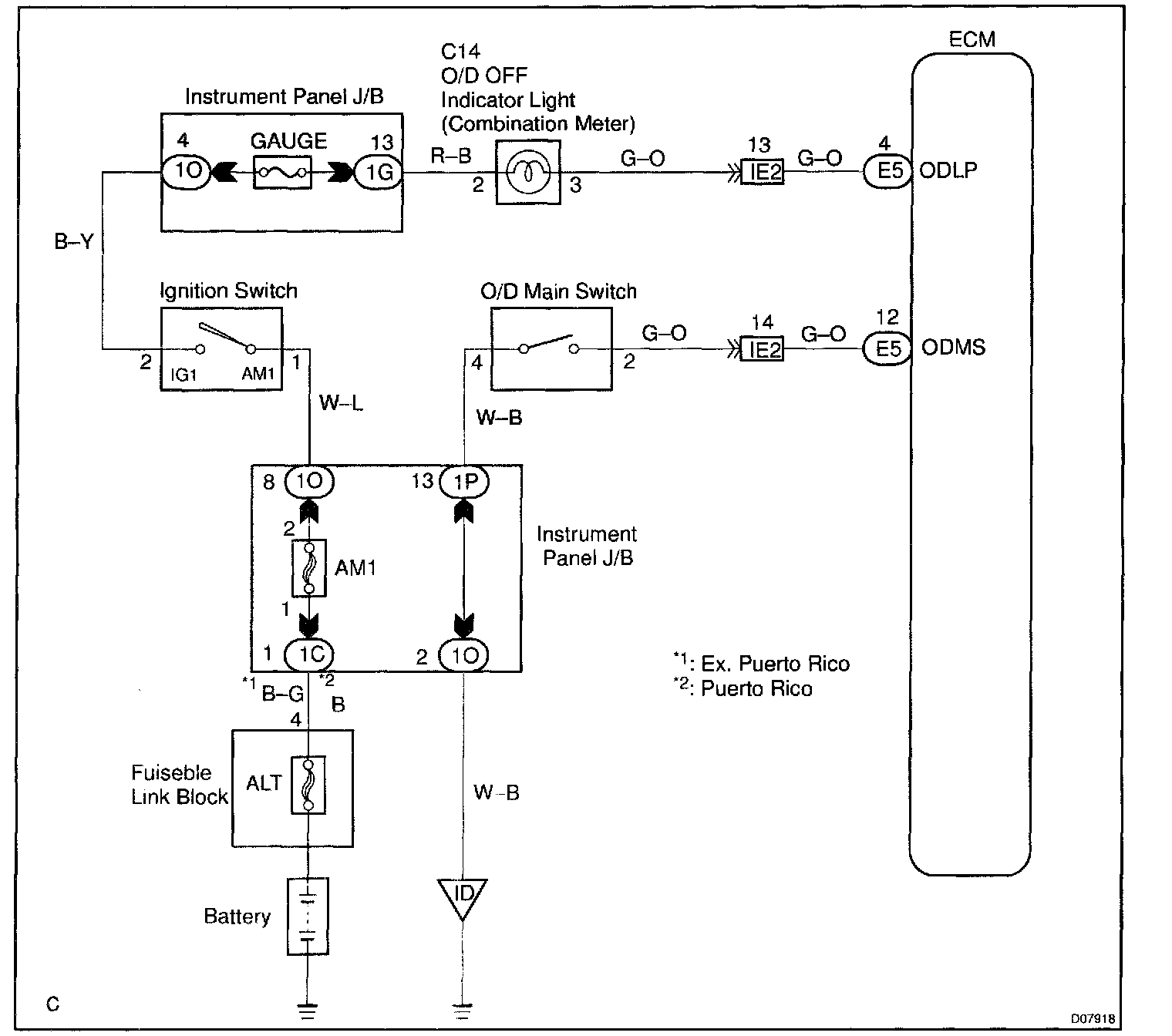

Wiring Diagram:

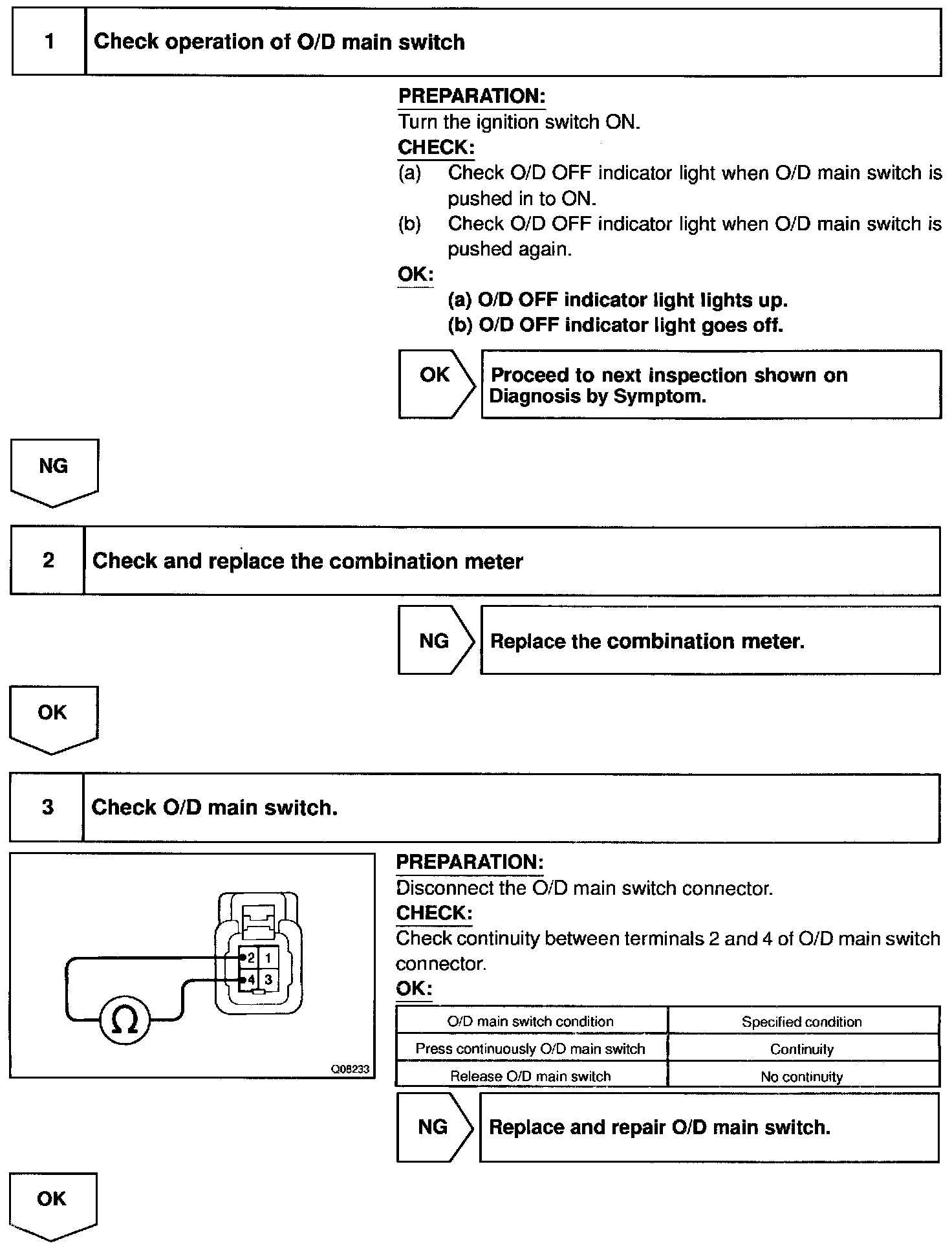

Step 1 - 3:

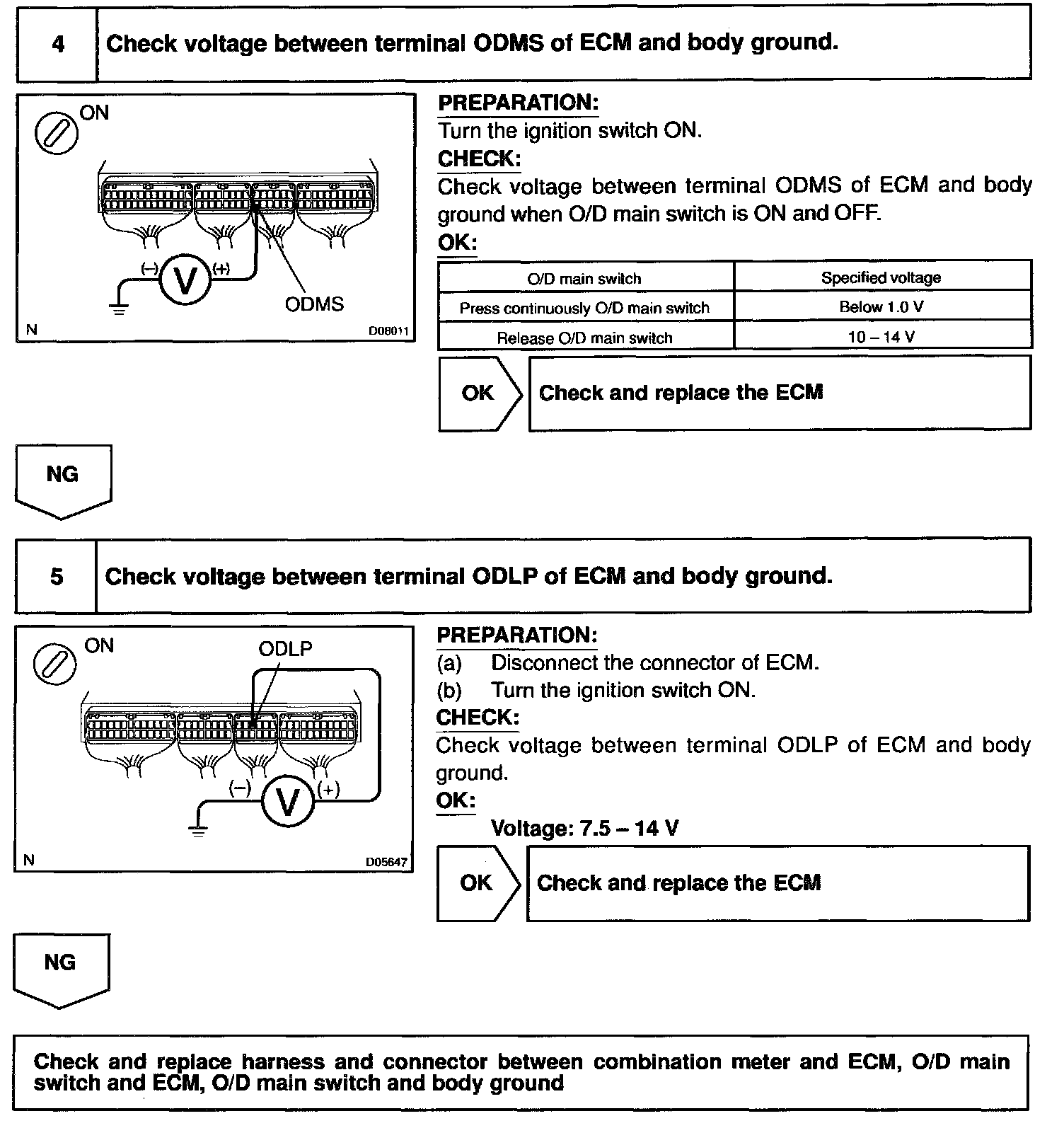

Step 4 - 5:
INSPECTION PROCEDURE
