Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
When the cruise control MAIN switch is turned off, the cruise control does not operate.


Wiring Diagram:






Step 1 - 2:

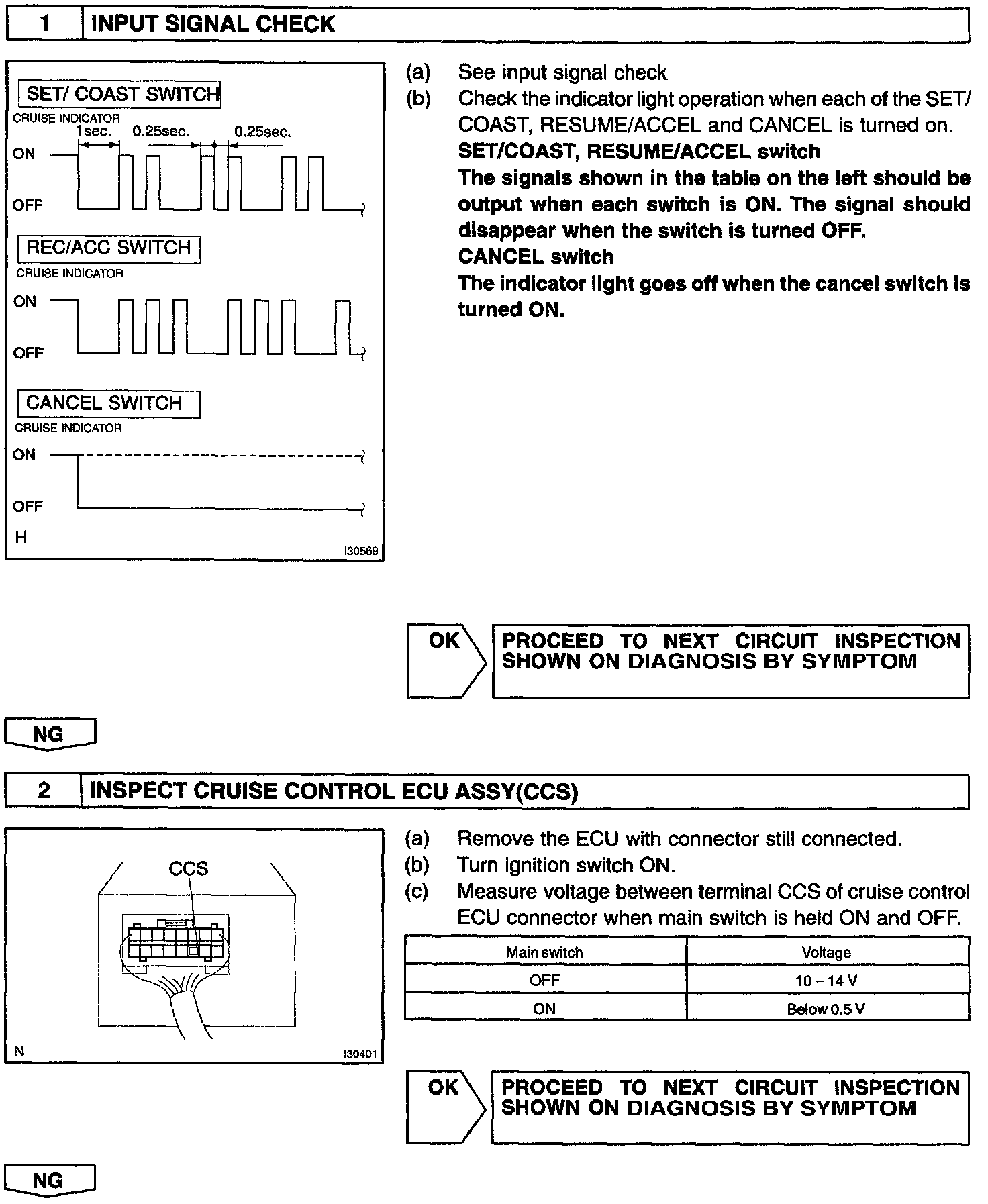

Step 3 - 4:

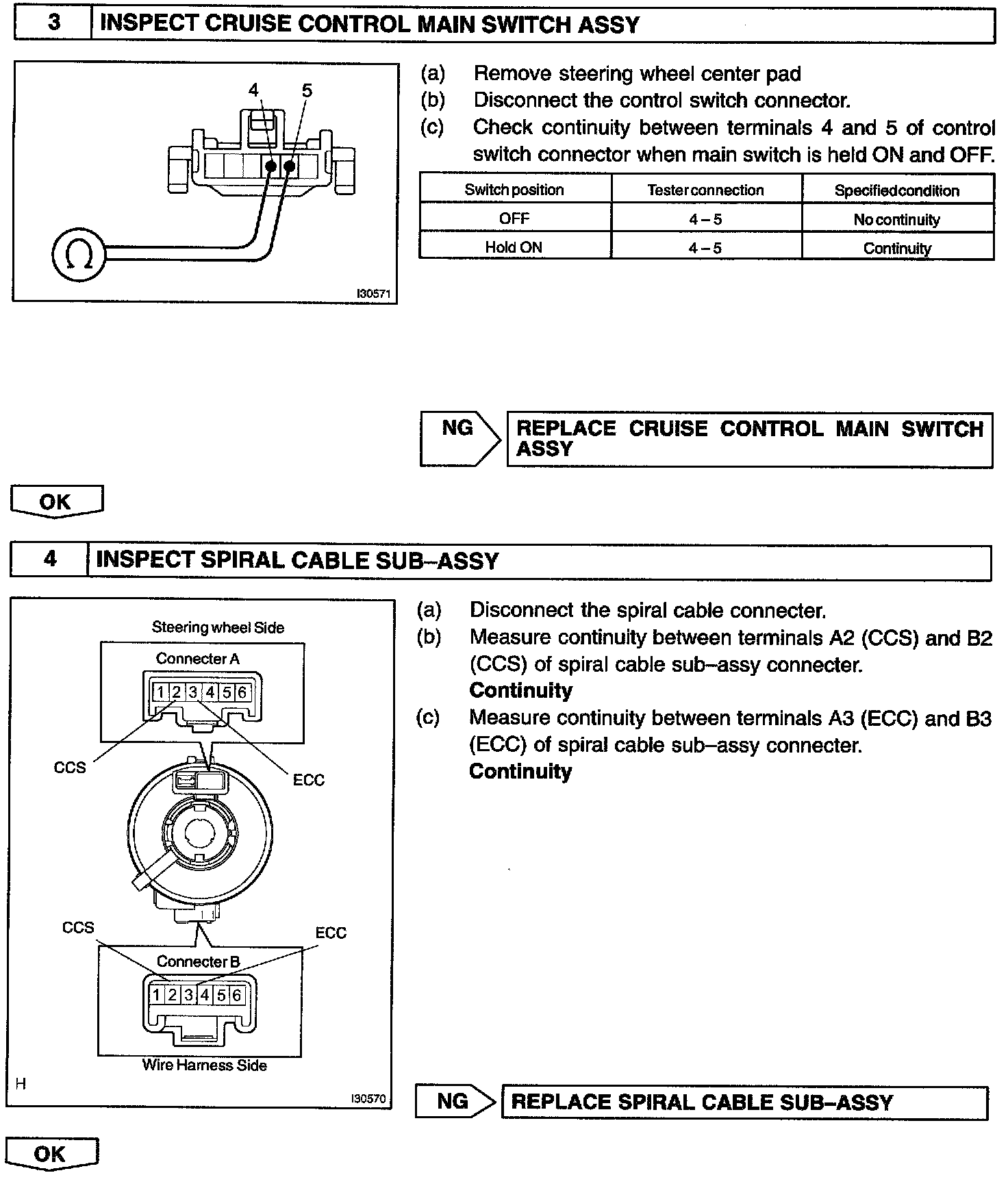

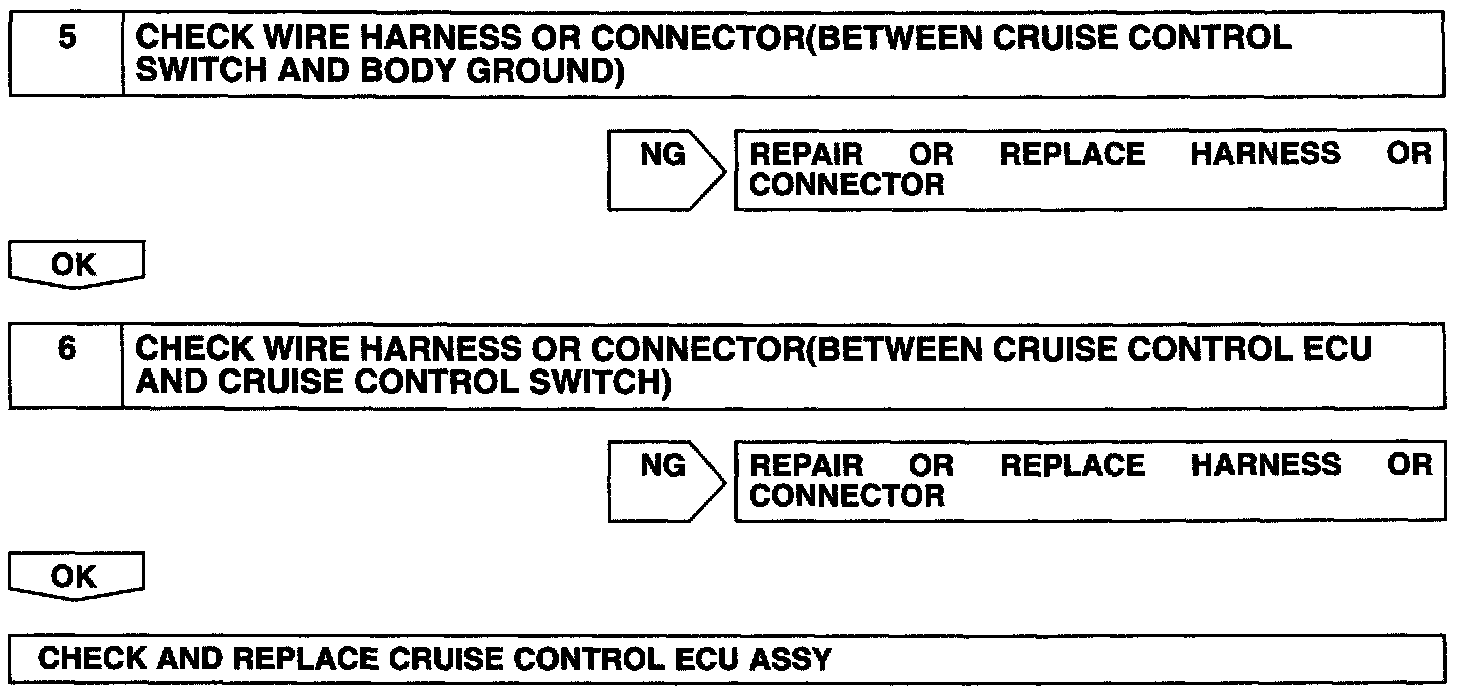

Step 5 - 6:




INSPECTION PROCEDURE
