Throttle Position Sensor: Testing and Inspection
THROTTLE POSITION SENSOR a.
Resistance inspection.
1.
Disconnect the
throttle position sensor connector.
2.

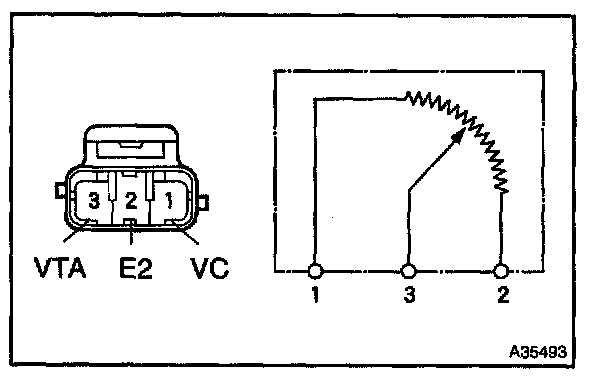

Using an ohmmeter, measure the resistance between terminals VC and E2.
Resistance:
2.5 - 5.0 k(Ohm) 3.
Check the change of resistance between terminals VTA and E2.
Change of resistance:
The resistance value increases in proportion to the throttle lever opening value.
